Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Unit

26 part groups · 12 illustrations

Illustrations

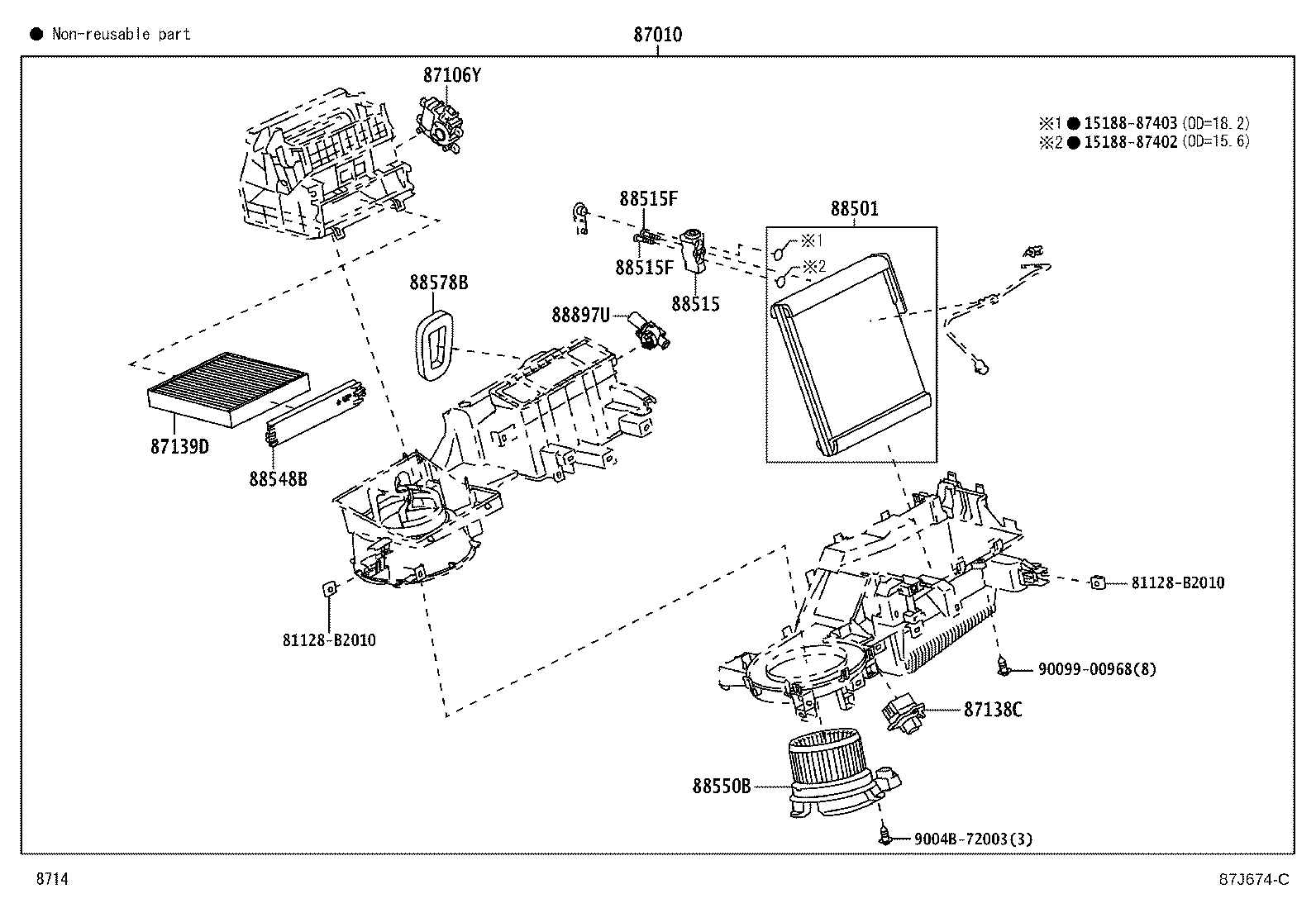

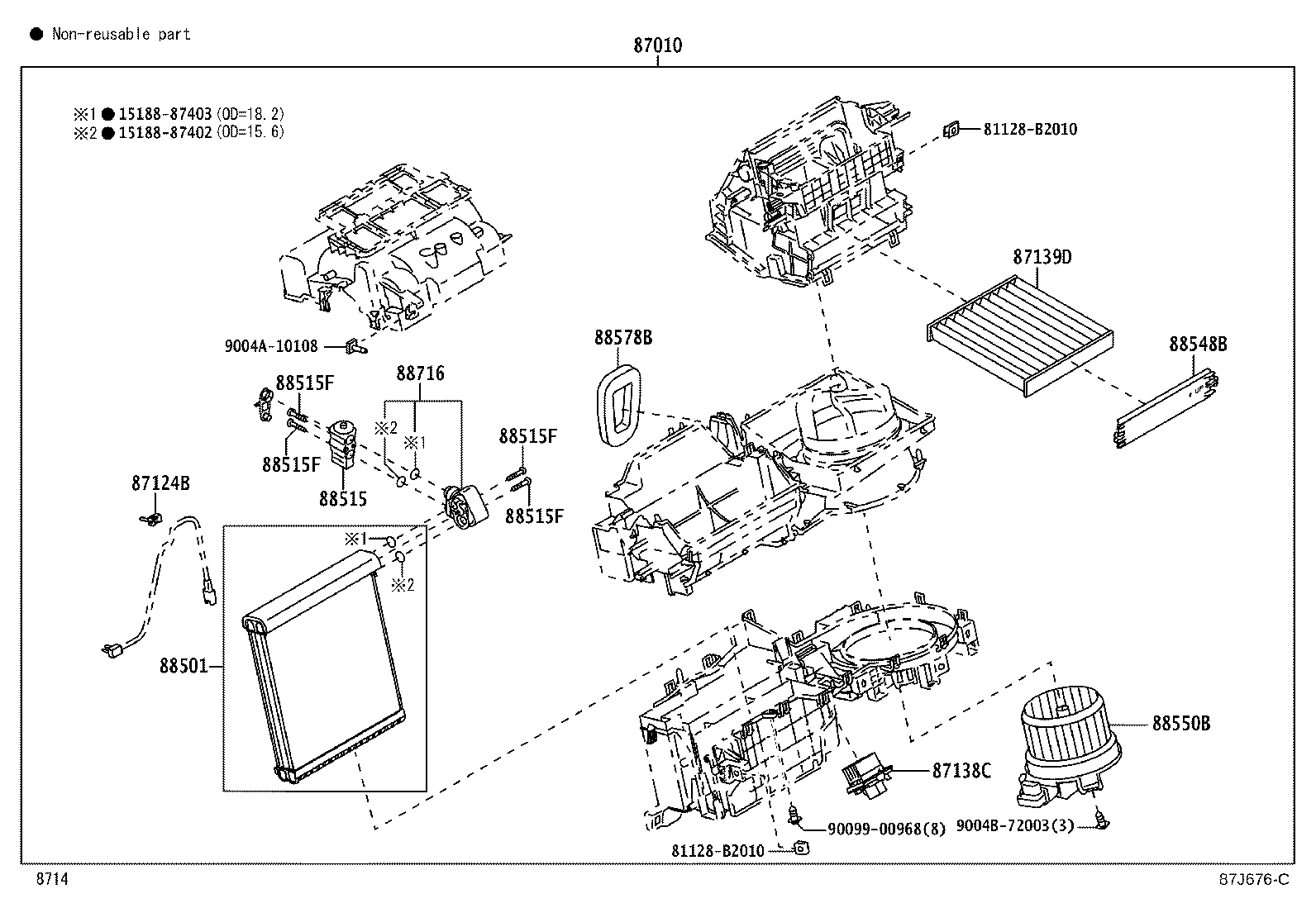

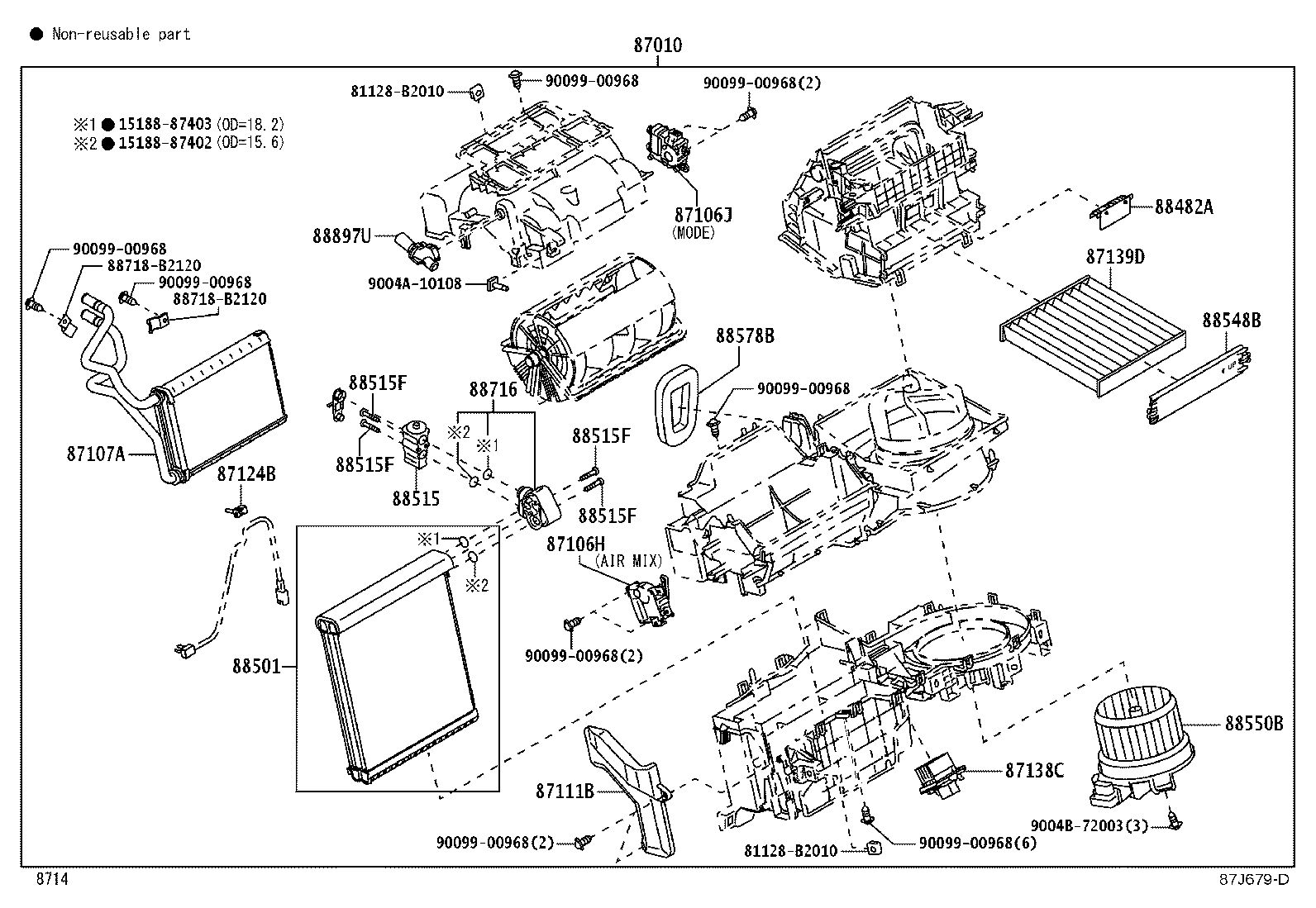

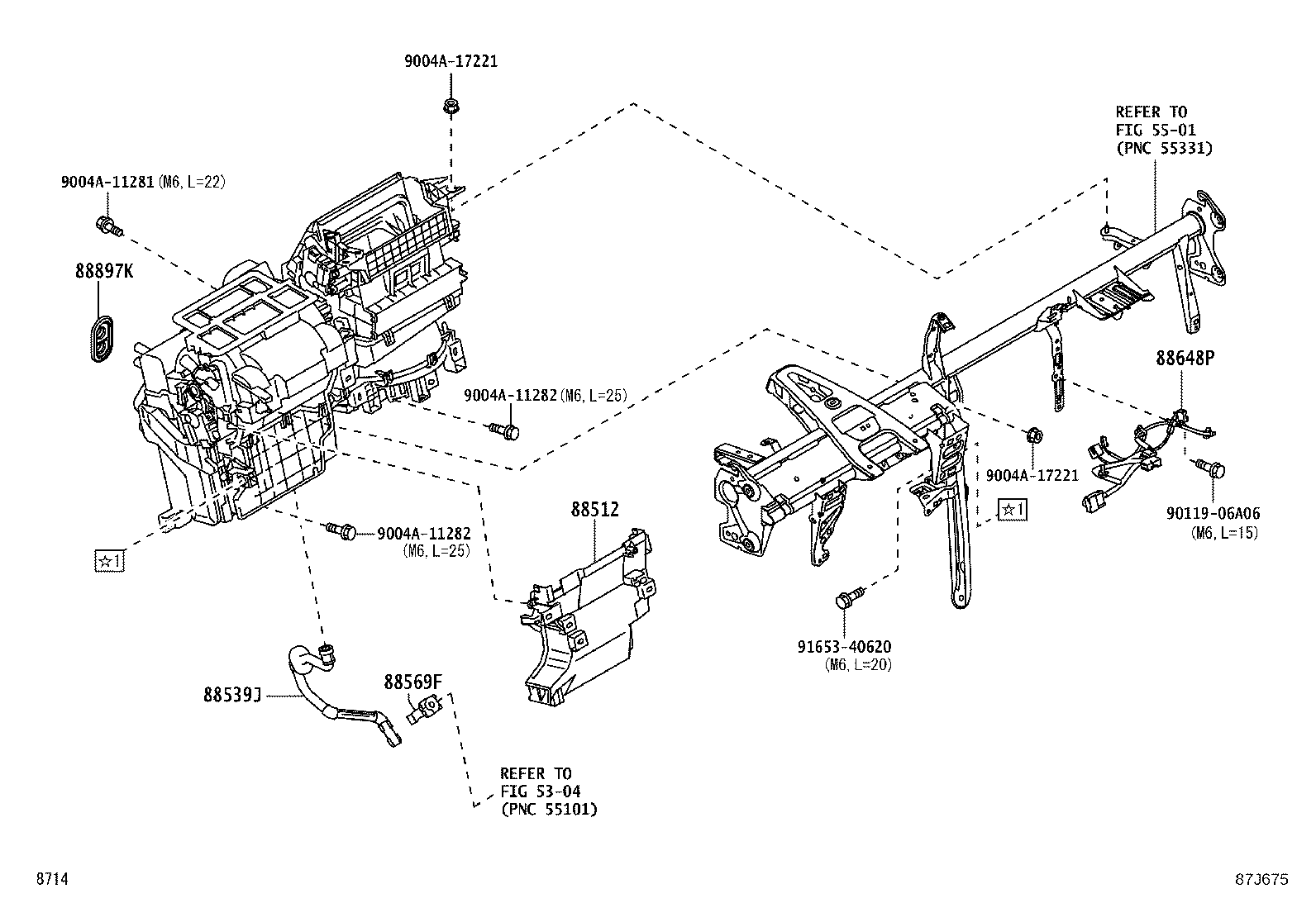

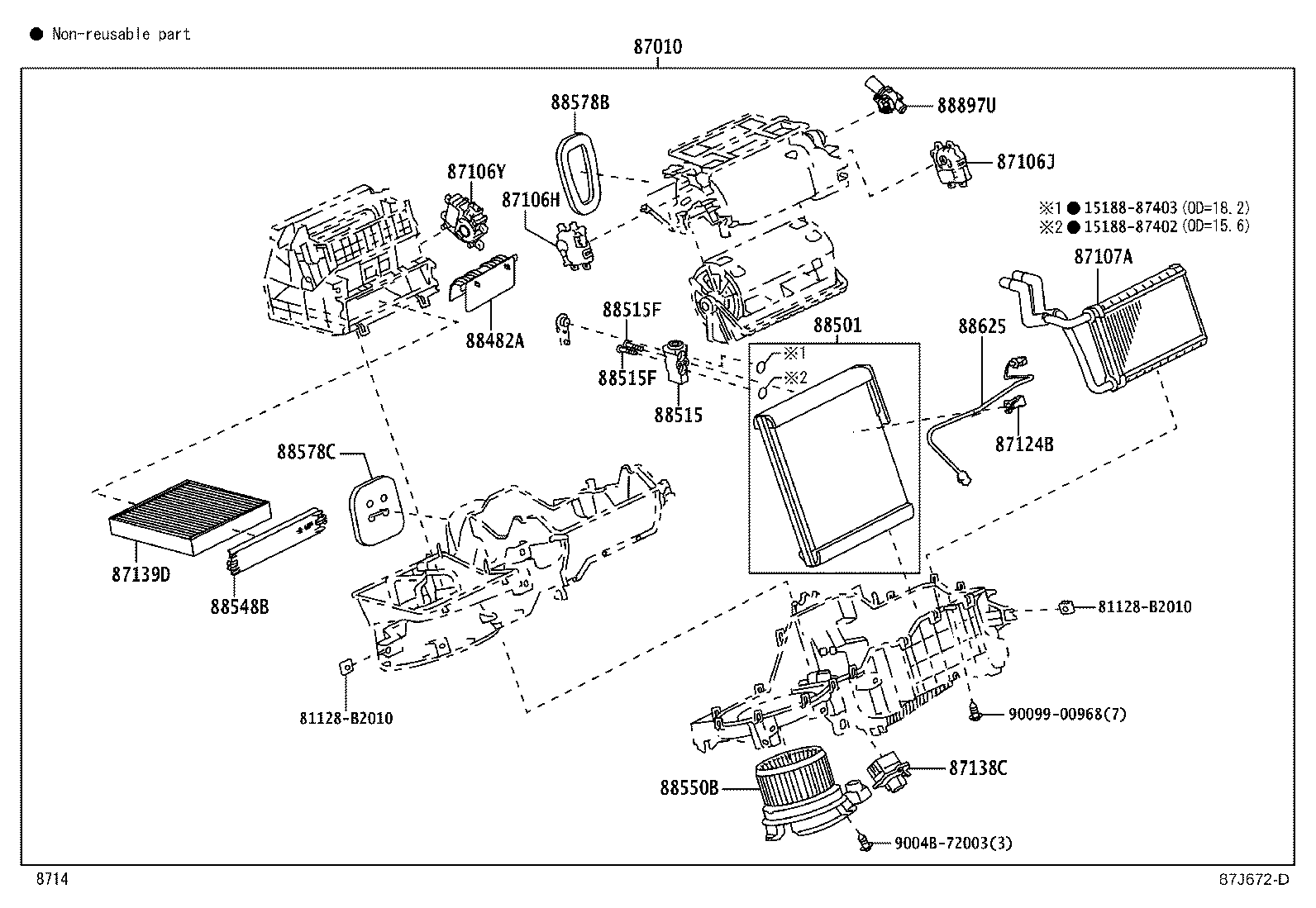

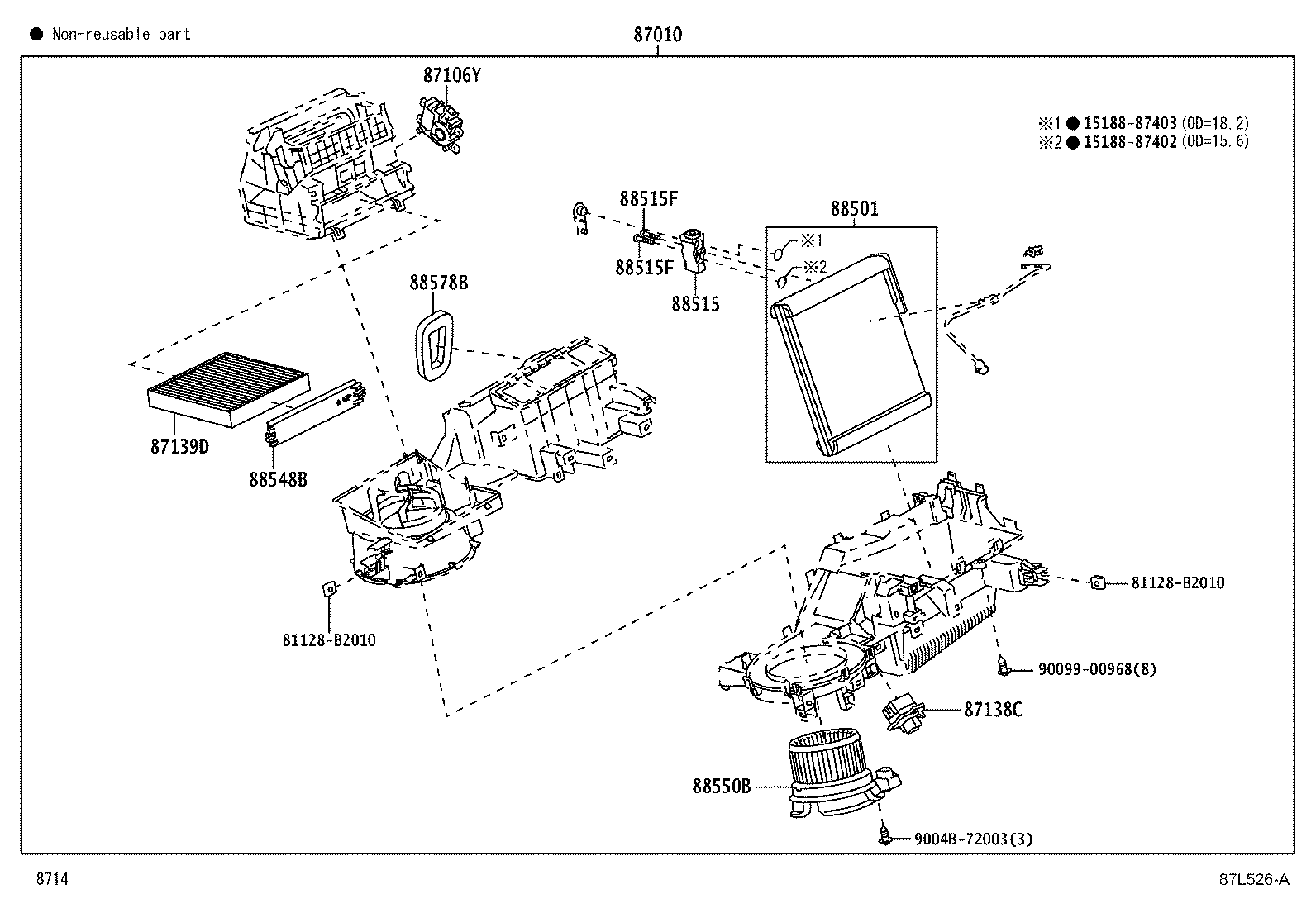

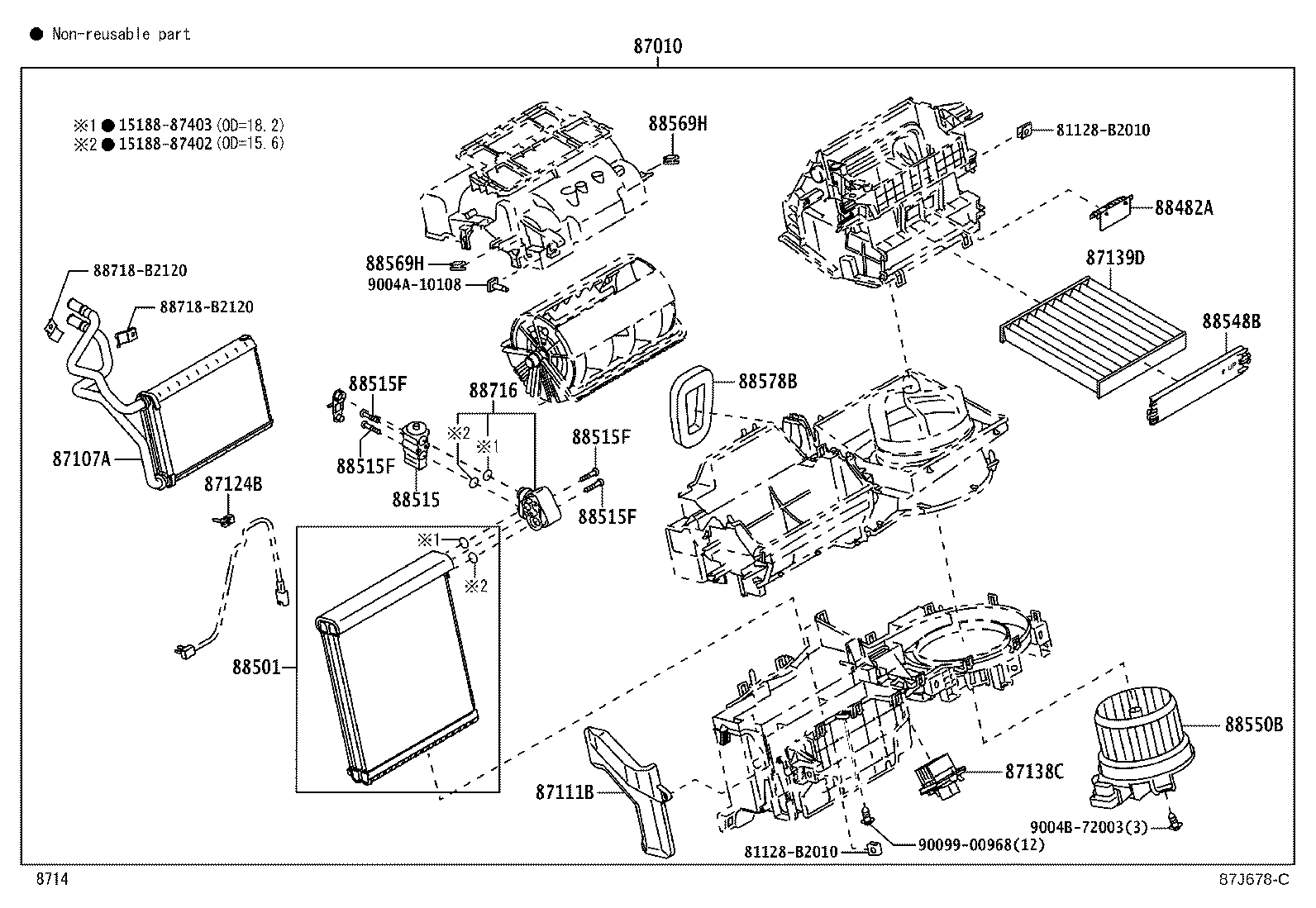

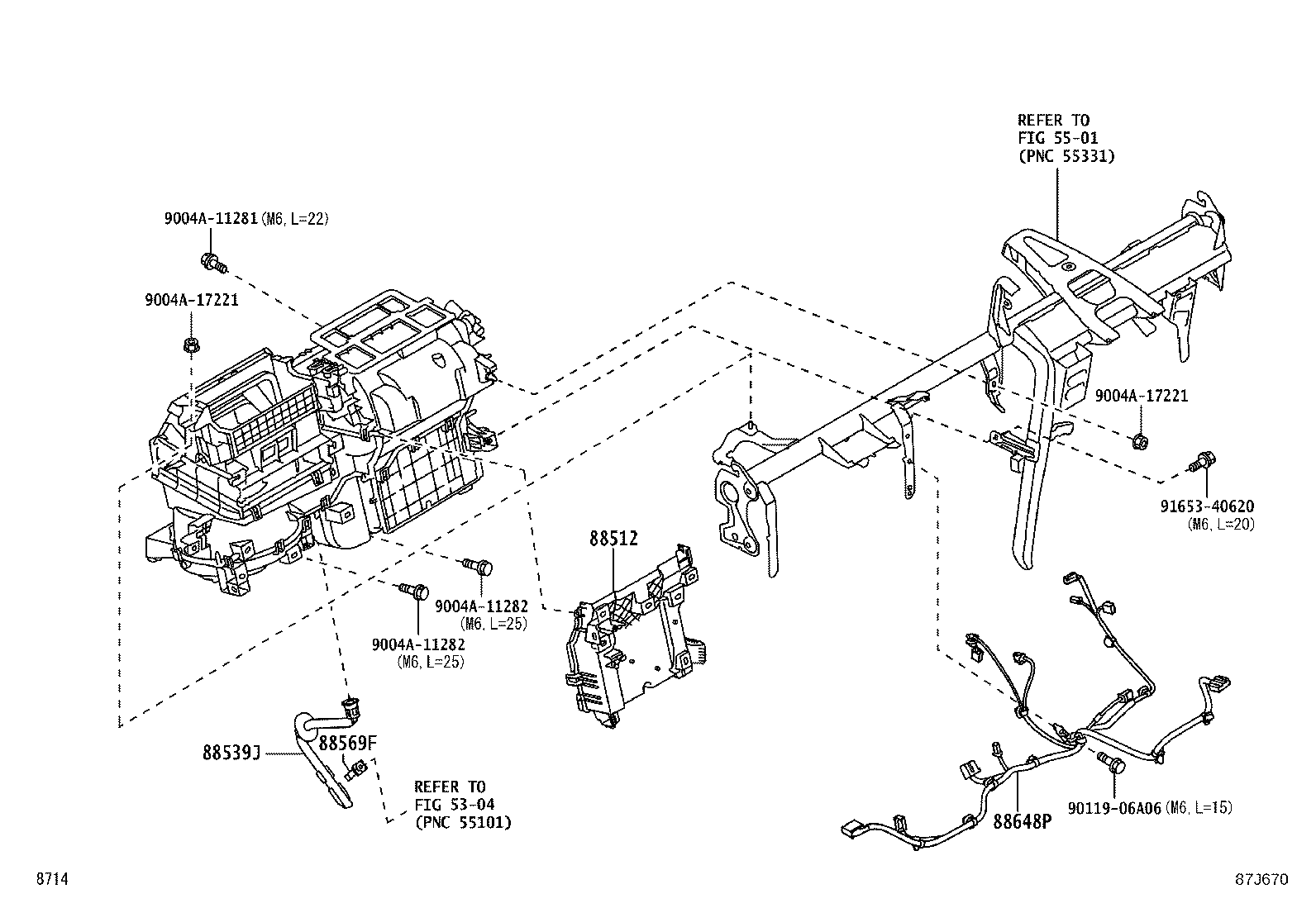

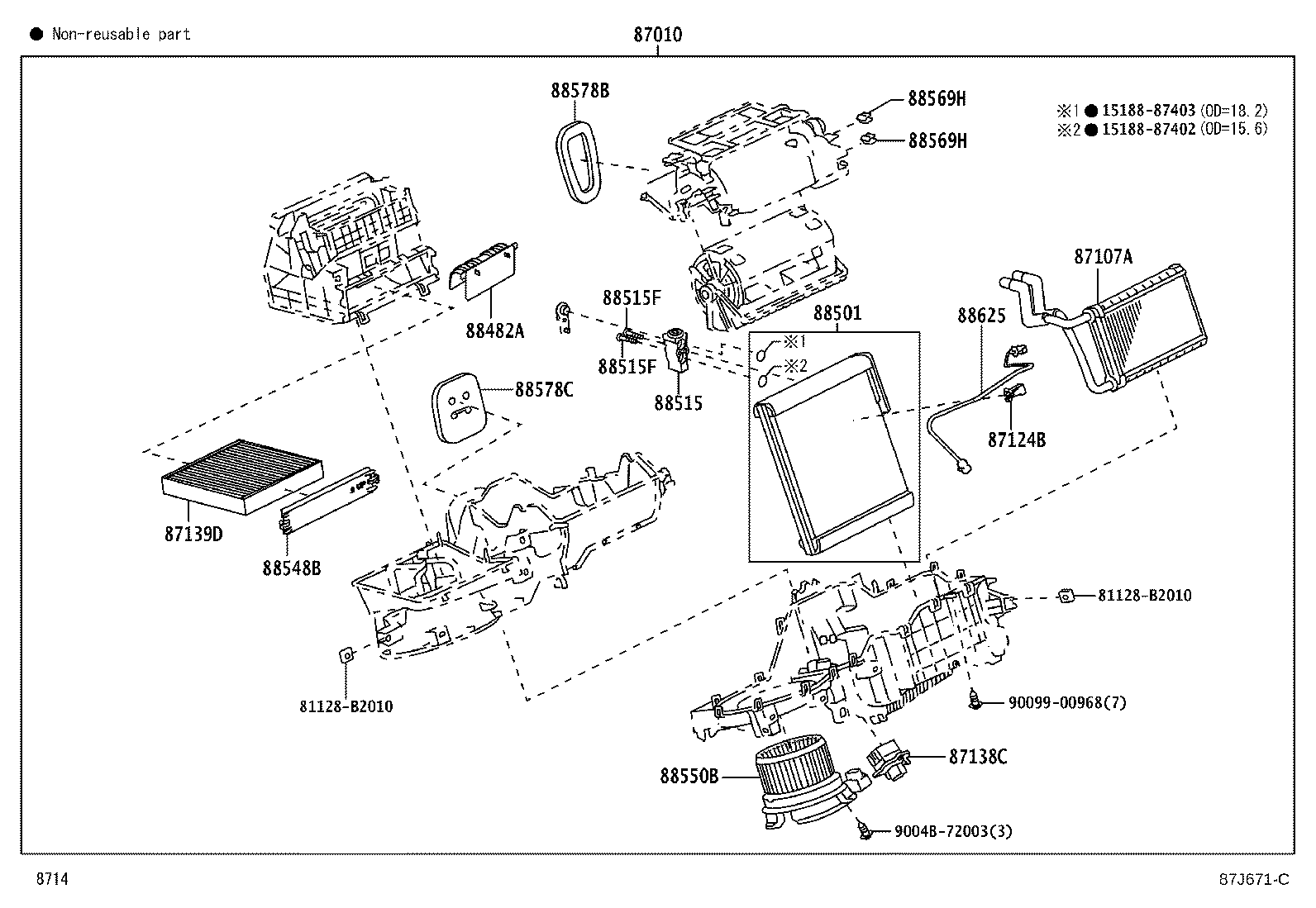

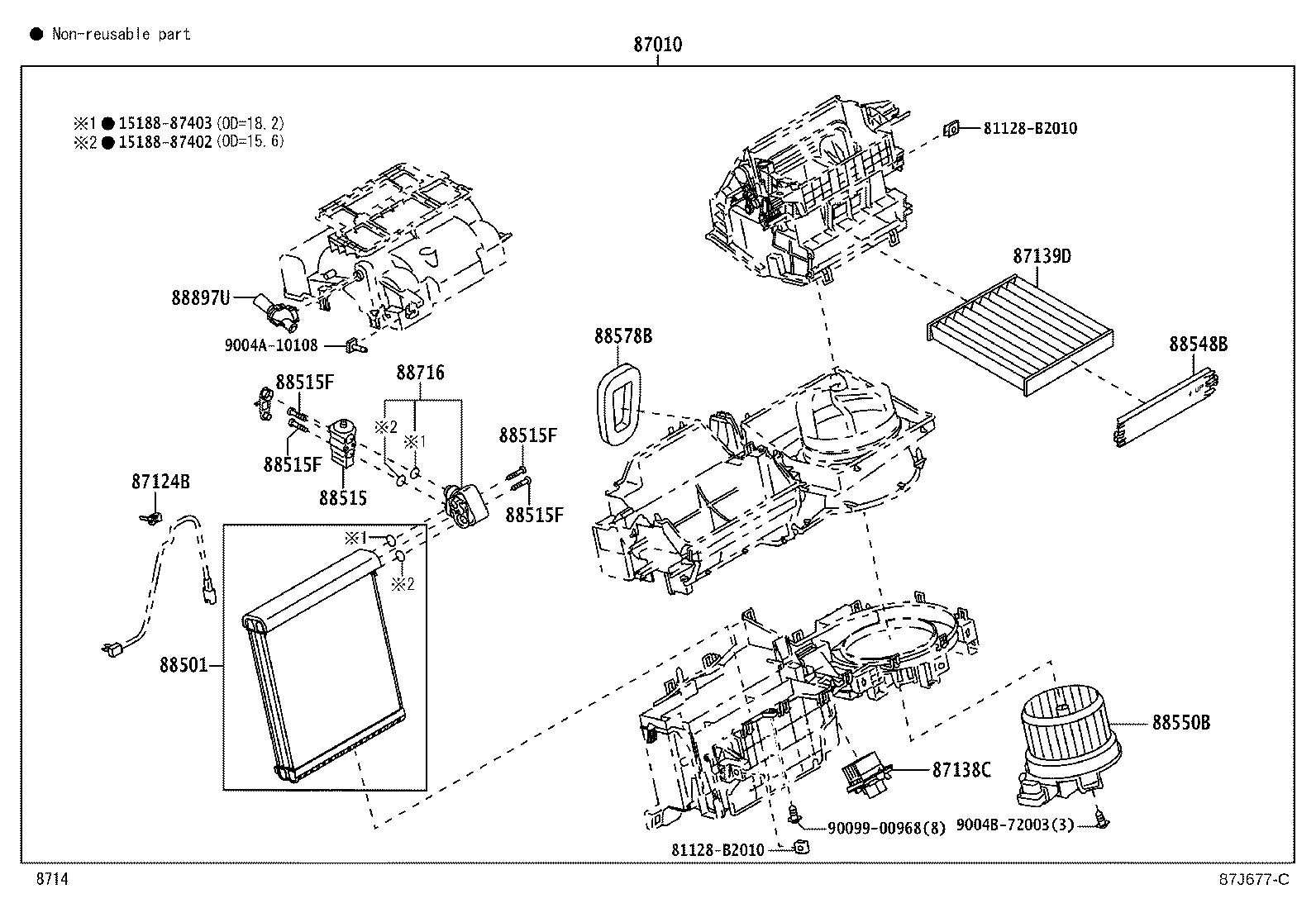

Figure 87J669 87J669 2021-04 → — Figure 87J670 87J670 2021-08 → — Figure 87J675 87J675 2021-08 → — Figure 87L526A 87L526A 2021-04 → — Figure 87J674C 87J674C 2021-04 → — Figure 87J671C 87J671C 2021-08 → 2026-07 Figure 87J671C 87J671C 2021-08 → — Figure 87J672D 87J672D 2021-08 → — Figure 87J676C 87J676C 2021-08 → — Figure 87J677C 87J677C 2021-08 → — Figure 87J678C 87J678C 2021-08 → — Figure 87J679D 87J679D 2021-08 → —

Part groups

PNCDescription
87010 Unit Assy, Air Conditioner
87106H Servo Sub-assy, Damper(FOR AIRMIX)
87106J Servo Sub-assy, Damper(FOR MODE)
87106Y Servo Sub-assy, Damper(FOR RECIRCULATION & FRESH)
87107A Unit Sub-assy, Heater Radiator
87111B Case, Heater
87124B Clamp, Heater
87138C Resistor, Blower
87139D Element, Air Refiner
88482A Cover
88501 Evaporator Sub-assy, Cooler, NO.1
88512 Duct, Air
88515 Valve, Cooler Expansion
88515F Bolt(FOR COOLER EXPANSION VALVE)
88539J Hose, Drain Cooler
88548B Case, Air Filter
88550B Motor Assy, Blower
88569F Clamp
88569H Clamp
88578B Packing, Cooling Unit, NO.1
88578C Packing, Cooling Unit, NO.2
88625 Thermistor, Cooler, NO.1
88648P Wire,Air Conditioner,NO.1
88716 Tube, Liquid
88897K Grommet, (FOR COOLER PIPE)
88897U Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
