Heating & Air Conditioning - Control & Air Duct

30 part groups · 9 illustrations

Illustrations

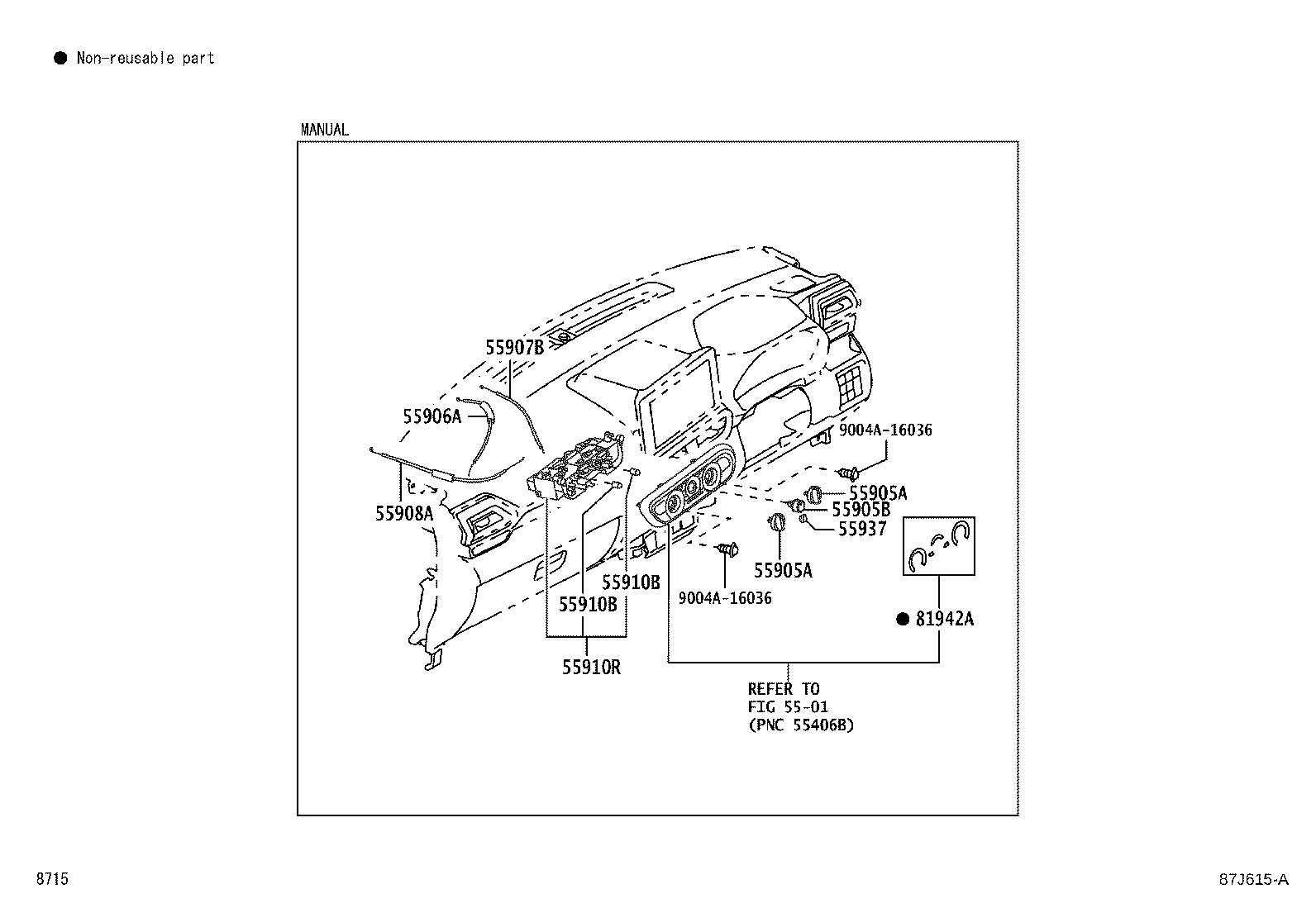

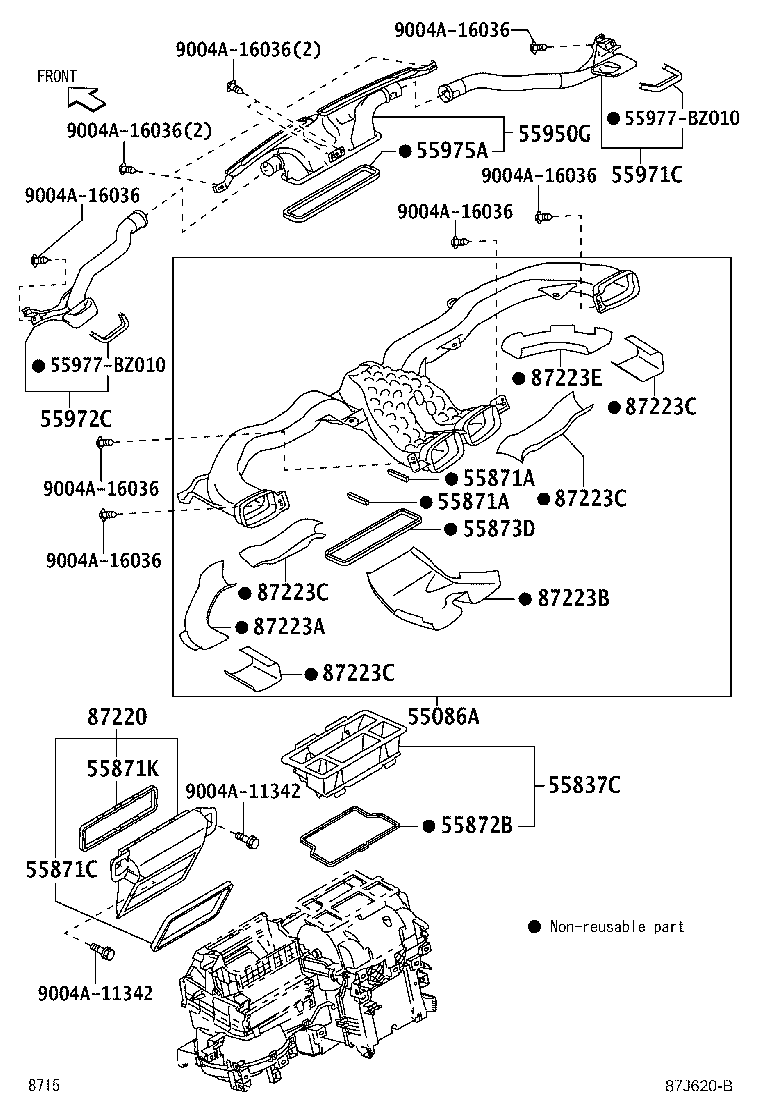

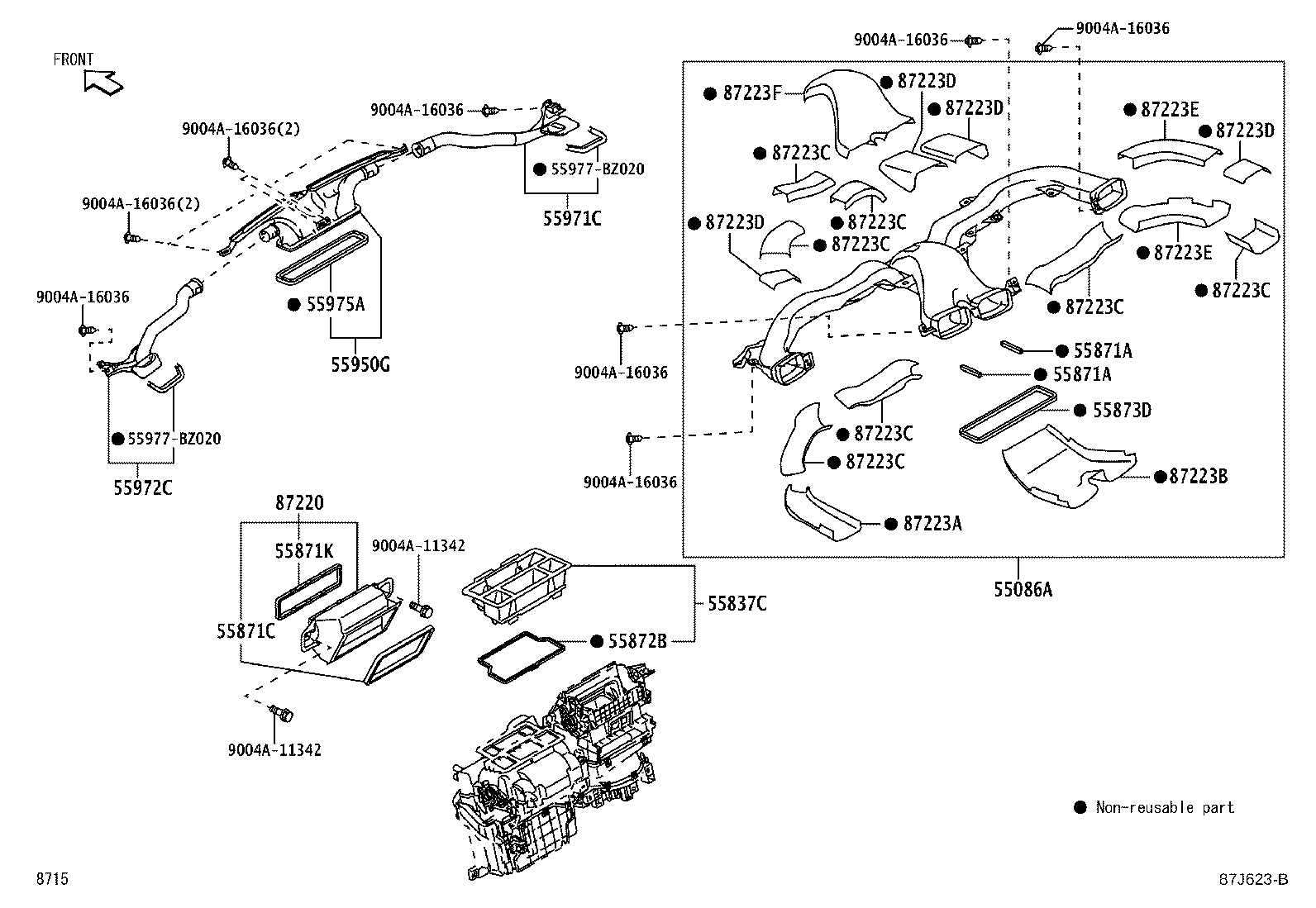

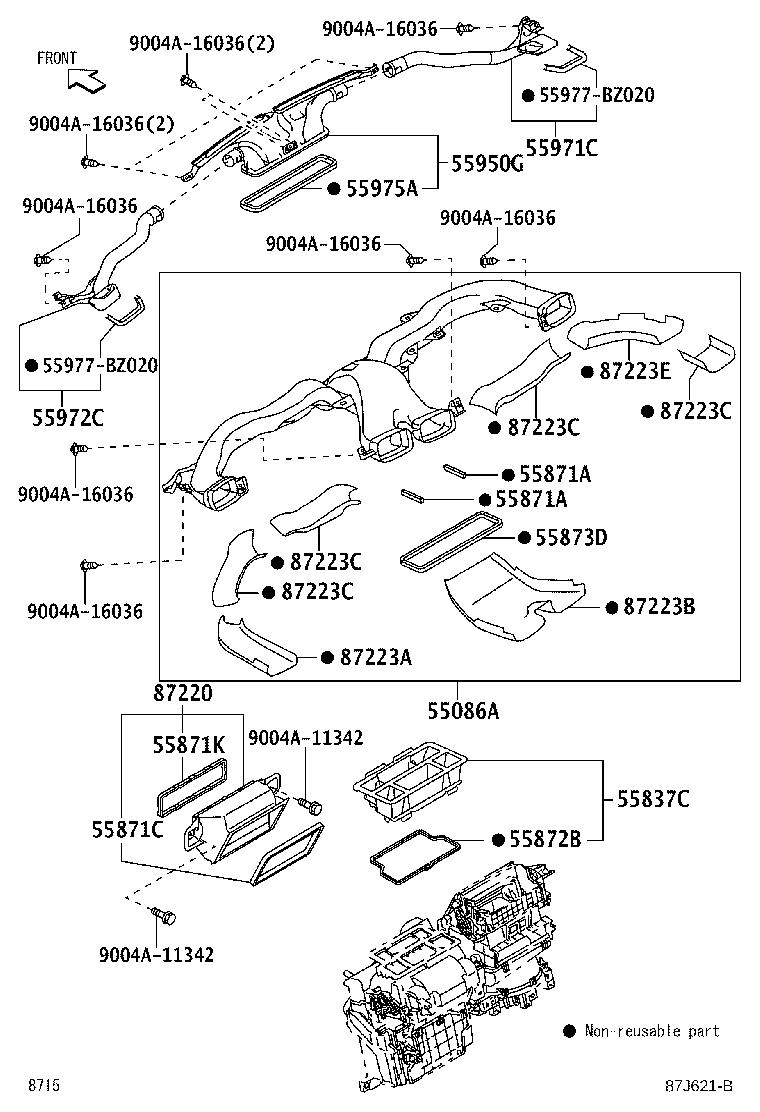

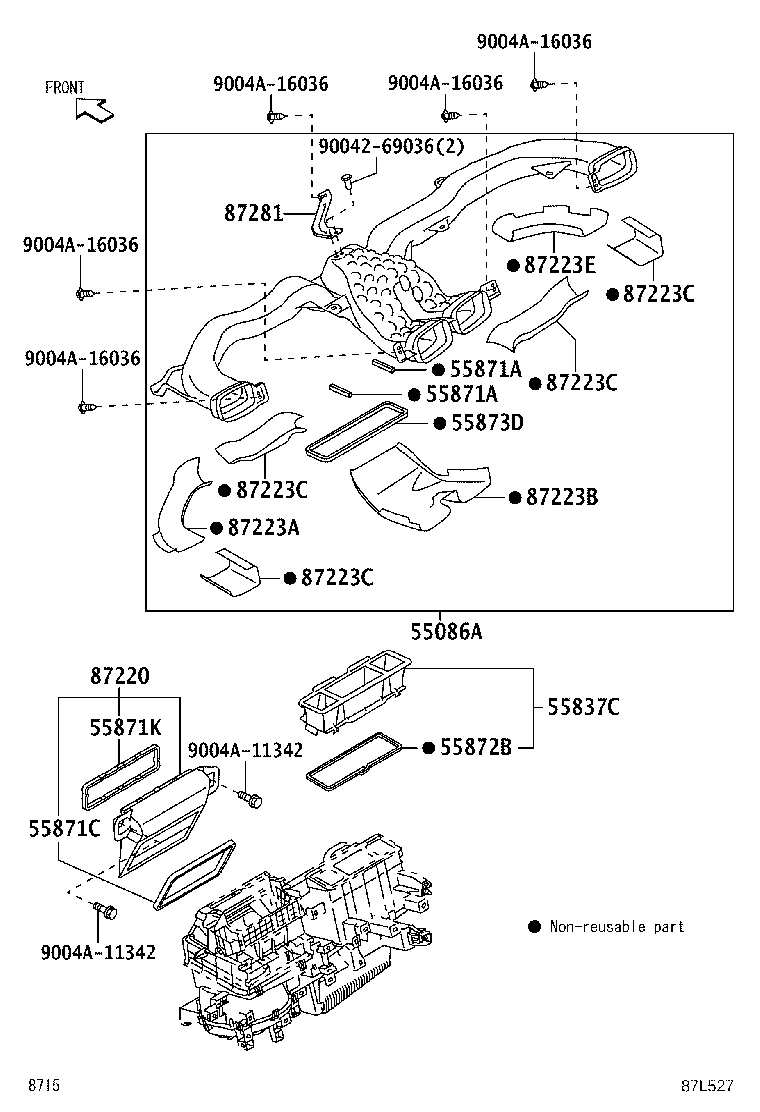

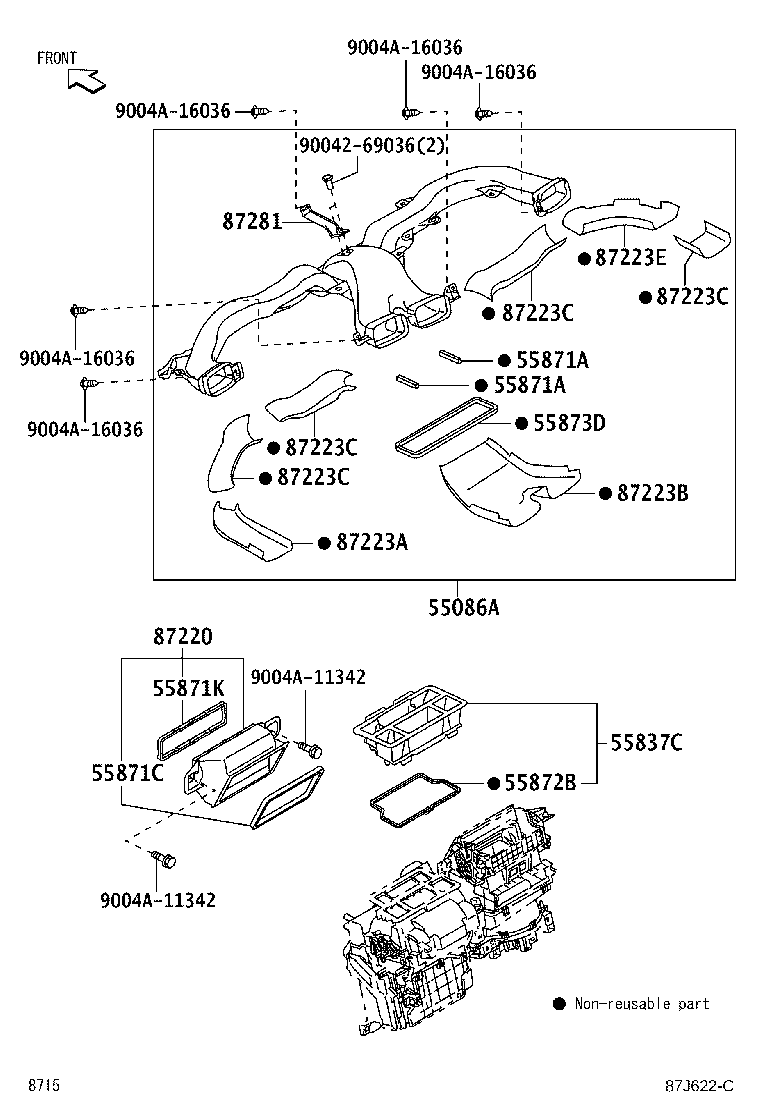

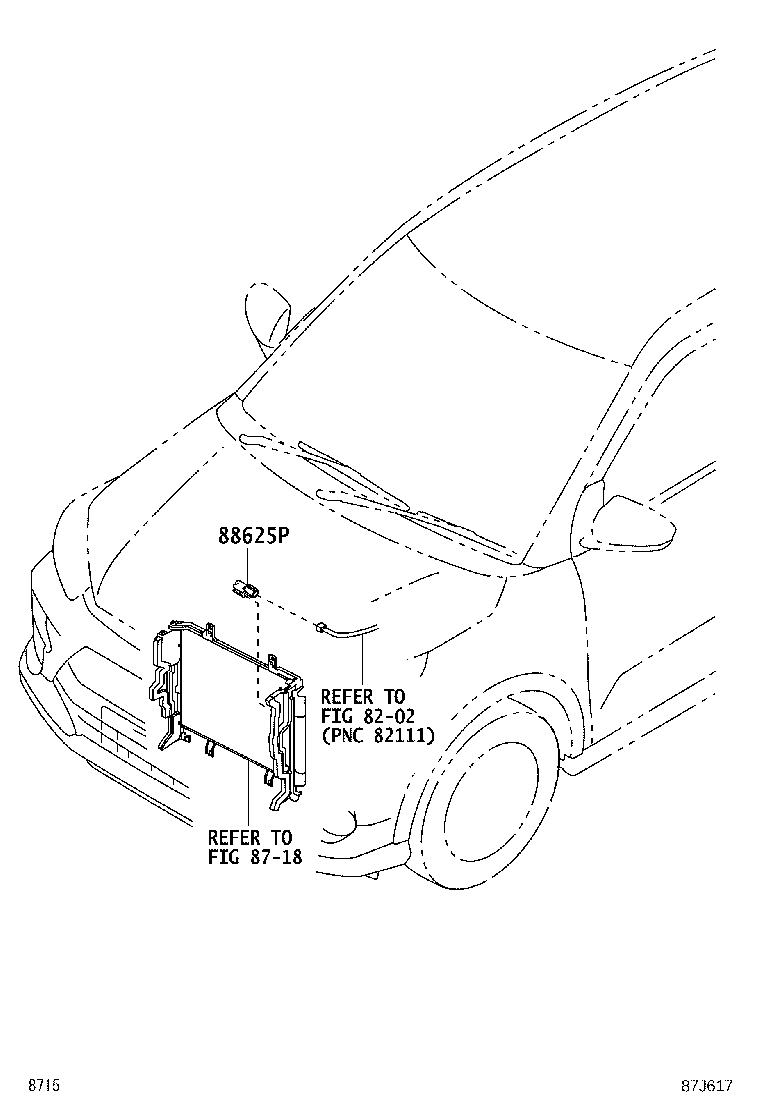

Figure 87J614 87J614 2021-04 → — Figure 87J615A 87J615A 2021-08 → 2026-07 Figure 87J615A 87J615A 2021-08 → — Figure 87L527 87L527 2021-04 → — Figure 87J620B 87J620B 2021-08 → — Figure 87J621B 87J621B 2021-08 → — Figure 87J622C 87J622C 2021-08 → — Figure 87J623B 87J623B 2021-10 → — Figure 87J617 87J617 2021-04 → —

Part groups

PNCDescription
55086A Duct Sub-assy, Heater TO Register, Center
55837C Duct, Heater TO Register Center Sub
55871A Seal, Air Duct, NO.1
55871C Seal, Air Duct
55871K Seal, Air Duct
55872B Seal, Air Duct,NO.2
55873D Seal, Air Duct, Center
55905A Knob, Heater Control
55905B Knob, Heater Control, NO.2
55906A Cable Sub-assy, Defroster Damper Control
55907B Cable Sub-assy, Temperature Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55910B Bulb, Heater Control
55910R Control Assy, Heater
55937 Knob, Heater Control Lever
55950G Nozzle Assy, Defroster
55971C Duct, Side Defroster Nozzle, NO.1
55972C Duct, Side Defroster Nozzle, NO.2
55975A Seal, Defroster Nozzle, NO.1
81942A Sheet, Heater Control Name, NO.1
87220 Duct Assy, Air
87223A Pad, Air Duct
87223B Pad, Air Duct, NO.2
87223C Pad, Air Duct, NO.3
87223D Pad, Air Duct, NO.4
87223E Pad, Air Duct, NO.5
87223F Pad, Air Duct, NO.6
87281 Bracket, Air Duct
88625P Thermistor, Cooler (AMBIENT TEMP. SENSOR)
88897A Pipe, Aspirator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
