Toyota Raize
2021-04 → present · chassis A250,A251 · catalogue 106310 · United States
Supported model
Data version 2021-09

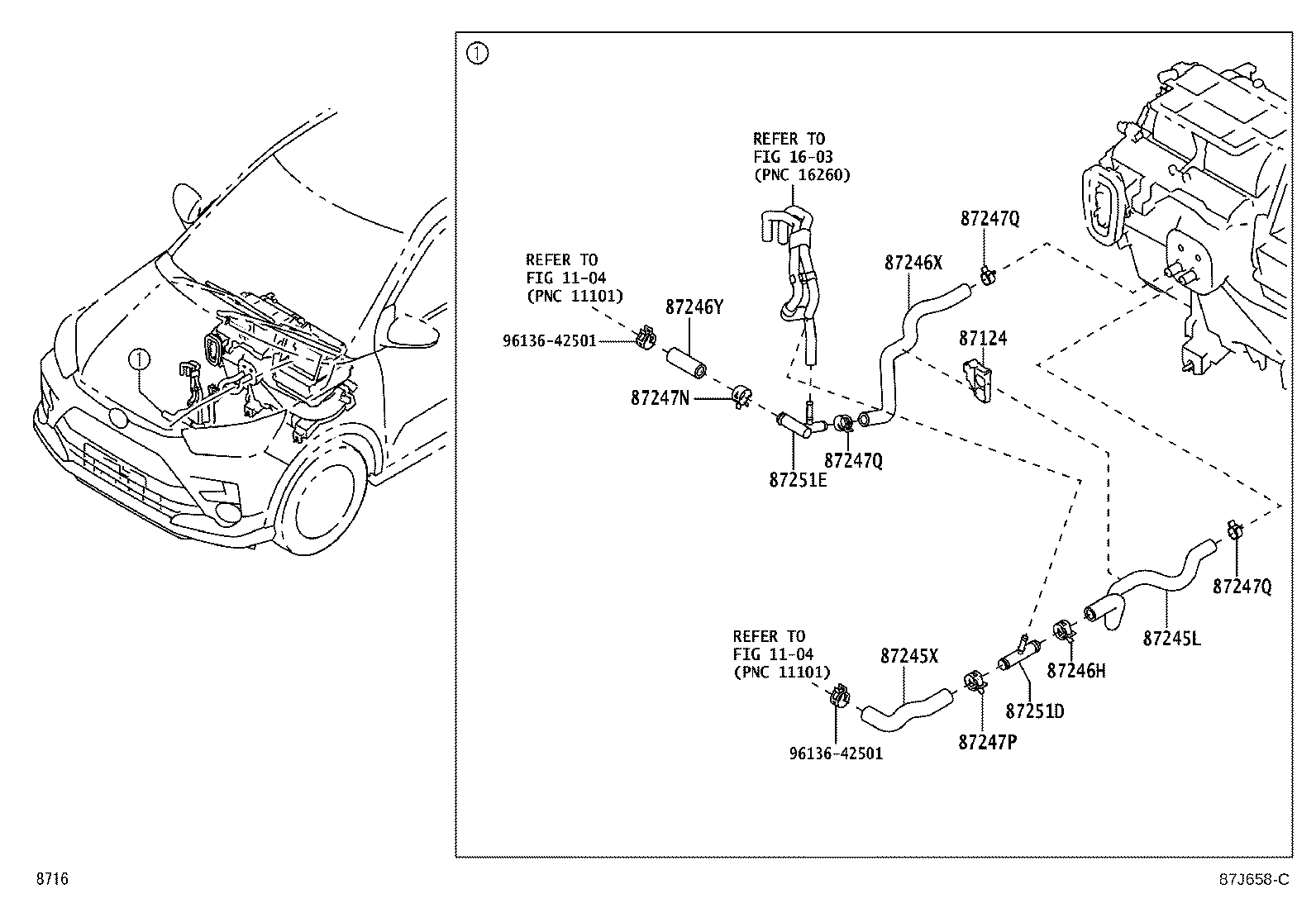

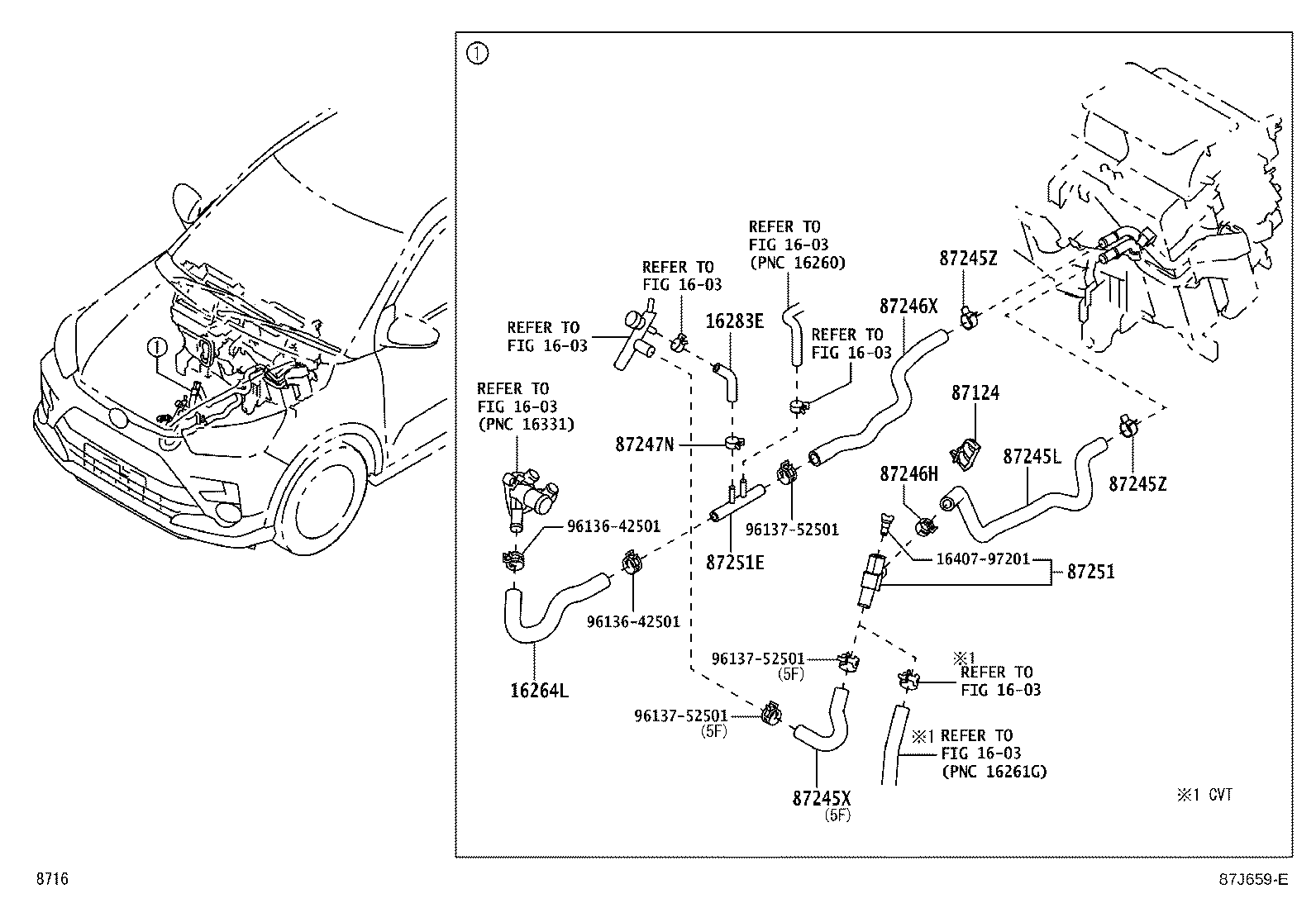

Heating & Air Conditioning - Water Piping
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 16264L | Hose, Water By-pass, NO.2 |
| 16283E | Hose, Water By-pass, NO.6 |
| 87124 | Clamp, Heater |
| 87245L | Hose, Heater Water, L |
| 87245X | Hose, Heater Water |
| 87245Z | Clip OR Clamp (FOR HEATER WATER HOSE) |
| 87246H | Clip OR Clamp(FOR HEATER WATER HOSE) |
| 87246X | Hose, Heater Water |
| 87246Y | Hose, Heater Water |
| 87247N | Clip, Hose |
| 87247P | Clip, Hose |
| 87247Q | Clip, Hose |
| 87251 | Joint OR Union, Water Hose Through |
| 87251D | Joint, Water, NO.1 |
| 87251E | Joint, Water, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
