Toyota Raize

2021-04 → present · chassis A250,A251 · catalogue 106310 · United States

Supported model Data version 2021-09
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

29 part groups · 9 illustrations

Illustrations

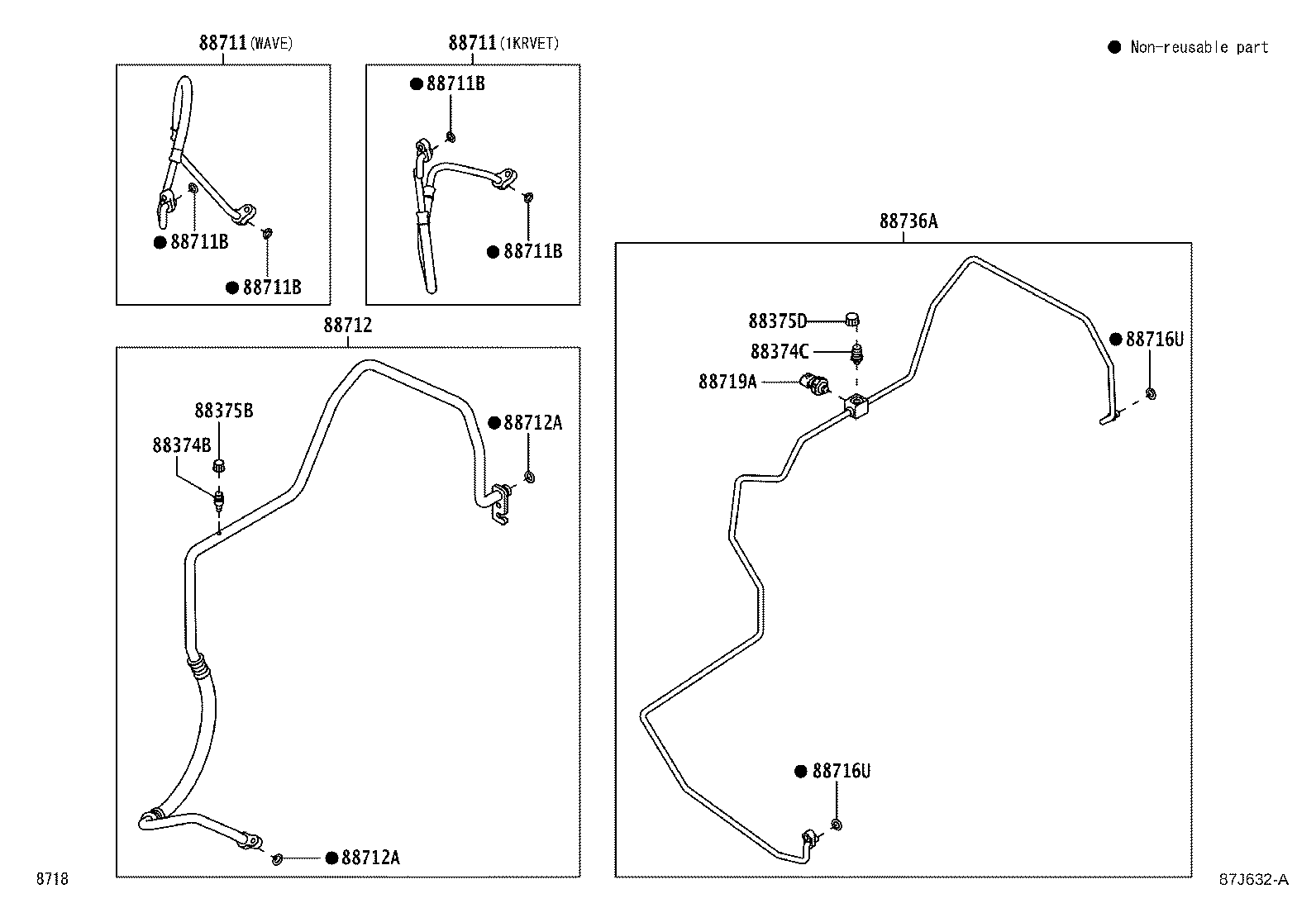

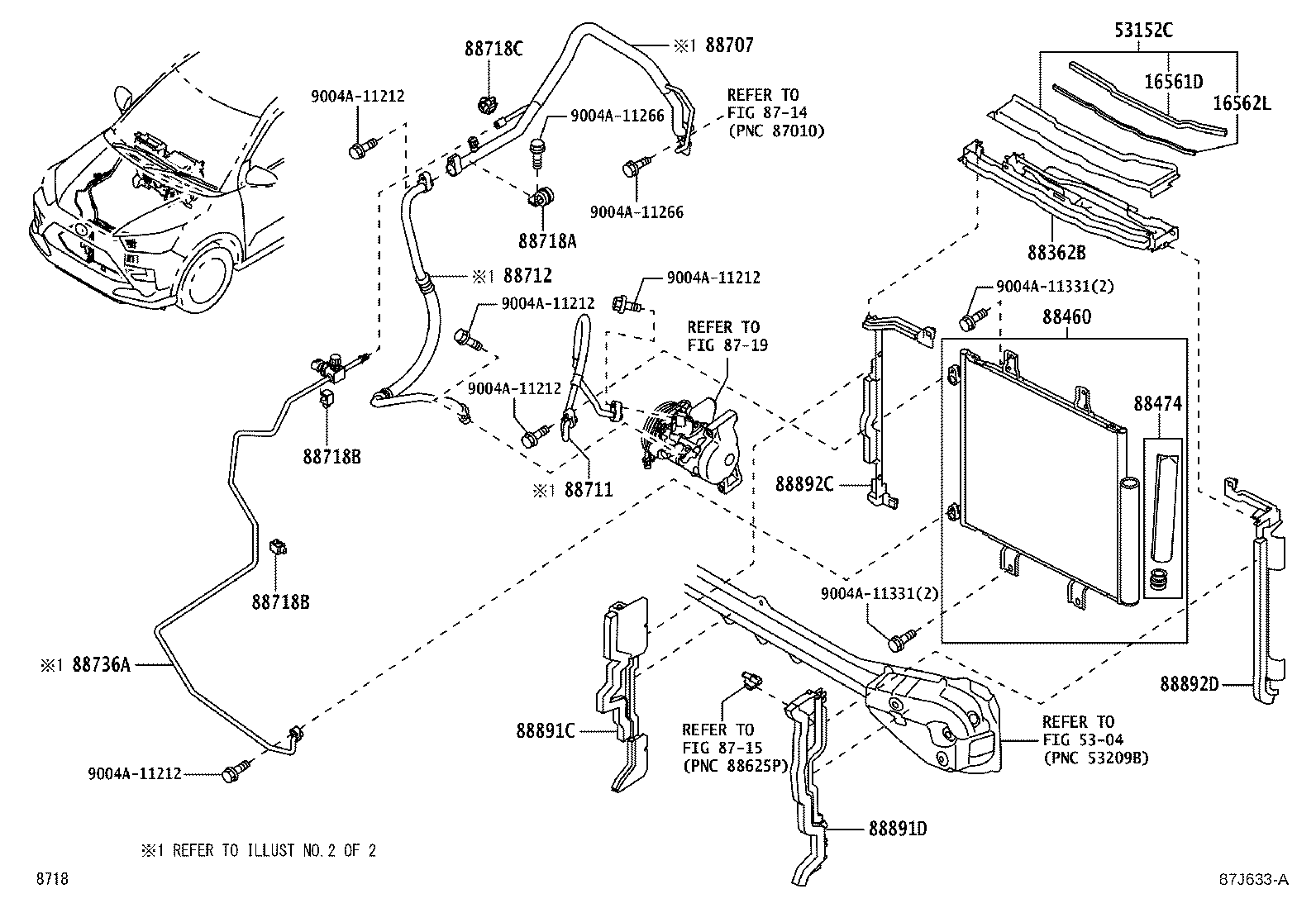

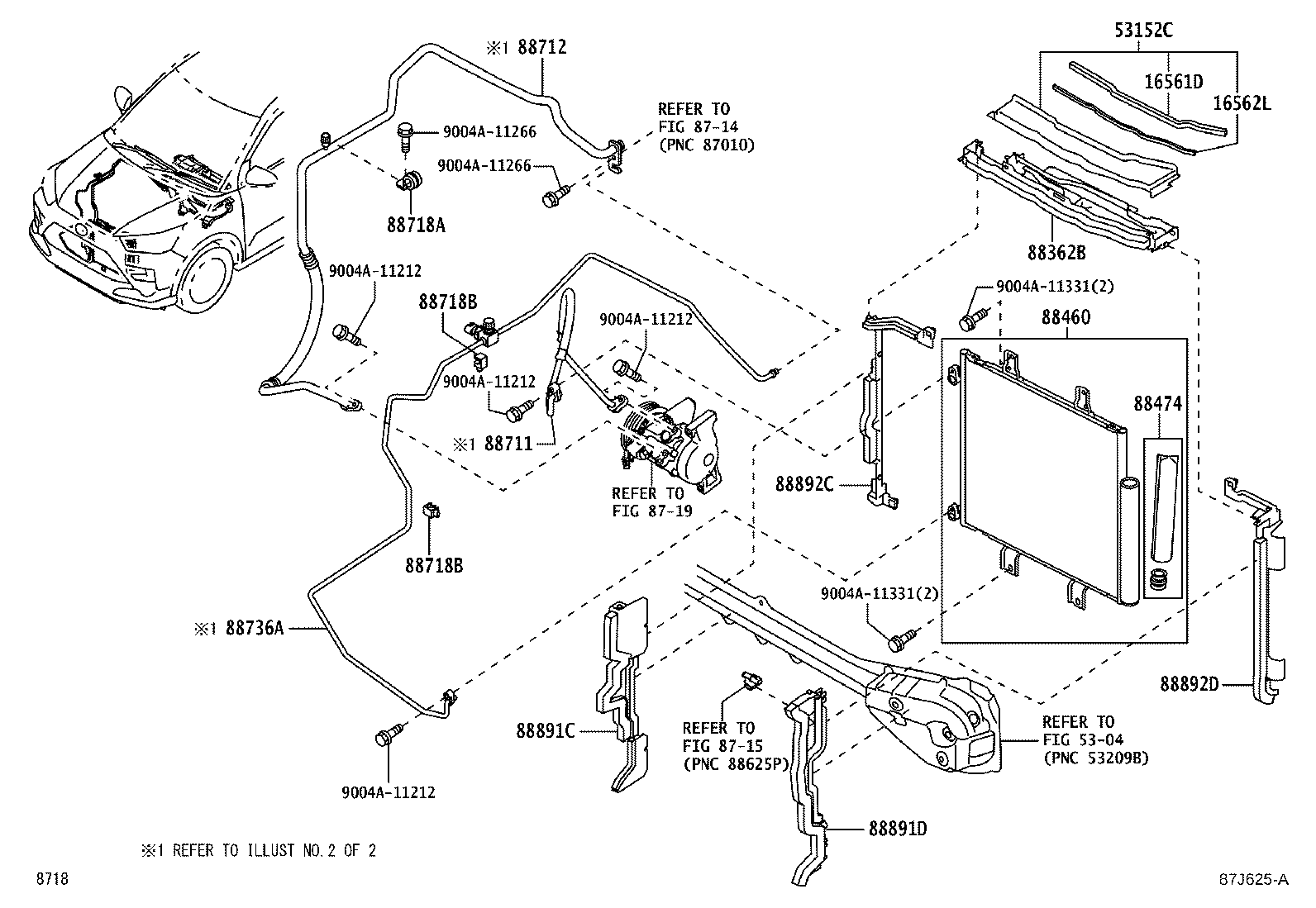

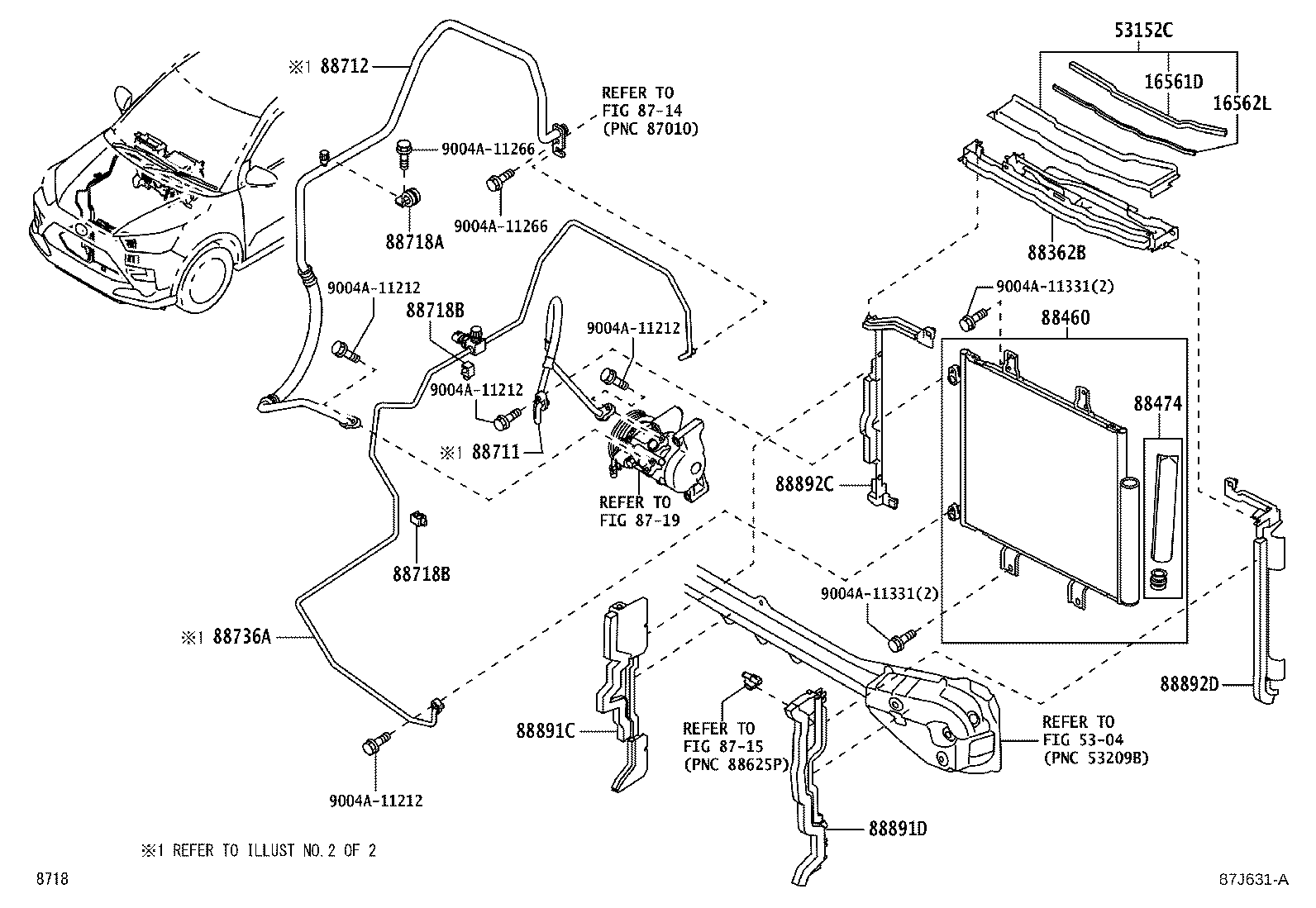

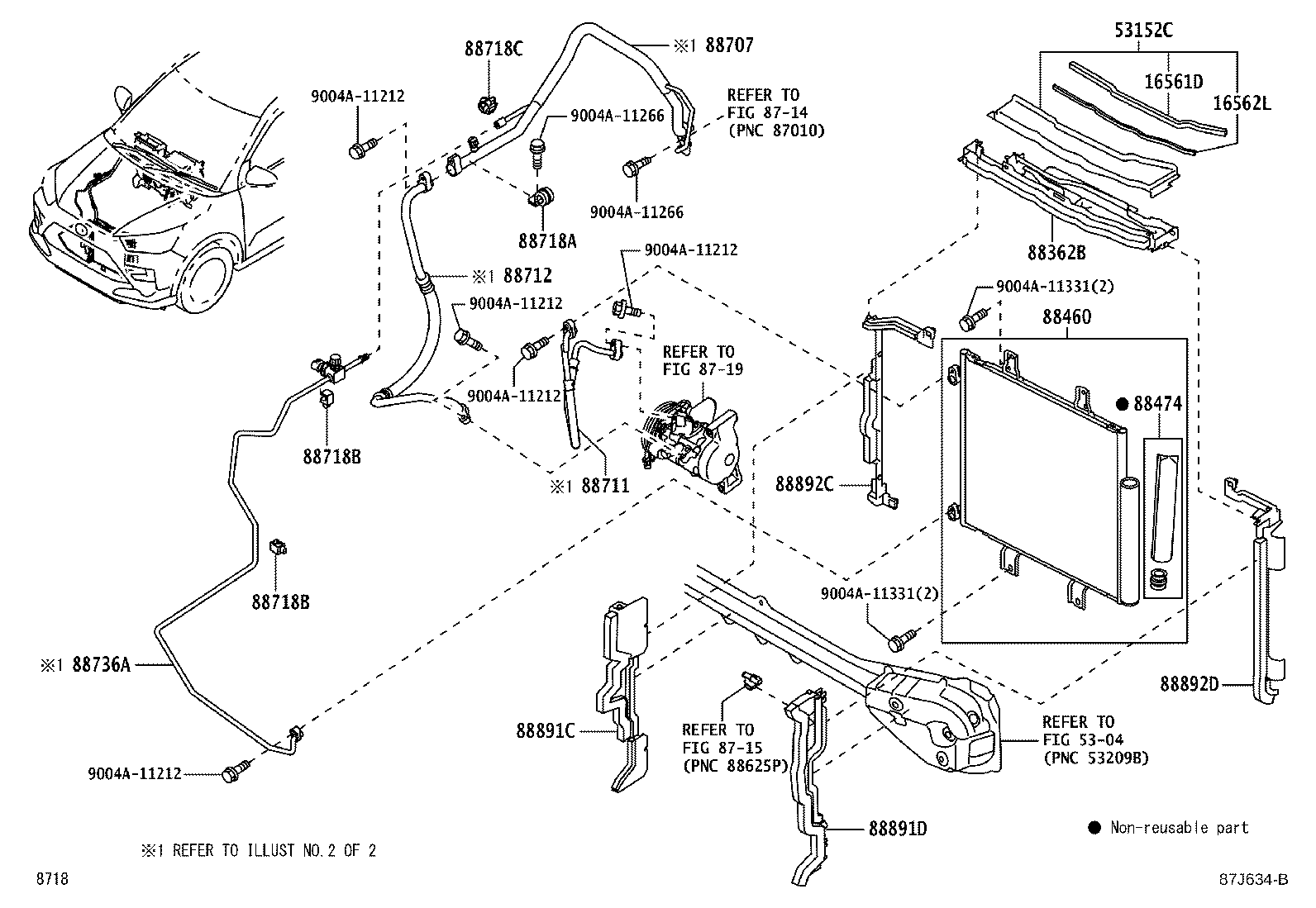

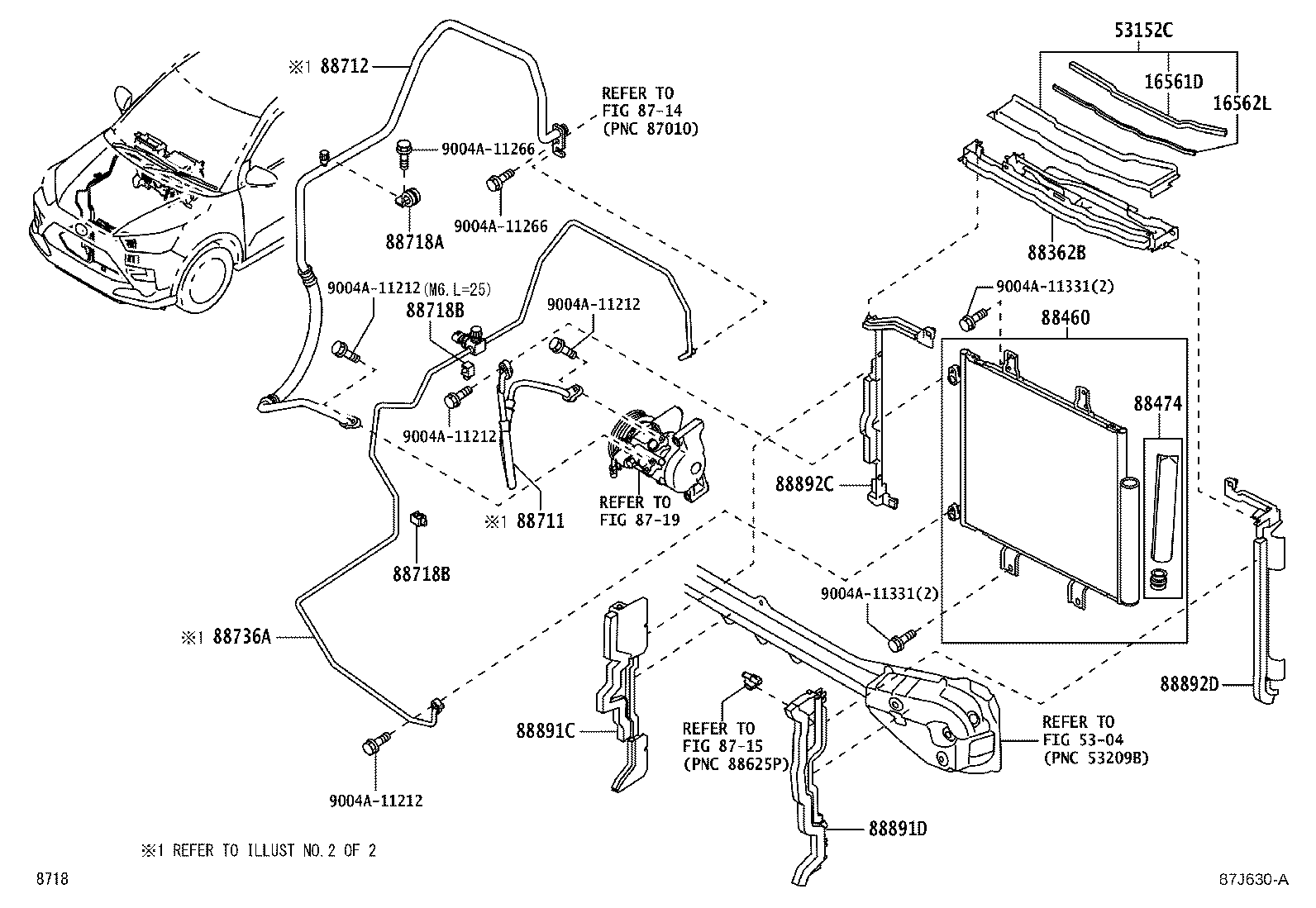

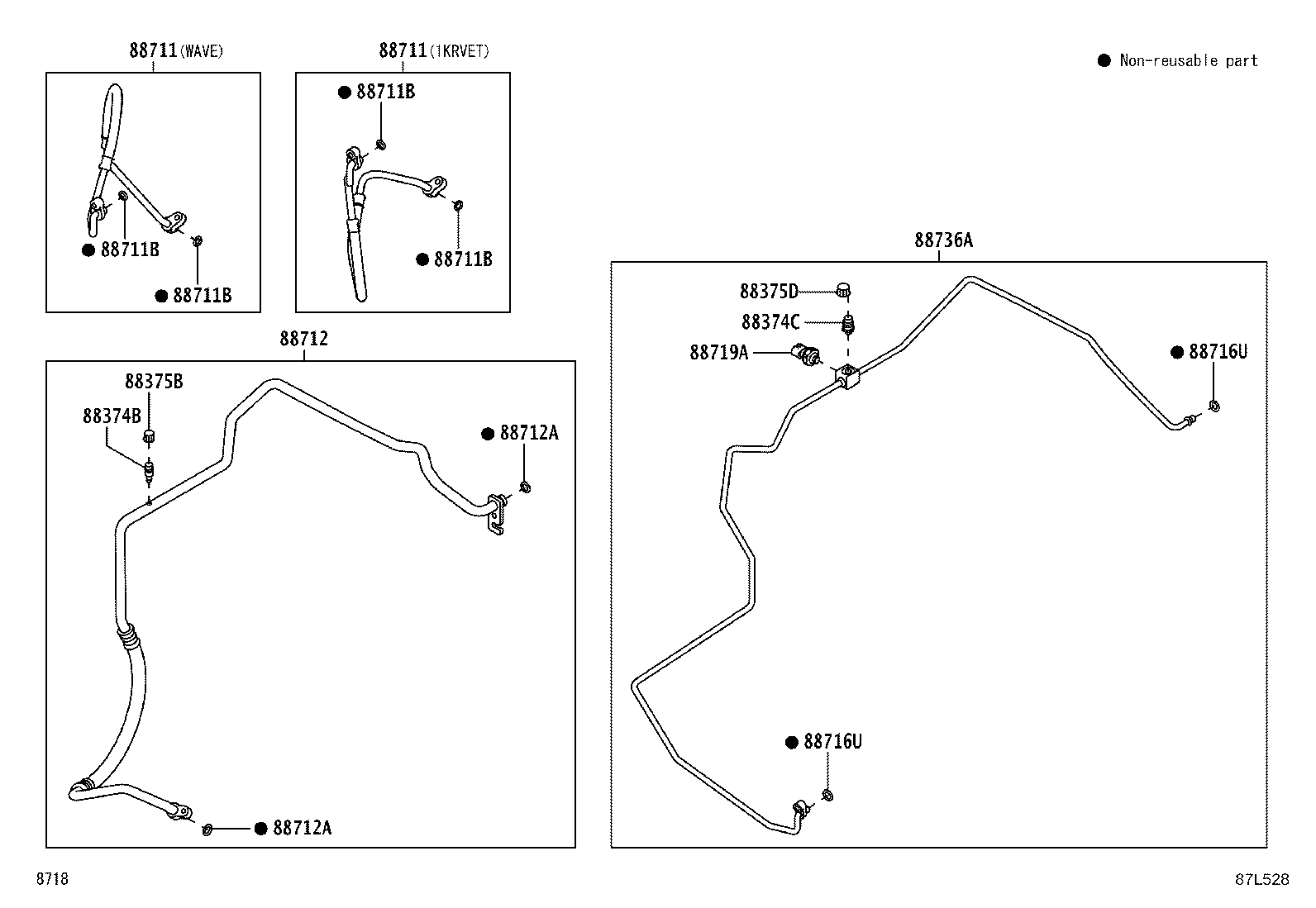

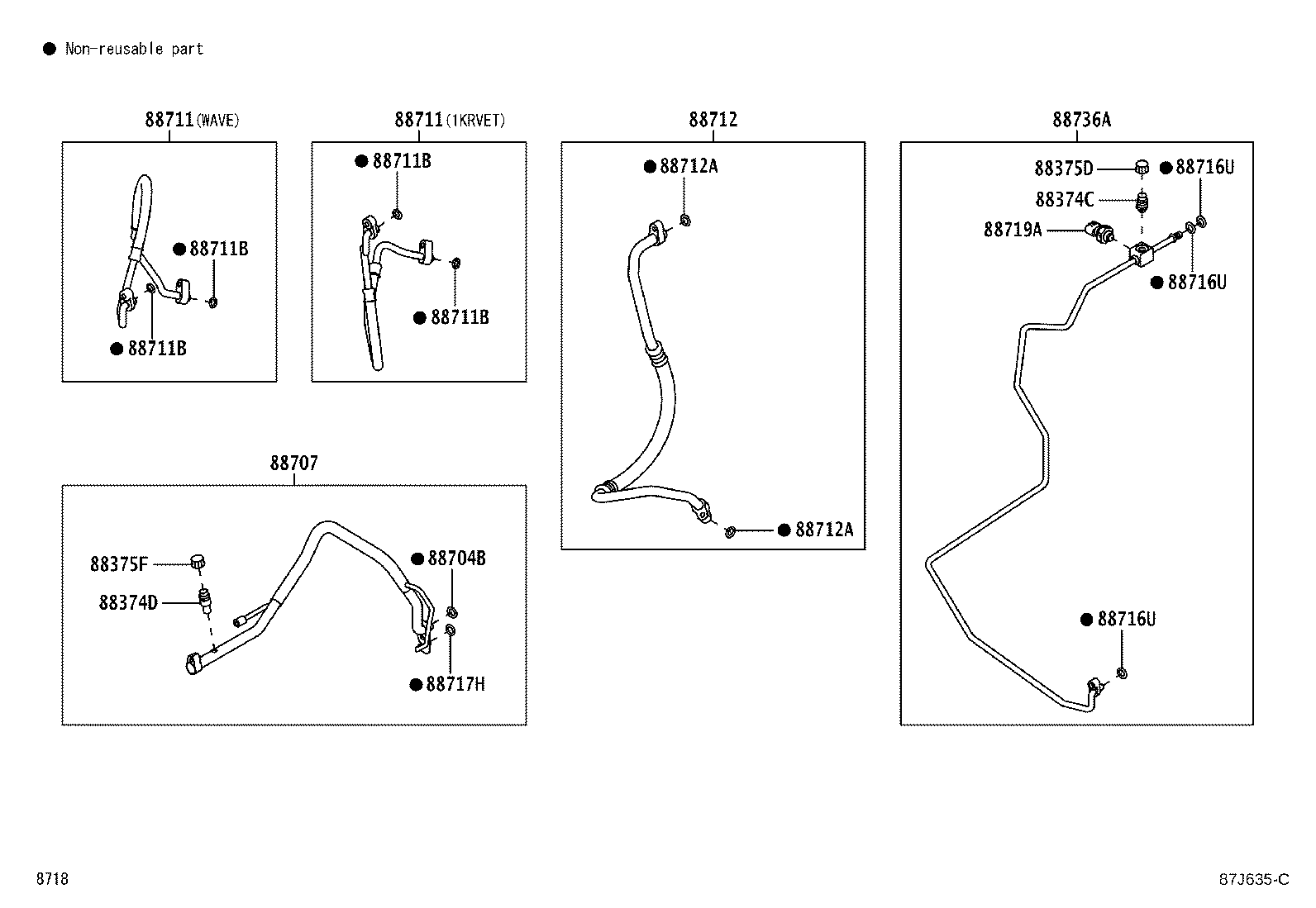

Figure 87J627A 87J627A 2021-04 → — Figure 87J625A 87J625A 2021-04 → — Figure 87L528 87L528 2021-04 → — Figure 87J630A 87J630A 2021-08 → — Figure 87J631A 87J631A 2021-08 → — Figure 87J632A 87J632A 2021-08 → — Figure 87J634B 87J634B 2021-10 → — Figure 87J633A 87J633A 2021-10 → — Figure 87J635C 87J635C 2021-10 → —

Part groups

PNCDescription
16561D Seal, Radiator TO Support, NO.1
16562L Seal, Radiator TO Support, NO.2
53152C Guide, Radiator Grille Air
88362B Plate, Seal
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88374D Valve, Service NO.3
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88375F Cap, Service Valve, NO.3
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88704B Ring, O(FOR SUCTION HOSE)
88707 Pipe Sub-assy, Suction
88711 Hose, Cooler Refrigerant Discharge, NO.1
88711B Ring, O(FOR COOLER REFRIGERANT DISCHARGE HOSE)
88712 Hose, Cooler Refrigerant Suction, NO.1
88712A Ring, O(FOR COOLER REFRIGERANT SUCTION HOSE)
88716U Ring, O(FOR COOLER REFRIGERANT LIQUID PIPE)
88717H Ring, O(FOR COOLER REFRIGERANT SUCTION PIPE)
88718A Clamp, NO.1(FOR COOLER REFRIGERANT PIPE)
88718B Clamp, NO.2(FOR COOLER REFRIGERANT PIPE)
88718C Clamp, NO.3(FOR COOLER REFRIGERANT PIPE)
88719A Sensor, Air Conditioner Pressure
88736A Tube, Liquid, A(FOR COOL BOX)
88891C Packing C (FOR COOLER)
88891D Packing D (FOR COOLER)
88892C Plate, Condenser, NO.1
88892D Plate, Condenser, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
