Heating & Air Conditioning - Compressor

13 part groups · 4 illustrations

Illustrations

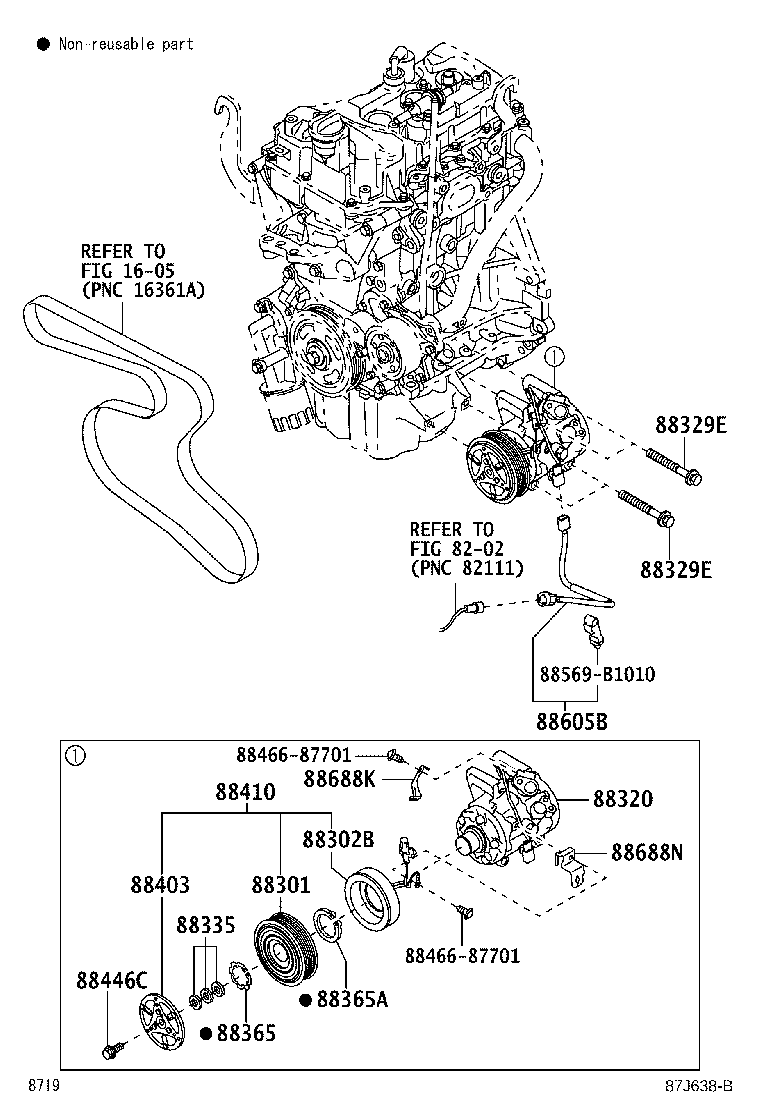

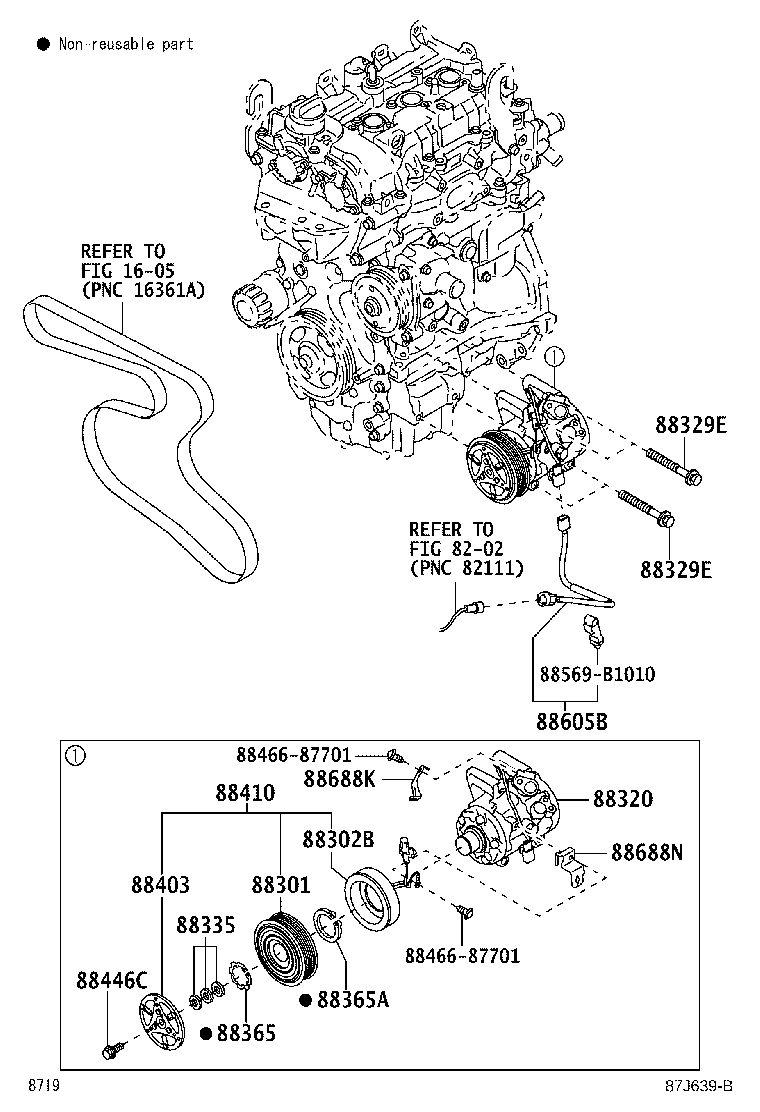

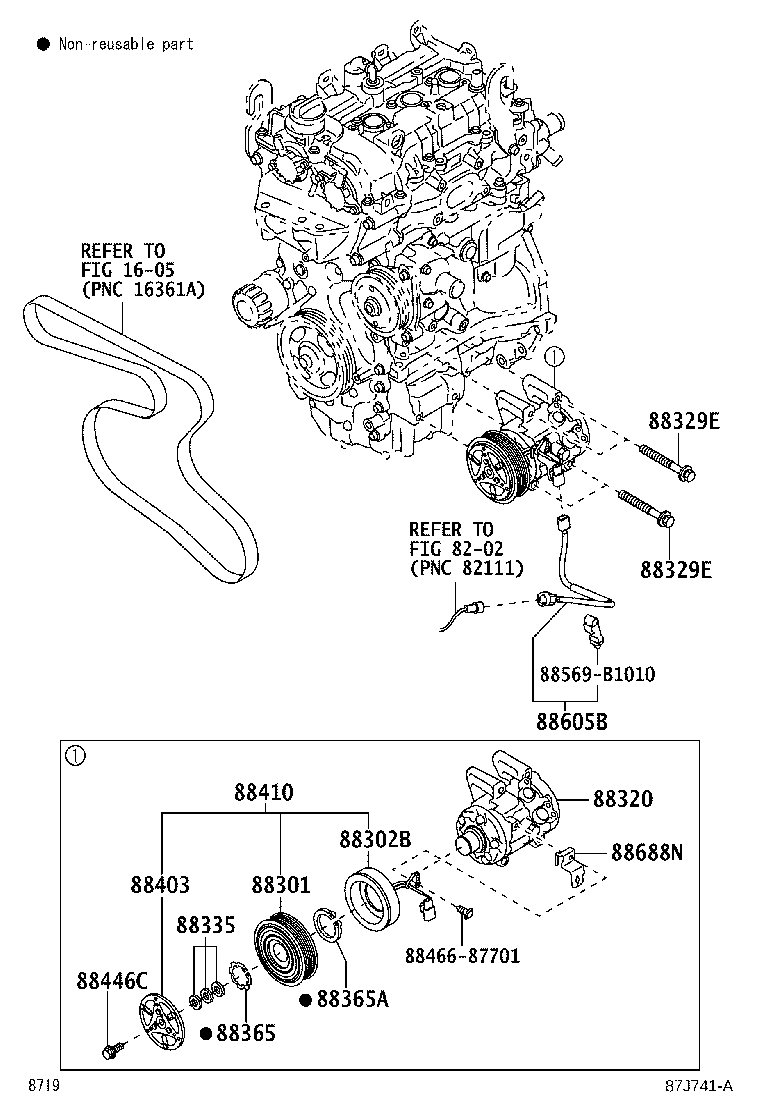

Figure 87J740A 87J740A 2021-04 → — Figure 87J741A 87J741A 2021-04 → — Figure 87J638B 87J638B 2021-10 → — Figure 87J639B 87J639B 2021-10 → —

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302B Stator, Magnet Clutch
88320 Compressor Assy, Cooler
88329E Bolt, Compressor, NO.1
88335 Gasket Kit, Overhaul
88365 Ring, Snap
88365A Ring, Snap (FOR COMPRESSOR)
88403 Hub Sub-assy, Magnet Clutch
88410 Clutch Assy, Magnet
88446C Bolt, Magnet Clutch Setting
88605B Harness Sub-assy, Air Conditioner Wiring
88688K Bracket, Cooler Compressor
88688N Bracket, Cooler
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
