Toyota Echo

2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

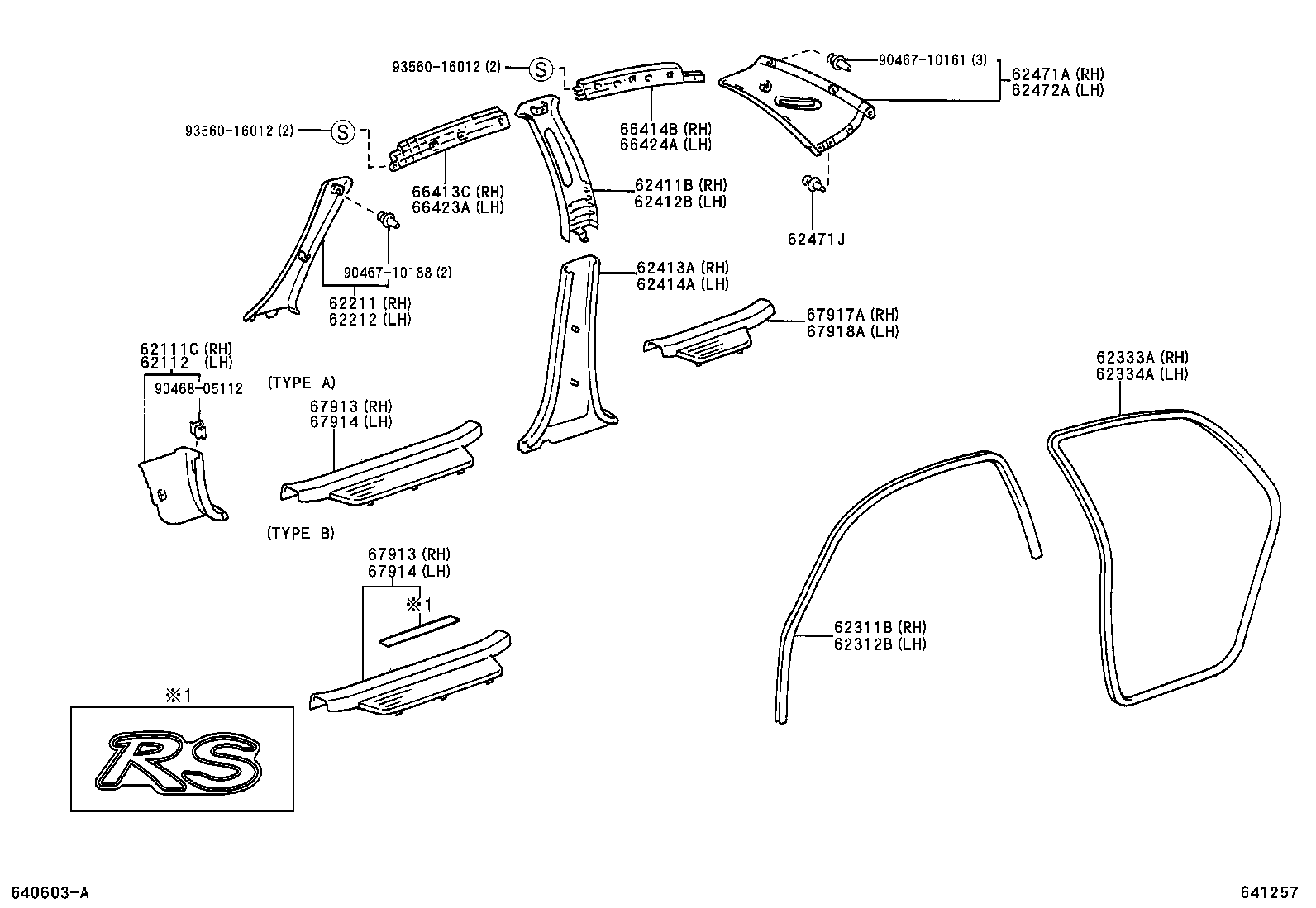

Exploded illustration 641257 9046710161 — not listed in this catalogue 9356016012 — not listed in this catalogue 62471A — GARNISH, ROOF SIDE, INNER RH (2 parts) 62472A — GARNISH, ROOF SIDE, INNER LH (2 parts) 66414B — SPACER, SIDE RAIL, REAR RH (1 parts) 9356016012 — not listed in this catalogue 66424A — SPACER, SIDE RAIL, REAR LH (1 parts) 62411B — GARNISH, CENTER PILLAR, UPPER RH (1 parts) 66413C — SPACER, SIDE RAIL, FRONT RH (1 parts) 62412B — GARNISH, CENTER PILLAR, UPPER LH (1 parts) 66423A — SPACER, SIDE RAIL, FRONT LH (1 parts) 62471J — CLIP (FOR ROOF SIDE GARNISH) (2 parts) 62413A — GARNISH, CENTER PILLAR, LOWER RH (1 parts) 9046710188 — not listed in this catalogue 62414A — GARNISH, CENTER PILLAR, LOWER LH (1 parts) 62211 — GARNISH, FRONT PILLAR, RH (1 parts) 67917A — PLATE, REAR DOOR SCUFF, RH (1 parts) 62212 — GARNISH, FRONT PILLAR, LH (1 parts) 67918A — PLATE, REAR DOOR SCUFF, LH (1 parts) 62111C — BOARD, COWL SIDE TRIM, RH (1 parts) 62333A — TRIM, REAR DOOR OPENING, RH (2 parts) 62112 — BOARD, COWL SIDE TRIM, LH (1 parts) 62334A — TRIM, REAR DOOR OPENING, LH (2 parts) 9046805112 — not listed in this catalogue 67913 — PLATE, FRONT DOOR SCUFF, RH (3 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (3 parts) 67913 — PLATE, FRONT DOOR SCUFF, RH (3 parts) 67914 — PLATE, FRONT DOOR SCUFF, LH (3 parts) 62311B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, RH (4 parts) 62312B — WEATHERSTRIP, FRONT DOOR OPENING TRIM, LH (4 parts)
641257 · 25 callouts, 5 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
38 parts on this figure
Part number Description Fitment Price
62111C — Board, Cowl Side Trim, RH
62111-52020-B2 note Board, Cowl Side Trim, RH
2003-06 → 2005-08 ended
NCP13 —
62112 — Board, Cowl Side Trim, LH
62112-52030-B2 note Board, Cowl Side Trim, LH
2003-06 → 2005-08 ended
NCP13 —
62211 — Garnish, Front Pillar, RH
62211-52011-B0 note Garnish, Front Pillar, RH
2003-06 → 2005-08 ended
NCP13 —
62212 — Garnish, Front Pillar, LH
62212-52011-B0 note Garnish, Front Pillar, LH
2003-06 → 2005-08 ended
NCP13 —
62311B — Weatherstrip, Front Door Opening Trim, RH
62311-52100-B0 note Weatherstrip, Front Door Opening Trim, RH
2003-06 → 2003-07 ended
NCP13 3D —
62311-52101-B0 note Weatherstrip, Front Door Opening Trim, RH
2003-07 → 2005-08 ended
NCP13 3D —
62311-52110-B1 note Weatherstrip, Front Door Opening Trim, RH
2003-06 → 2003-07 ended
NCP13 5D —
62311-52111-B1 note Weatherstrip, Front Door Opening Trim, RH
2003-07 → 2005-08 ended
NCP13 5D —
62312B — Weatherstrip, Front Door Opening Trim, LH
62312-52080-B0 note Weatherstrip, Front Door Opening Trim, LH
2003-06 → 2003-07 ended
NCP13 3D —
62312-52081-B0 note Weatherstrip, Front Door Opening Trim, LH
2003-07 → 2005-08 ended
NCP13 3D —
62312-52100-B1 note Weatherstrip, Front Door Opening Trim, LH
2003-06 → 2003-07 ended
NCP13 5D —
62312-52101-B1 note Weatherstrip, Front Door Opening Trim, LH
2003-07 → 2005-08 ended
NCP13 5D —
62333A — Trim, Rear Door Opening, RH
62333-52010-B2 note Trim, Rear Door Opening, RH
2003-06 → 2003-07 ended
NCP13 5D —
62333-52011-B2 note Trim, Rear Door Opening, RH
2003-07 → 2005-08 ended
NCP13 5D —
62334A — Trim, Rear Door Opening, LH
62334-52010-B2 note Trim, Rear Door Opening, LH
2003-06 → 2003-07 ended
NCP13 5D —
62334-52011-B2 note Trim, Rear Door Opening, LH
2003-07 → 2005-08 ended
NCP13 5D —
62411B — Garnish, Center Pillar, Upper RH
62411-52011-B0 note Garnish, Center Pillar, Upper RH
2003-06 → 2005-08 ended
NCP13 5D —
62412B — Garnish, Center Pillar, Upper LH
62412-52011-B0 note Garnish, Center Pillar, Upper LH
2003-06 → 2005-08 ended
NCP13 5D —
62413A — Garnish, Center Pillar, Lower RH
62030-52010-B2 note Garnish, Center Pillar, Lower RH
2003-06 → 2005-08 ended
NCP13 5D —
62414A — Garnish, Center Pillar, Lower LH
62040-52010-B2 note Garnish, Center Pillar, Lower LH
2003-06 → 2005-08 ended
NCP13 5D —
62471A — Garnish, Roof Side, Inner RH
62471-52010-B0 note Garnish, Roof Side, Inner RH
2003-06 → 2005-08 ended
NCP13 3D —
62471-52020-B0 note Garnish, Roof Side, Inner RH
2003-06 → 2005-08 ended
NCP13 5D —
62471J — Clip (FOR ROOF SIDE GARNISH)
90467-06133-C0 note Clip (FOR ROOF SIDE GARNISH)
2003-06 → 2005-08 ended
NCP13 5D —
90467-06133-C0 note Clip (FOR ROOF SIDE GARNISH)
2003-06 → 2005-08 ended
NCP13 3D —
62472A — Garnish, Roof Side, Inner LH
62472-52010-B0 note Garnish, Roof Side, Inner LH
2003-06 → 2005-08 ended
NCP13 3D —
62472-52020-B0 note Garnish, Roof Side, Inner LH
2003-06 → 2005-08 ended
NCP13 5D —
66413C — Spacer, Side Rail, Front RH
66413-52011 Spacer, Side Rail, Front RH
2003-06 → —
NCP13 —
66414B — Spacer, Side Rail, Rear RH
66414-52010 Spacer, Side Rail, Rear RH
2003-06 → —
NCP13 —
66423A — Spacer, Side Rail, Front LH
66423-52011 Spacer, Side Rail, Front LH
2003-06 → —
NCP13 —
66424A — Spacer, Side Rail, Rear LH
66424-52010 Spacer, Side Rail, Rear LH
2003-06 → —
NCP13 —
67913 — Plate, Front Door Scuff, RH
67911-52130-B0 note Plate, Front Door Scuff, RH
2003-06 → 2005-08 ended
NCP13 5D —
67913-52010-B2 note Plate, Front Door Scuff, RH
2003-06 → 2005-08 ended
NCP13 3D —
67913-52020-B2 note Plate, Front Door Scuff, RH
2003-06 → 2005-08 ended
NCP13 5D —
67914 — Plate, Front Door Scuff, LH
67912-52130-B0 note Plate, Front Door Scuff, LH
2003-06 → 2005-08 ended
NCP13 5D —
67914-52010-B2 note Plate, Front Door Scuff, LH
2003-06 → 2005-08 ended
NCP13 3D —
67914-52020-B2 note Plate, Front Door Scuff, LH
2003-06 → 2005-08 ended
NCP13 5D —
67917A — Plate, Rear Door Scuff, RH
67917-52010-B2 note Plate, Rear Door Scuff, RH
2003-06 → 2005-08 ended
NCP13 5D —
67918A — Plate, Rear Door Scuff, LH
67918-52010-B2 note Plate, Rear Door Scuff, LH
2003-06 → 2005-08 ended
NCP13 5D —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
