Toyota Echo

2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Steering Gear & Link

16 part groups · 3 illustrations

Illustrations

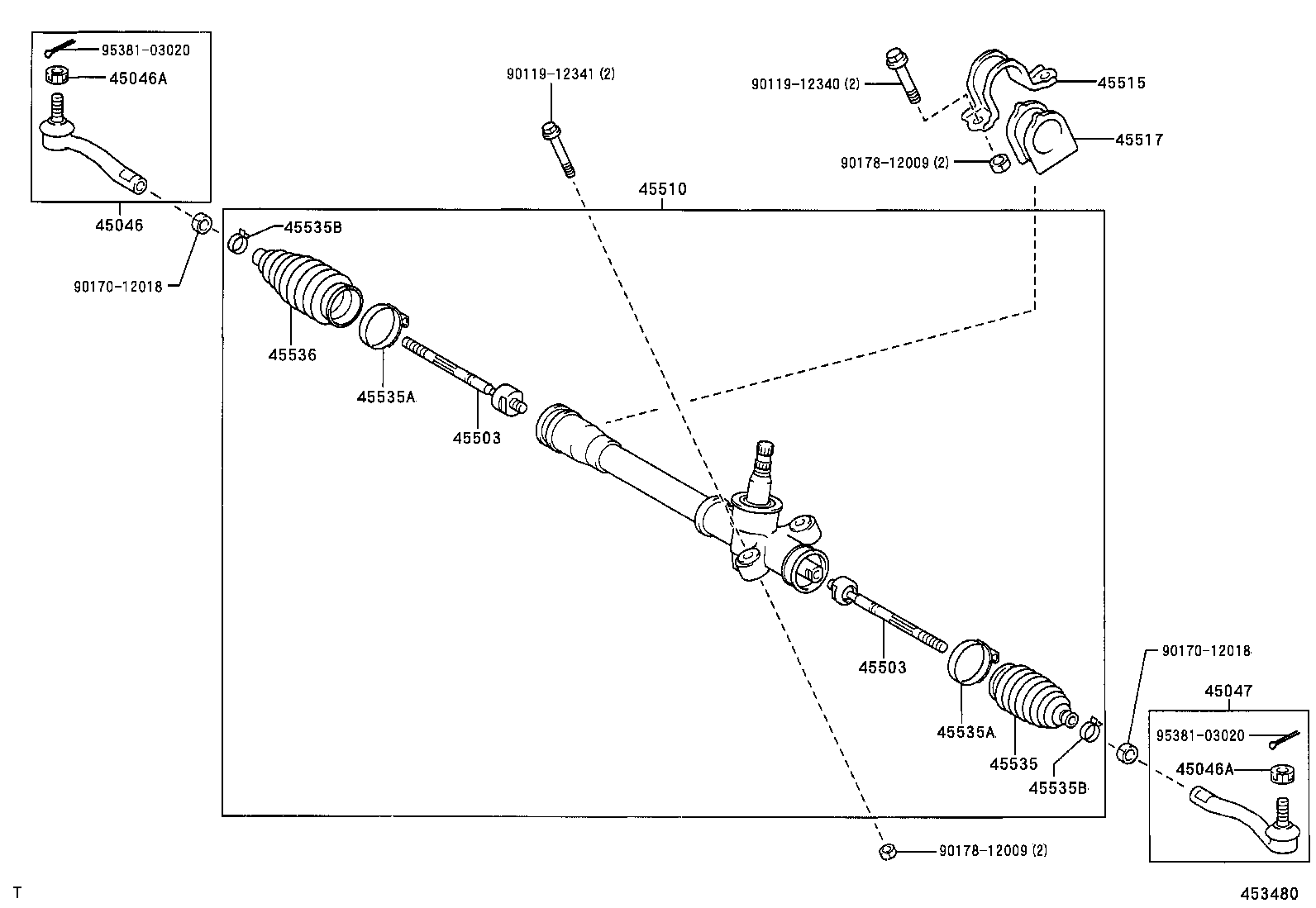

Figure 453608 453608 2003-06 → — Figure 453609 453609 2003-06 → — Figure 453480 453480 2003-06 → —

Part groups

PNCDescription
04445A Gasket Kit, Power Steering Gear(FOR RACK & PINION)
44200 Link Assy, Power Steering
44243 Insulator, Power Steering Rack Housing Heat
45046 End Sub-assy, Tie Rod, RH
45046A Nut, Castle(FOR TIE ROD END)
45047 End Sub-assy, Tie Rod, LH
45503 End Sub-assy, Steering Rack
45510 Gear Assy, Steering
45515 Bracket, Steering Rack Housing, NO.2
45517 Grommet, Steering Rack Housing, NO.2
45535 Boot, Steering Rack, NO.1
45535A Clamp(FOR STEERING RACK BOOT)
45535B Clip(FOR STEERING RACK BOOT)
45535D Clamp(FOR STEERING RACK BOOT NO.1)
45536 Boot, Steering Rack, NO.2
45536A Clamp(FOR STEERING RACK BOOT NO.2)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
