Toyota Echo

2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

24 part groups · 3 illustrations

Illustrations

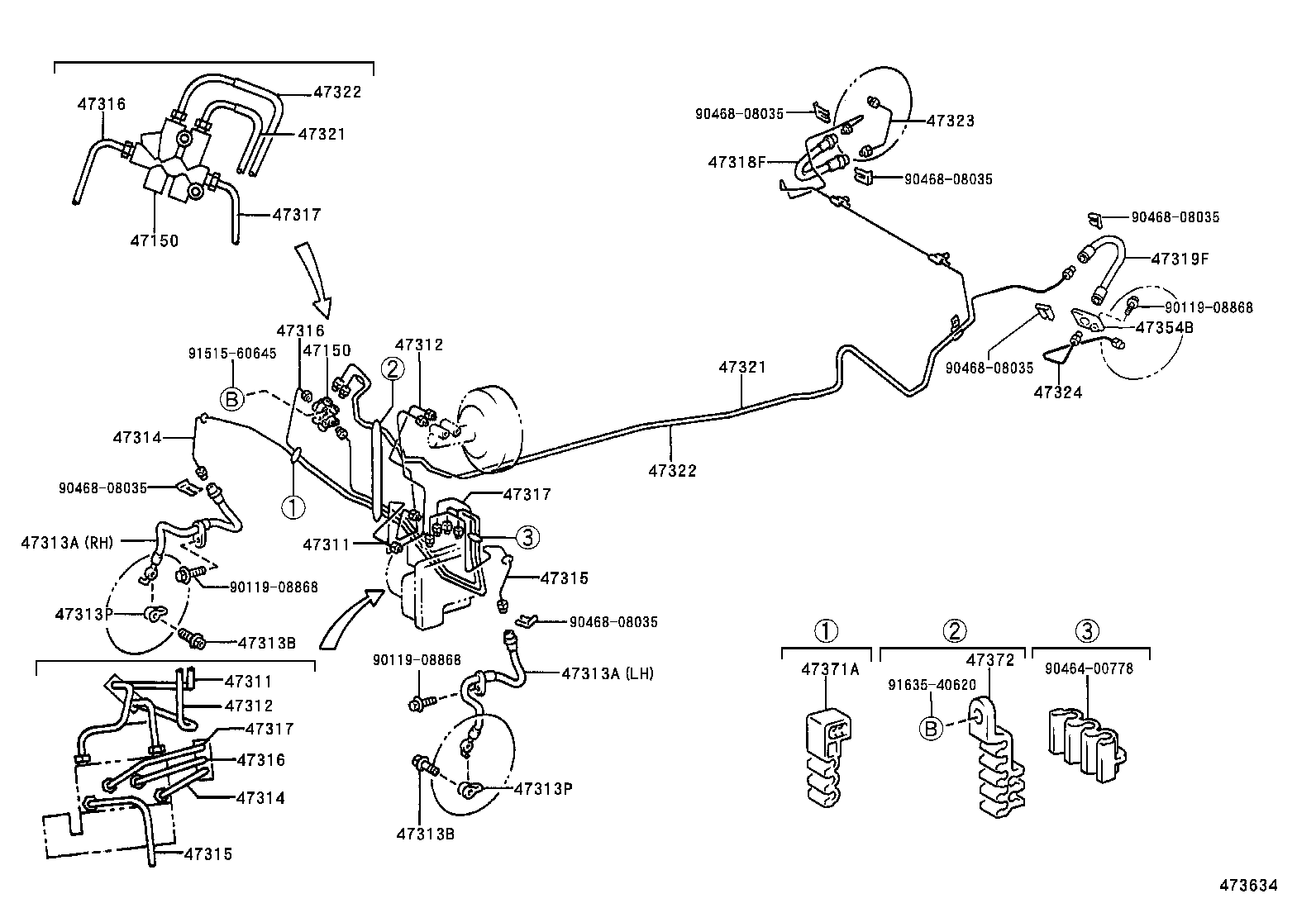

Figure 473633 473633 2003-06 → — Figure 473634 473634 2003-06 → — Figure 473632 473632 2003-06 → —

Part groups

PNCDescription
44510 Actuator Assy, Brake
44546A Cushion, Brake Actuator Bolt
44578 Bolt, Brake Actuator Cushion
44590 Bracket Assy, Brake Actuator
47150 Valve Assy, Proportioning
47311 Tube, Front Brake, NO.1
47312 Tube, Front Brake, NO.2
47313A Hose, Flexible, NO.1(FOR FRONT)
47313B Bolt, Union(FOR FRONT FLEXIBLE HOSE)
47313P Gasket(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47316 Tube, Front Brake, NO.6
47317 Tube, Front Brake, NO.7
47318F Hose, Flexible(FOR REAR RH)
47319F Hose, Flexible(FOR REAR LH)
47321 Tube, Rear Brake, NO.1
47322 Tube, Rear Brake, NO.2
47323 Tube, Rear Brake, NO.3
47324 Tube, Rear Brake, NO.4
47353B Bracket, Flexible Hose, NO.3
47354B Bracket, Flexible Hose, NO.4
47371A Clamp, Brake Tube, NO.1
47372 Clamp, Brake Tube, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
