Toyota Echo
2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States
Discontinued model
Data version 2006-02
Hood & Front Fender
10 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 53301 | Hood Sub-assy |
| 53381 | Seal, Hood TO Radiator Support |
| 53381A | Clip(FOR HOOD TO RADIATOR SUPPORT SEAL) |
| 53801 | Fender Sub-assy, Front RH |
| 53802 | Fender Sub-assy, Front LH |
| 53866 | Seal, Front Fender TO Cowl Side, RH |
| 53867 | Seal, Front Fender TO Cowl Side, LH |

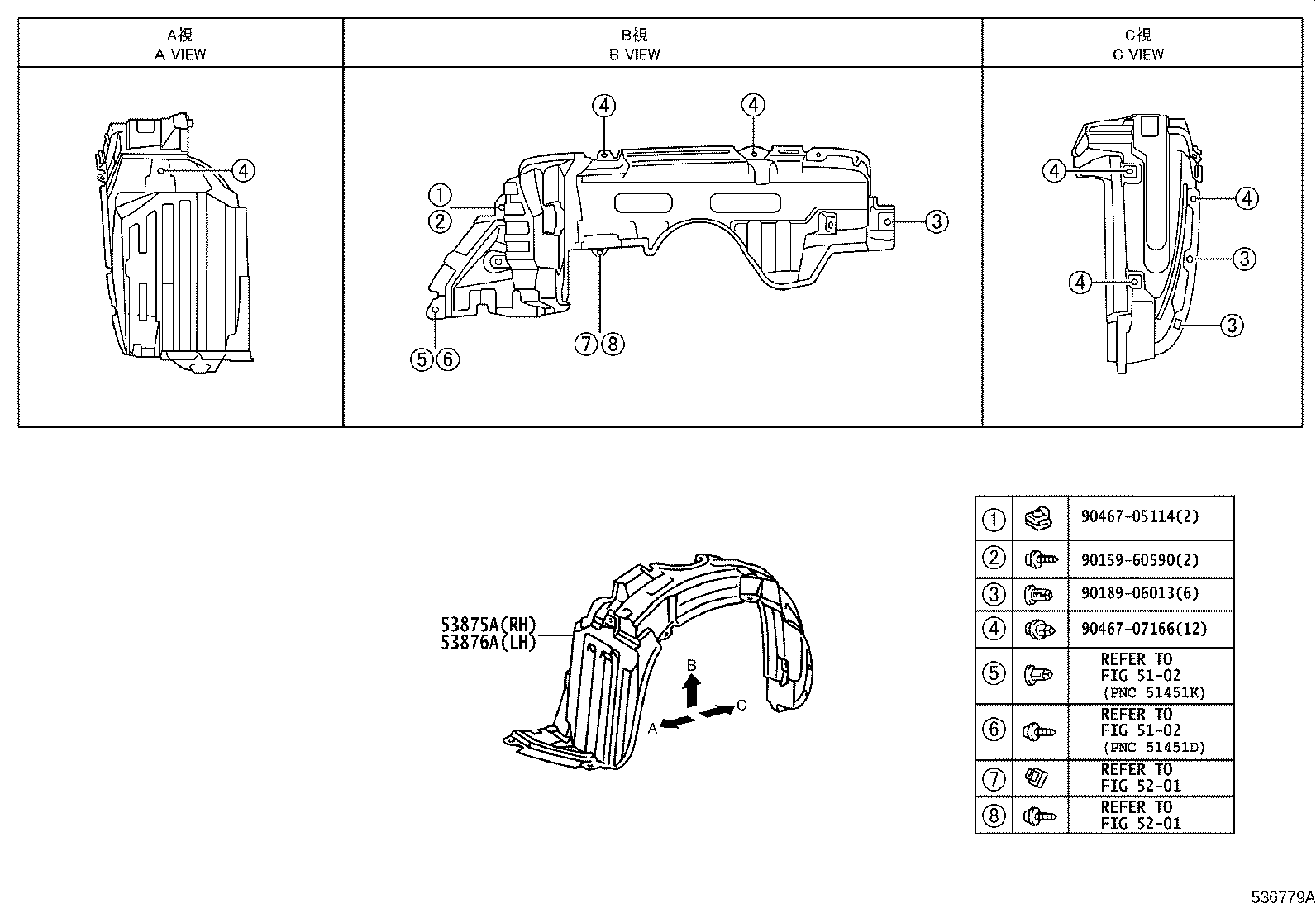

| 53875A | Liner, Front Fender, RH |
| 53876A | Liner, Front Fender, LH |
| 53882F | Seal, Front Fender |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
