Toyota Echo

2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States

Discontinued model Data version 2006-02

Fuel Tank & Tube

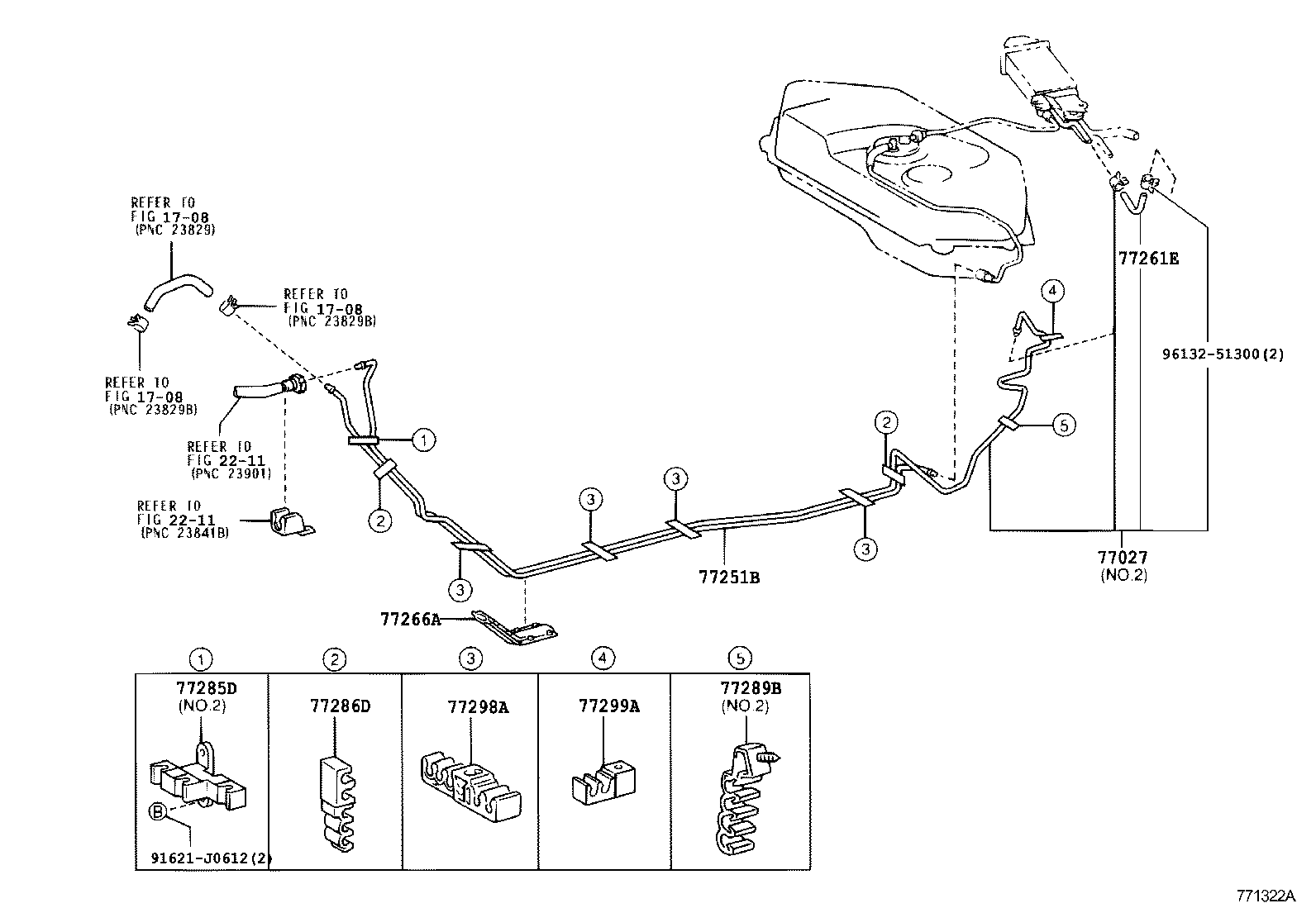

45 part groups · 2 illustrations

PNC	Description
77024A	Plate Sub-assy, Fuel Suction
77027	Tube Sub-assy, Fuel Evaporation, NO.2
77035	Cable Sub-assy, Fuel Lid Lock Control
77100	Tank Assy, Fuel
77113B	Plate, Fuel Tank Side
77168A	Plate, Fuel Tank Vent Tube Set
77169A	Gasket, Fuel Suction Tube Set
77175	Support, Fuel Suction, NO.2
77177	Gasket, Check Valve
77201	Pipe Sub-assy, Fuel Tank Inlet
77209B	Tube Sub-assy, Fuel Pump
77213B	Hose, Fuel Tank TO Filler Pipe
77219	Cover, Fuel Tank Filler Pipe
77226A	Tube, Fuel Tank Breather, NO.6
77229C	Clamp, Breather Tube
77241W	Clip, Tube Joint
77248A	Holder, Fuel Tank Filler Pipe Cover
77251B	Tube, Fuel Main
77261E	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77266A	Protector, Fuel Tube, NO.1
77281A	Clamp, Fuel Filler Pipe
77285D	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77286K	Clamp, Fuel Tube, NO.2
77289B	Clamp, Fuel Tube, NO.3
77291A	Shield, Fuel Tank Filler Pipe
77298A	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77306	Lever Sub-assy, Fuel Lid Lock Open
77306A	Spring, Fuel Lid Open Lever
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77377	Retainer, Fuel Filler Opening Lid Lock
77390	Valve Assy, Fuel Tank Inlet
77391	Ring, Fuel Inlet Box
77393	Protector, Check Valve
77394	Hose, Valve TO Fuel Filler Pipe
77444	Hose, Fuel Tank Vent
77606	Protector Sub-assy, Fuel Tank, NO.1
77643A	Protector, Fuel Tank, NO.3
77740	Canister Assy, Charcoal
77740B	Hose, Fuel, NO.2(FOR CHARCOAL CANISTER)
77785	Harness, Fuel Pump
