Toyota Echo

2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States

Discontinued model Data version 2006-02
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

24 part groups · 8 illustrations

Illustrations

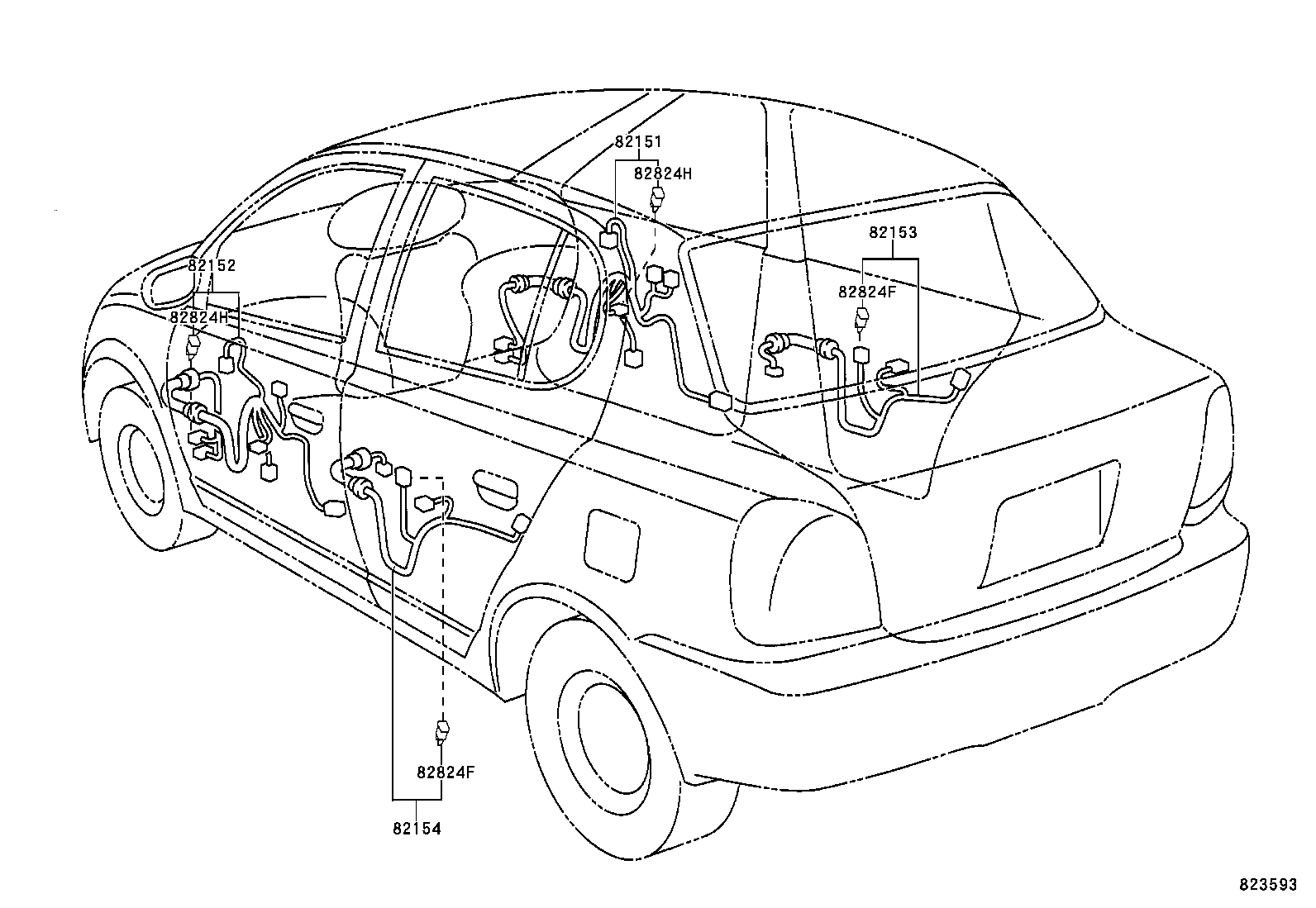

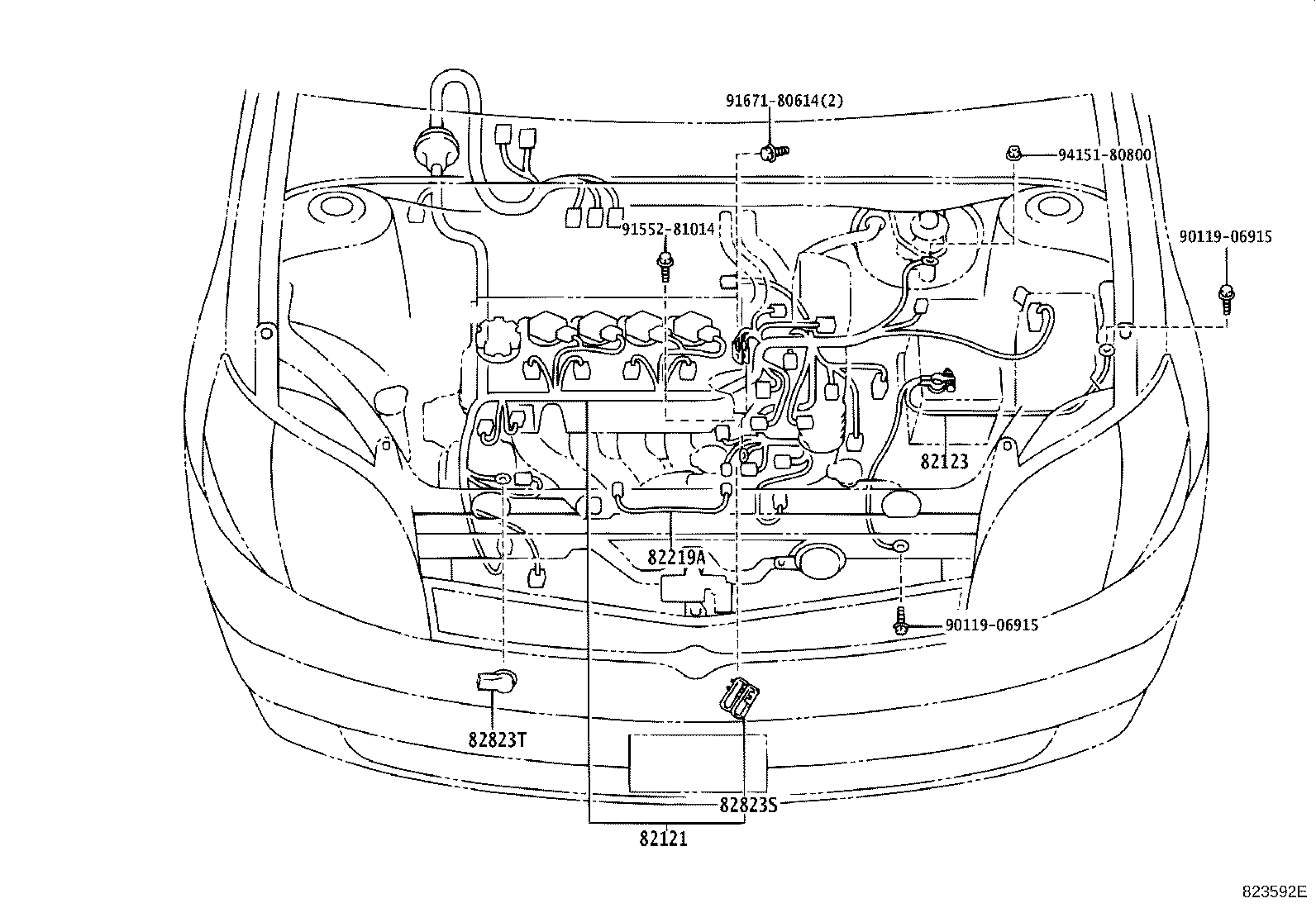

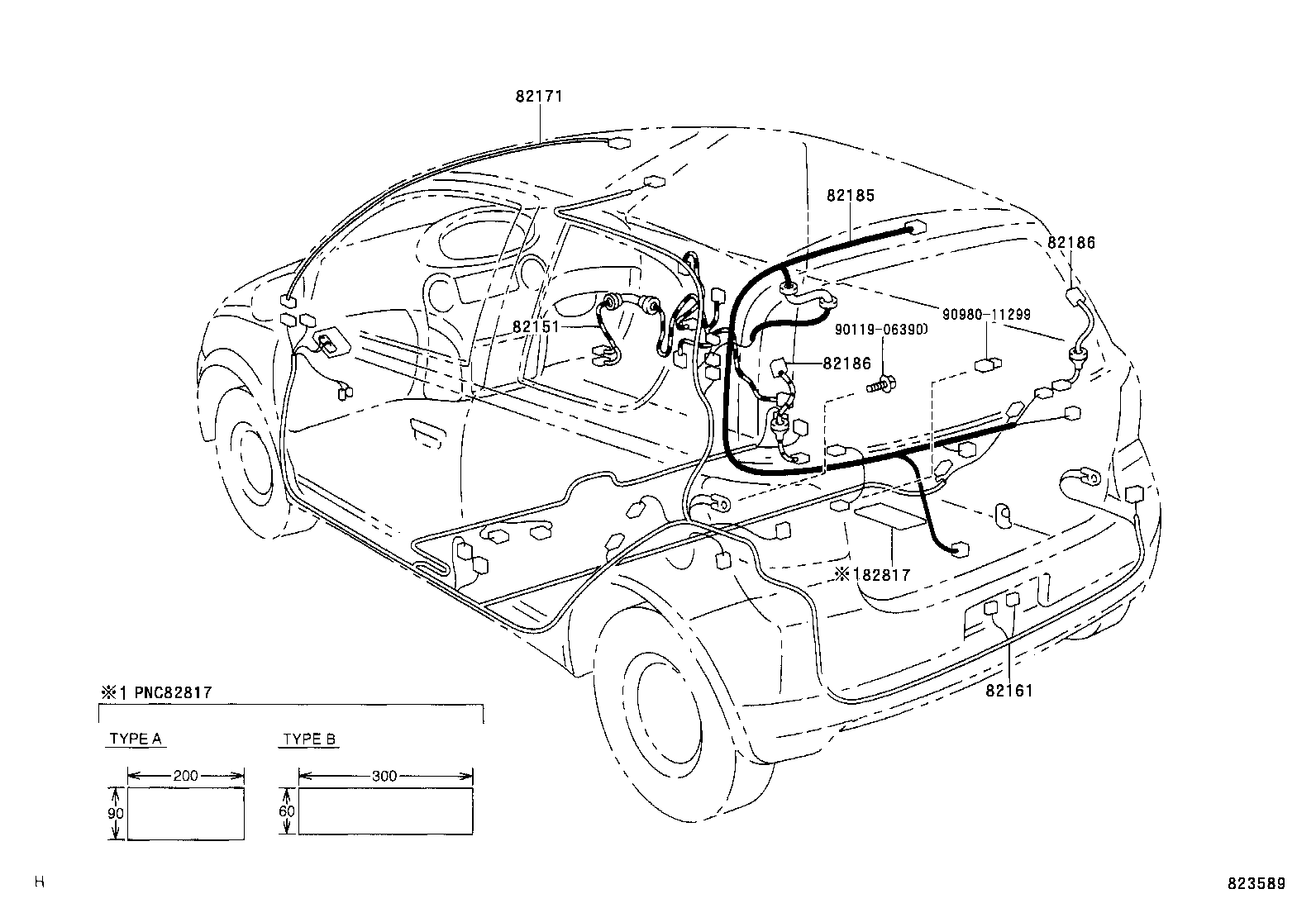

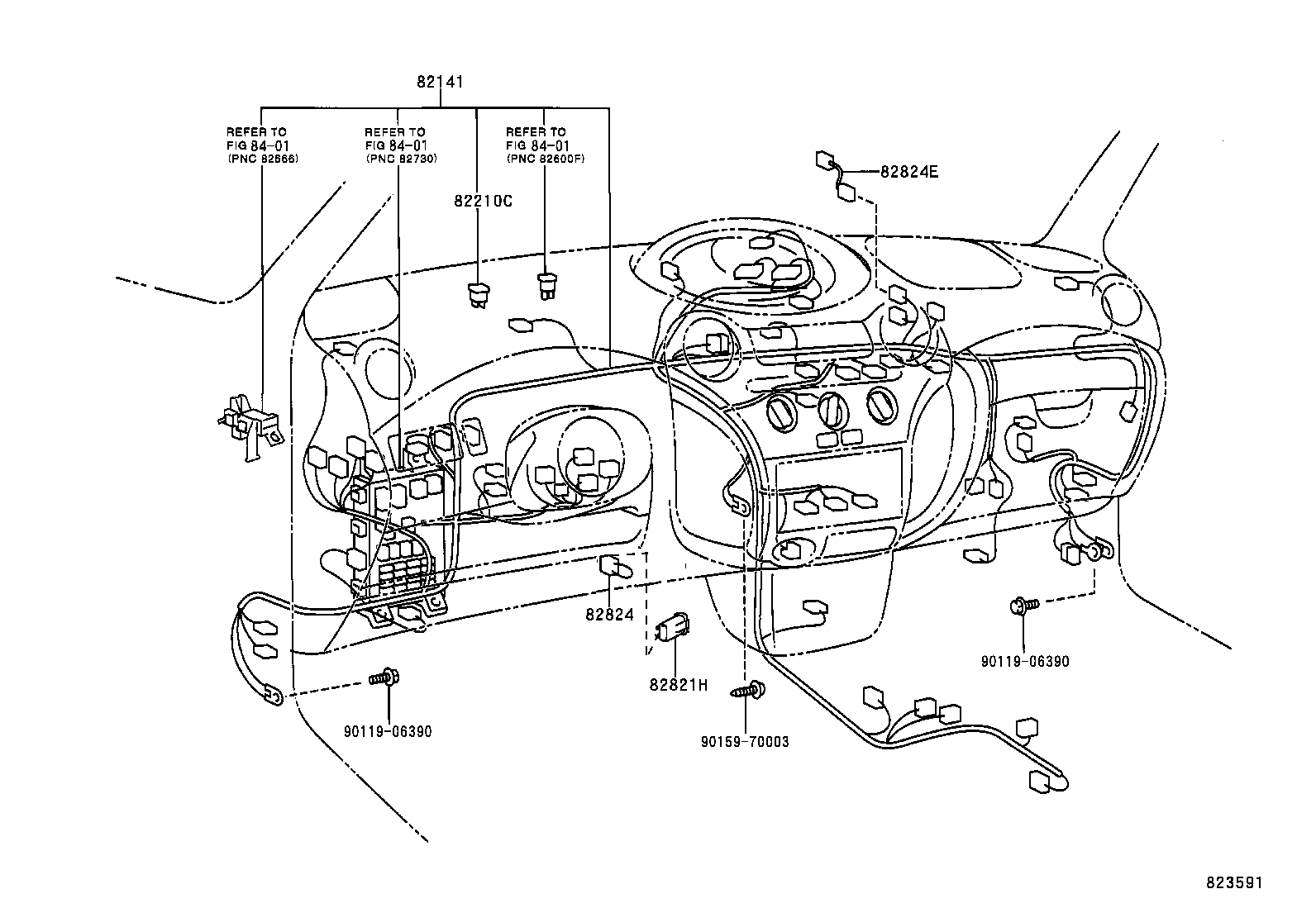

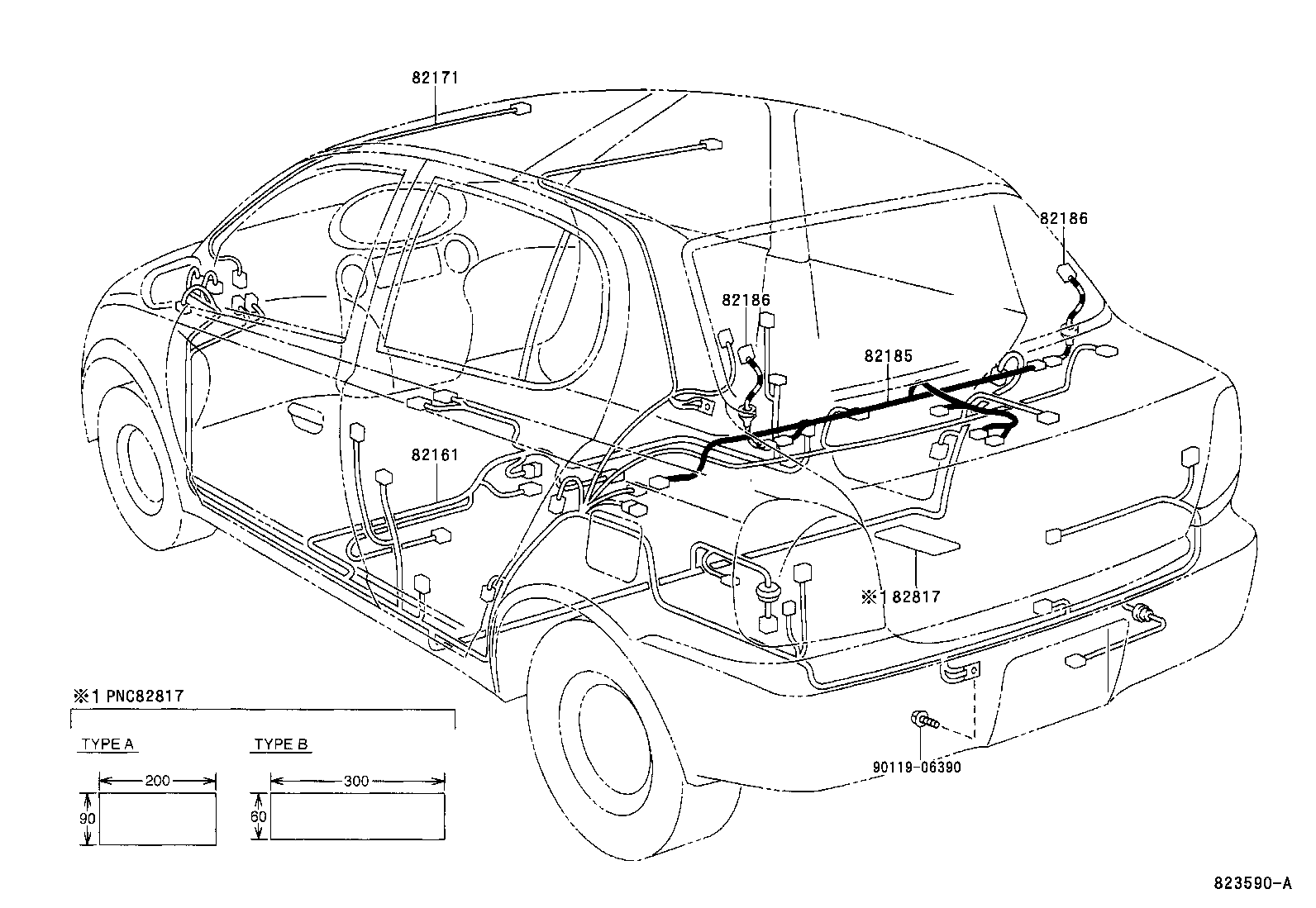

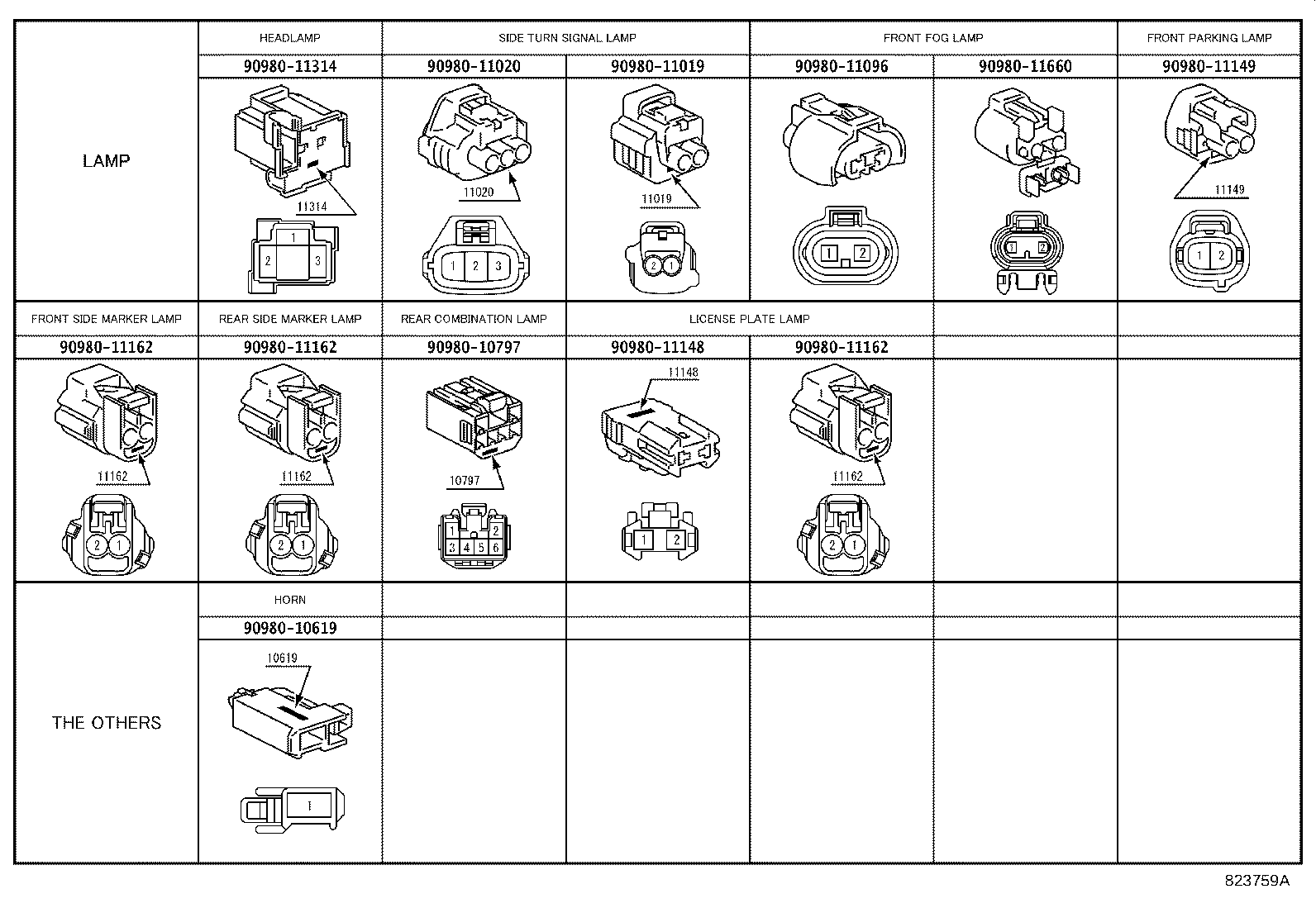

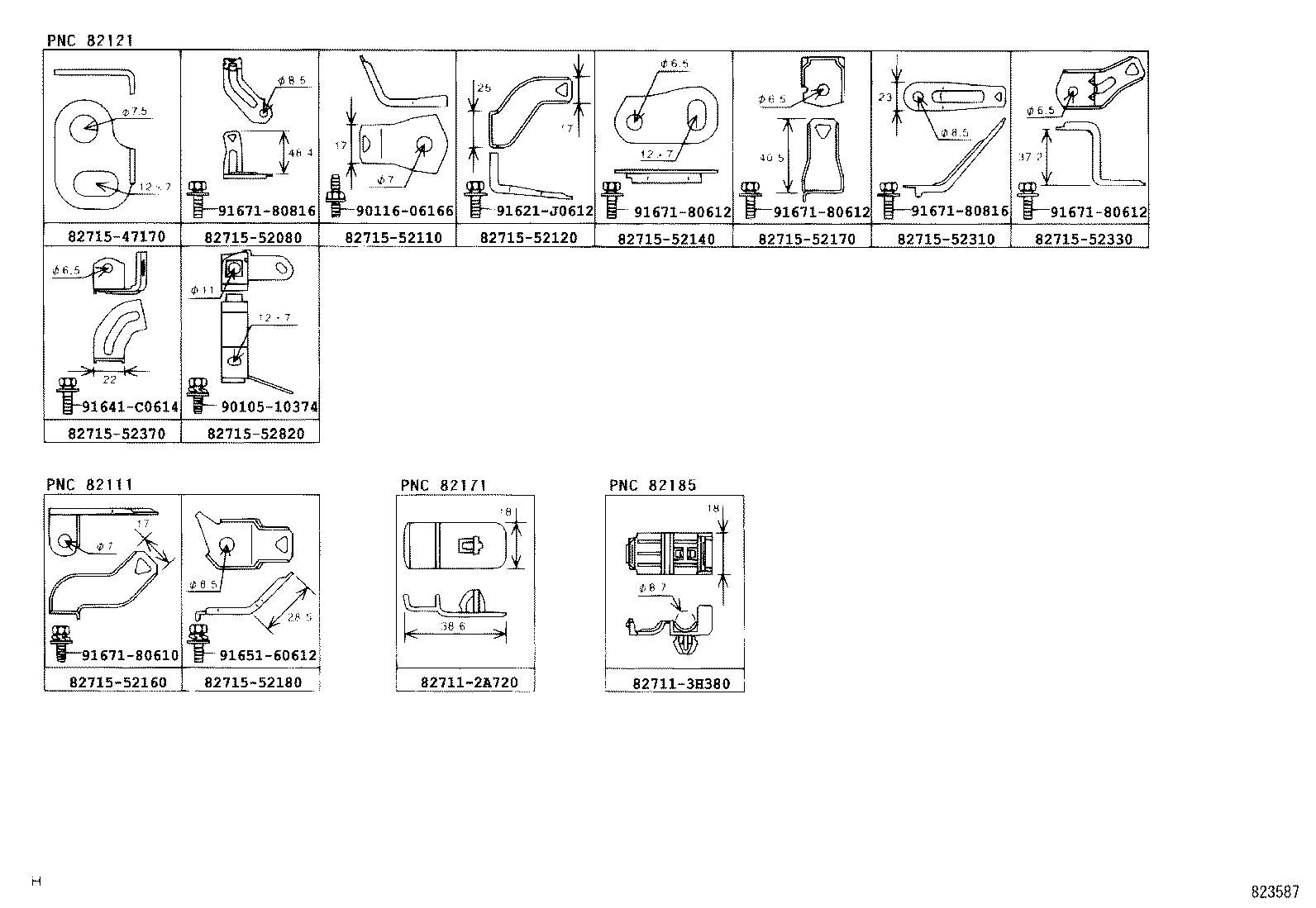

Figure 823588A 823588A 2003-06 → — Figure 823592E 823592E 2003-06 → — Figure 823591 823591 2003-06 → — Figure 823589 823589 2003-06 → — Figure 823590A 823590A 2003-06 → — Figure 823593 823593 2003-06 → — Figure 823587C 823587C 2003-06 → — Figure 823759A 823759A 2003-06 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main
82121 Wire, Engine
82123 Wire, Engine, NO.3
82141 Wire, Instrument Panel
82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2
82161 Wire, Floor
82171 Wire, Roof, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82210C Fusible Link
82214A Wire, Lamp
82219A Wire, Sensor
82817 Protector, Wiring Harness, NO.1
82821A Cover, Connector
82821H Cover, Connector
82823S Cap, Starter Terminal
82823T Cap, Alternator Terminal
82824 Connector, Wiring Harness
82824E Connector, Wiring Harness
82824F Connector, Wiring Harness
82824H Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
