Toyota Echo
2003-06 → 2005-08 · chassis NCP13 · catalogue 112410 · United States
Discontinued model
Data version 2006-02
Switch & Relay & Computer
52 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 28300 | Relay Assy, Starter |
| 33855A | Cover, Shift Lock Unit |
| 81980 | Flasher Assy, Turn Signal |
| 82600F | Fuse, Fuse Block |
| 82642A | Relay, Running Light |

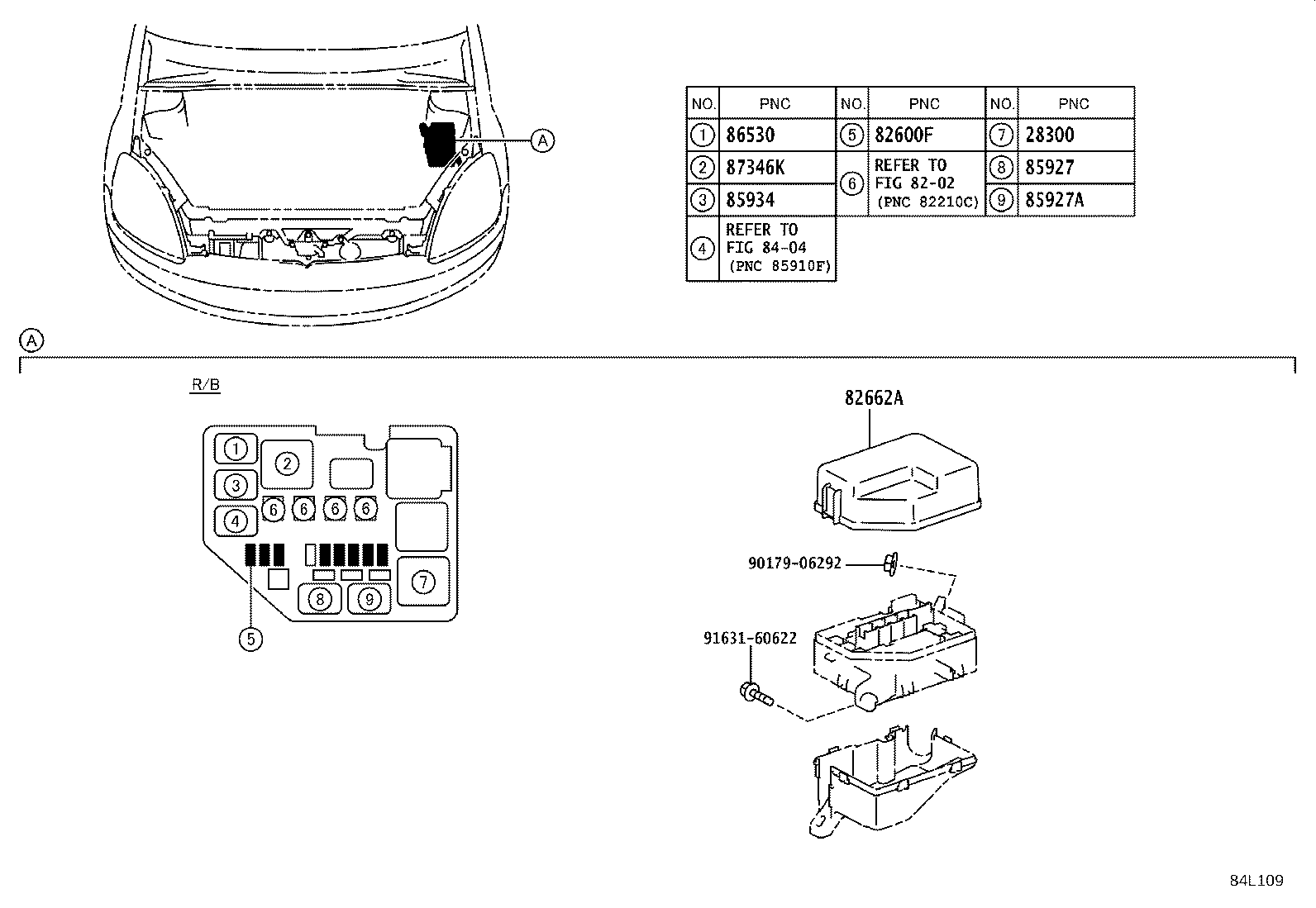

| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82666 | Holder, Connector |
| 82683 | Plate, Fuse Block Caution |

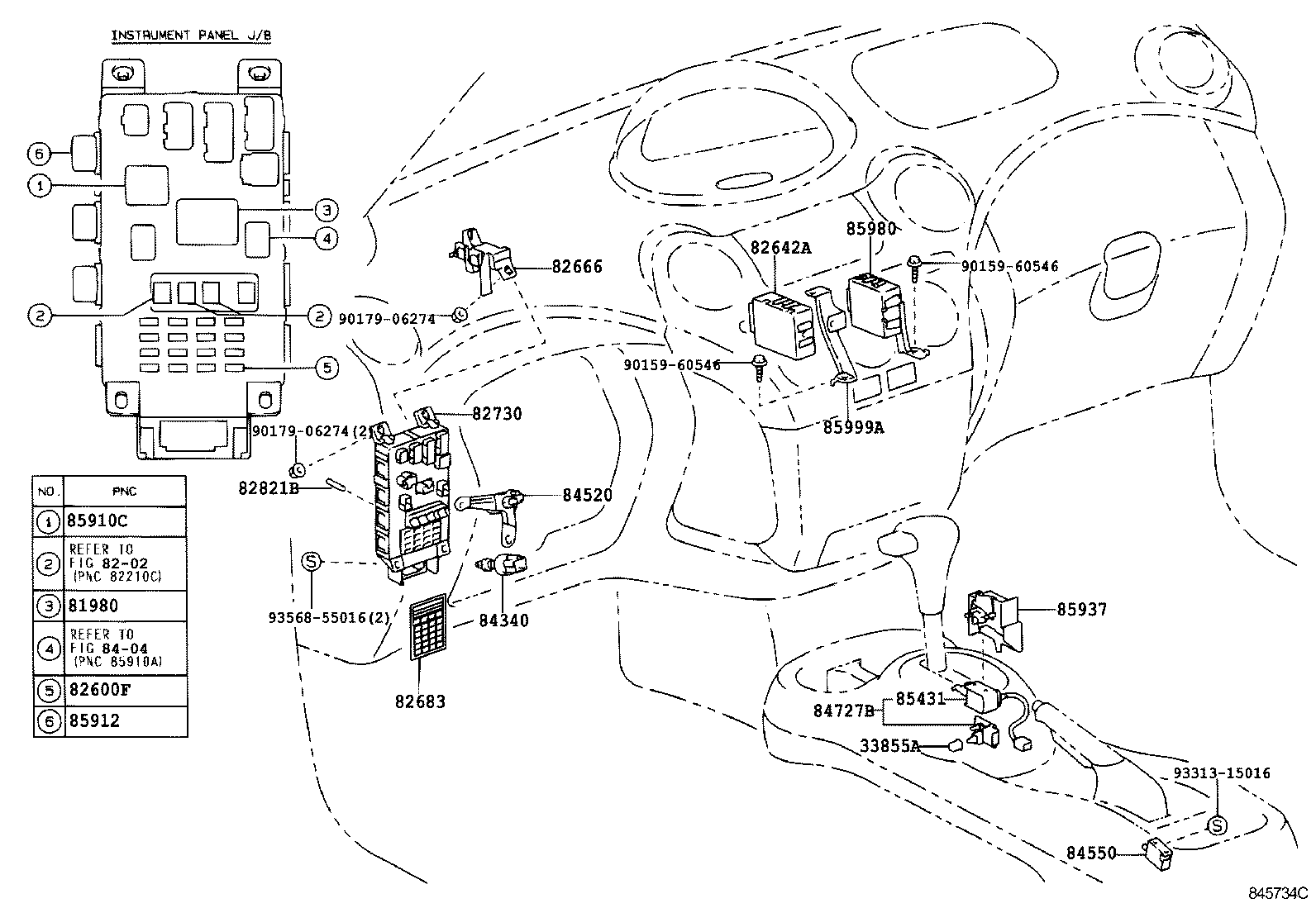

| 82730 | Block Assy, Instrument Panel Junction |
| 82821B | Cover, Connector |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 84052 | Switch Assy, Un-lock Warning |

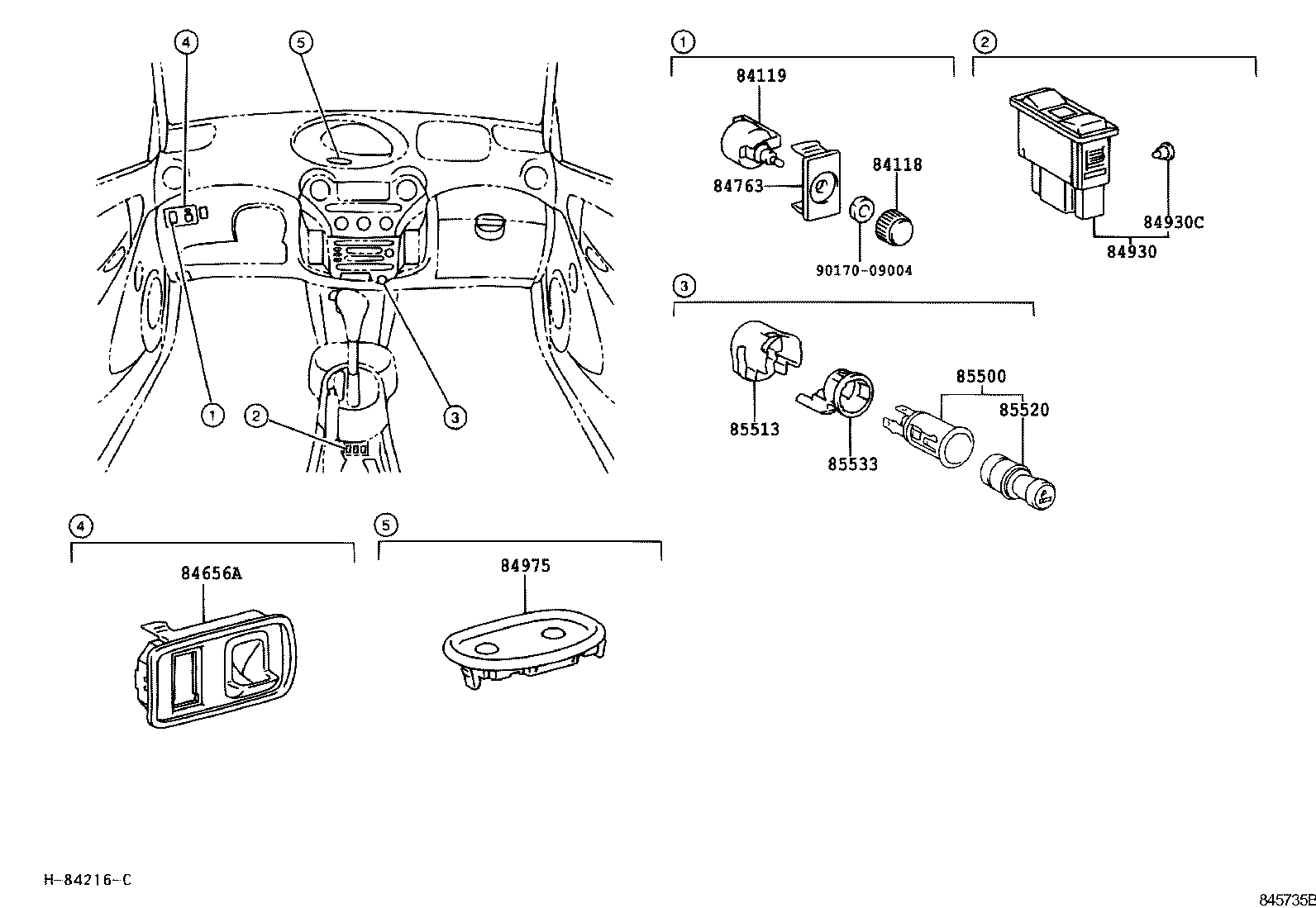

| 84118 | Knob, Light Control Rheostat |
| 84119 | Rheostat, Light Control |

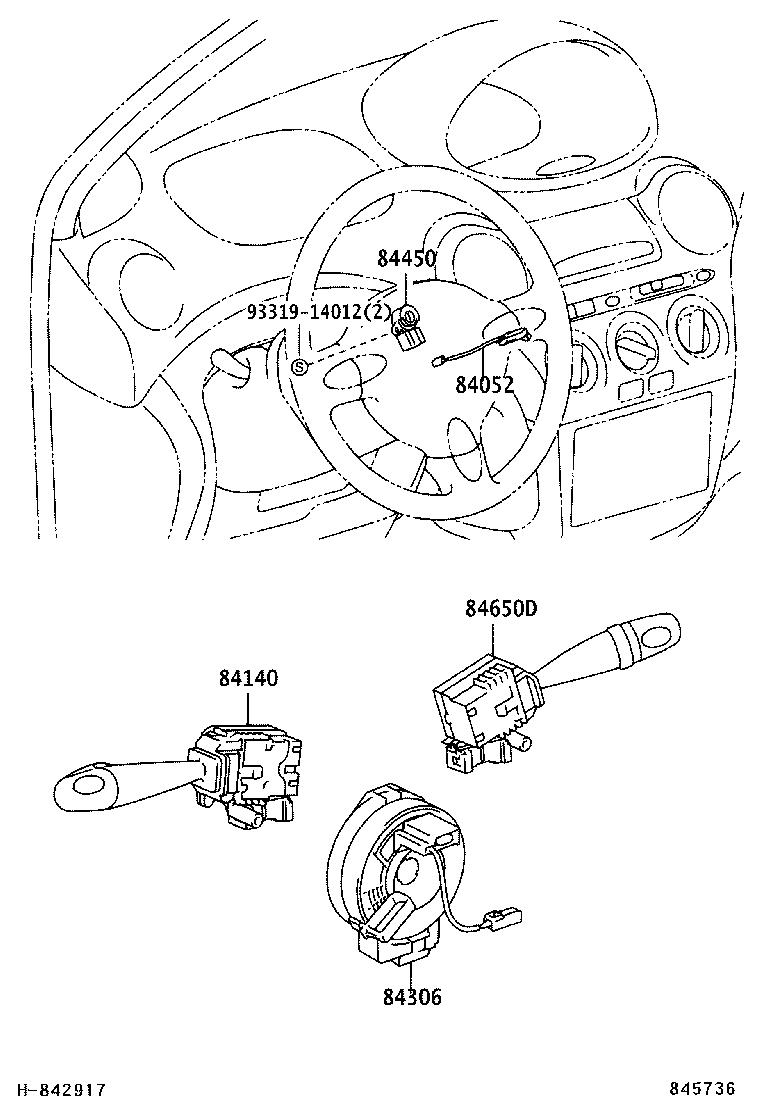

| 84140 | Switch Assy, Headlamp Dimmer |
| 84210 | Switch Assy, Back-up Lamp |

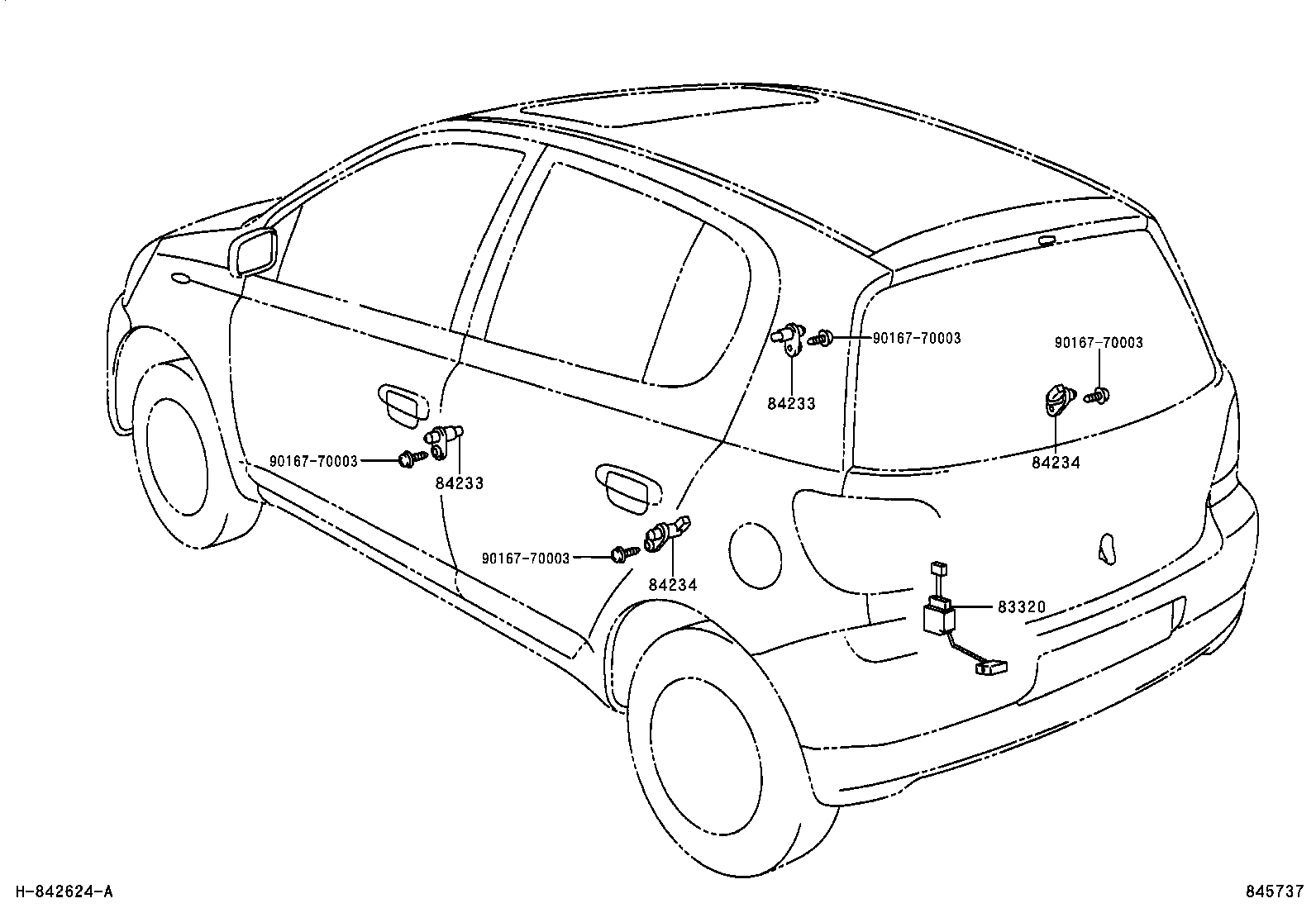

| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84306 | Cable Sub-assy, Spiral |
| 84340 | Switch Assy, Stop Lamp |
| 84450 | Switch Assy, Ignition OR Starter |
| 84520 | Switch Assy, Clutch Start |
| 84540 | Switch Assy, Neutral Start |
| 84550 | Switch Assy, Parking Brake |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84656A | Bezel, Switch |
| 84727B | Switch & Solenoid Set, Shift Lock |
| 84763 | Plate, Switch |
| 84930 | Switch Assy, Door Control |
| 84930C | Bulb(FOR DOOR CONTROL SWITCH) |
| 84975 | Switch, Trip |
| 85431 | Solenoid, Shift Lock |
| 85500 | Lighter Assy, Cigarette |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85910C | Relay Assy (FOR HEATER BLOWER MOTOR) |
| 85912 | Relay, Defogger |
| 85927 | Relay, Cooling Fan |
| 85927A | Relay, Cooling Fan, NO.2 |

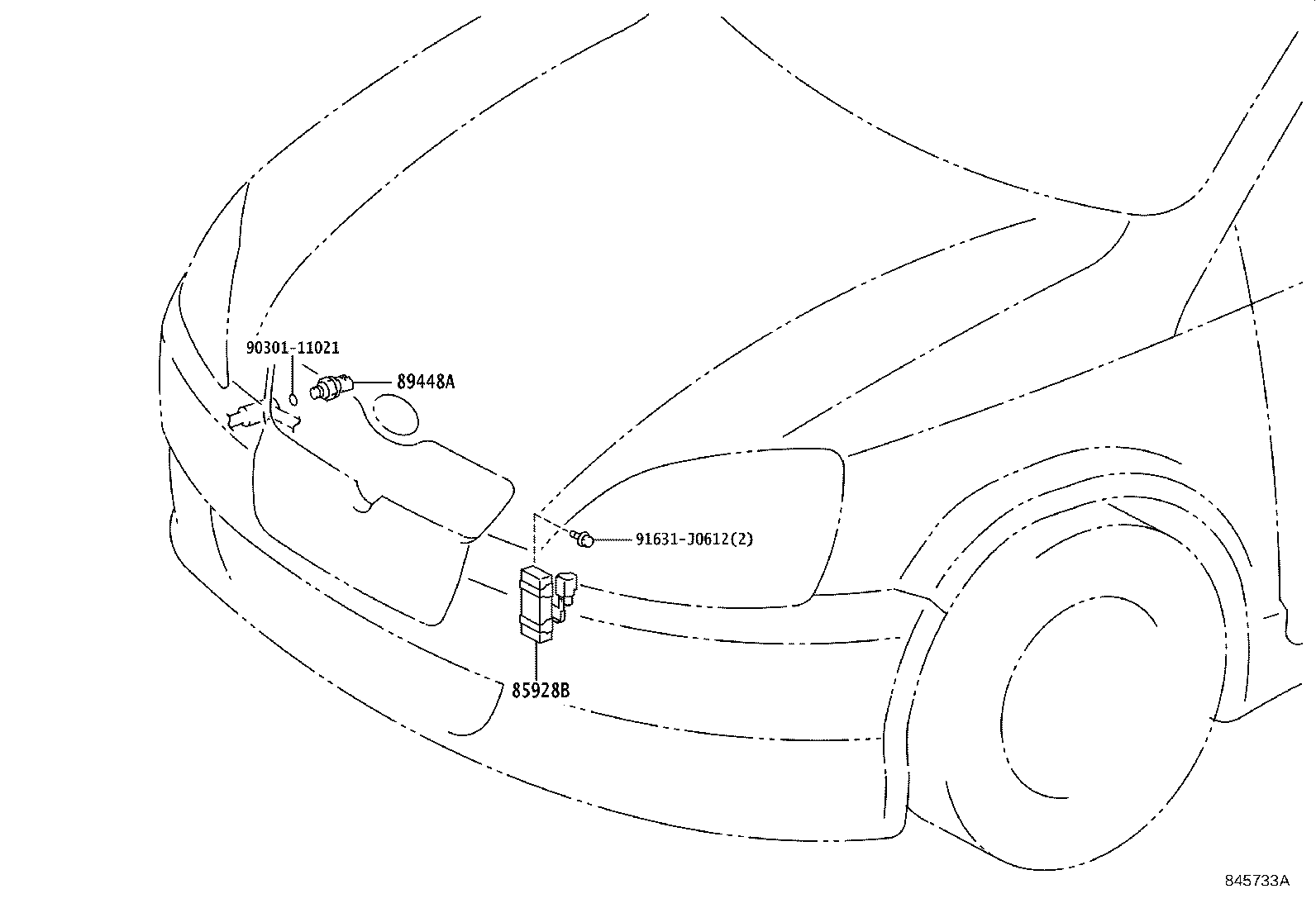

| 85928B | Resistor, Cooling Fan |
| 85934 | Relay, Magnet-clutch |
| 85937 | Protector, Shift Lock Control |
| 85980 | Relay Assy, Door Control |
| 85999A | Bracket, Relay, NO.2 |
| 86530 | Relay Assy, Horn |
| 87346K | Relay, Ptc Heater |
| 89448A | Sensor, Power Steering Oil Pressure |
| 89465 | Sensor, Oxygen |
| 89465A | Sensor, Oxygen NO.2 |
| 89615 | Sensor, Knock Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
