Toyota Yaris

2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Clutch Pedal & Flexible Hose

17 part groups · 2 illustrations

Illustrations

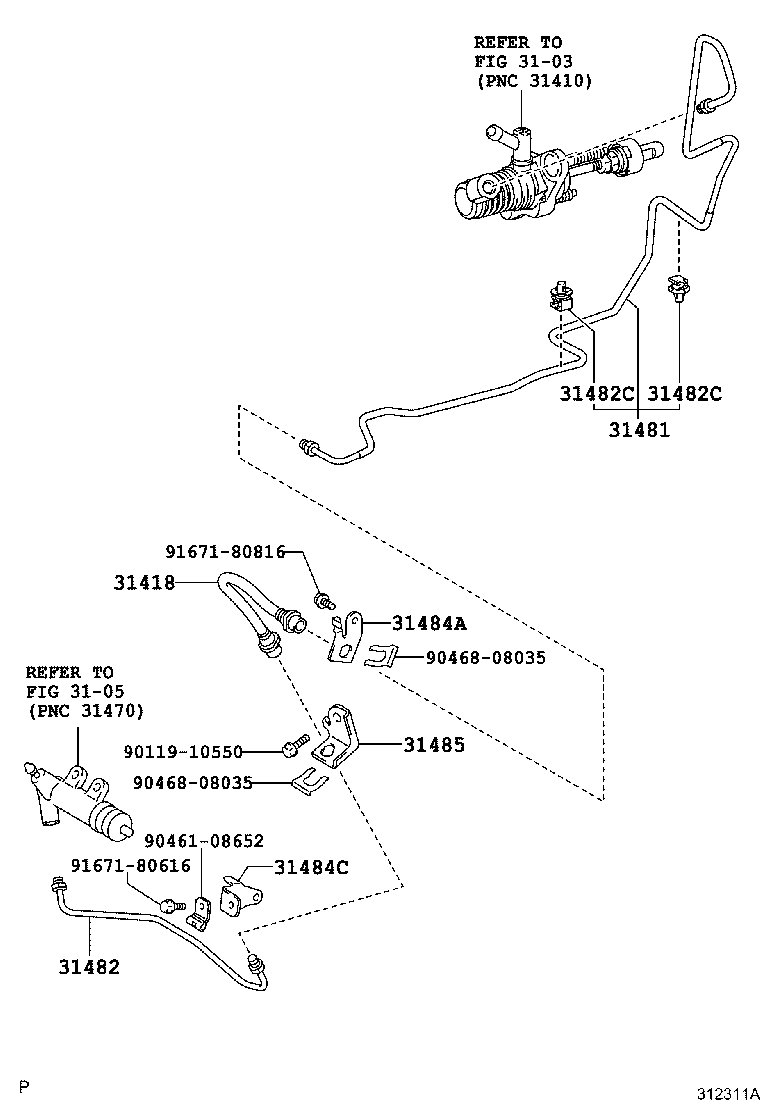

Figure 311508H 311508H 2005-08 → — Figure 312311A 312311A 2005-08 → —

Part groups

PNCDescription
31301 Pedal Sub-assy, Clutch
31301A Spring(FOR CLUTCH PEDAL)
31301B Cushion, NO.1(FOR CLUTCH PEDAL)
31301C Bush(FOR CLUTCH PEDAL)
31301F Bolt(FOR CLUTCH PEDAL STOPPER)
31301J Nut(FOR CLUTCH PEDAL STOPPER)
31321 Pad, Clutch Pedal
31324 Shaft, Clutch Pedal
31324A Collar, Clutch Pedal Shaft
31418 Hose, Clutch
31481 Tube, Clutch Master Cylinder TO Flexible Hose
31482 Tube, Clutch Release Cylinder TO Flexible Hose
31482C Clamp(FOR CLUTCH TUBE)
31484A Bracket, Flexible Hose, NO.1(FOR CLUTCH)
31484C Bracket, Clutch Tube, NO.1
31485 Bracket, Flexible Hose, NO.2(FOR CLUTCH)
55107A Support Sub-assy, Clutch Pedal
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
