Toyota Yaris

2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

20 part groups · 2 illustrations

Illustrations

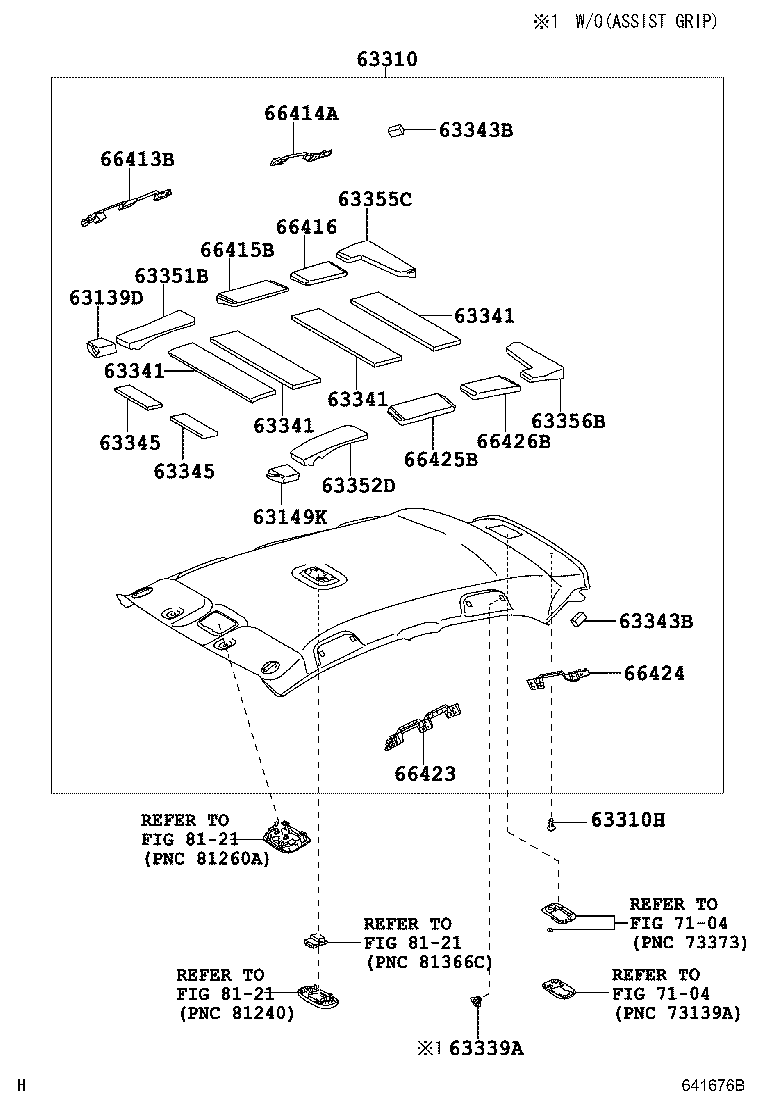

Figure 641675B 641675B 2005-08 → — Figure 641676B 641676B 2005-08 → —

Part groups

PNCDescription
63139D Pad, Roof Panel, NO.3
63149K Pad, Roof Panel, NO.4
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63343B Pad, Roof Silencer, Rear
63345 Pad, Roof Silencer, NO.5
63351B Pad, Roof Headlining
63352D Pad, Roof Headlining, NO.2
63355C Pad, Roof Headlining, RH
63356B Pad, Roof Headlining, LH
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66416 Spacer, Side Rail, Rear NO.3 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
66426B Spacer, Side Rail, Rear NO.3 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
