Toyota Yaris

2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Seat & Seat Track

40 part groups · 9 illustrations

Illustrations

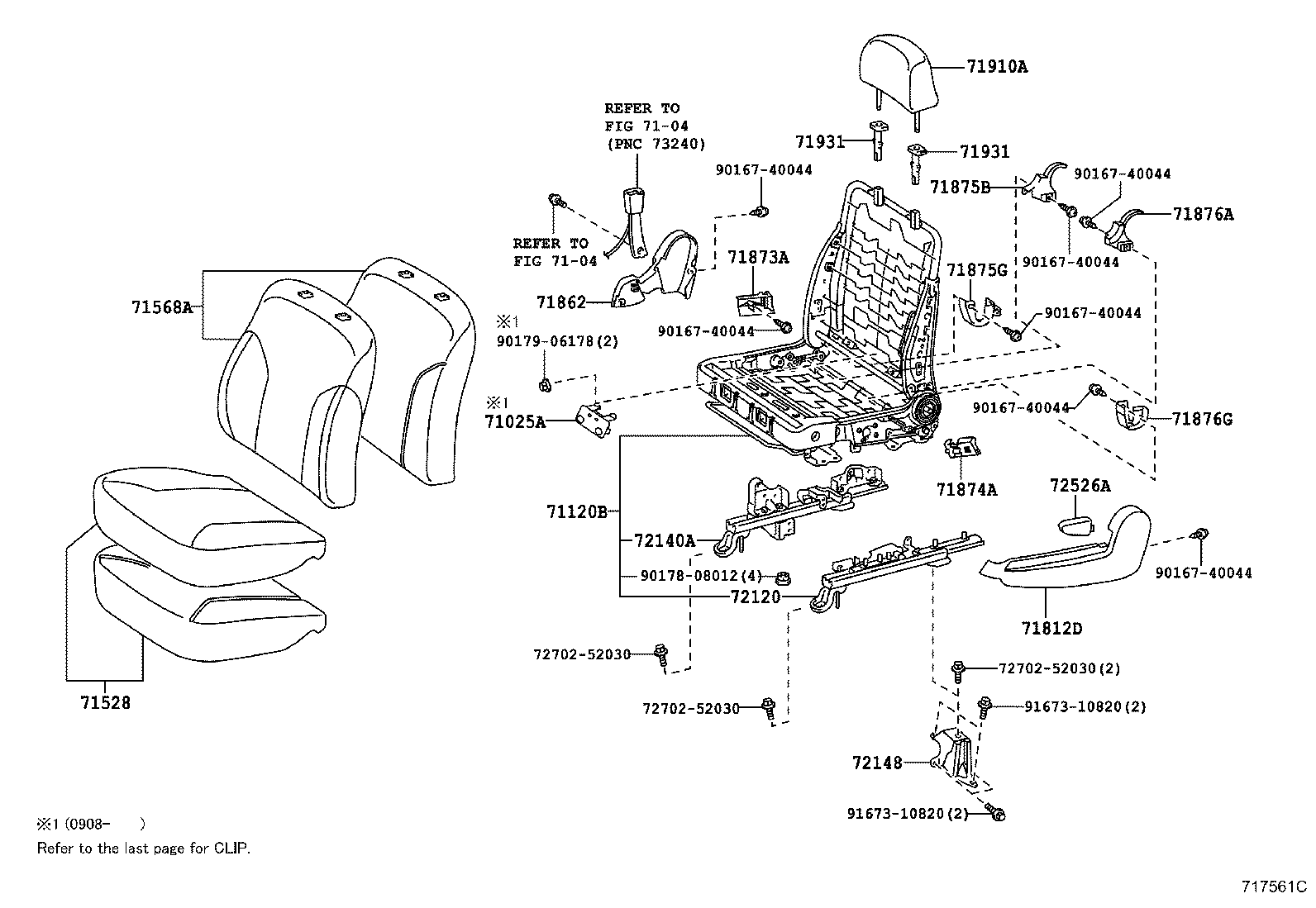

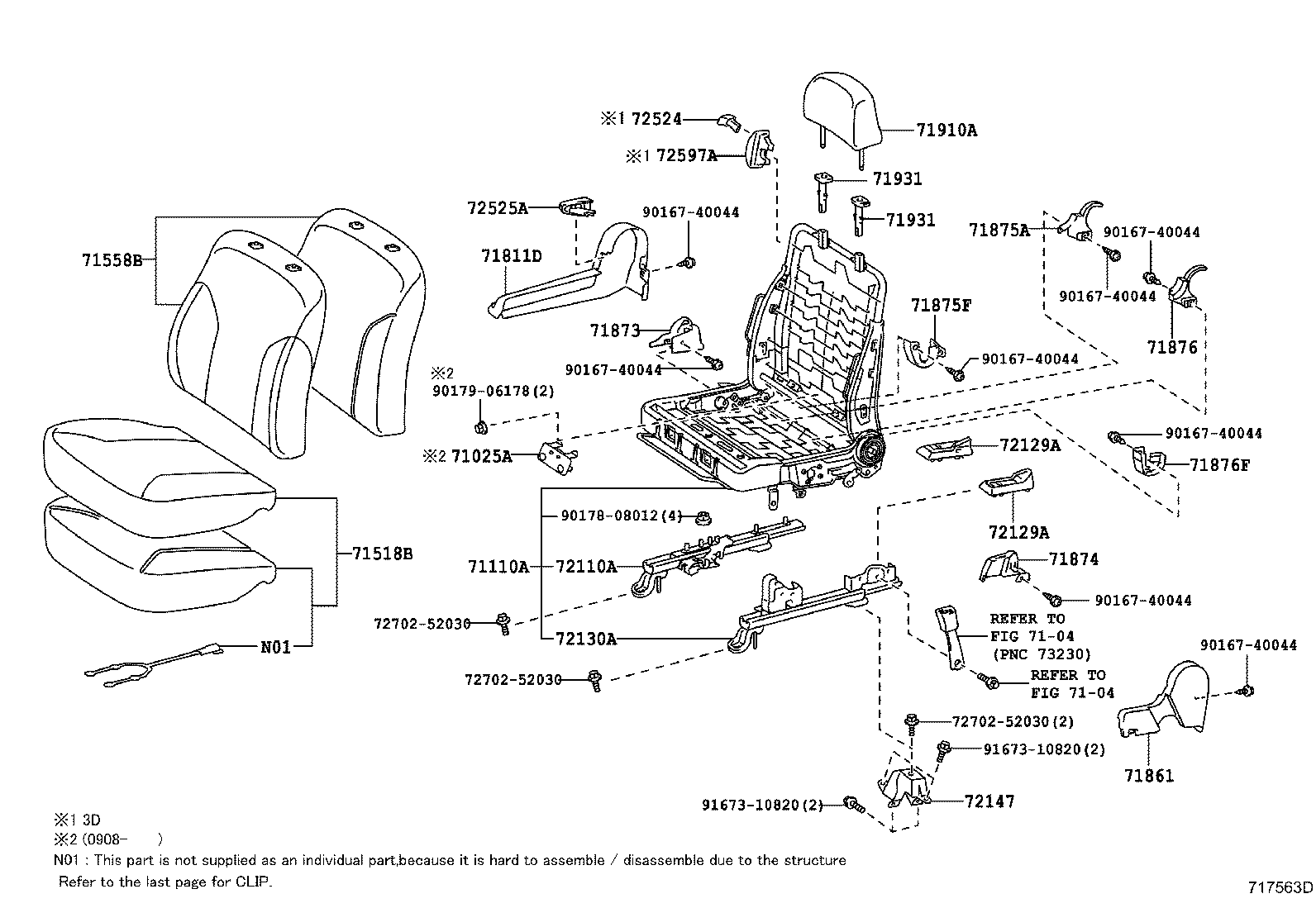

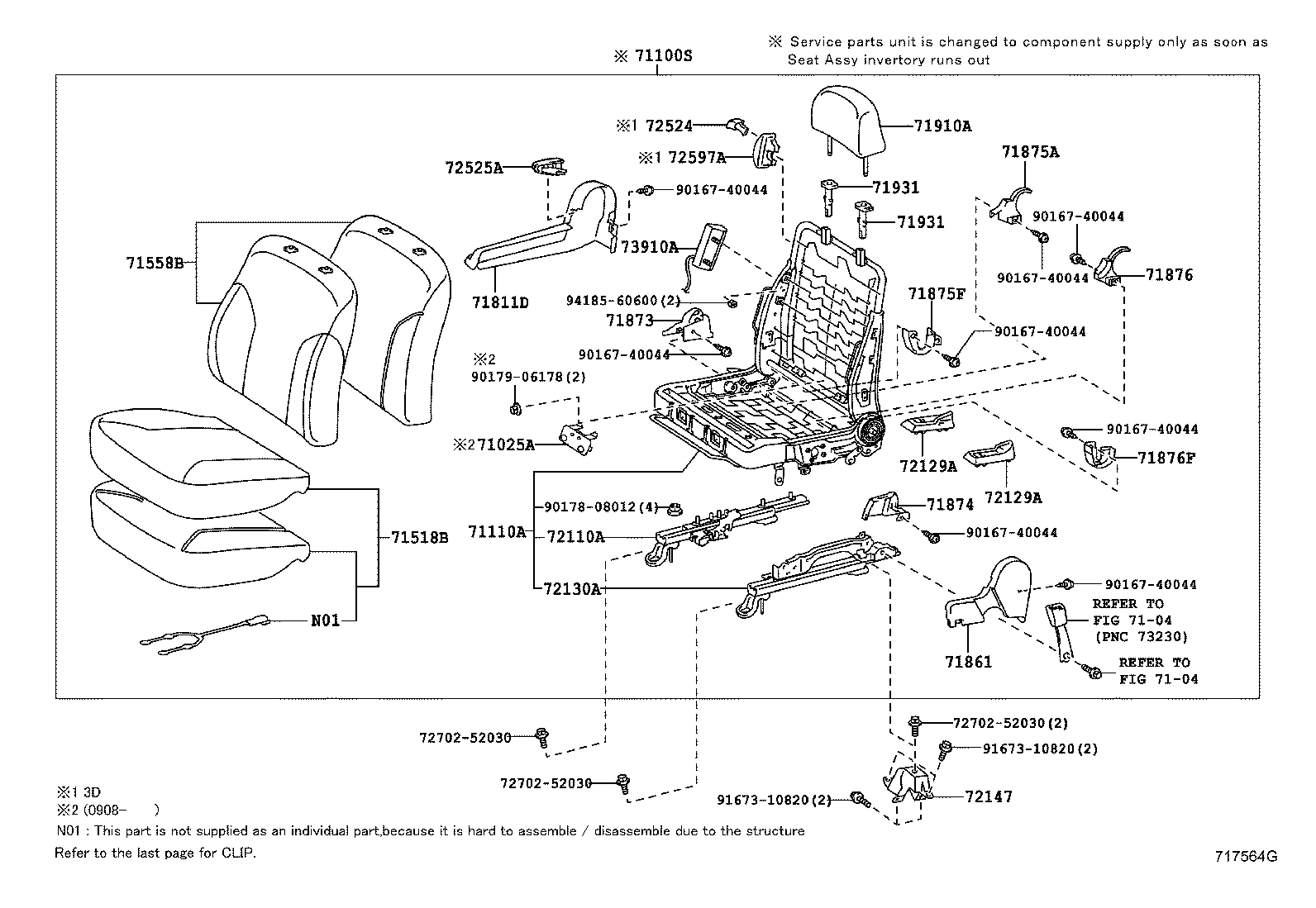

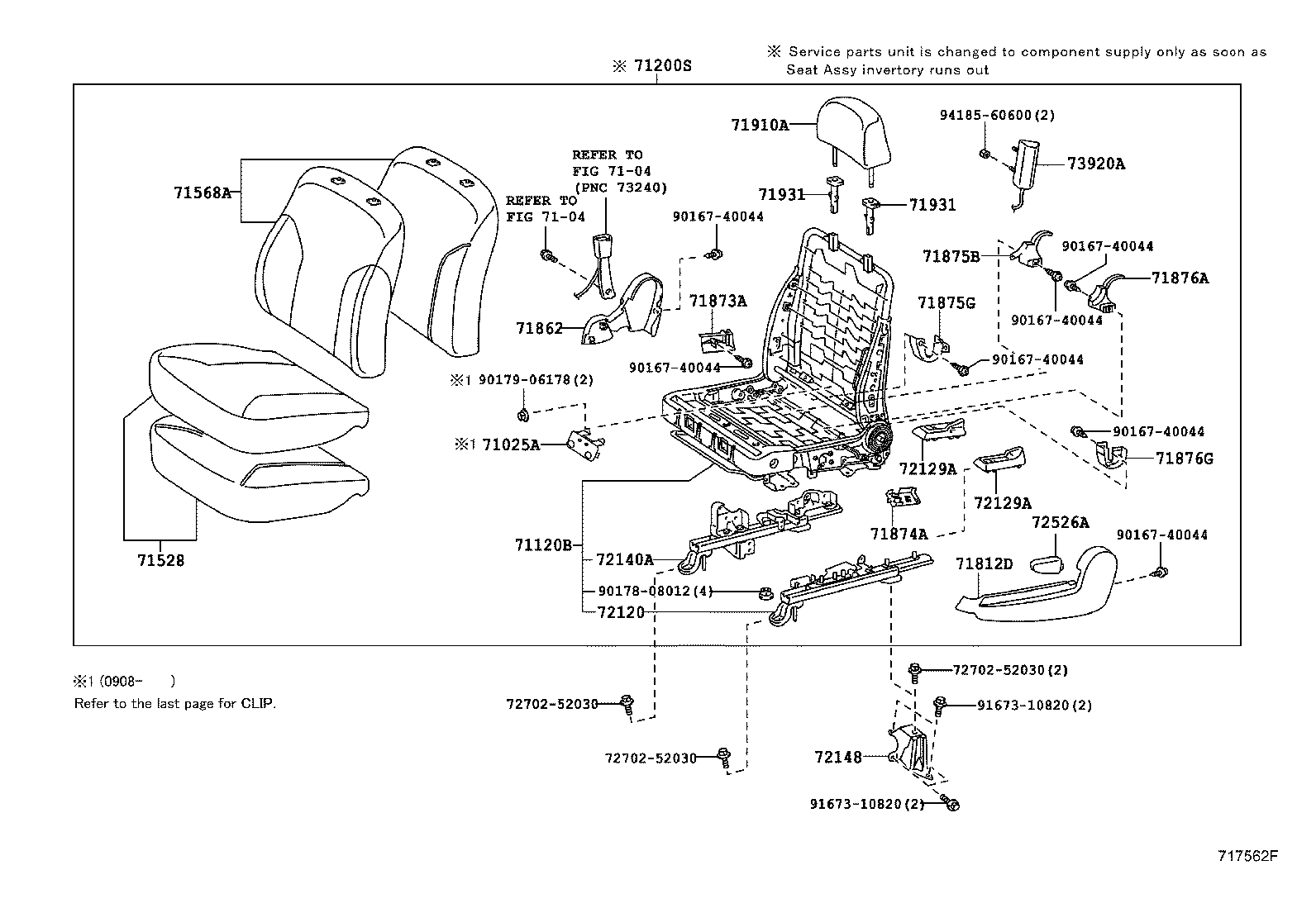

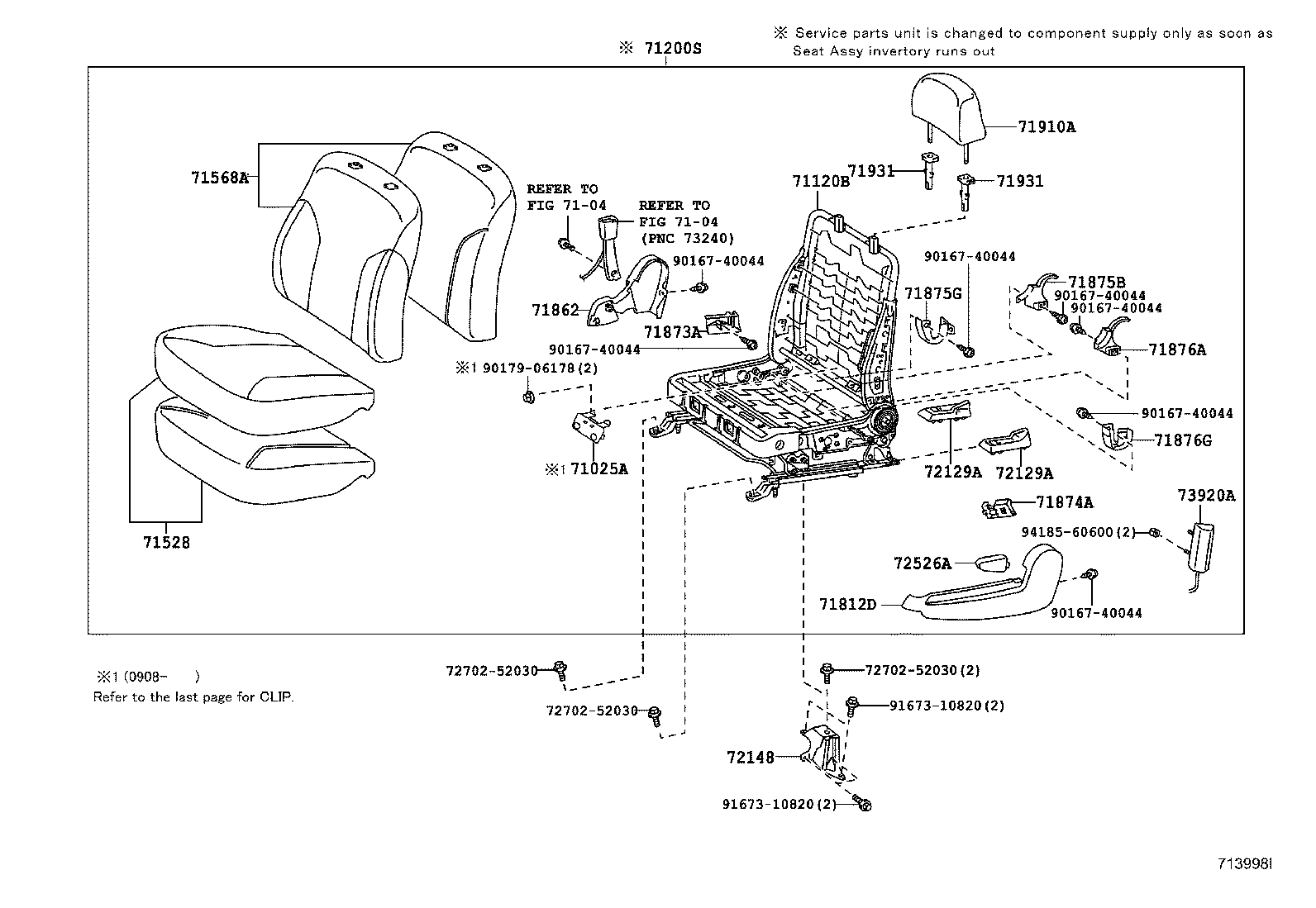

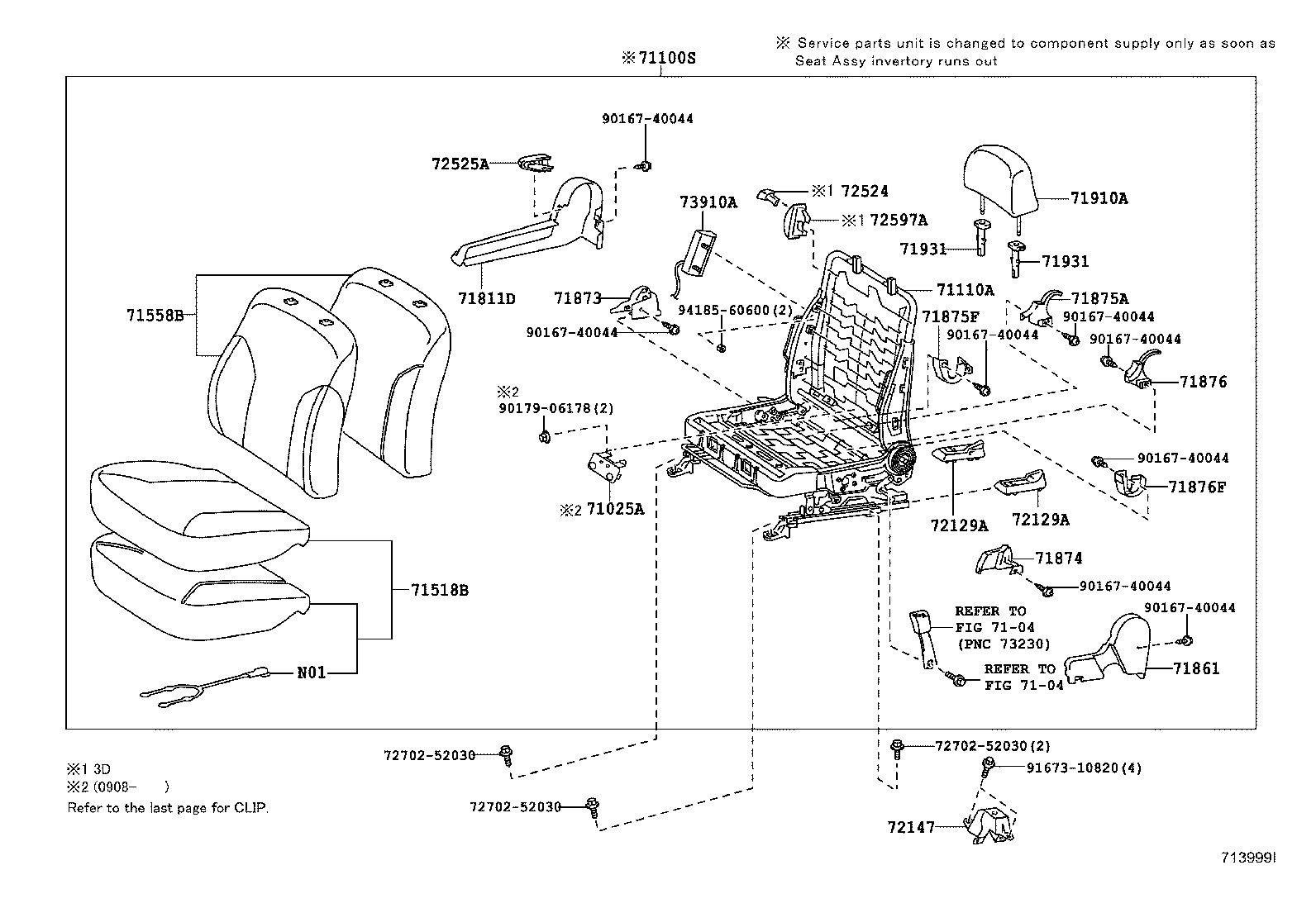

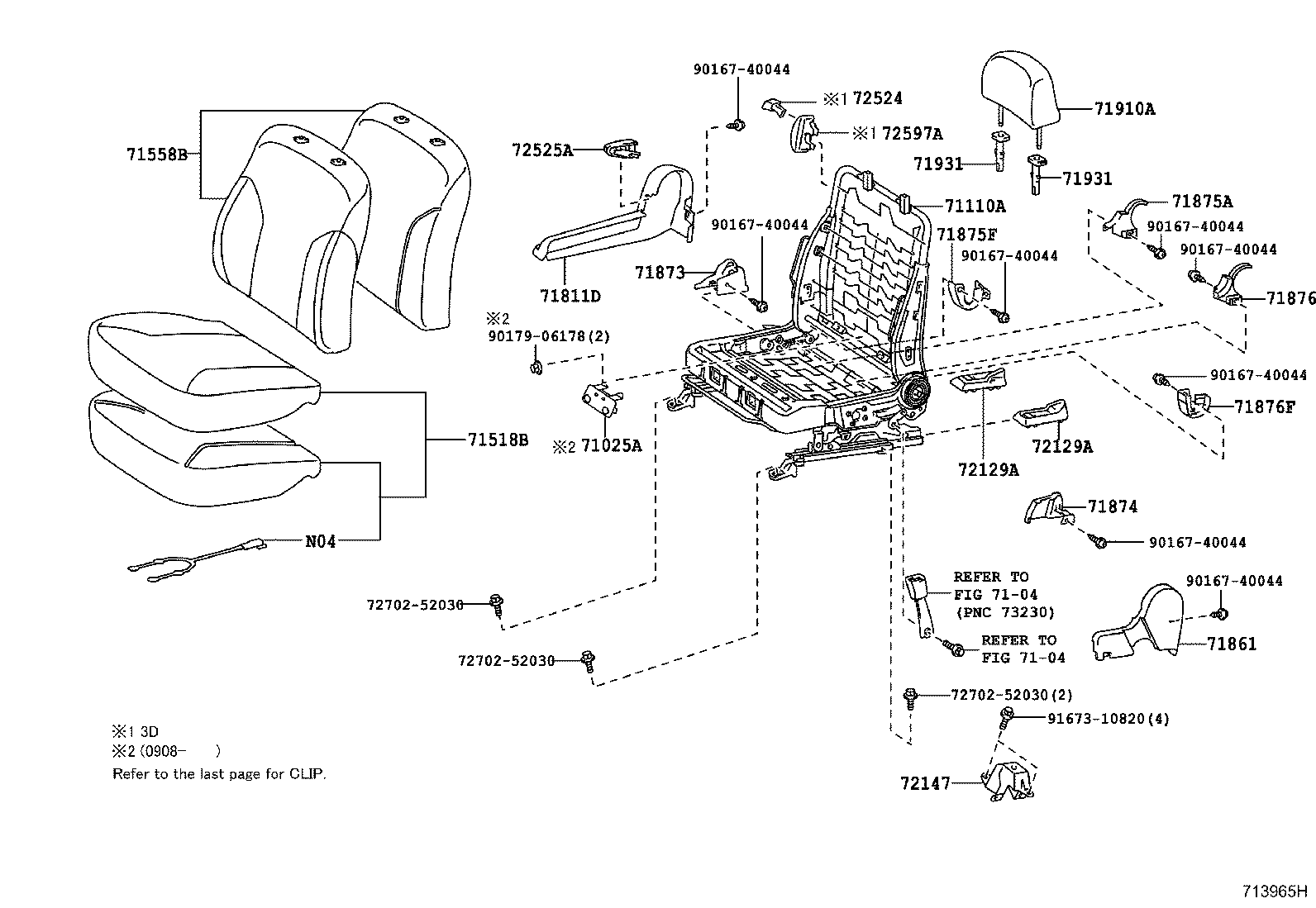

Figure 713997F 713997F 2005-08 → 2008-08 Figure 713998I 713998I 2005-08 → 2008-08 Figure 717561C 717561C 2008-08 → — Figure 717562F 717562F 2008-08 → — Figure 713965H 713965H 2005-08 → 2008-08 Figure 713999I 713999I 2005-08 → 2008-08 Figure 717563D 717563D 2008-08 → — Figure 717564G 717564G 2008-08 → — Figure 718166A 718166A 2005-08 → —

Part groups

PNCDescription
71025A Bracket Sub-assy, Front Seatback
71100S Seat Assy, Front RH
71110A Frame Assy, Front Seat W/Adjuster, RH
71120B Frame Assy, Front Seat W/Adjuster, LH
71200S Seat Assy, Front LH
71518B Pad, Front Seat Cushion W/Cover, RH
71528 Pad, Front Seat Cushion W/Cover, LH
71558B Pad, Front Seatback W/Cover, RH
71568A Pad, Front Seatback W/Cover, LH
71811D Shield, Front Seat Cushion, RH
71812D Shield, Front Seat Cushion, LH
71861 Shield, Front Seat Cushion, Inner RH
71862 Shield, Front Seat Cushion, Inner LH
71873 Shield, Front Seat Cushion, Lower RH
71873A Shield, Front Seat Cushion, Lower
71874 Shield, Front Seat Cushion, Lower LH
71874A Shield, Front Seat Cushion, Lower LH
71875A Cover, Reclining Adjuster Inside, RH
71875B Cover, Reclining Adjuster Inside, RH
71875F Cover, Reclining Adjuster Inside, RH (FOR RH SEAT)
71875G Cover, Reclining Adjuster Inside, RH (FOR LH SEAT)
71876 Cover, Reclining Adjuster Inside, LH
71876A Cover, Reclining Adjuster Inside, LH
71876F Cover, Reclining Adjuster Inside, LH (FOR RH SEAT)
71876G Cover, Reclining Adjuster Inside, LH (FOR LH SEAT)
71910A Headrest Assy, Front Seat
71931 Support, Front Seat Headrest
72110A Track Assy, Front Seat, Outer RH
72120 Track Assy, Front Seat, Outer LH
72129A Protector, Seat Track Lower Rail, NO.2
72130A Track Assy, Front Seat, Inner RH
72140A Track Assy, Front Seat,Inner LH
72147 Bracket, Front Inner Seat Track, Lower Rear RH
72148 Bracket, Front Inner Seat Track, Lower Rear LH
72524 Handle, Reclining Adjuster Release
72525A Handle, Reclining Adjuster Release, RH
72526A Handle, Reclining Adjuster Release, LH
72597A Bezel, Reclining Remote Control Lever, RH
73910A Airbag Assy, Front Seat, RH
73920A Airbag Assy, Front Seat, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
