Toyota Yaris

2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat Belt & Child Restraint Seat

22 part groups · 3 illustrations

Illustrations

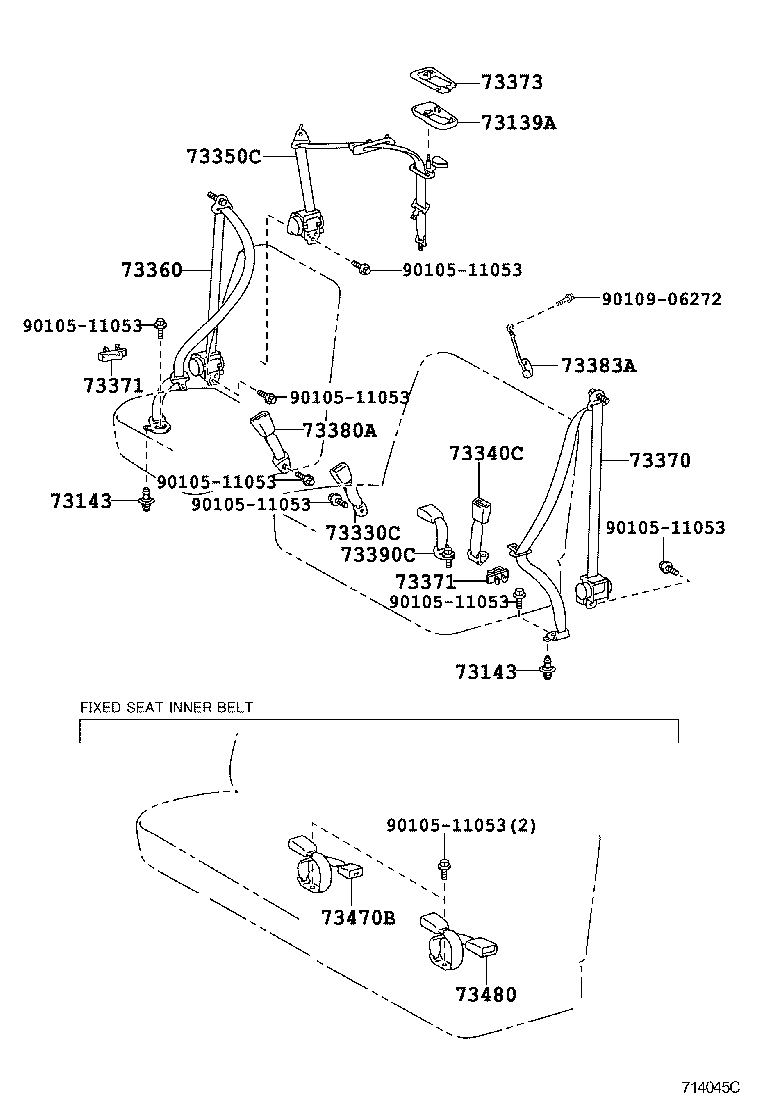

Figure 713784C 713784C 2005-08 → — Figure 714045C 714045C 2005-08 → — Figure 713948B 713948B 2005-08 → —

Part groups

PNCDescription
73135A Cover, Shoulder Belt Anchor, RH
73139A Cover, Seat Belt Anchor
73143 Seal, Seat Belt Hole
73178A Cap, Seat Belt Anchor Cover
73200A Adjuster Assy, Front Shoulder Belt Anchor
73210 Belt Assy, Front Seat Outer, RH
73219 Stopper, Tongue Plate
73220 Belt Assy, Front Seat Outer, LH
73230 Belt Assy, Front Seat Inner, RH
73240 Belt Assy, Front Seat Inner, LH
73330C Belt Assy, Rear Seat Lap Type, Center RH
73340C Belt Assy, Rear Seat Lap Type, Center LH
73350C Belt Assy, Rear Seat, Outer Center
73360 Belt Assy, Rear Seat 3 Point Type, Outer RH
73370 Belt Assy, Rear Seat 3 Point Type, Outer LH
73371 Hanger, Rear Seat Shoulder Belt, RH
73373 Cover, Rear Seat Shoulder Belt
73380A Belt Assy, Rear Seat, Inner
73383A Hook, RR Seat Belt
73390C Belt Assy, Rear NO.1 Seat, Inner LH
73470B Belt Assy, Rear Seat Inner W/Center, RH
73480 Belt Assy, Rear Seat Inner W/Center, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
