Toyota Yaris
2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States
Supported model
Data version 2012-01

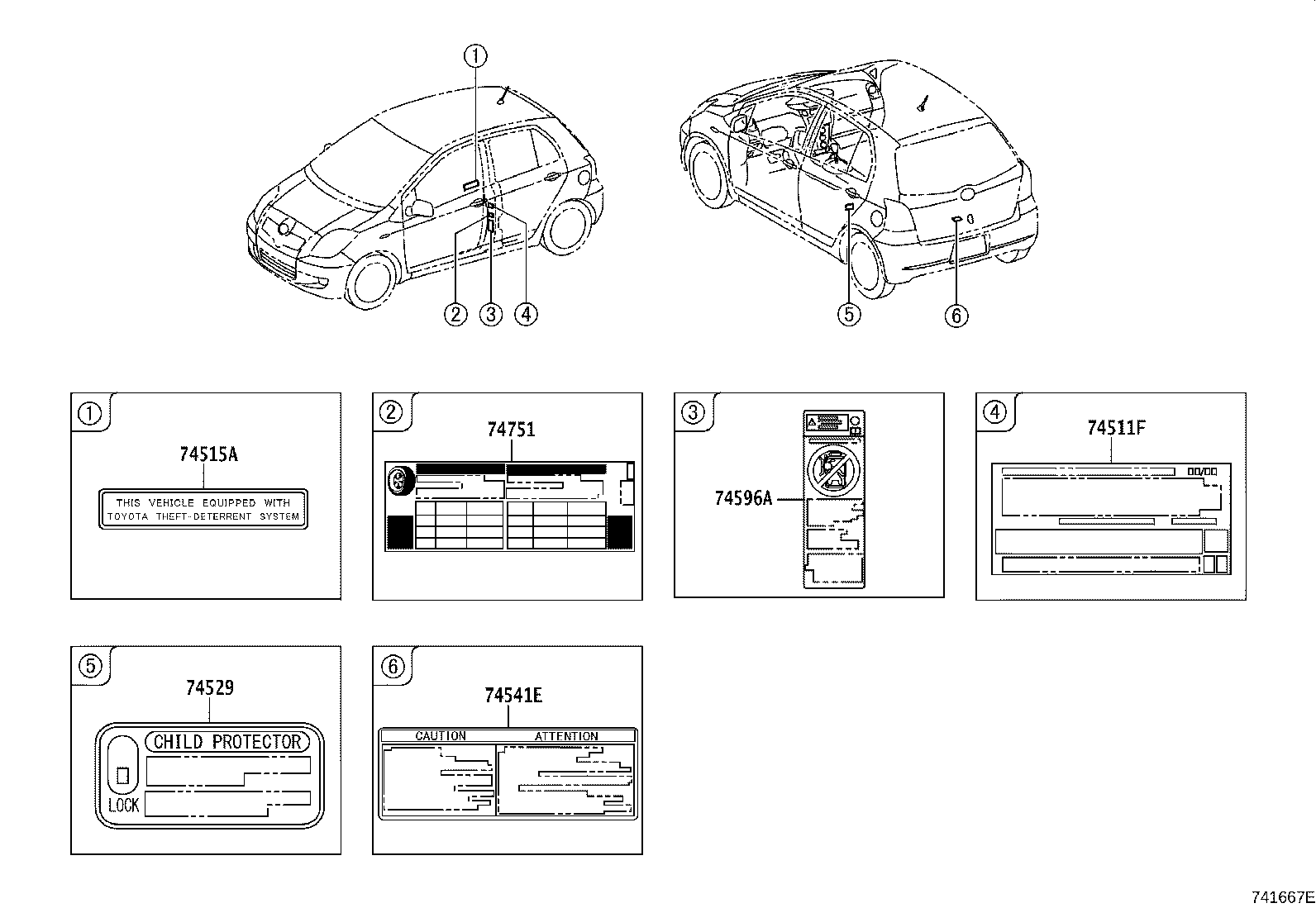

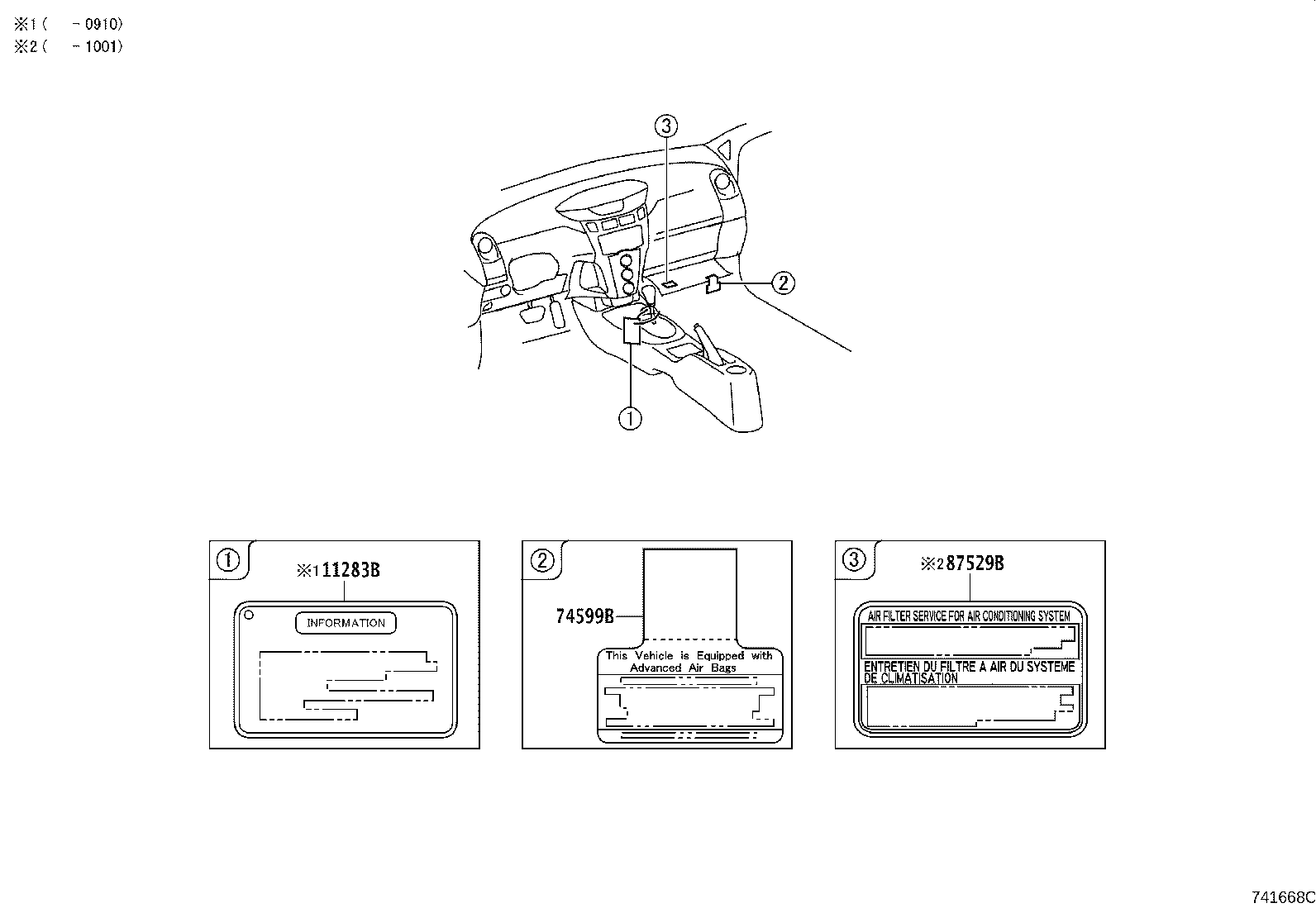

Caution Plate (EXTERIOR & INTERIOR)
15 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 11282B | Label, Loaded Testing Caution |
| 11283B | Label, Leak Detection Pump Information |
| 11296C | Label, Engine Service Information |
| 11298B | Label, Emission Control Information |
| 17792C | Label, Engine Vacuum Hose Information |
| 74511F | Label, Name (IDENTIFICATION LASER LABEL) |
| 74515A | Plate, Theft Warning |
| 74529 | Plate, Child Proof OR Child Protector Lock Caution |
| 74541E | Plate, Compact Spare Tire Caution |
| 74596A | Label, Side Airbag Caution |
| 74599B | Label, Driver & Passenger Airbag Information |
| 74751 | Label, Tire Pressure Information |
| 87529B | Label, A/C Filter Information |
| 88723E | Label, Cooler Service Caution |
| 88723J | Label, Cooler Service Caution, NO.2 |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
