Toyota Yaris
2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States
Supported model
Data version 2012-01

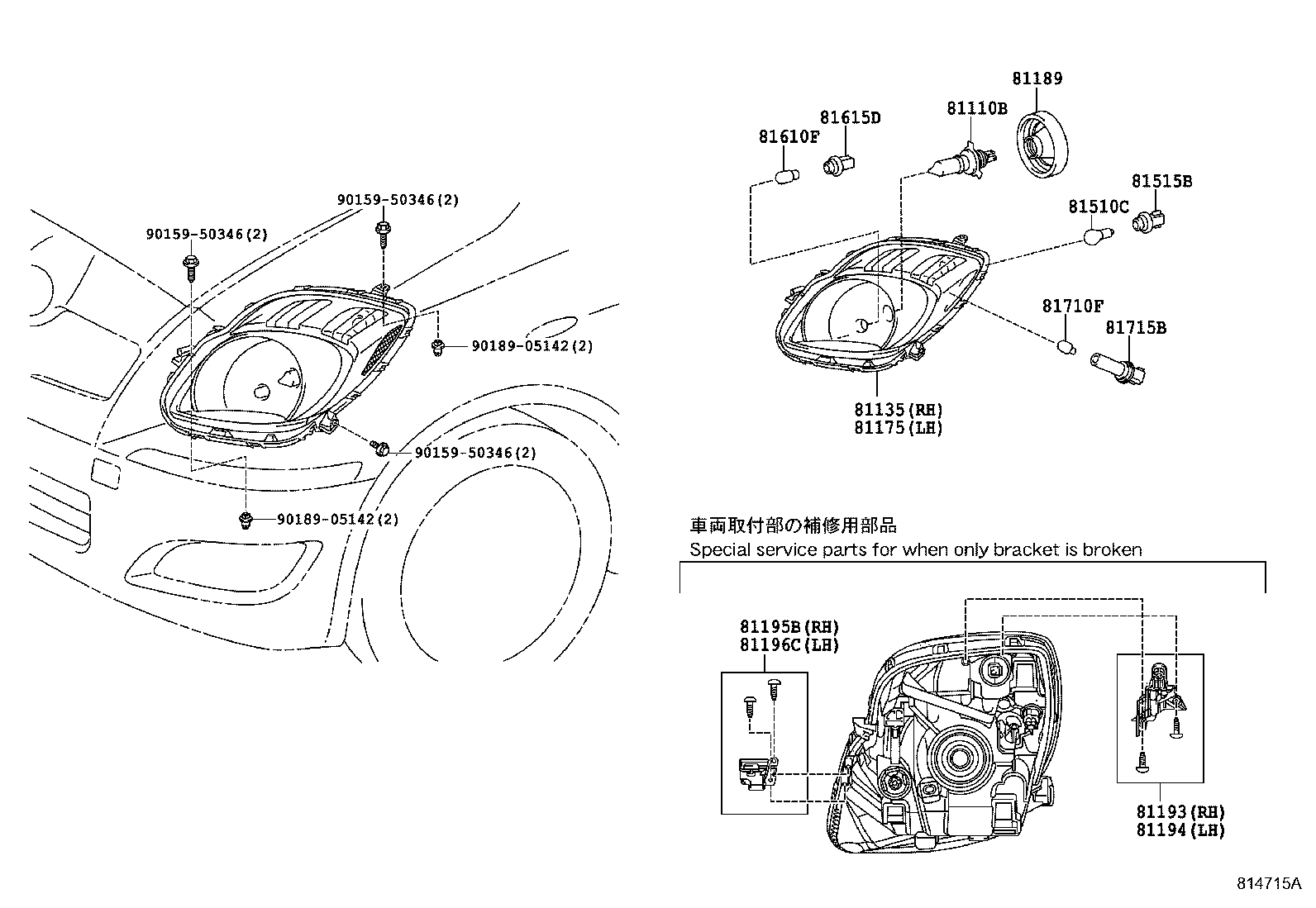

Headlamp
14 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81135 | Unit Assy, Headlamp, RH |
| 81175 | Unit Assy, Headlamp, LH |
| 81189 | Cover, Headlamp |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195B | Retainer, RH Headlamp Protector, Lower RH |
| 81196C | Retainer, LH Headlamp Protector, Lower LH |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81610F | Bulb(FOR CLEARANCE LAMP) |
| 81615D | Socket, Clearance Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
| 81715B | Socket & Wire, Front Side Marker Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
