Toyota Yaris
2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States
Supported model
Data version 2012-01
Wiring & Clamp
28 part groups · 7 illustrations
Part groups
| PNC | Description |
|---|---|
| 82111 | Wire, Engine Room Main |
| 82112 | Wire, Engine Room, NO.2 |

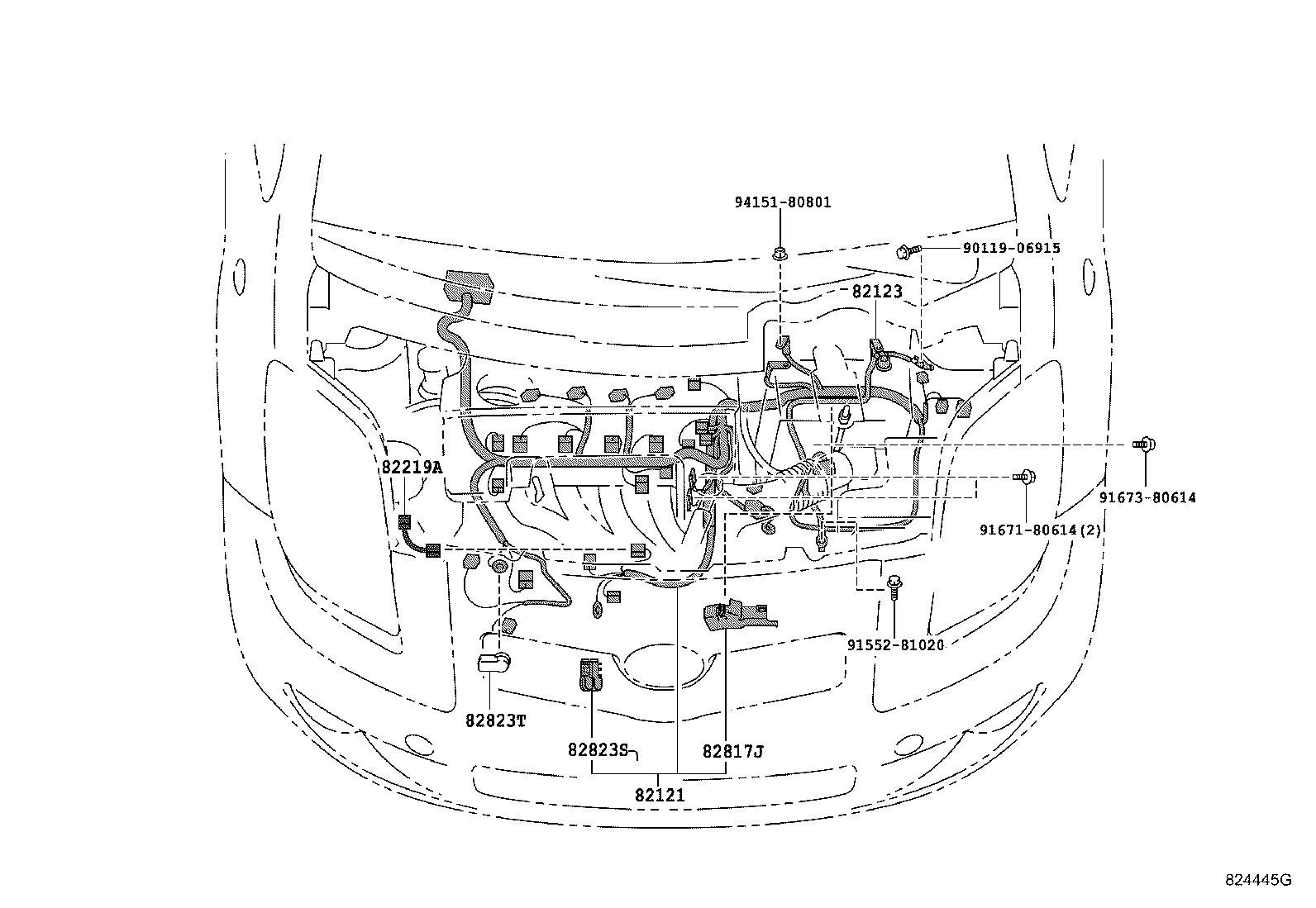

| 82121 | Wire, Engine |
| 82123 | Wire, Engine, NO.3 |

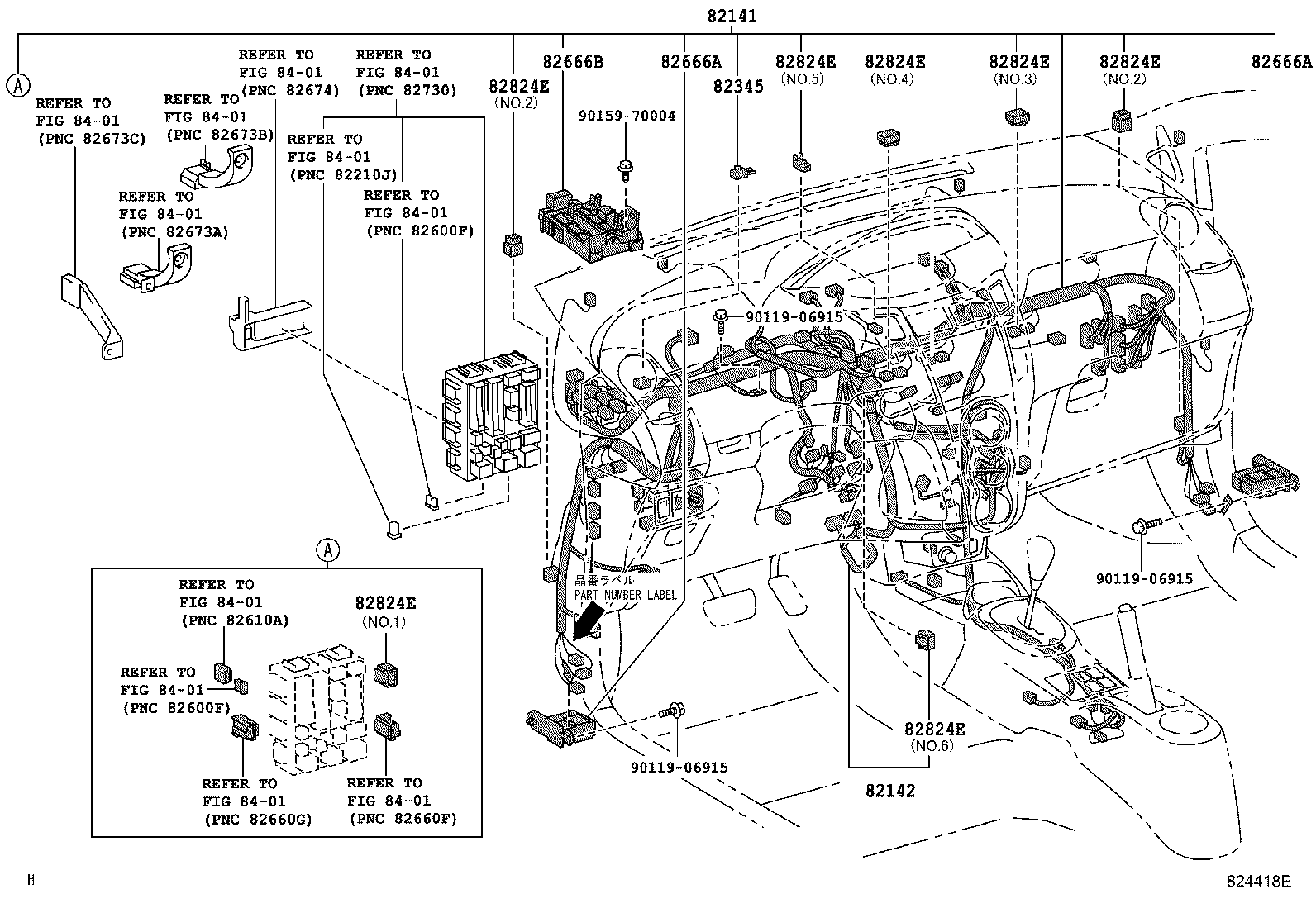

| 82141 | Wire, Instrument Panel |
| 82142 | Wire, Instrument Panel, NO.2 |

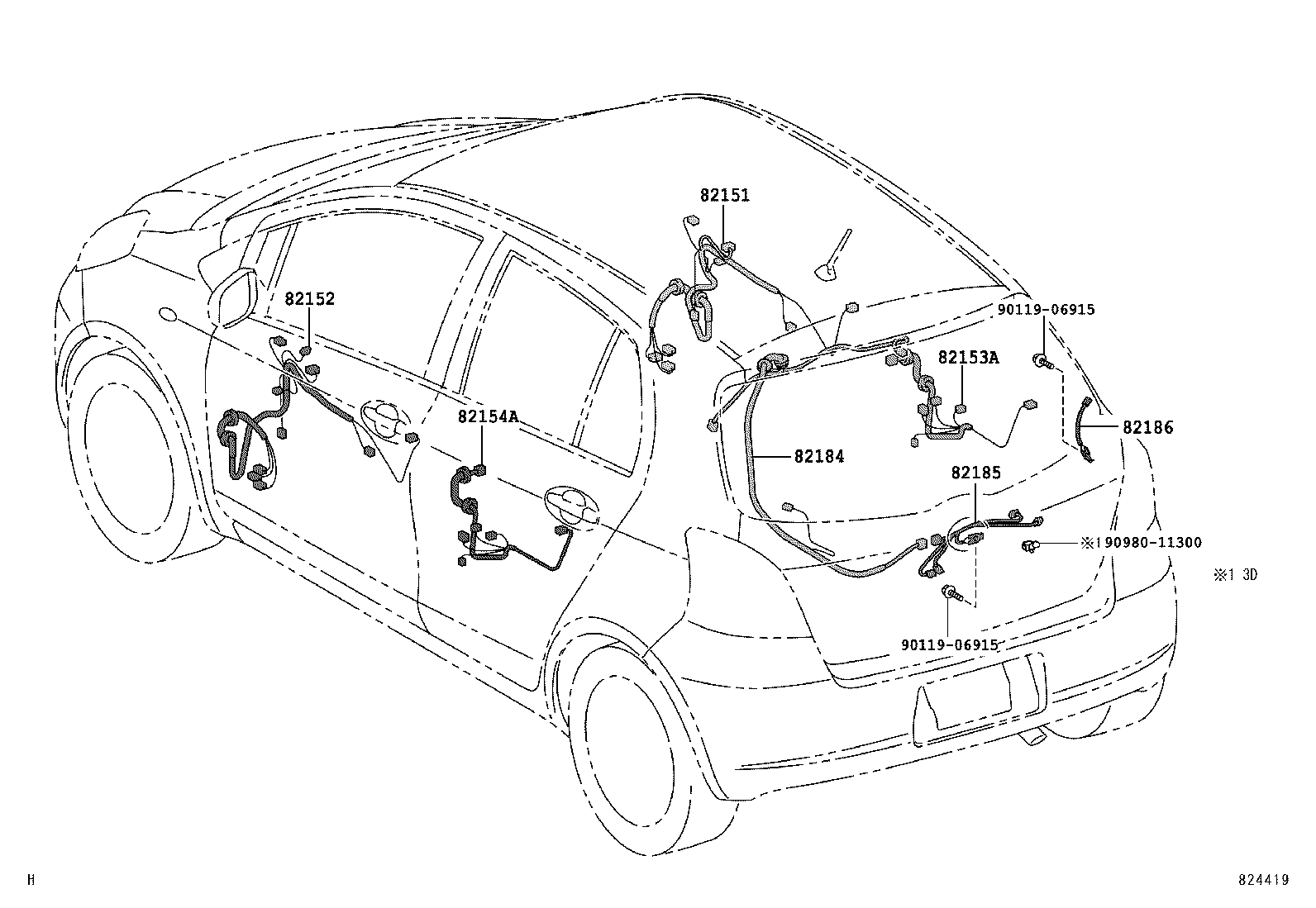

| 82151 | Wire, Front Door, RH |
| 82152 | Wire, Front Door, LH |
| 82153A | Wire, Rear Door, RH |
| 82154A | Wire, Rear Door, LH |

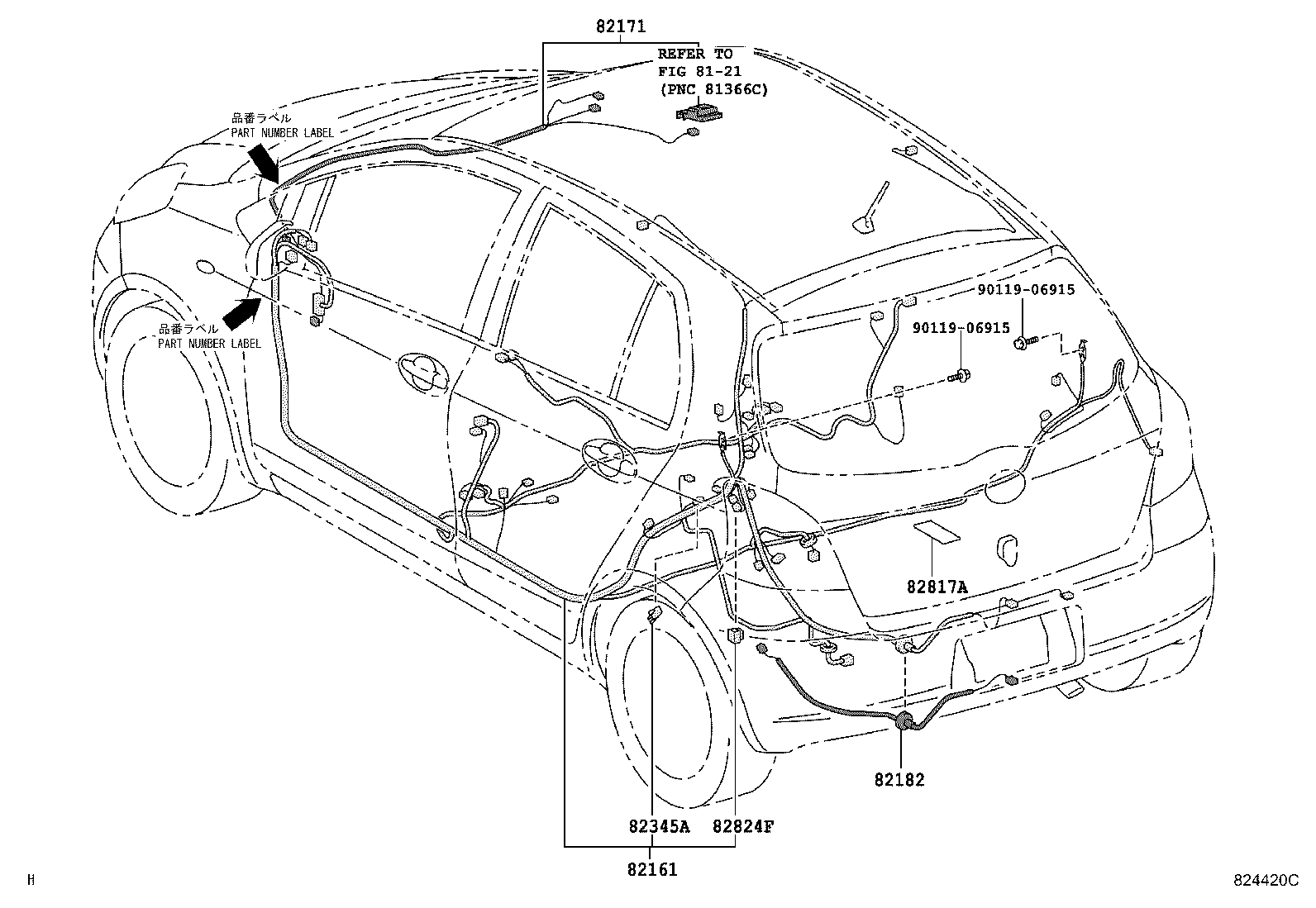

| 82161 | Wire, Floor |
| 82171 | Wire, Roof, NO.1 |
| 82182 | Wire, Luggage Room, NO.2 |
| 82184 | Wire, Back Door, NO.1 |
| 82185 | Wire, Back Door, NO.2 |
| 82186 | Wire, Rear Window, NO.1 |
| 82219A | Wire, Sensor |
| 82345 | Diode |
| 82345A | Diode |
| 82666A | Holder, Connector NO.2 |
| 82666B | Holder, Connector NO.3 |
| 82817A | Protector, Wiring Harness, NO.2 |
| 82817C | Protector, Wiring Harness, NO.4 |
| 82817J | Protector, Wiring Harness, NO.9 |
| 82823S | Cap, Starter Terminal |
| 82823T | Cap, Alternator Terminal |
| 82824E | Connector, Wiring Harness |
| 82824F | Connector, Wiring Harness |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
