Toyota Yaris

2005-08 → 2011-07 · chassis NCP91 · catalogue 112420 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

23 part groups · 3 illustrations

Illustrations

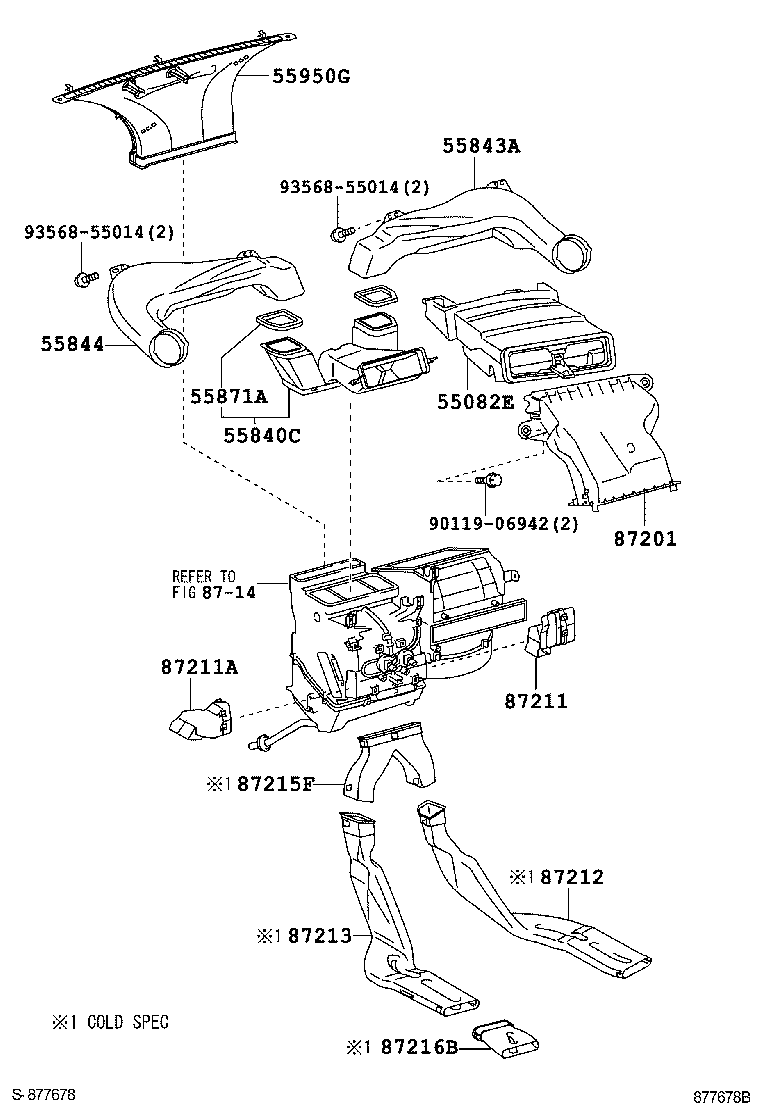

Figure 87F496A 87F496A 2005-08 → — Figure 877678B 877678B 2005-08 → — Figure 877677A 877677A 2005-08 → —

Part groups

PNCDescription
55082E Duct Sub-assy, Cowl TO Register, NO.2
55840C Duct Assy, Heater TO Register, NO.6
55843A Duct, Heater TO Register, NO.1
55844 Duct, Heater TO Register, NO.2
55871A Seal, Air Duct, NO.1
55901A Bulb, Heater Control Sub-assy, NO.1
55901D Control Sub-assy, Heater, NO.1
55902E Control Sub-assy, Heater, NO.2
55902G Bulb, Heater Control Sub-assy, NO.2
55903A Control Sub-assy, Heater, NO.3
55903B Bulb, Heater Control Sub-assy, NO.3
55906A Cable Sub-assy, Defroster Damper Control
55908A Cable Sub-assy, Air Inlet Damper Control
55909A Cable Sub-assy, Airmix Damper Control
55950G Nozzle Assy, Defroster
87201 Duct Sub-assy, Air, NO.1
87211 Duct, Air, NO.1
87211A Duct, Air, NO.2
87212 Duct, Air, Rear NO.1
87213 Duct, Air, Rear NO.2
87215F Duct, Air, Rear NO.3
87216B Duct, Air, Rear NO.4
88790B Thermistor Assy
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
