Toyota Yaris (JPP)
2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States
Supported model
Data version 2015-01

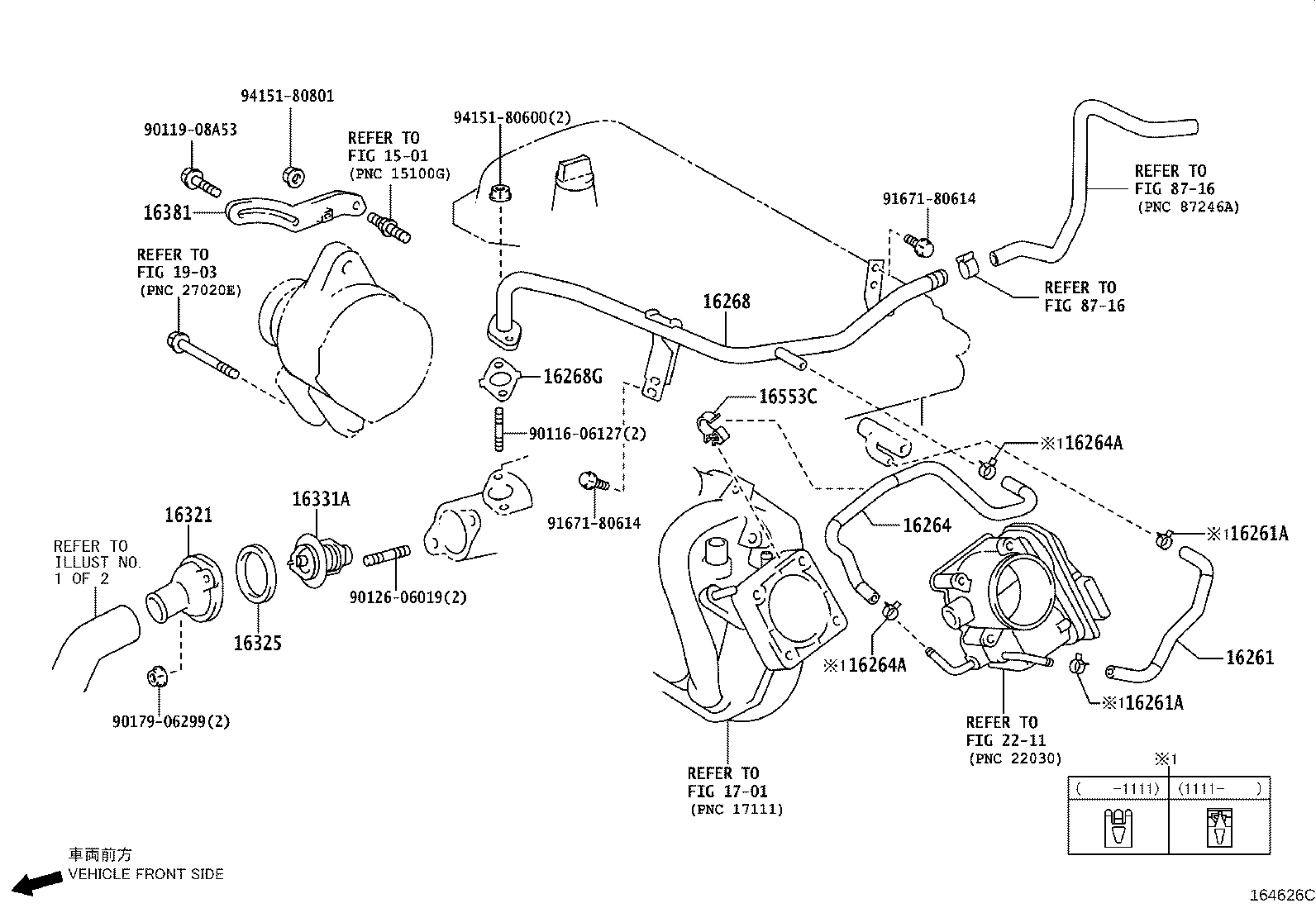

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 16261 — Hose, Water By-pass | ||||
| 16261-21090 |
Hose, Water By-pass
2011-08 → —
|
1NZFE NCP131 | — | |
| 16261A — Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE) | ||||
| 90467-13054 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-08 → 2011-11
ended
|
1NZFE NCP131 | — | |
| 96136-41501 |
Clamp OR Clip, Hose(FOR WATER BY-PASS HOSE)
2011-11 → —
|
1NZFE NCP131 | — | |
| 16264 — Hose, Water By-pass, NO.2 | ||||
| 16264-21070 |
Hose, Water By-pass, NO.2
2011-08 → —
|
1NZFE NCP131 | — | |
| 16264A — Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2) | ||||
| 90467-13054 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2011-08 → 2011-11
ended
|
1NZFE NCP131 | — | |
| 96136-41501 |
Clamp OR Clip(FOR WATER BY-PASS HOSE NO.2)
2011-11 → —
|
1NZFE NCP131 | — | |
| 16268 — Pipe, Water By-pass, NO.1 | ||||
| 16268-21022 |
Pipe, Water By-pass, NO.1
2011-08 → 2014-07
ended
|
1NZFE NCP131 | — | |
| 16268G — Gasket(FOR WATER BY-PASS PIPE) | ||||
| 16258-21021 |
Gasket(FOR WATER BY-PASS PIPE)
2011-08 → —
|
1NZFE NCP131 | — | |
| 16321 — Inlet, Water | ||||
| 16321-21020 |
Inlet, Water
2011-08 → —
|
1NZFE NCP131 | — | |
| 16325 — Gasket, Water Inlet Housing, NO.1 | ||||
| 16325-62010 |
Gasket, Water Inlet Housing, NO.1
2011-08 → —
|
1NZFE NCP131 | — | |
| 16331A — Thermostat | ||||
| 90916-03093 note |
Thermostat
2011-08 → —
|
1NZFE NCP131 | — | |
| 16381 — Bar, Fan Belt Adjusting | ||||
| 16381-21030 |
Bar, Fan Belt Adjusting
2011-08 → —
|
1NZFE NCP131 | — | |
| 16553C — Clamp, Hose | ||||
| 16581-21010 |
Clamp, Hose
2011-08 → —
|
1NZFE NCP131 | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
