Toyota Yaris (JPP)
2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States
Supported model
Data version 2015-01

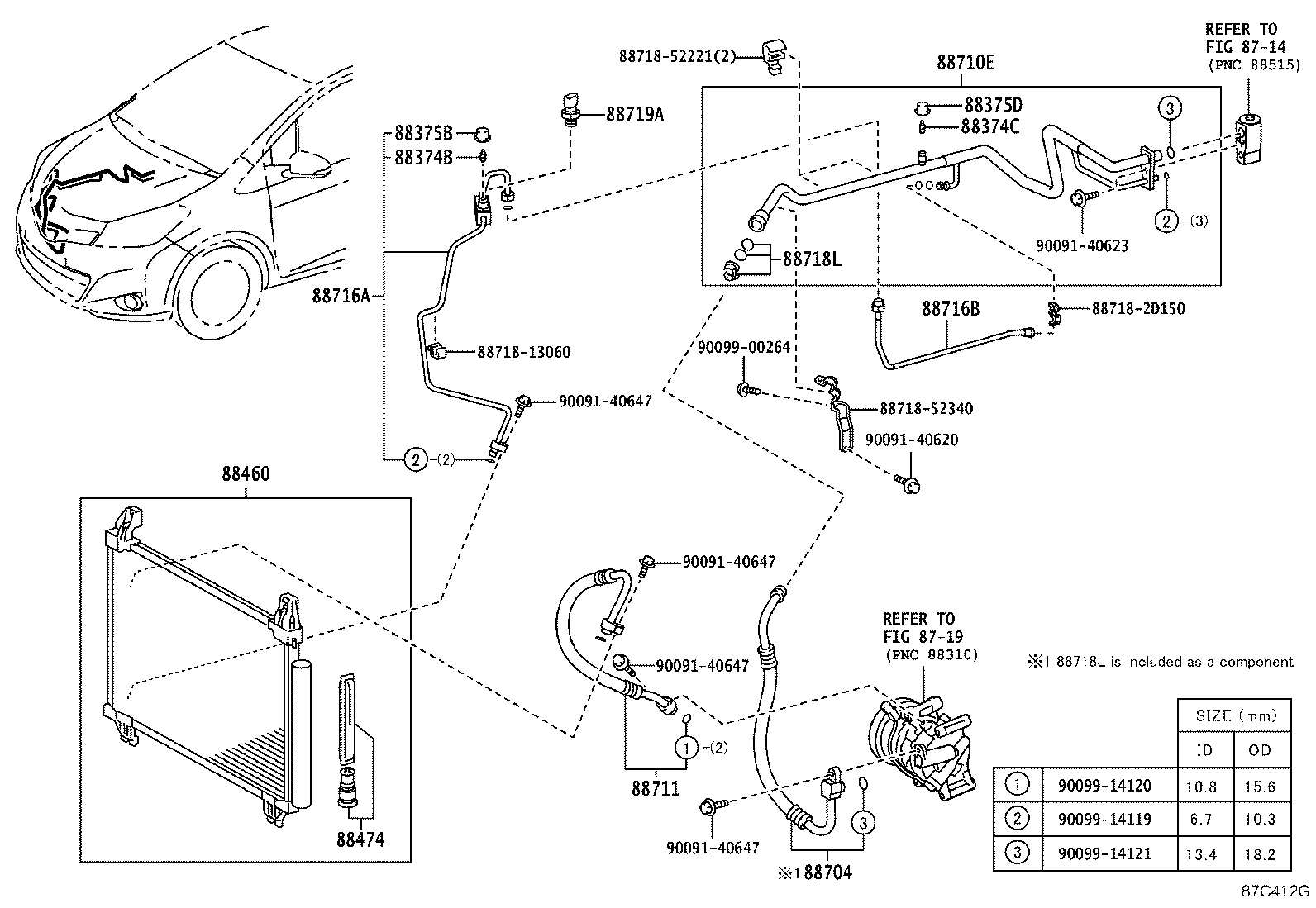

Dashed callouts are standard fasteners the factory draws but does not list
as separate parts — there is no part number behind them.
| Part number | Description | Fitment | Price | |
|---|---|---|---|---|
| 88374B — Valve, Service, NO.1 | ||||
| 88374-30010 note |
Valve, Service, NO.1
2011-08 → —
|
NCP131 CND | — | |
| 88374-30010 note |
Valve, Service, NO.1
2011-08 → —
|
NCP131 CND | — | |
| 88374-30010 note |
Valve, Service, NO.1
2011-08 → —
|
NCP131 USA | — | |
| 88374-30010 |
Valve, Service, NO.1
2011-08 → —
|
NCP131 | — | |
| 88374C — Valve, Service, NO.2 | ||||
| 88374-30010 |
Valve, Service, NO.2
2011-08 → —
|
NCP131 | — | |
| 88374-30010 note |
Valve, Service, NO.2
2011-08 → —
|
NCP131 CND | — | |
| 88374-30010 note |
Valve, Service, NO.2
2011-08 → —
|
NCP131 CND | — | |
| 88374-30010 note |
Valve, Service, NO.2
2011-08 → —
|
NCP131 USA | — | |
| 88375B — Cap, Service Valve, NO.1 | ||||
| 88375-30280 note |
Cap, Service Valve, NO.1
2011-08 → —
|
NCP131 USA | — | |
| 88375-30280 note |
Cap, Service Valve, NO.1
2011-08 → —
|
NCP131 CND | — | |
| 88375-30280 note |
Cap, Service Valve, NO.1
2011-08 → —
|
NCP131 CND | — | |
| 88375-30280 |
Cap, Service Valve, NO.1
2011-08 → —
|
NCP131 | — | |
| 88375D — Cap, Service Valve, NO.2 | ||||
| 88375-30290 |
Cap, Service Valve, NO.2
2011-08 → —
|
NCP131 | — | |
| 88375-30290 note |
Cap, Service Valve, NO.2
2011-08 → —
|
NCP131 CND | — | |
| 88375-30290 note |
Cap, Service Valve, NO.2
2011-08 → —
|
NCP131 CND | — | |
| 88375-30290 note |
Cap, Service Valve, NO.2
2011-08 → —
|
NCP131 USA | — | |
| 88460 — Condenser Assy, Cooler | ||||
| 88460-52130 |
Condenser Assy, Cooler
2011-08 → —
|
NCP131 | — | |
| 88460-52130 note |
Condenser Assy, Cooler
2011-08 → —
|
NCP131 CND | — | |
| 88460-52130 note |
Condenser Assy, Cooler
2011-08 → —
|
NCP131 CND | — | |
| 88460-52130 note |
Condenser Assy, Cooler
2011-08 → —
|
NCP131 USA | — | |
| 88474 — Dryer, Cooler | ||||
| 88474-12030 note |
Dryer, Cooler
2011-08 → 2014-07
ended
|
NCP131 USA | — | |
| 88474-12030 note |
Dryer, Cooler
2011-08 → 2014-07
ended
|
NCP131 CND | — | |
| 88474-12030 |
Dryer, Cooler
2011-08 → 2014-07
ended
|
NCP131 | — | |
| 88474-12030 note |
Dryer, Cooler
2011-08 → 2014-07
ended
|
NCP131 CND | — | |
| 88704 — Hose Sub-assy, Suction | ||||
| 88704-52250 |
Hose Sub-assy, Suction
2011-08 → —
|
NCP131 | — | |
| 88704-52250 note |
Hose Sub-assy, Suction
2011-08 → —
|
NCP131 CND | — | |
| 88704-52250 note |
Hose Sub-assy, Suction
2011-08 → —
|
NCP131 CND | — | |
| 88704-52250 note |
Hose Sub-assy, Suction
2011-08 → —
|
NCP131 USA | — | |
| 88710E — Tube & Accessory Assy, Air Conditioner | ||||
| 88710-52090 note |
Tube & Accessory Assy, Air Conditioner
2011-08 → —
|
NCP131 CND | — | |
| 88711 — Hose, Cooler Refrigerant Discharge, NO.1 | ||||
| 88711-52380 |
Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → —
|
NCP131 | — | |
| 88711-52380 note |
Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → —
|
NCP131 CND | — | |
| 88711-52380 note |
Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → —
|
NCP131 CND | — | |
| 88711-52380 note |
Hose, Cooler Refrigerant Discharge, NO.1
2011-08 → —
|
NCP131 USA | — | |
| 88716A — Pipe, Cooler Refrigerant Liquid, A | ||||
| 88716-52720 note |
Pipe, Cooler Refrigerant Liquid, A
2011-08 → —
|
NCP131 CND | — | |
| 88716-52720 note |
Pipe, Cooler Refrigerant Liquid, A
2011-08 → —
|
NCP131 USA | — | |
| 88716-52720 note |
Pipe, Cooler Refrigerant Liquid, A
2011-08 → —
|
NCP131 CND | — | |
| 88716-52720 |
Pipe, Cooler Refrigerant Liquid, A
2011-08 → —
|
NCP131 | — | |
| 88716B — Pipe, Cooler Refrigerant Liquid, B | ||||
| 88716-52750 note |
Pipe, Cooler Refrigerant Liquid, B
2011-08 → —
|
NCP131 CND | — | |
| 88718L — Clamp, Piping | ||||
| 88718-52260 |
Clamp, Piping
2011-08 → —
|
NCP131 | — | |
| 88718-52260 note |
Clamp, Piping
2011-08 → —
|
NCP131 CND | — | |
| 88718-52260 note |
Clamp, Piping
2011-08 → —
|
NCP131 CND | — | |
| 88718-52260 note |
Clamp, Piping
2011-08 → —
|
NCP131 USA | — | |
| 88718-52280 note |
Clamp, Piping
2011-08 → —
|
NCP131 CND | — | |
| 88719A — Sensor, Air Conditioner Pressure | ||||
| 88719-33020 |
Sensor, Air Conditioner Pressure
2011-08 → —
|
NCP131 | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2011-08 → —
|
NCP131 CND | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2011-08 → —
|
NCP131 CND | — | |
| 88719-33020 note |
Sensor, Air Conditioner Pressure
2011-08 → —
|
NCP131 USA | — | |
No quantity column: the factory catalogue records which parts a vehicle
takes, never how many.
