Toyota Yaris (JPP)
2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States
Supported model
Data version 2015-01
Starter
13 part groups · 2 illustrations

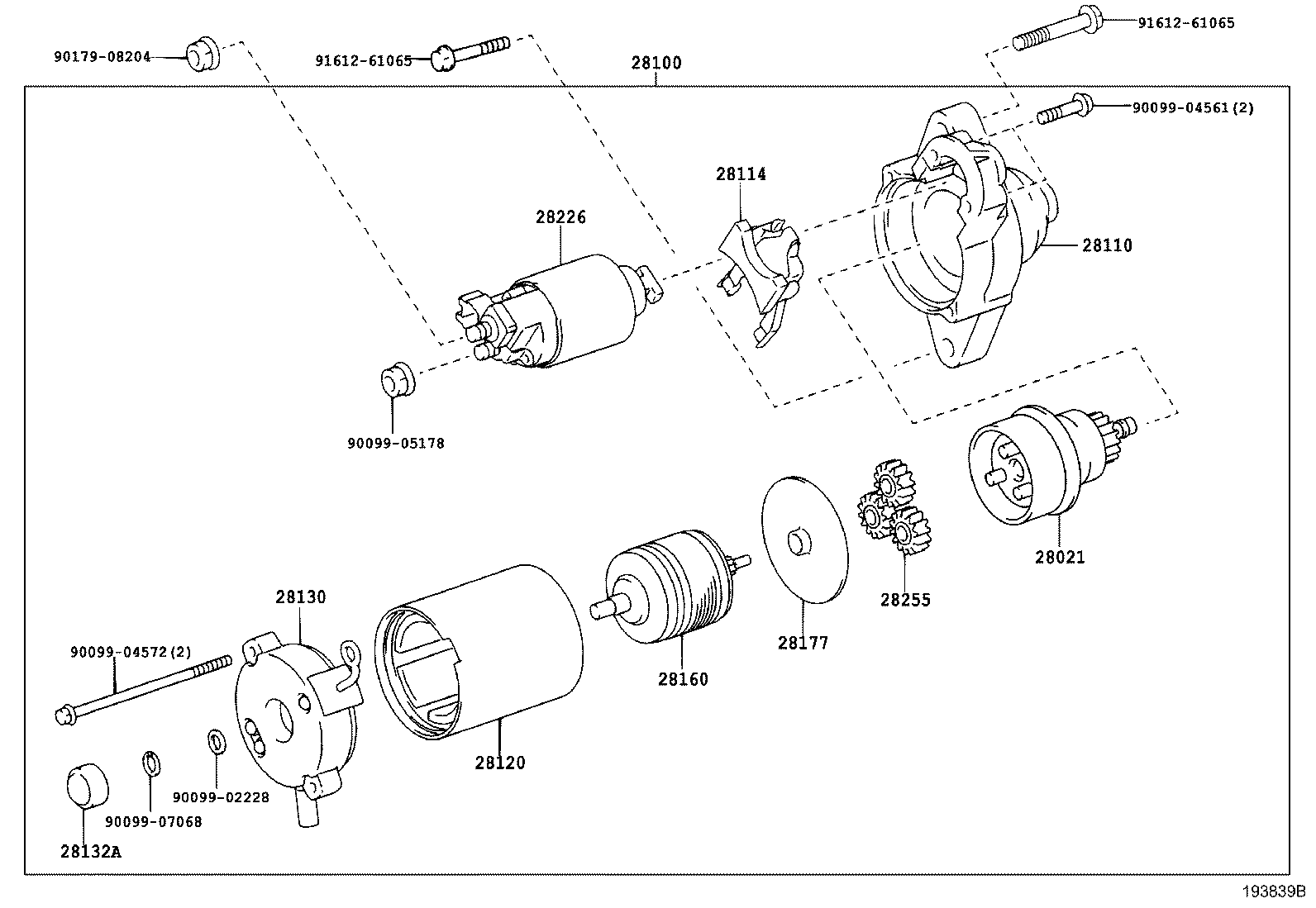

Part groups
| PNC | Description |
|---|---|
| 28021 | Clutch Sub-assy, Starter Center Bearing |
| 28100 | Starter Assy |
| 28110 | Housing Assy, Starter Drive |
| 28114 | Pin, Starter Drive Lever Set |
| 28120 | Yoke Assy, Starter |
| 28130 | Frame Assy, Starter Commutator End |
| 28132A | Cover, Starter Commutator End Frame |
| 28140 | Holder Assy, Starter Brush |
| 28160 | Armature Assy, Starter |
| 28177 | Plate(FOR STARTER ARMATURE) |
| 28226 | Starter Kit, Battery Terminal |
| 28226B | Starter Kit, Repair Service |
| 28255 | Gear, Planet |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
