Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

17 part groups · 3 illustrations

Illustrations

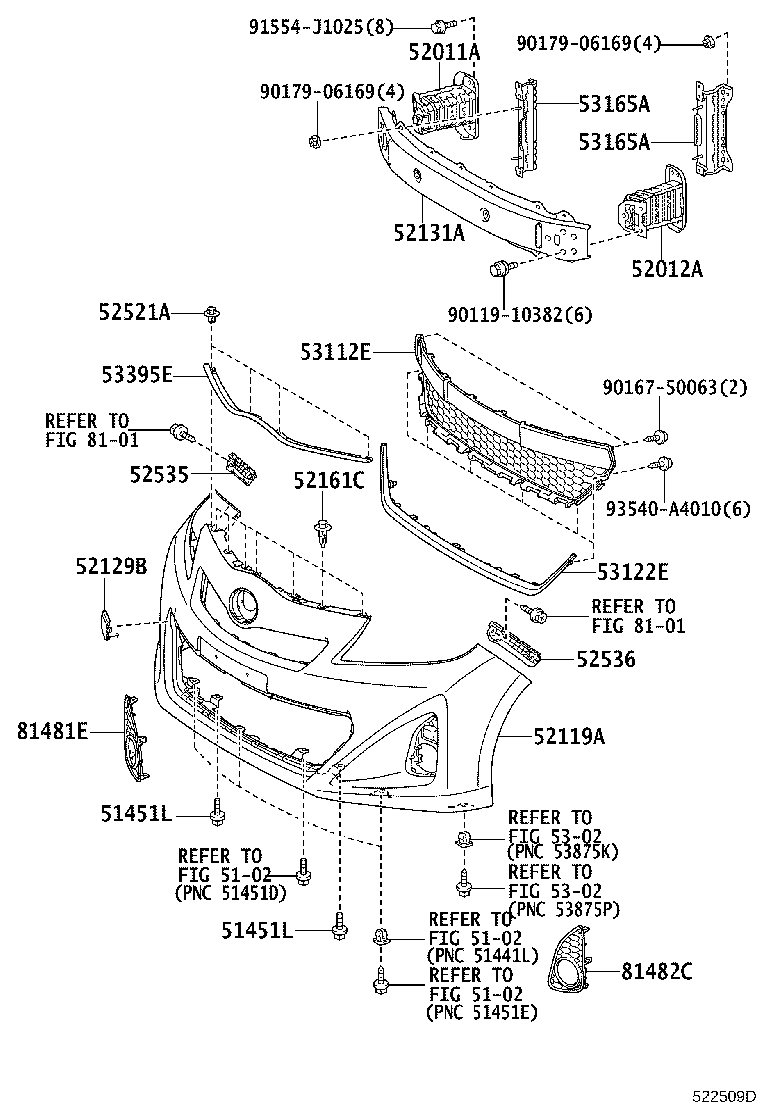

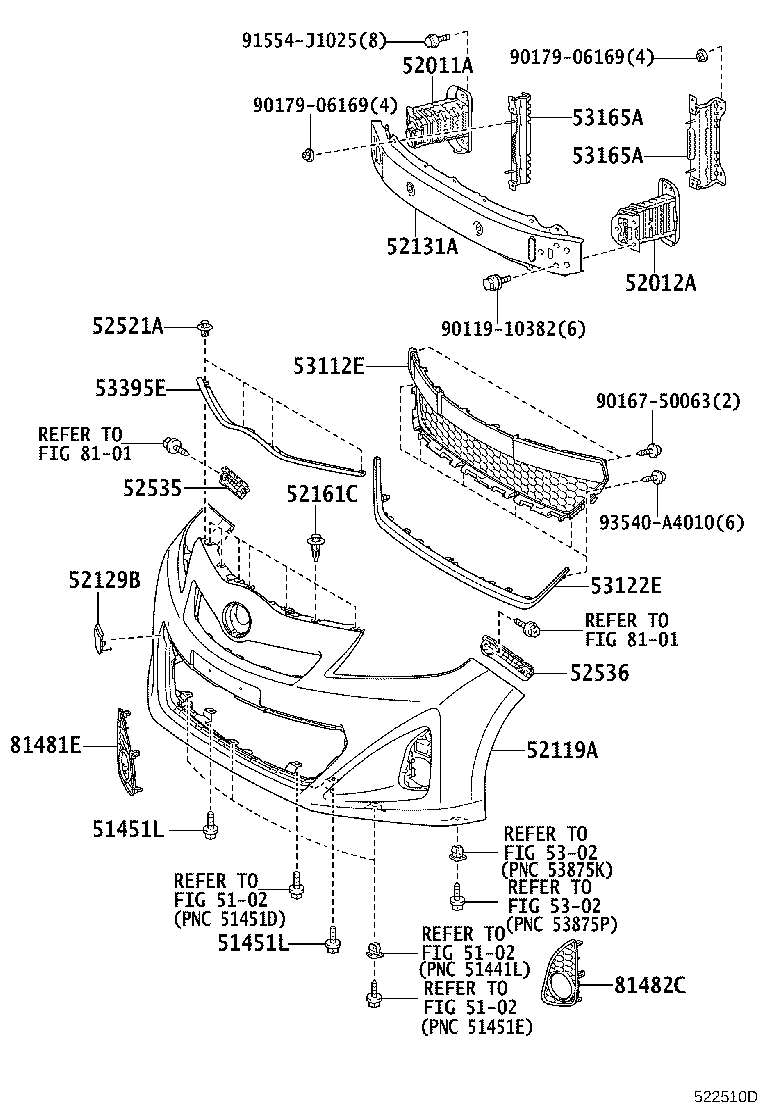

Figure 522504E 522504E 2011-08 → — Figure 522509D 522509D 2011-08 → — Figure 522510D 522510D 2011-08 → —

Part groups

PNCDescription
51451L Bolt, NO.1
52011A Arm Sub-assy, Front Bumper, RH
52012A Arm Sub-assy, Front Bumper, LH
52119A Cover, Front Bumper
52127C Cover, Front Bumper Hole
52129B Cover, Front Bumper, Lower
52131A Reinforcement, Front Bumper
52161C Piece, Front Bumper
52521A Clip(FOR FRONT BUMPER RETAINER)
52535 Retainer, Front Bumper Side, RH
52536 Retainer, Front Bumper Side, LH
53112E Grille, Radiator, Lower NO.1
53122E Moulding, Radiator Grille, Lower
53165A Bracket, Front Bumper Stone Deflector, NO.1
53395E Seal, Hood TO Front End Panel
81481E Cover, Fog Lamp, RH
81482C Cover, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
