Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Bumper & Bumper Stay

15 part groups · 3 illustrations

Illustrations

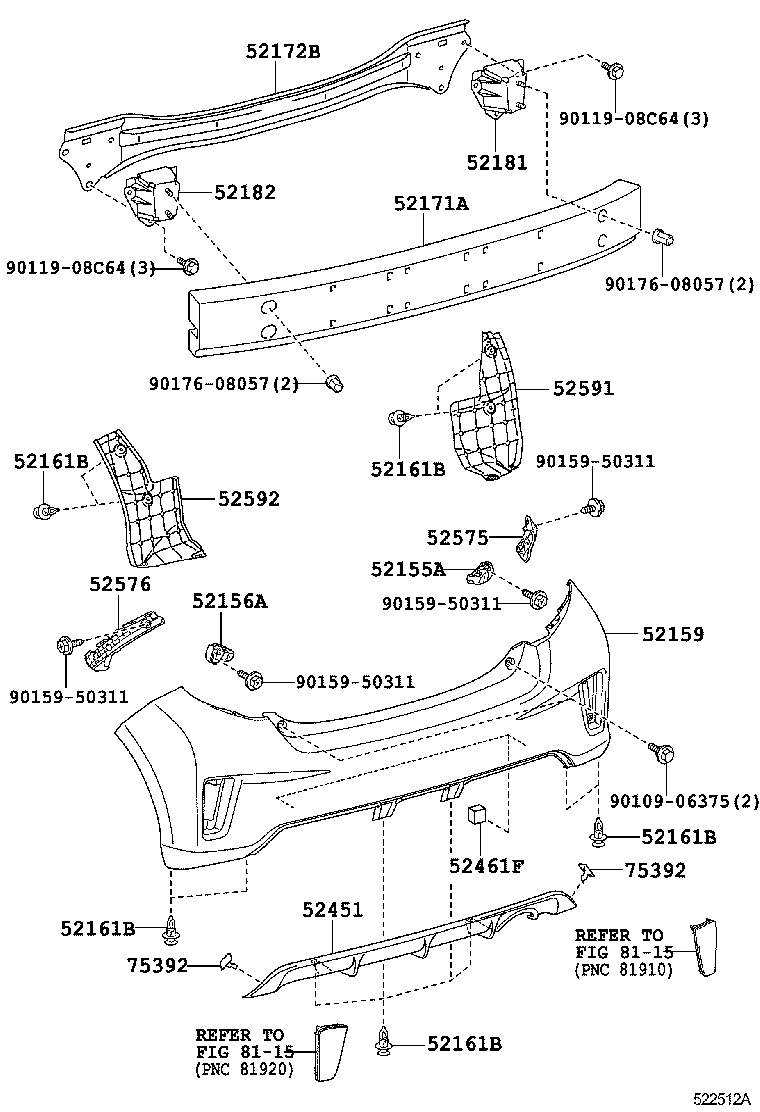

Figure 522508A 522508A 2011-08 → — Figure 522511A 522511A 2011-08 → — Figure 522512A 522512A 2011-08 → —

Part groups

PNCDescription
52155A Support, Rear Bumper Side, RH
52156A Support, Rear Bumper Side, LH
52159 Cover, Rear Bumper
52161B Piece, Rear Bumper
52171A Reinforcement, Rear Bumper, NO.1
52172B Reinforcement, Rear Bumper, NO.2
52181 Arm, Rear Bumper, RH
52182 Arm, Rear Bumper, LH
52451 Guard, Rear Bumper
52461F Pad, Rear Bumper
52575 Retainer, Rear Bumper Side, RH
52576 Retainer, Rear Bumper Side, LH
52591 Seal, Rear Bumper Side, RH
52592 Seal, Rear Bumper Side, LH
75392 Retainer, Outside Moulding
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
