Roof Headlining & Silencer Pad

16 part groups · 3 illustrations

Illustrations

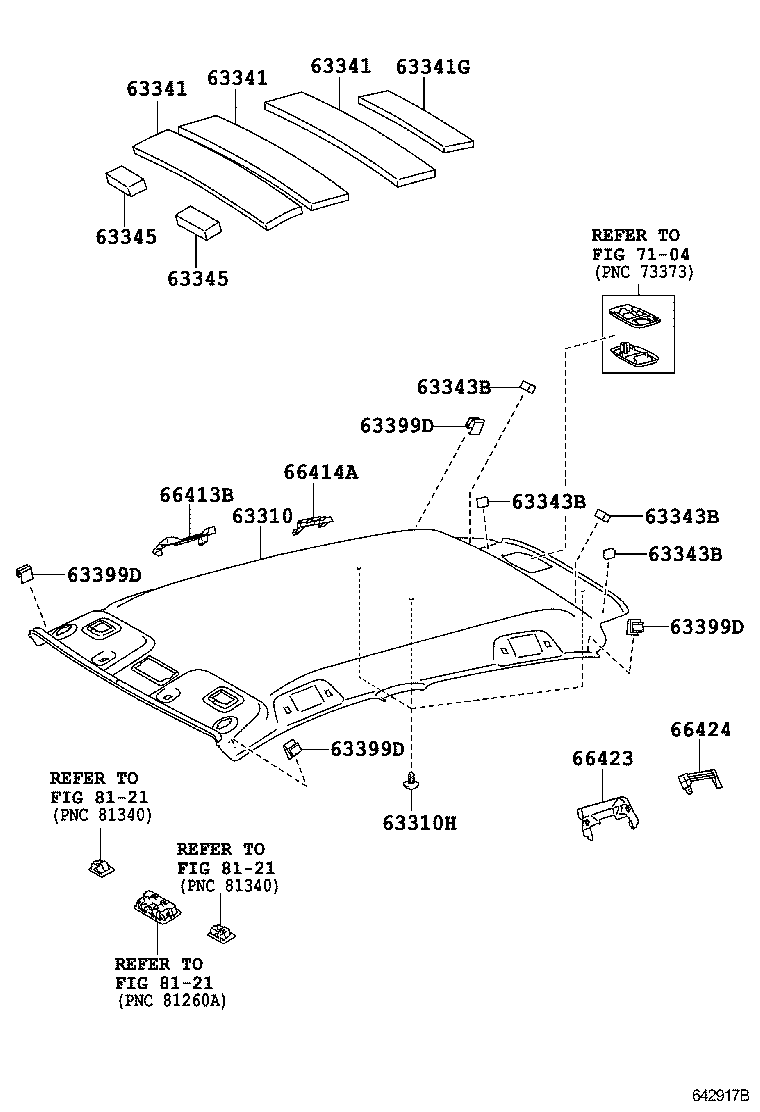

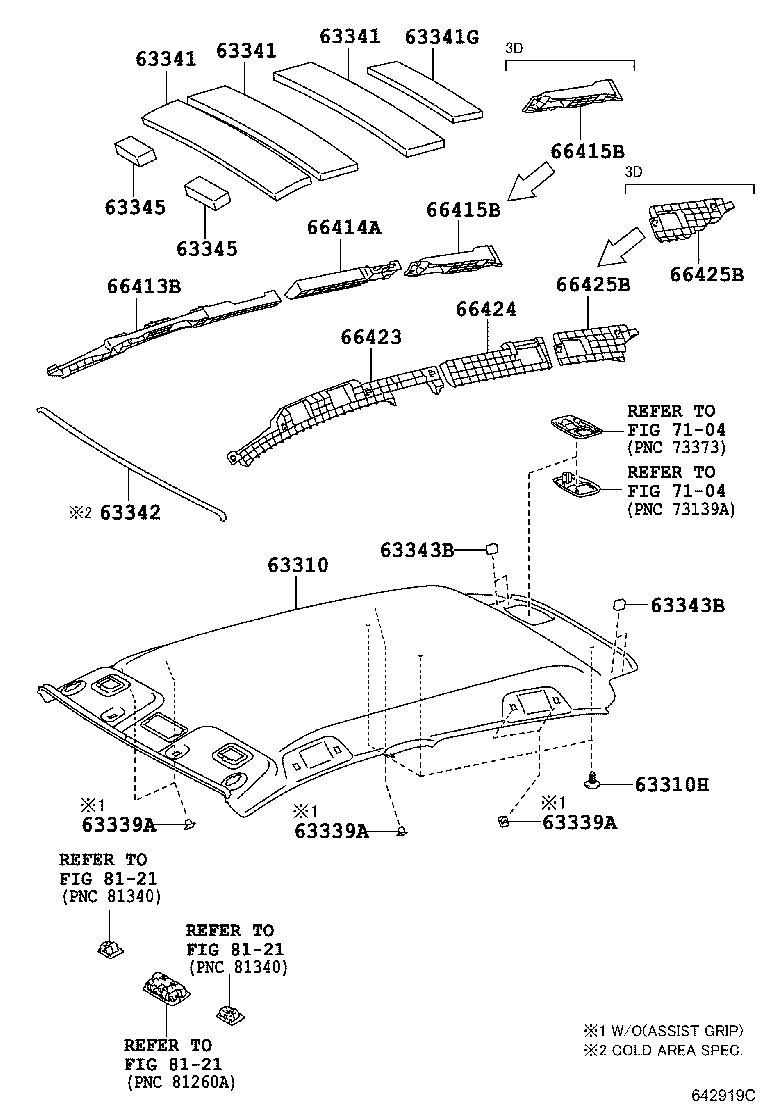

Figure 642918C 642918C 2011-08 → — Figure 642919C 642919C 2011-08 → — Figure 642917B 642917B 2011-08 → —

Part groups

PNCDescription
63119E Pad, Roof Panel, NO.1
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343B Pad, Roof Silencer, Rear
63345 Pad, Roof Silencer, NO.5
63399D Clip, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66415B Spacer, Side Rail, Rear NO.2 RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
66425B Spacer, Side Rail, Rear NO.2 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
