Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Deck Board & Deck Trim Cover

15 part groups · 3 illustrations

Illustrations

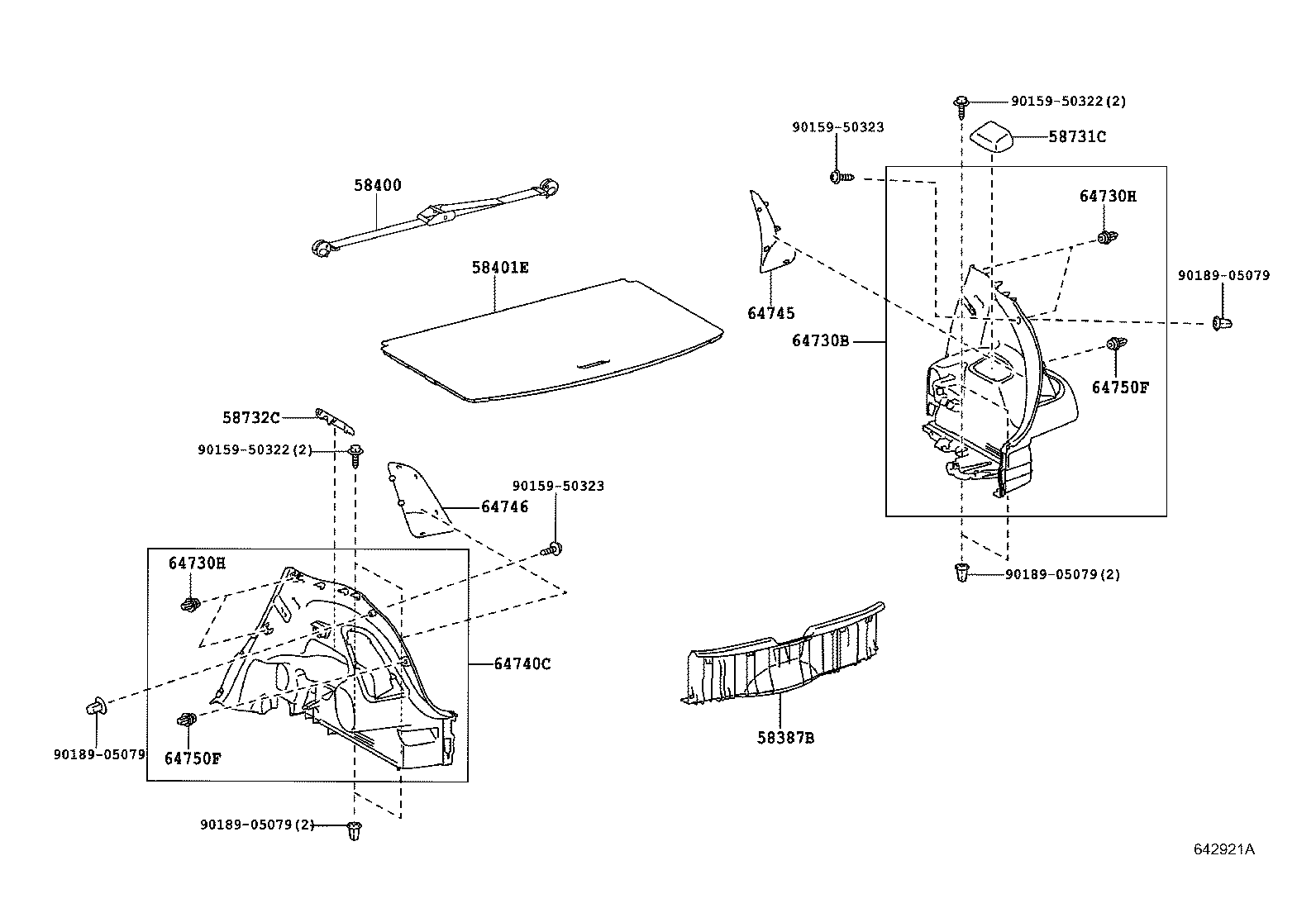

Figure 642920A 642920A 2011-08 → — Figure 642921A 642921A 2011-08 → — Figure 642753 642753 2011-08 → —

Part groups

PNCDescription
58387B Plate, Rear Floor Finish
58400 Belt Assy, Luggage Hold, NO.1
58401E Board Sub-assy, Deck
58731C Cap, Rear Absorber
58732C Cap, Rear Absorber
64306 Suspender Sub-assy, Package Tray Trim
64330D Panel Assy, Package Tray Trim
64376 Spacer, Package Tray Trim, NO.2
64381A Hanger, Package Tray Trim
64730B Panel Assy, Deck Trim Side, RH
64730H Clip(FOR DECK TRIM SIDE PANEL)
64740C Panel Assy, Deck Trim Side, LH
64745 Cover, Rear Combination Lamp Service, RH
64746 Cover, Rear Combination Lamp Service, LH
64750F Clip(FOR DECK SIDE TRIM PANEL)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
