Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States

Supported model Data version 2015-01

Fuel Tank & Tube

45 part groups · 3 illustrations

PNC	Description
23221	Pump, Fuel
23225A	Spacer, Fuel Pump
23280J	Regulator Assy, Fuel Pressure
23280K	Ring, O(FOR FUEL PRESSURE REGULATOR)
64648A	Grommet, Luggage Door Lock Opener
77024C	Plate Sub-assy, Fuel Suction W/Fuel Filter

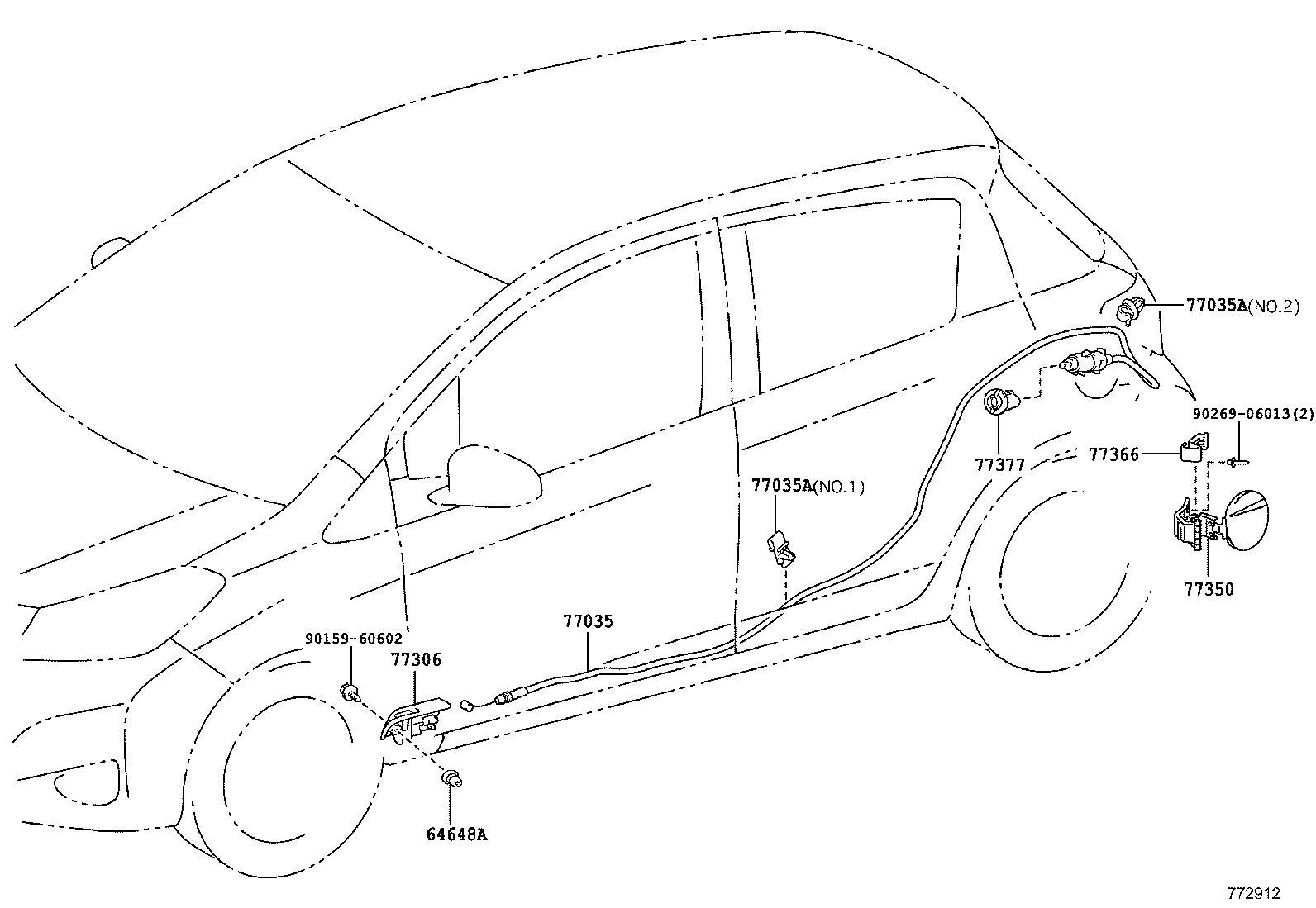

77035	Cable Sub-assy, Fuel Lid Lock Control
77035A	Clamp (FOR FUEL LID LOCK CONTROL CABLE)
77100	Tank Assy, Fuel
77131C	Sub-tank, Fuel, NO.1
77169A	Gasket, Fuel Suction Tube Set
77174	Support, Fuel Suction, NO.1
77209D	Tube Sub-assy, Fuel Tank Main
77229E	Clamp, Breather Tube
77241V	Clip, Tube Joint

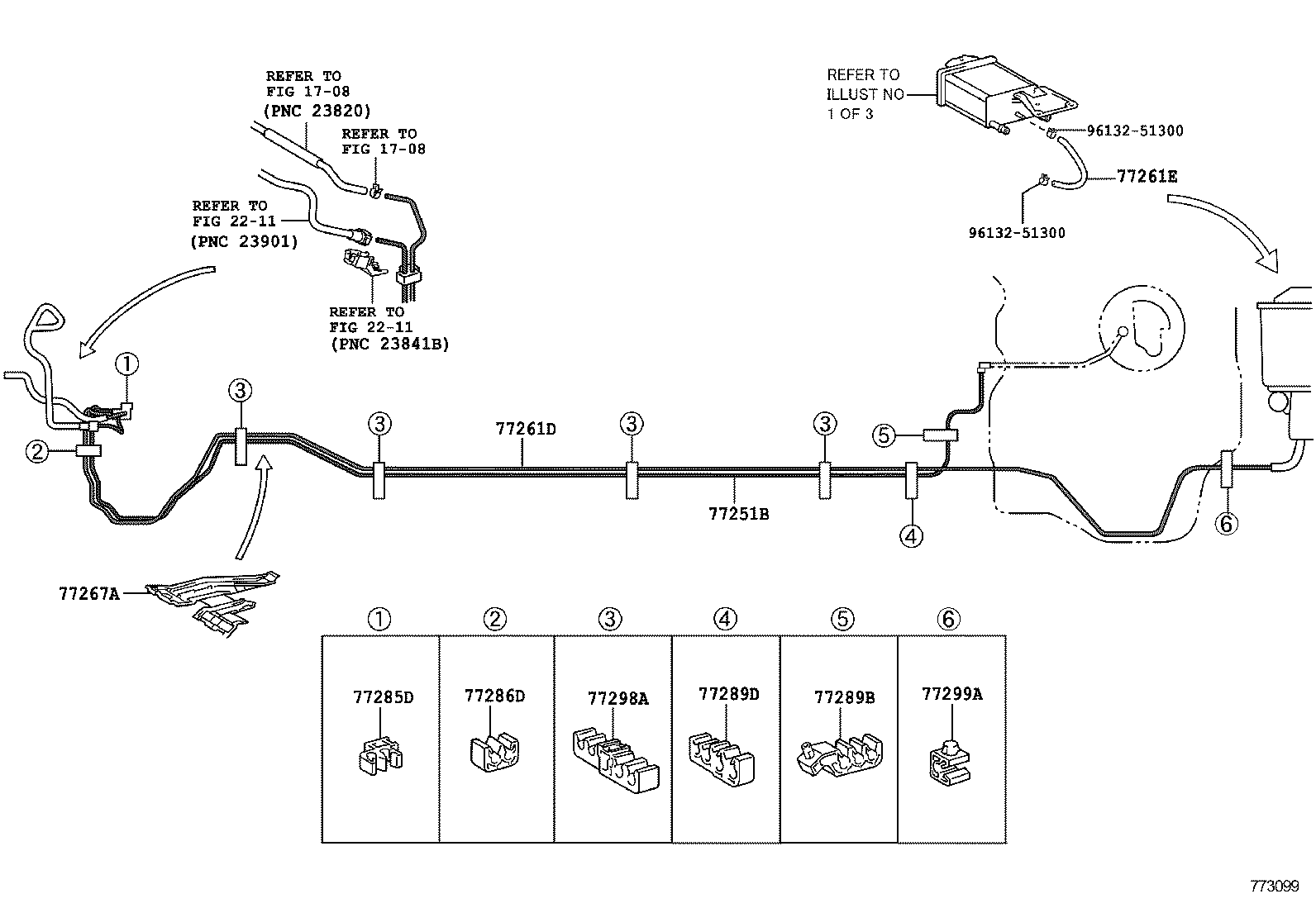

77251B	Tube, Fuel Main
77261D	Tube, Fuel Tank TO Canister
77261E	Hose, Fuel, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77267A	Protector, Fuel Tube, NO.2
77276	Protector, Fuel Hose
77277R	Protector, Fuel Tank Filler Pipe
77285D	Clamp, Fuel Tube, NO.1
77286D	Clamp, Fuel Tube, NO.2
77289	Holder, Fuel Tank Pipe Setting
77289B	Clamp, Fuel Tube, NO.3
77289D	Clamp, Fuel Tube, NO.5
77291A	Shield, Fuel Tank Filler Pipe
77296B	Support, Fuel Tube Protector, NO.1
77298A	Clamp, Fuel Tube, NO.4
77299A	Clamp, Fuel Tube, NO.5
77306	Lever Sub-assy, Fuel Lid Lock Open
77310A	Cap Assy, Fuel Tank
77316	Gasket, Fuel Tank Cap
77350	Lid Assy, Fuel Filler Opening
77366	Spring, Fuel Filler Opening Lid Hinge
77377	Retainer, Fuel Filler Opening Lid Lock
77391	Ring, Fuel Inlet Box
77444	Hose, Fuel Tank Vent
77512	Bracket, Fuel Tank, Rear
77606	Protector Sub-assy, Fuel Tank, NO.1
77645A	Retainer, Fuel Tank Protector
77652A	Cushion, Fuel Tank, NO.2
77653A	Cushion, Fuel Tank, NO.3
77740	Canister Assy, Charcoal
77785	Harness, Fuel Pump

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
