Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

27 part groups · 8 illustrations

Illustrations

Figure 827788A 827788A 2011-08 → — Figure 827799A 827799A 2011-08 → — Figure 827800A 827800A 2011-08 → — Figure 827816 827816 2011-08 → — Figure 827802 827802 2011-08 → — Figure 827827 827827 2011-08 → — Figure 827787 827787 2011-08 → — Figure 827838A 827838A 2011-08 → —

Part groups

PNCDescription
82111 Wire, Engine Room Main

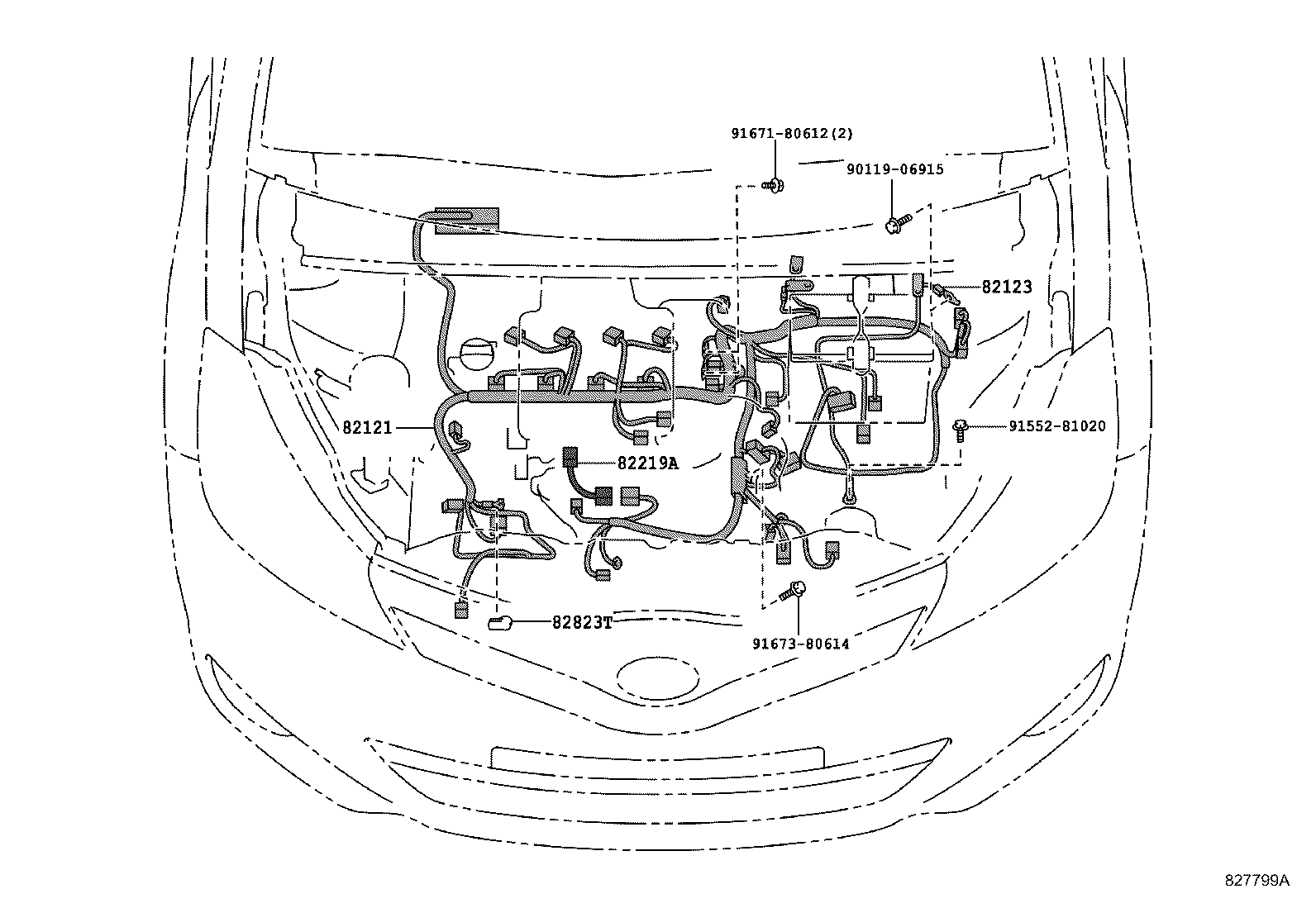

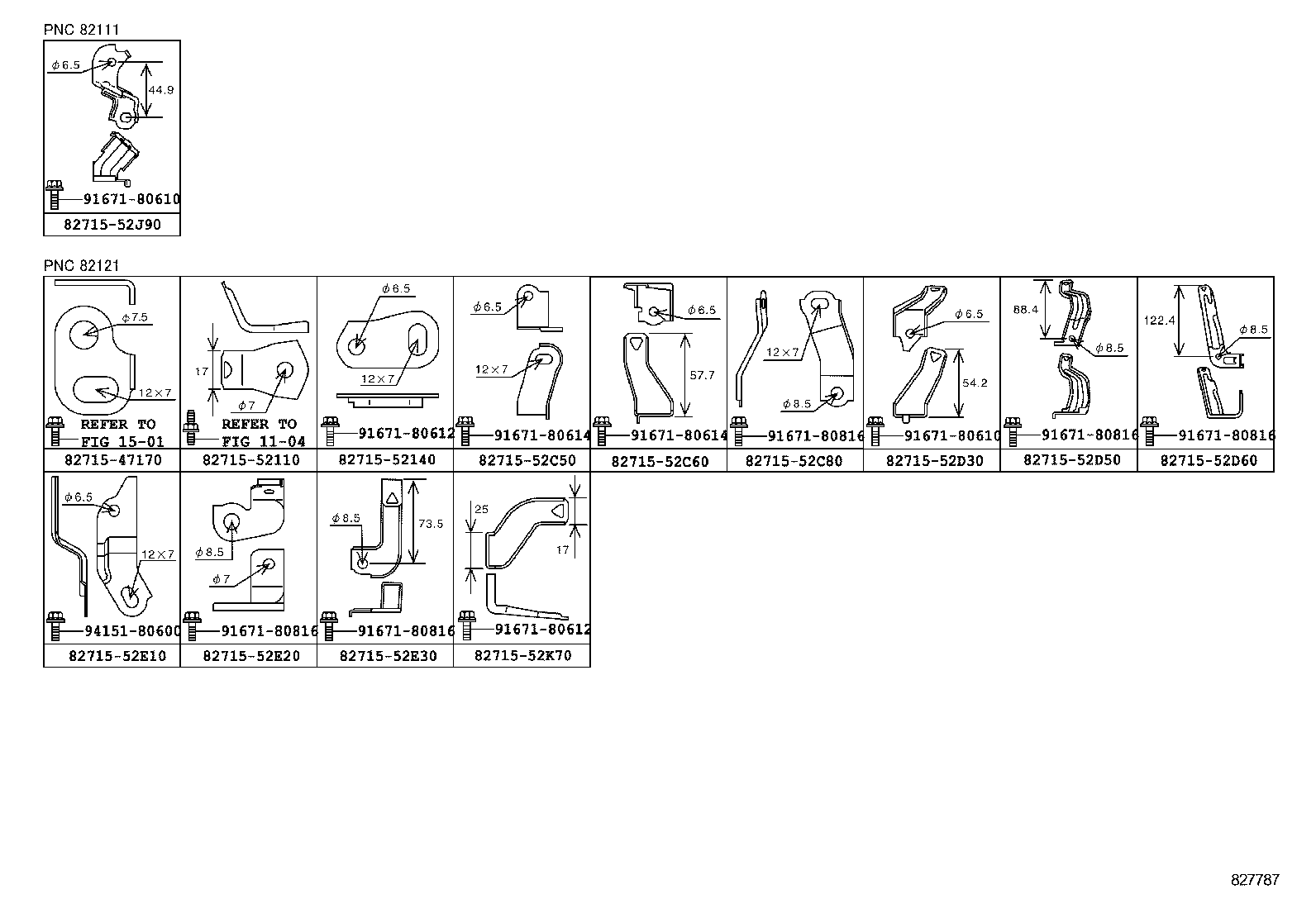

82121 Wire, Engine
82123 Wire, Engine, NO.3

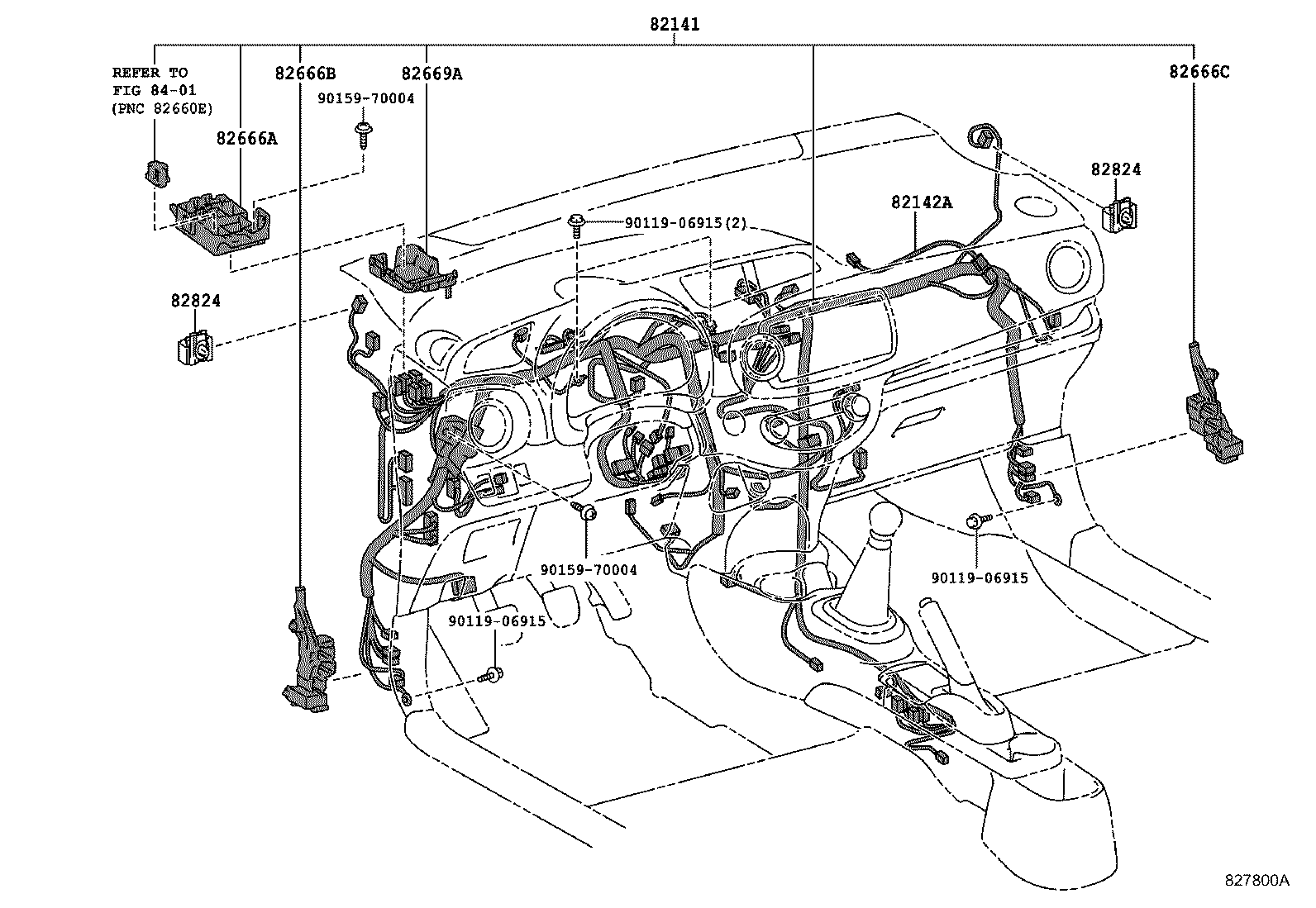

82141 Wire, Instrument Panel
82142A Wire, Instrument Panel, NO.2

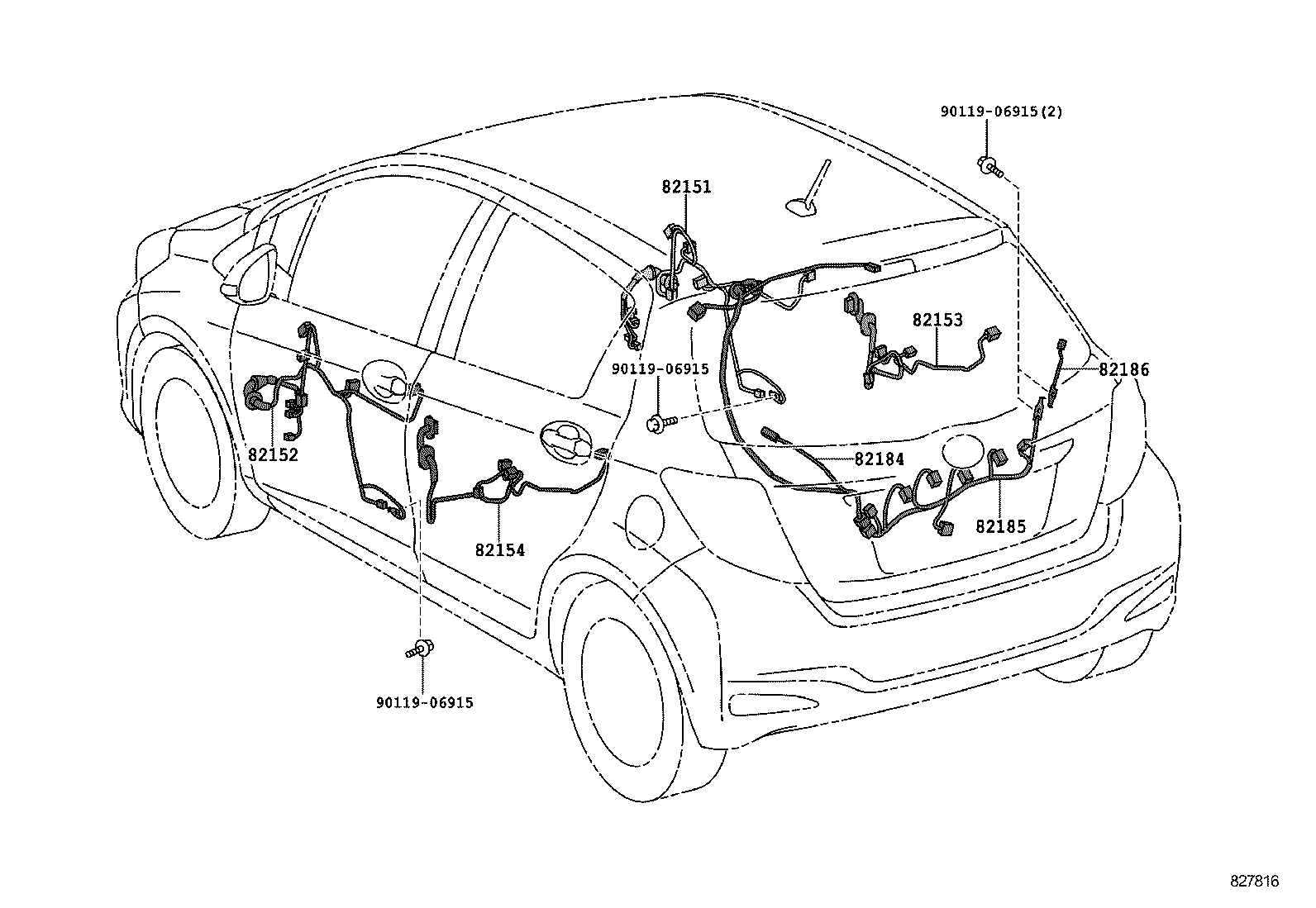

82151 Wire, Front Door, RH
82152 Wire, Front Door, LH
82153 Wire, Rear Door, NO.1
82154 Wire, Rear Door, NO.2

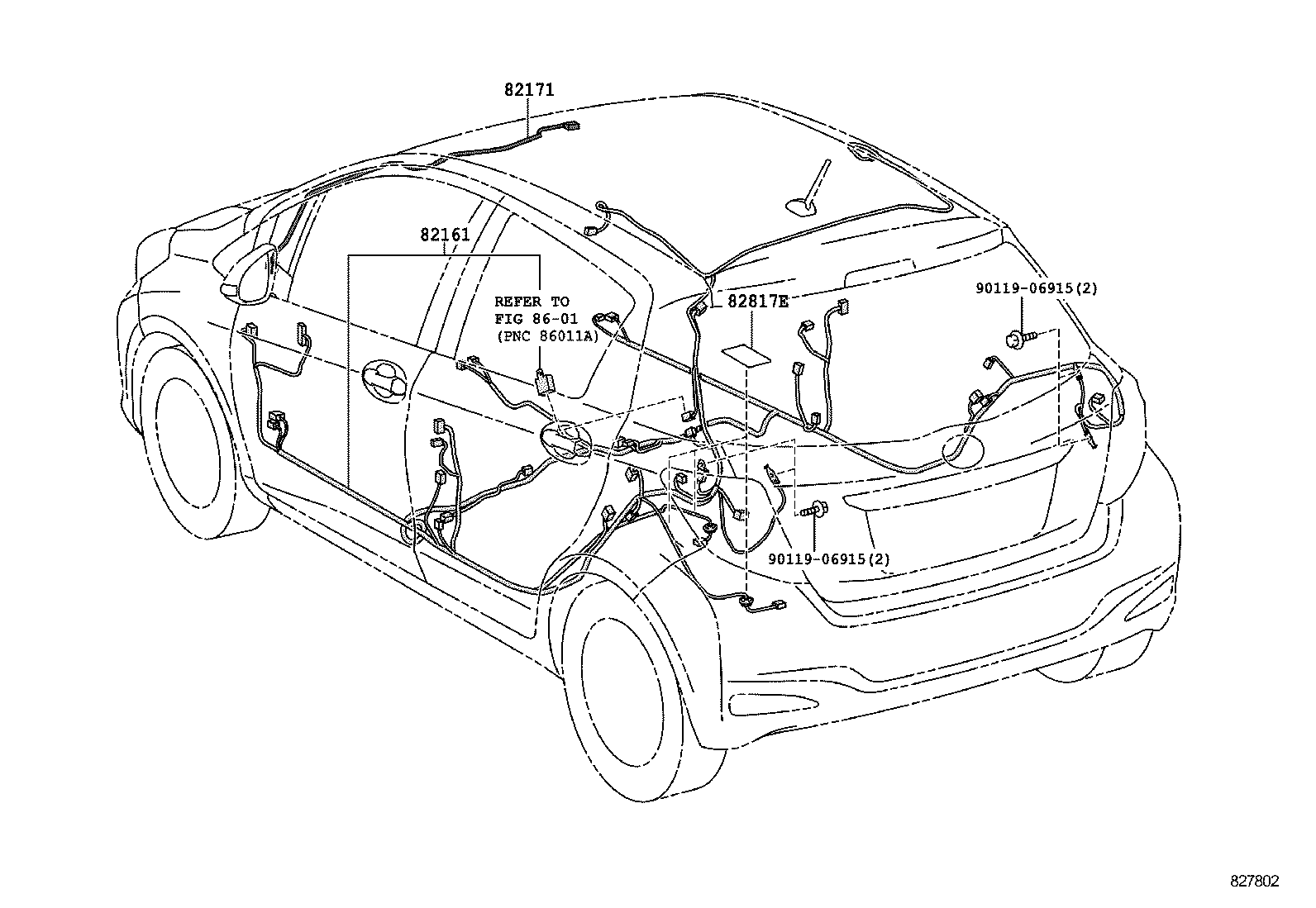

82161 Wire, Floor
82171 Wire, Roof, NO.1
82184 Wire, Back Door, NO.1
82185 Wire, Back Door, NO.2
82186 Wire, Rear Window, NO.1
82191 Wire, Front Seat, RH
82219A Wire, Sensor
82666A Holder, Connector NO.2
82666B Holder, Connector NO.3
82666C Holder, Connector NO.4
82669A Cover, Connector Holder Block, Lower
82817 Protector, Wiring Harness, NO.1
82817A Protector, Wiring Harness, NO.2
82817B Protector, Wiring Harness, NO.3
82817E Protector, Wiring Harness, NO.6
82821E Cover, Connector
82823T Cap, Alternator Terminal

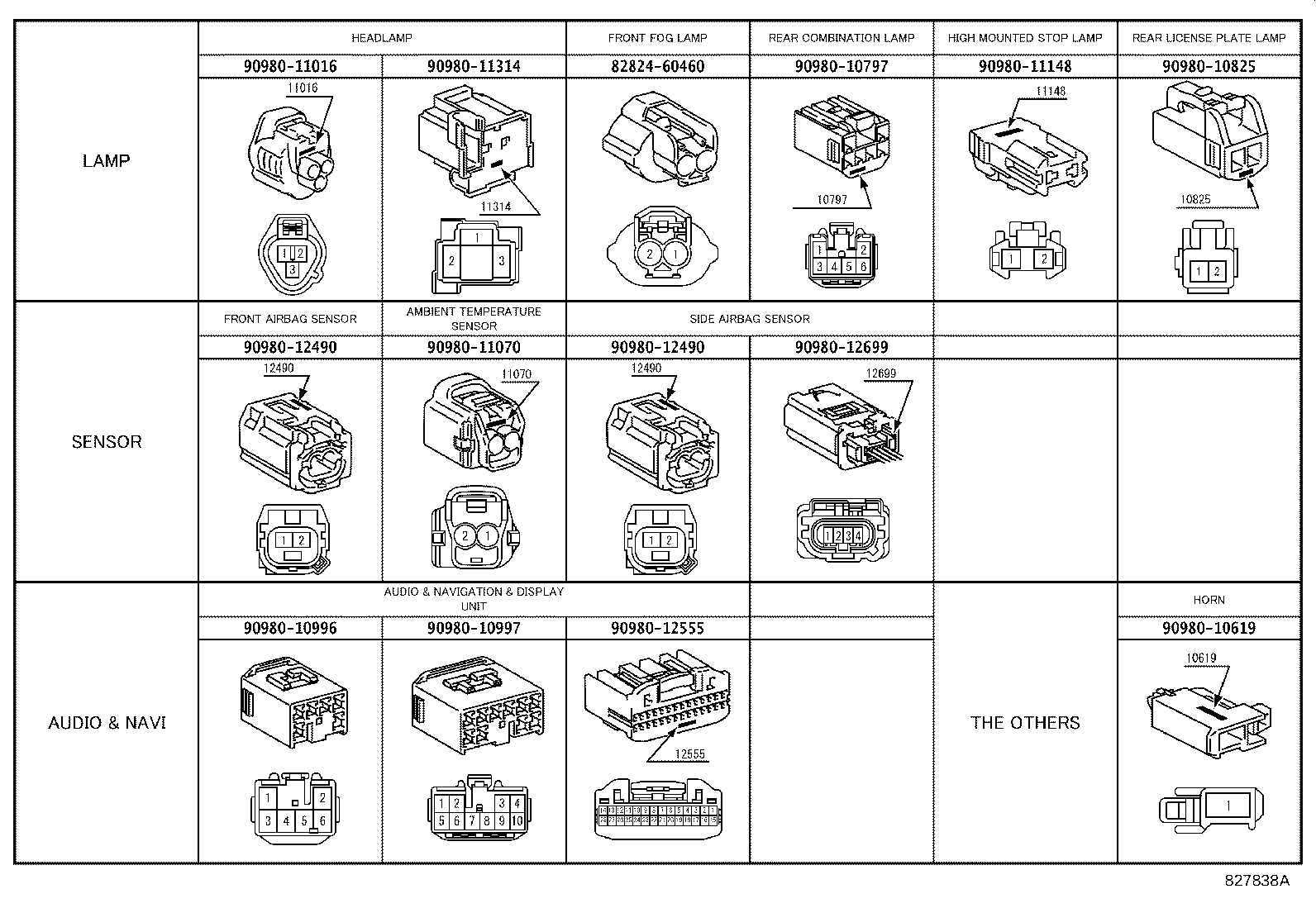

82824 Connector, Wiring Harness
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
