Toyota Yaris (JPP)

2011-08 → 2014-07 · chassis NCP131 · catalogue 112430 · United States

Supported model Data version 2015-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

14 part groups · 3 illustrations

Illustrations

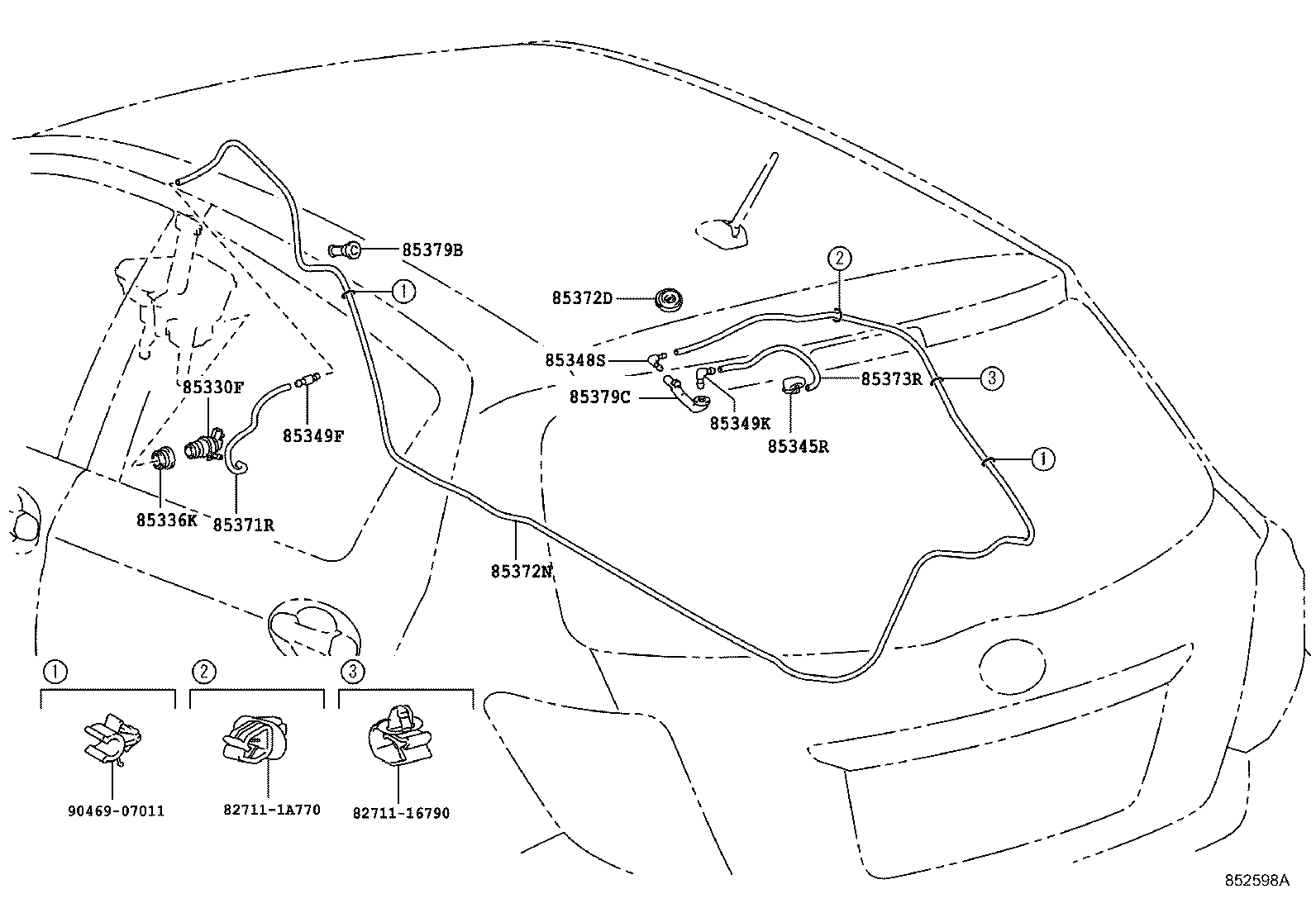

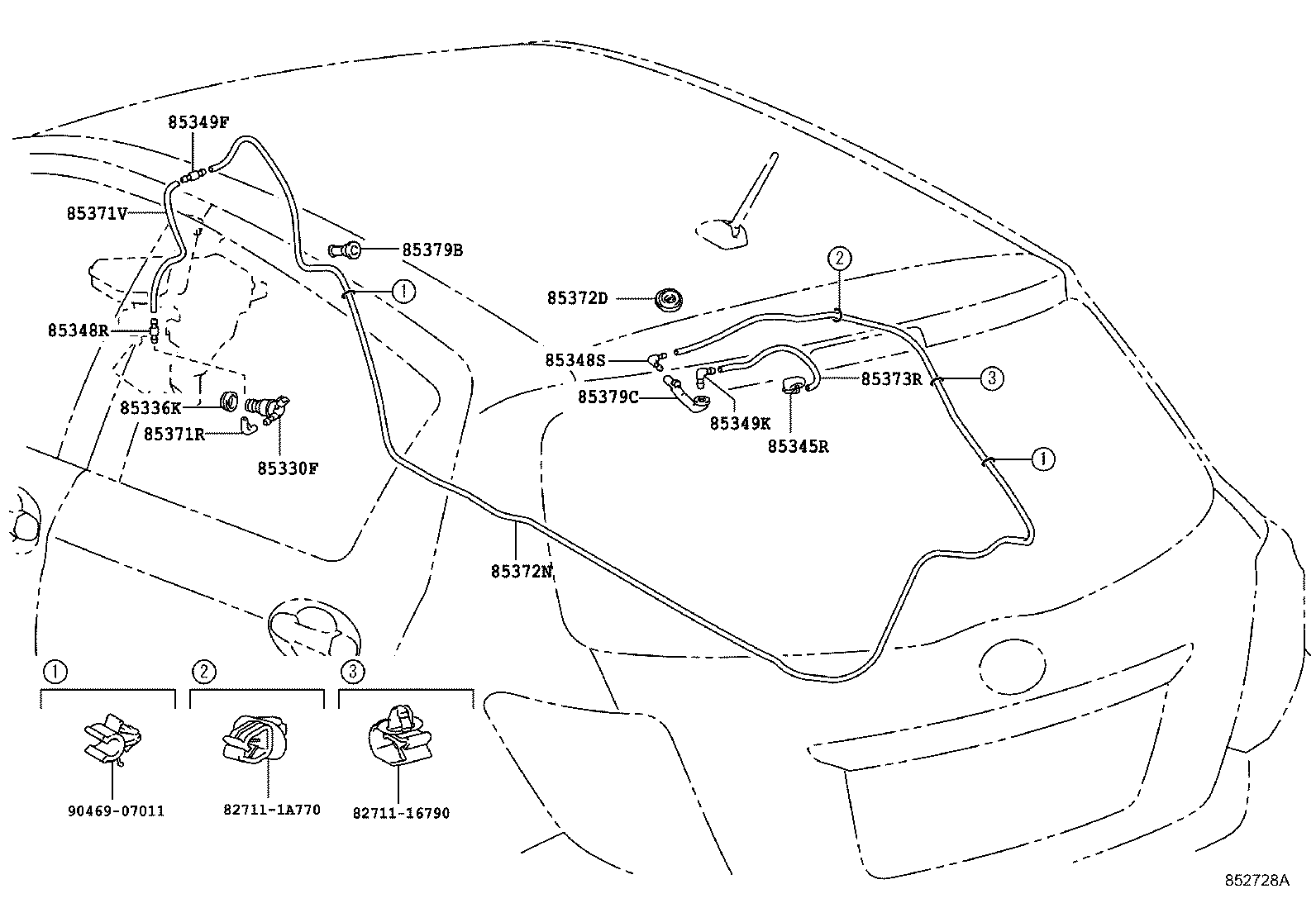

Figure 852730A 852730A 2011-08 → — Figure 852598B 852598B 2011-08 → — Figure 852728A 852728A 2011-08 → —

Part groups

PNCDescription
85330F Motor & Pump Assy, RR Washer
85336K Protector, Washer Jar
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85349F Joint, Rear Washer Hose, NO.1
85349K Joint, Rear Washer Elbow, NO.2
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85371V Hose, Rear Washer (FROM JOINT TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85379B Grommet, Washer, A
85379C Grommet, Rear Washer Hose NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
