Toyota Scion XB

2003-04 → 2006-12 · chassis NCP31 · catalogue 115410 · United States

Discontinued model Data version 2007-06
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

17 part groups · 2 illustrations

Illustrations

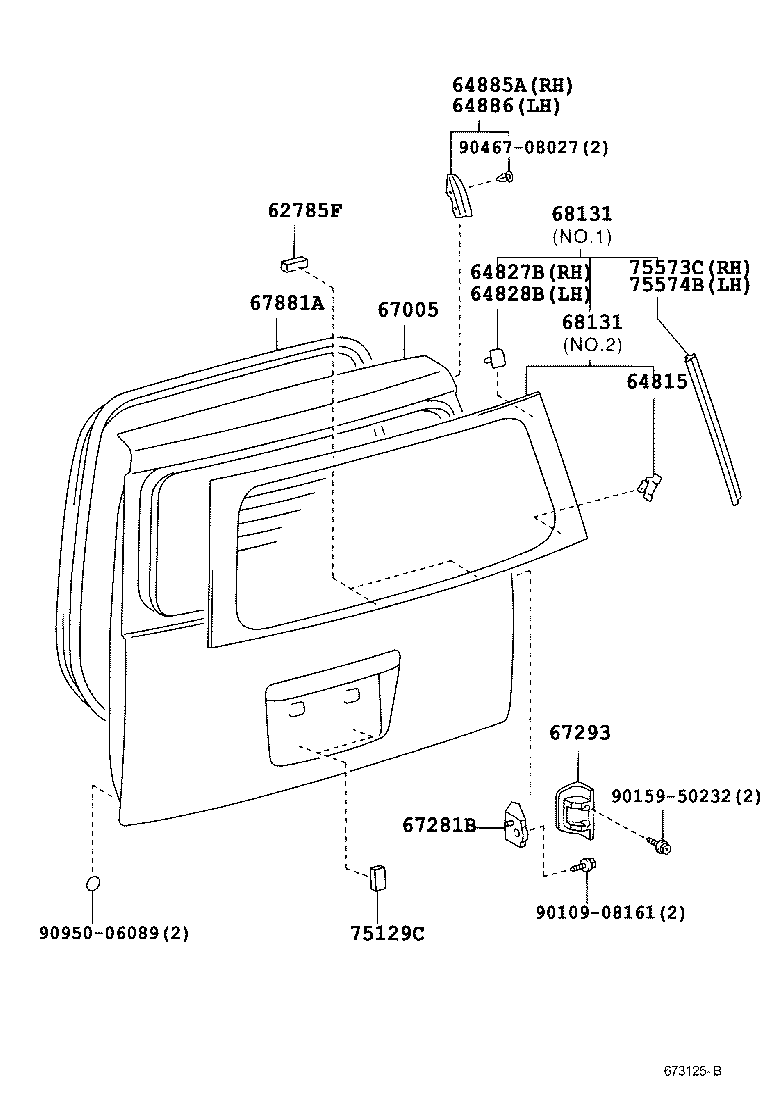

Figure 671909B 671909B 2003-04 → — Figure 673125B 673125B 2003-04 → —

Part groups

PNCDescription
62785F Spacer, Back Door Glass
64815 Terminal, Back Window Glass
64827B Clip, Back Window Glass, RH
64828B Clip, Back Window Glass, LH
64885A Channel, Back Window Glass, RH
64886 Channel, Back Window Glass, LH
67005 Panel Sub-assy, Back Door
67281B Stopper, Back Door, Lower
67293 Cushion, Back Door Lower Stopper
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67881A Weatherstrip, Back Door
68131 Glass, Back Door
74811D Handle, Door Pull
75129C Cushion, Rear Licence Plate
75573C Moulding, Back Window, Outside
75574B Moulding, Back Window, Outside LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
