Toyota Scion XB
2003-04 → 2006-12 · chassis NCP31 · catalogue 115410 · United States
Discontinued model
Data version 2007-06

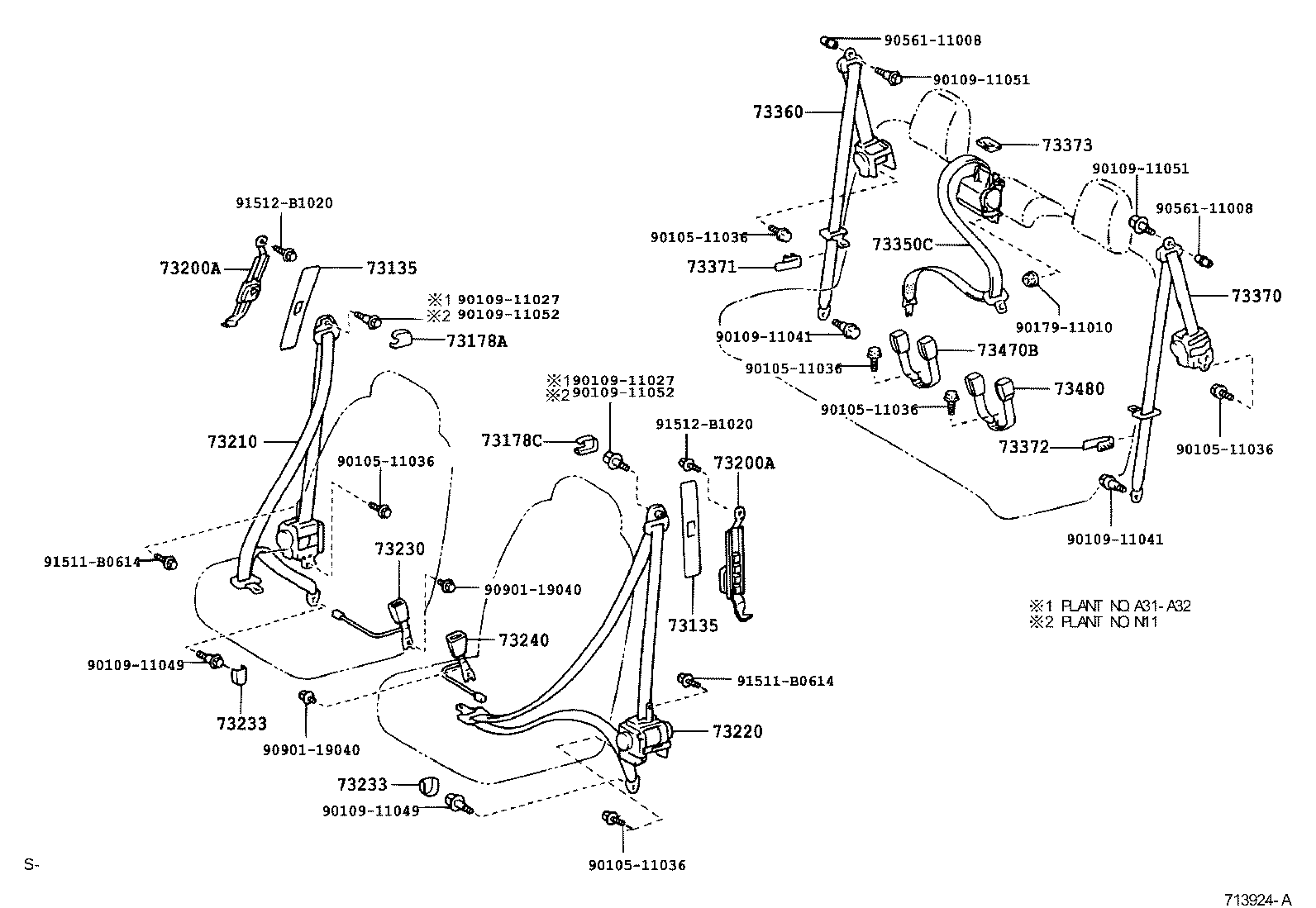

Seat Belt & Child Restraint Seat
17 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 73135 | Cover, Shoulder Belt Anchorage Plate |
| 73178A | Cap, Seat Belt Anchor Cover |
| 73178C | Cap, Seat Belt Anchor Cover |
| 73200A | Adjuster Assy, Front Shoulder Belt Anchor |
| 73210 | Belt Assy, Front Seat Outer, RH |
| 73220 | Belt Assy, Front Seat Outer, LH |
| 73230 | Belt Assy, Front Seat Inner, RH |
| 73233 | Cover, Lap Belt Outer Anchor |
| 73240 | Belt Assy, Front Seat Inner, LH |
| 73350C | Belt Assy, Rear Seat, Outer Center |
| 73360 | Belt Assy, Rear Seat 3 Point Type, Outer RH |
| 73370 | Belt Assy, Rear Seat 3 Point Type, Outer LH |
| 73371 | Hanger, Rear Seat Shoulder Belt, RH |
| 73372 | Hanger, Rear Seat Shoulder Belt, LH |
| 73373 | Cover, Rear Seat Shoulder Belt |
| 73470B | Belt Assy, Rear Seat Inner W/Center, RH |
| 73480 | Belt Assy, Rear Seat Inner W/Center, LH |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
