Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Alternator

15 part groups · 2 illustrations

Illustrations

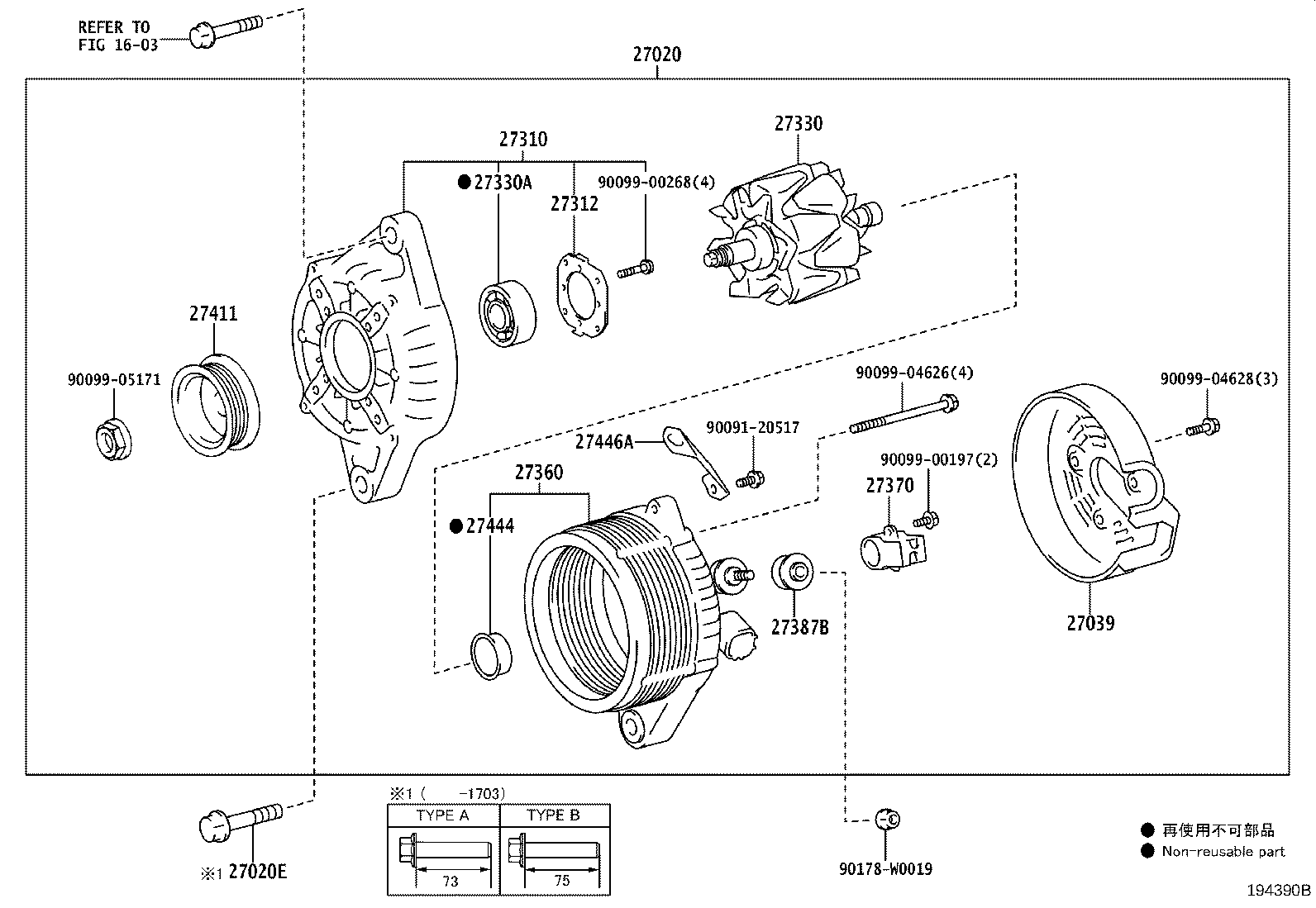

Figure 194143A 194143A 2013-05 → 2014-07 Figure 194390B 194390B 2014-07 → —

Part groups

PNCDescription
27020 Alternator Assy
27020E Bolt(FOR ALTERNATOR)
27039 Cover, Alternator Rear End
27310 Frame Assy, Drive End, Alternator
27312 Plate, Retainer
27330 Rotor Assy, Alternator
27330A Bearing(FOR ALTERNATOR ROTOR)
27357 Holder, Alternator, W/Rectifier
27360 Coil Assy, Alternator
27370 Holder Assy, Alternator Brush
27387B Insulator, Alternator Terminal
27411 Pulley, Alternator
27444 Packing, Alternator Bearing Cover
27446A Clamp
27700A Regulator Assy, Generator
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
