Steering Column & Shaft

11 part groups · 2 illustrations

Illustrations

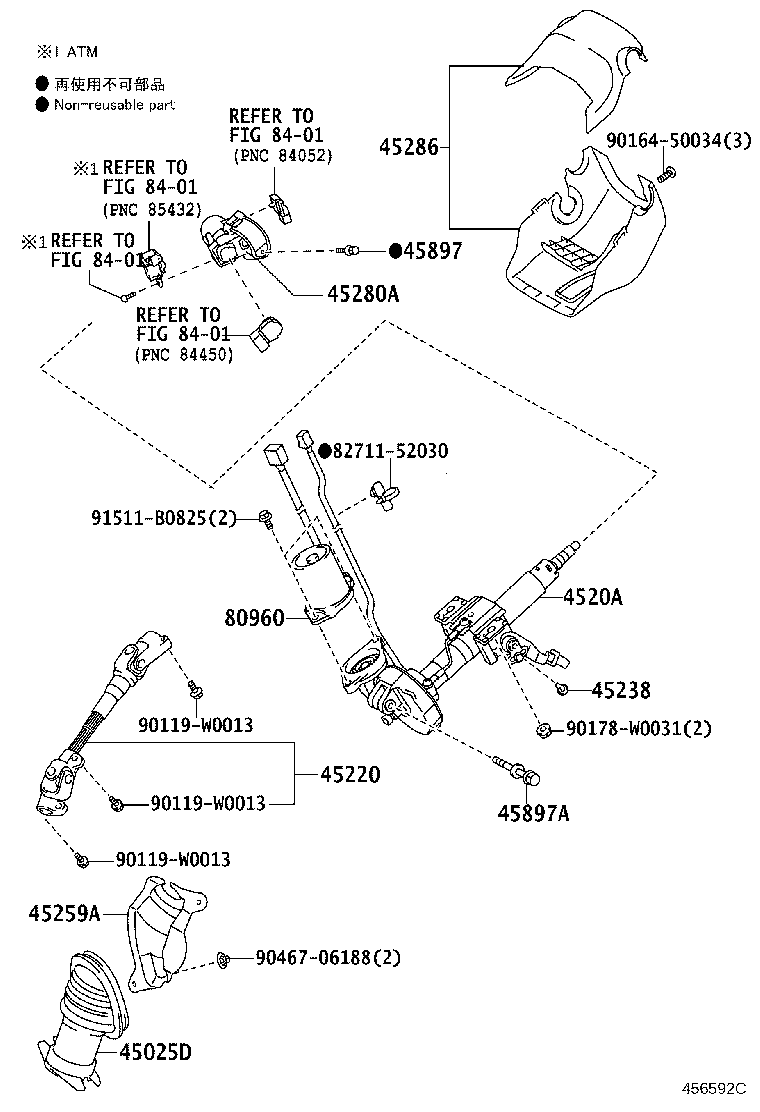

Figure 456318C 456318C 2013-05 → 2014-07 Figure 456592C 456592C 2014-07 → —

Part groups

PNCDescription
45025D Cover Sub-assy, Steering Column Hole, NO.1
4520A Column Sub-assy, Electric Power Steering
45220 Shaft Assy, Steering Intermediate
45238 Clamp, Bolt(FOR STEERING FLEXIBLE COUPLING)
45250 Column Assy, Steering
45259A Sheet, Column Hole Cover Silencer
45280A Bracket Assy, Steering Column, Upper
45286 Cover, Steering Column
45897 Bolt, Steering Lock Set
45897A Bolt, Tilt Steering Pawl Set
80960 Motor Assy, Power Steering
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
