Toyota Yaris (FRP)
2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States
Supported model
Data version 2018-11

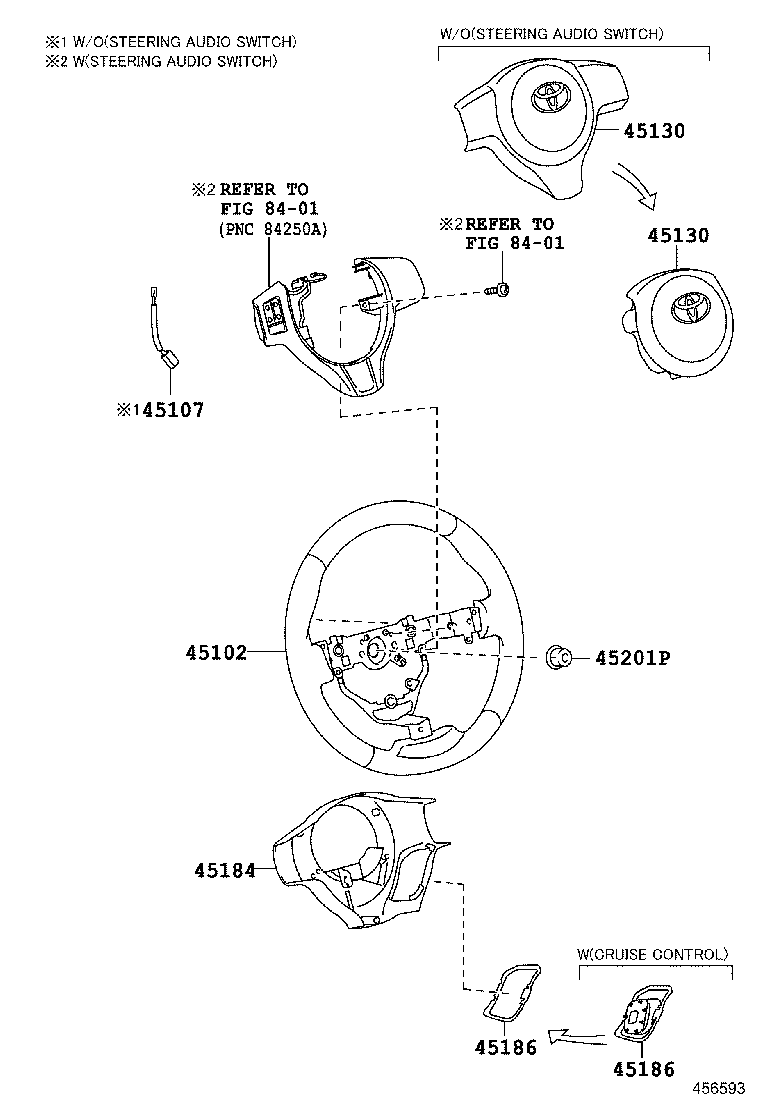

Steering Wheel
7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 45100 | Wheel Assy, Steering |
| 45102 | Wheel Sub-assy, Steering |
| 45107 | Wire Sub-assy, Horn Button |
| 45130 | Button Assy, Horn |
| 45184 | Cover, Steering Wheel Boss, Lower |
| 45186 | Cover, Steering Wheel, Lower NO.2 |
| 45201P | Nut, Steering Wheel Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
