Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mat & Carpet

12 part groups · 2 illustrations

Illustrations

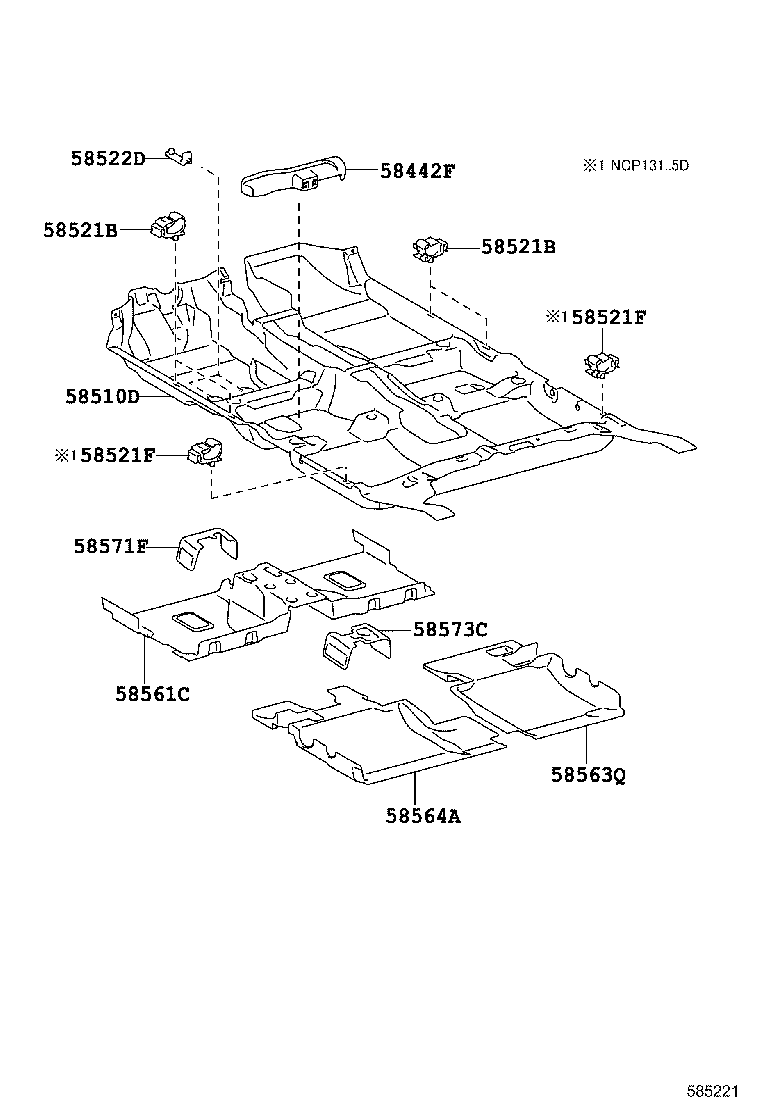

Figure 584861B 584861B 2013-05 → 2014-07 Figure 585221 585221 2014-07 → —

Part groups

PNCDescription
58442F Cover, Jack
58510D Carpet Assy, Floor, Front
58521B Hook, Floor Carpet
58521F Hook, Floor Carpet
58522D Hook, Floor Carpet, NO.2
58561C Silencer, Front Floor, NO.1
58562C Silencer, Front Floor, NO.2
58563Q Silencer, Front Floor, NO.3
58564A Silencer, Front Floor, NO.4
58571F Pad, Front Floor, Front
58572Q Pad, Front Floor, Front NO.2
58573C Pad, Front Floor Center
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
