Console Box & Bracket

10 part groups · 2 illustrations

Illustrations

Figure 584830A

584830A 2013-05 → 2014-07

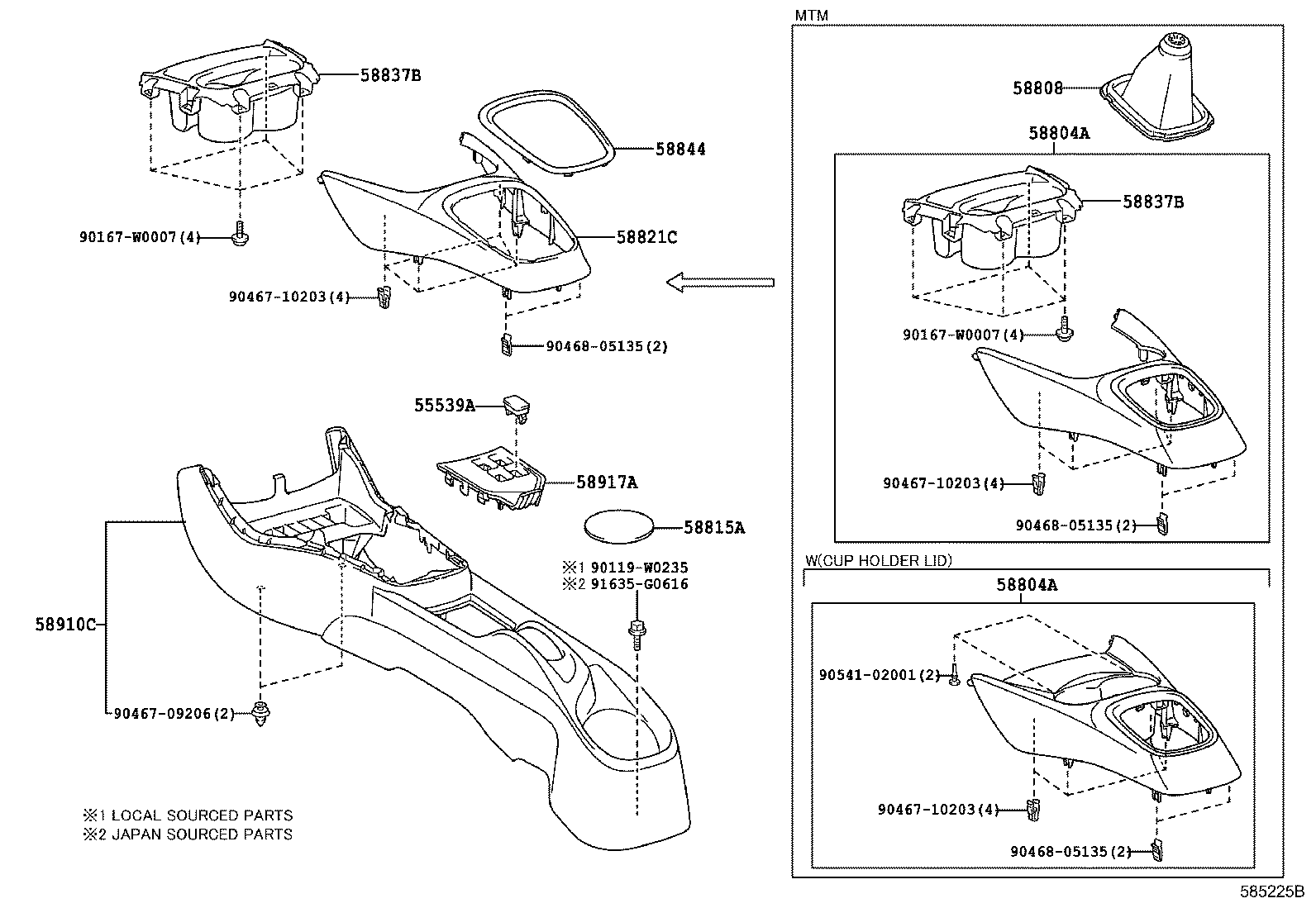

Figure 585225B

585225B 2014-07 → —

Part groups

PNC	Description
55539A	Cover, Spare Switch Hole
58804A	Panel Sub-assy, Console, Upper
58808	Cover Sub-assy, Shifting Hole
58815A	Carpet, Console Box
58821C	Panel, Console, Upper
58837B	Box, Console Cup Holder
58844	Bezel, Console Box
58910C	Box Assy, Console, Rear
58912A	Box, Rear Console
58917A	Cover, Console Box, Rear

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
