Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

16 part groups · 3 illustrations

Illustrations

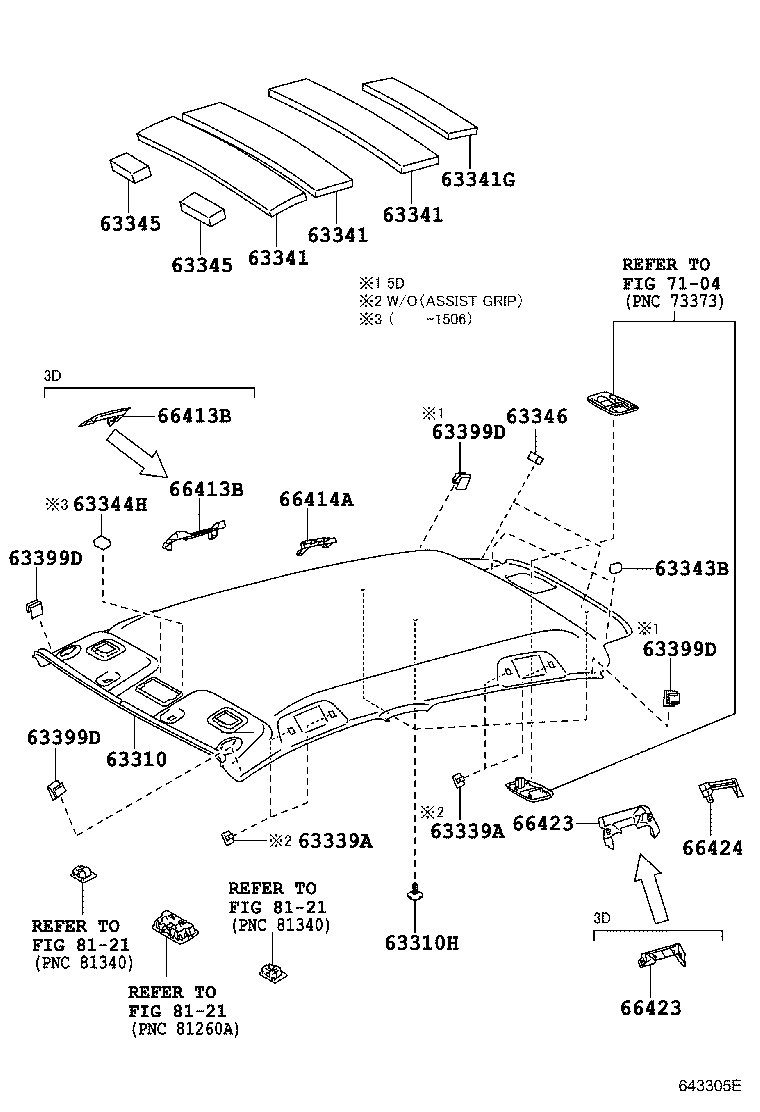

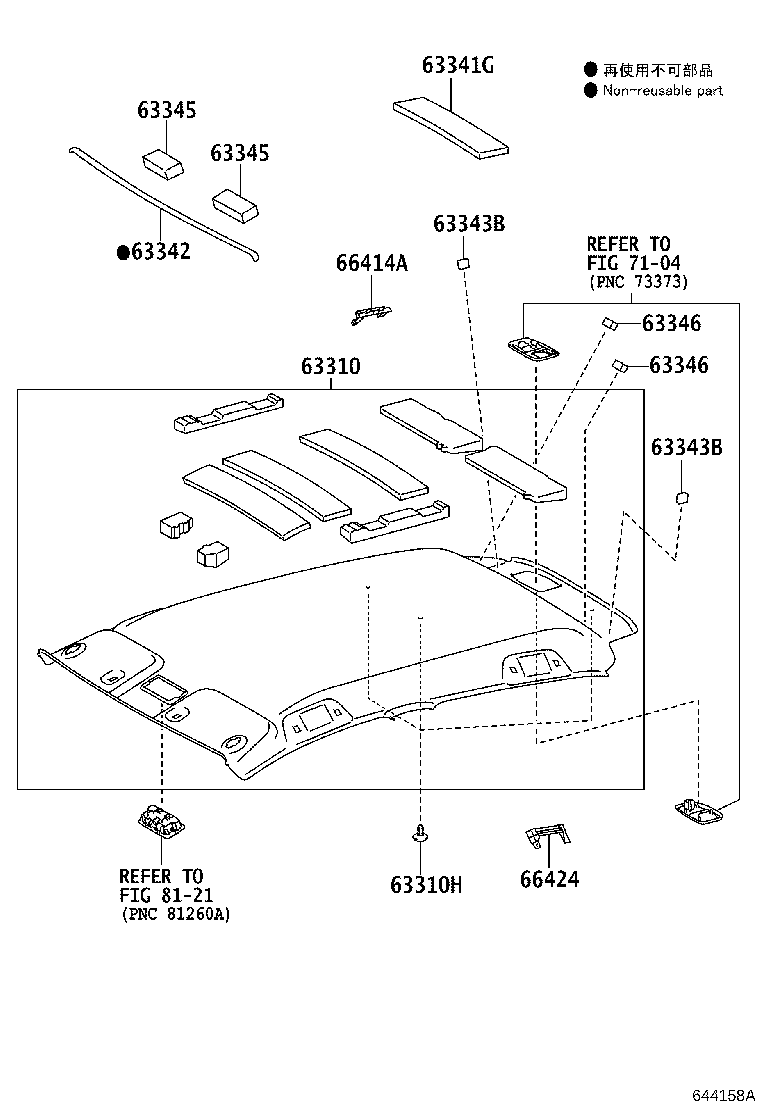

Figure 643304E 643304E 2013-05 → 2017-03 Figure 643305E 643305E 2013-05 → 2016-07 Figure 644158A 644158A 2017-03 → —

Part groups

PNCDescription
63119E Pad, Roof Panel, NO.1
63310 Headlining Assy, Roof
63310H Clip(FOR ROOF HEADLINING)
63339A Cover, Roof Headlining Service Hole
63341 Pad, Roof Silencer, NO.1
63341G Pad, Roof Silencer
63342 Pad, Roof Silencer, NO.2
63343B Pad, Roof Silencer, Rear
63344H Pad, Roof Silencer, NO.4
63345 Pad, Roof Silencer, NO.5
63346 Pad, Roof Silencer, NO.6
63399D Clip, Roof Headlining
66413B Spacer, Side Rail, Front RH
66414A Spacer, Side Rail, Rear RH
66423 Spacer, Side Rail, Front LH
66424 Spacer, Side Rail, Rear LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
