Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Moulding

9 part groups · 4 illustrations

Illustrations

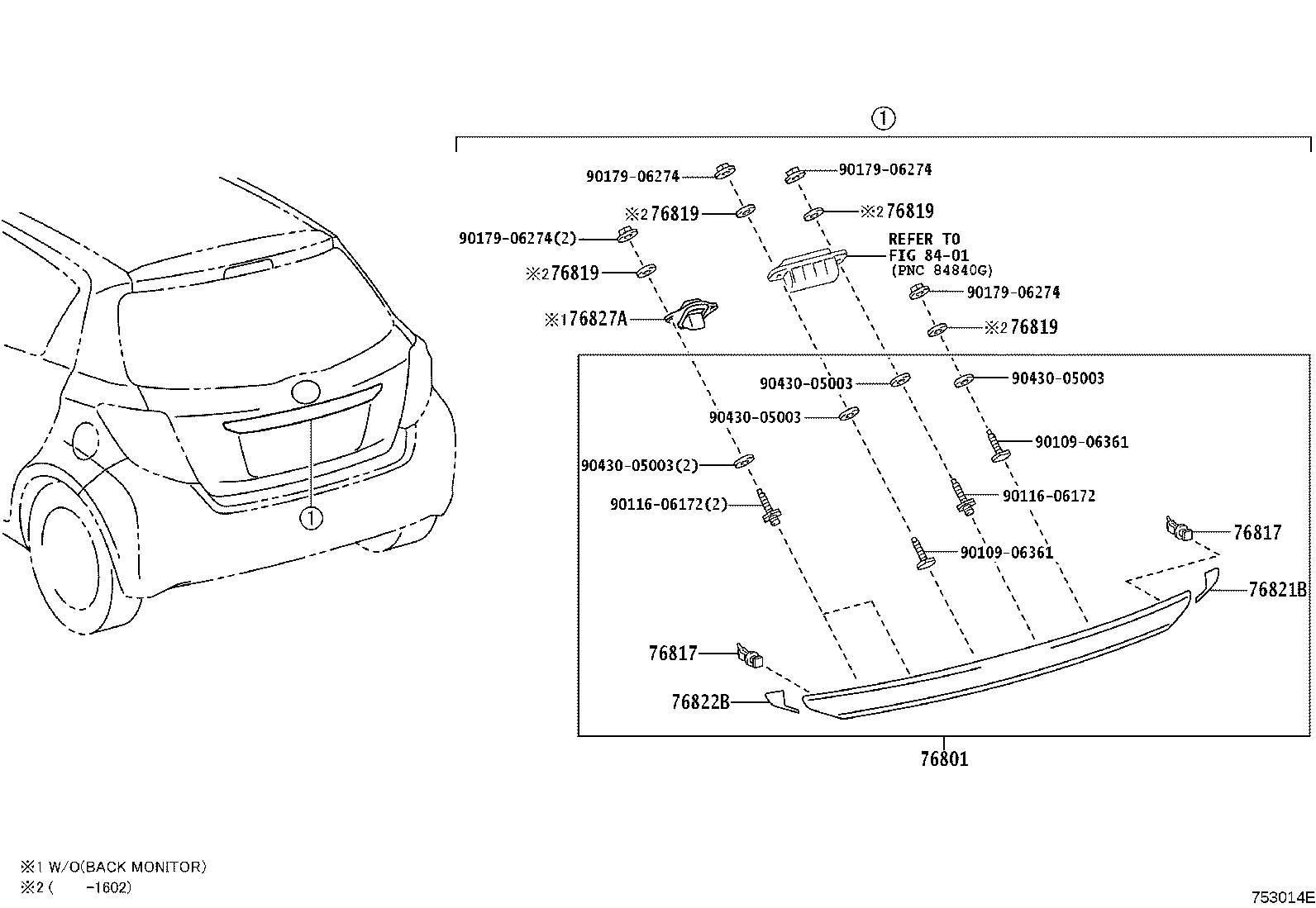

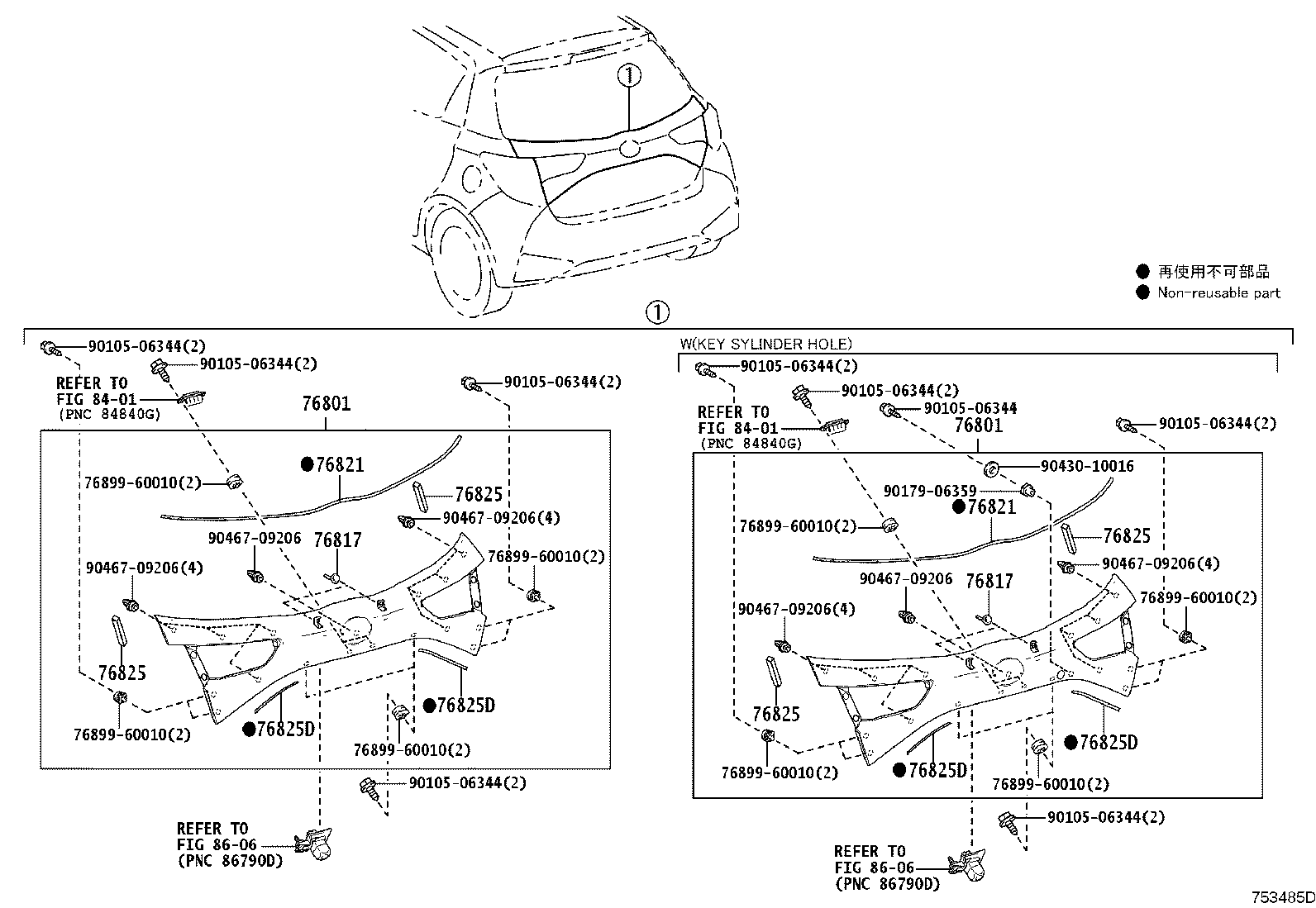

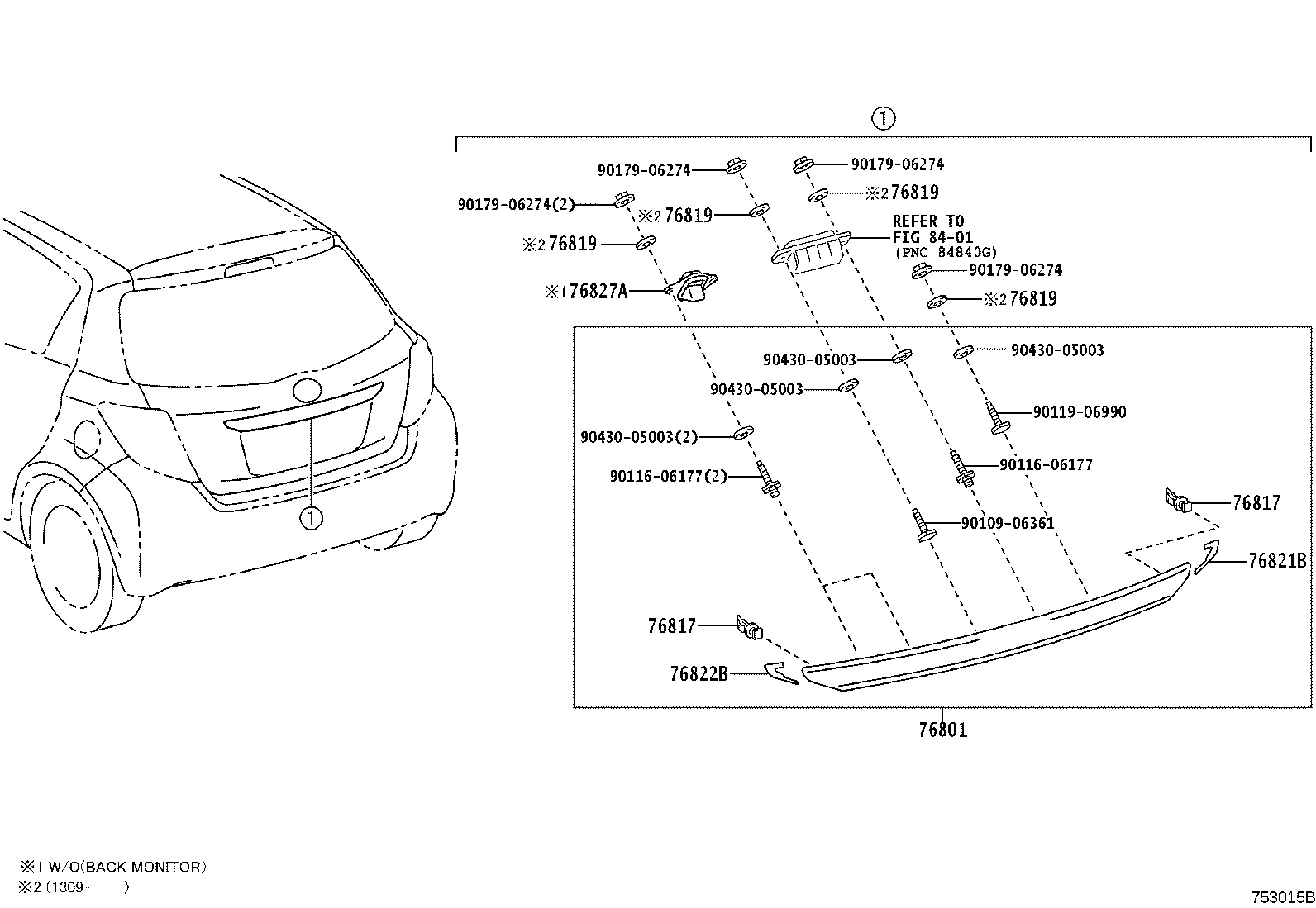

Figure 752859F 752859F 2013-05 → 2014-07 Figure 753015B 753015B 2013-05 → 2014-07 Figure 753014E 753014E 2014-07 → 2017-03 Figure 753485D 753485D 2017-03 → —

Part groups

PNCDescription
76801 Garnish Sub-assy, Back Door, Outside
76817 Clip, Back Door Outside Garnish
76819 Seal, Back Door Outside Garnish
76821 Protector, Back Door Garnish Moulding, Upper
76821B Protector, Back Door Garnish Side, RH
76822B Protector, Back Door Garnish Side, LH
76825 Protector, Back Door Outside Garnish
76825D Protector, Back Door Outside Garnish, NO.1
76827A Retainer, Back Door Garnish, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
