Toyota Yaris (FRP)
2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States
Supported model
Data version 2018-11

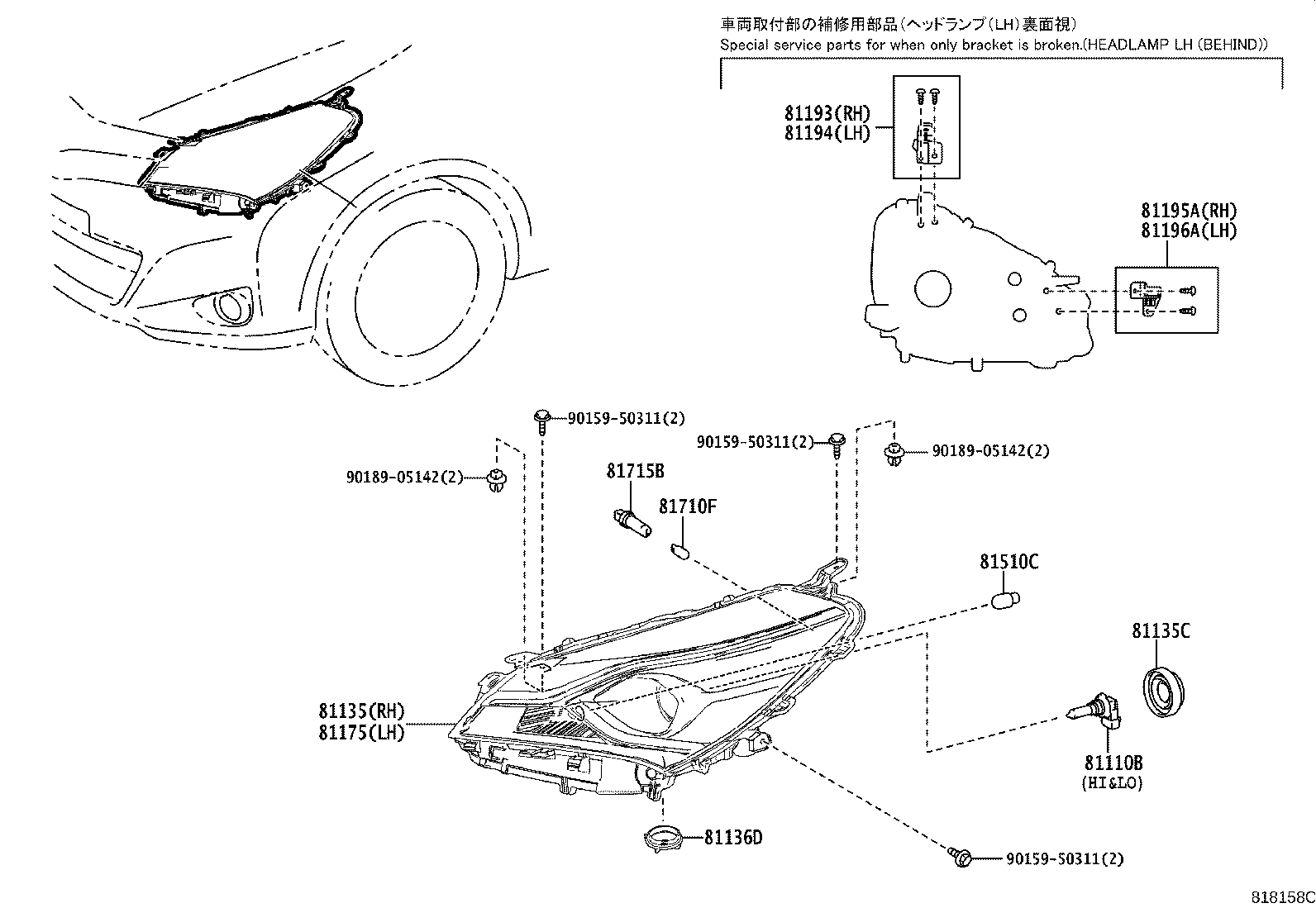

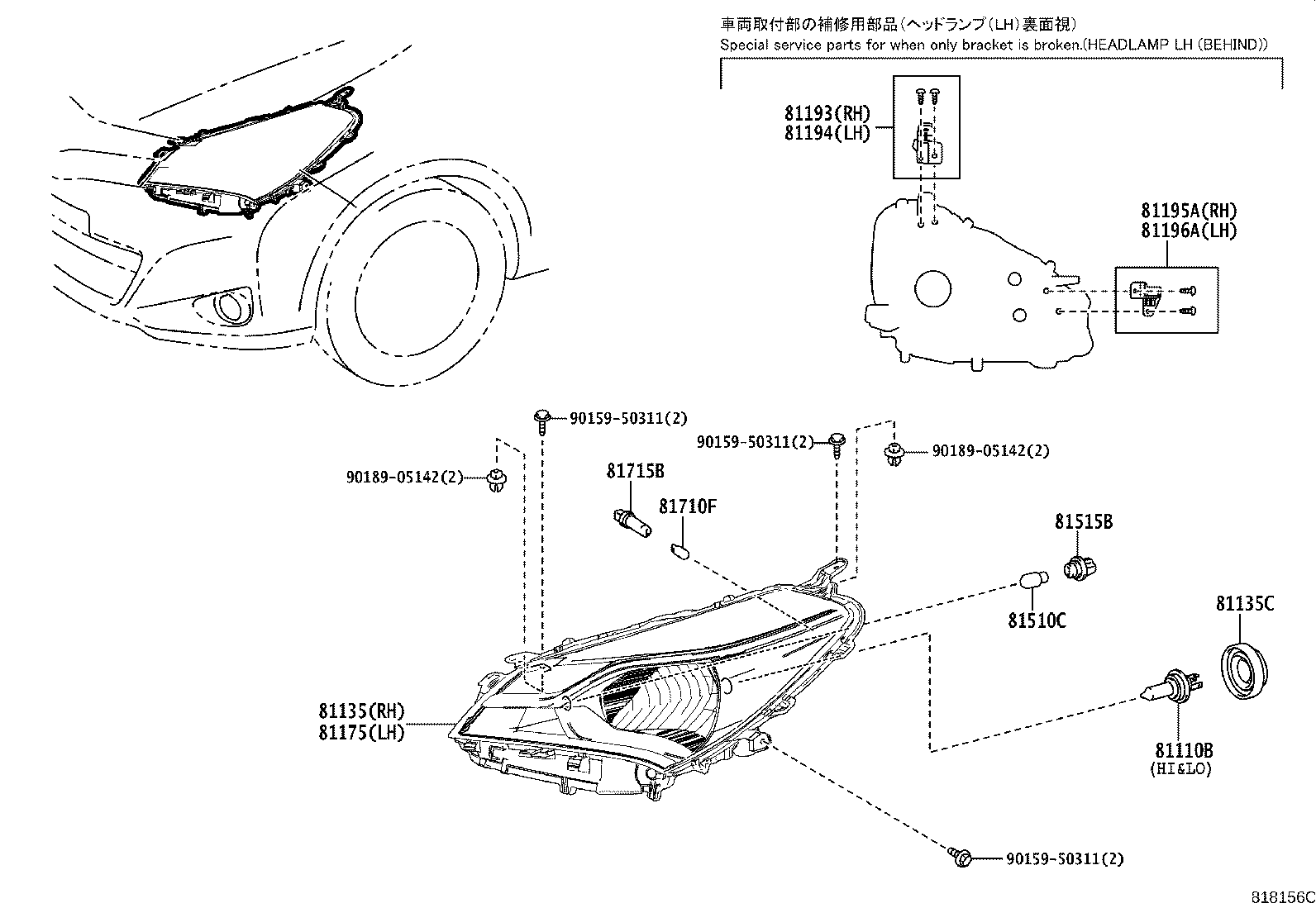

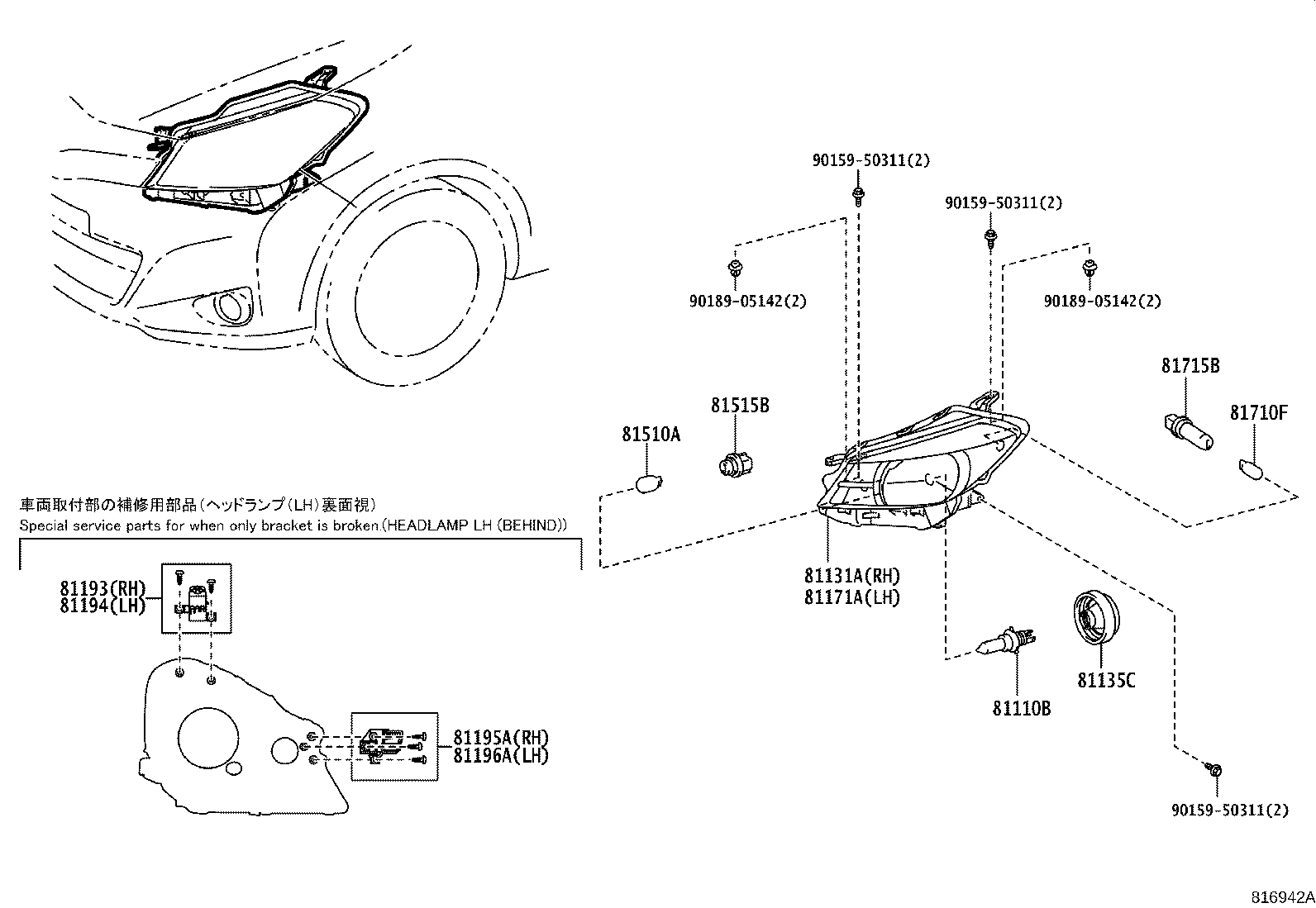

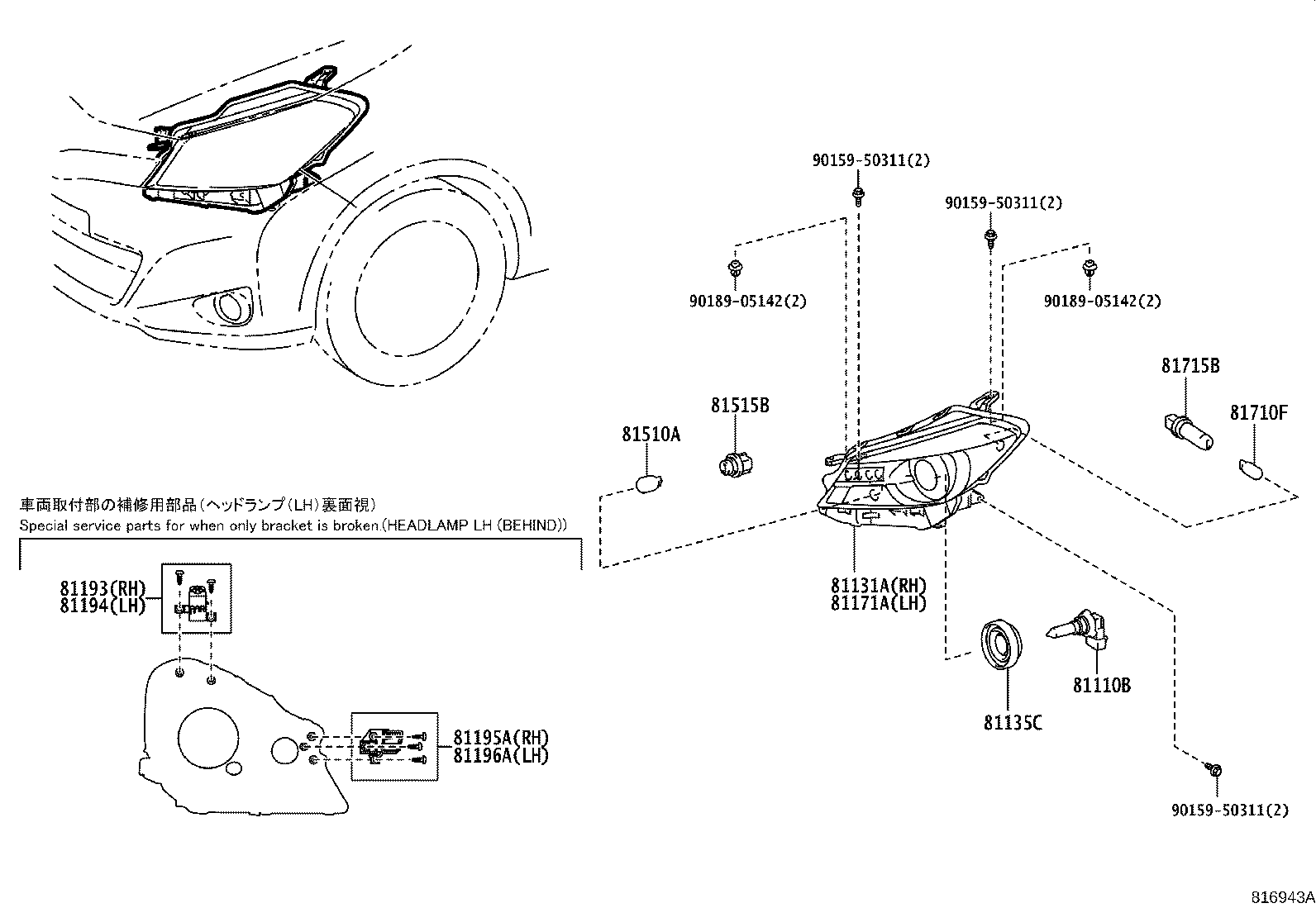

Headlamp
16 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 81110B | Bulb(FOR HEADLAMP, NO.1) |
| 81131A | Unit, Headlamp, RH |
| 81135 | Unit Assy, Headlamp, RH |
| 81135C | Cover, Headlamp Back, NO.1 |
| 81136D | Cover, Headlamp |
| 81171A | Unit, Headlamp, LH |
| 81175 | Unit Assy, Headlamp, LH |
| 81193 | Retainer, Headlamp Protector, Upper RH |
| 81194 | Retainer, Headlamp Protector, Upper LH |
| 81195A | Retainer, Headlamp Protector, Lower RH |
| 81196A | Retainer, Headlamp Protector, Lower LH |
| 81510A | Bulb, Front Turn Signal & Parking Lamp |
| 81510C | Bulb (FOR FRONT TURN SIGNAL LAMP) |
| 81515B | Socket, Front Turn Signal Lamp |
| 81710F | Bulb, Front Side Maker Lamp |
| 81715B | Socket & Wire, Front Side Marker Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
