Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

2 part groups · 2 illustrations

Illustrations

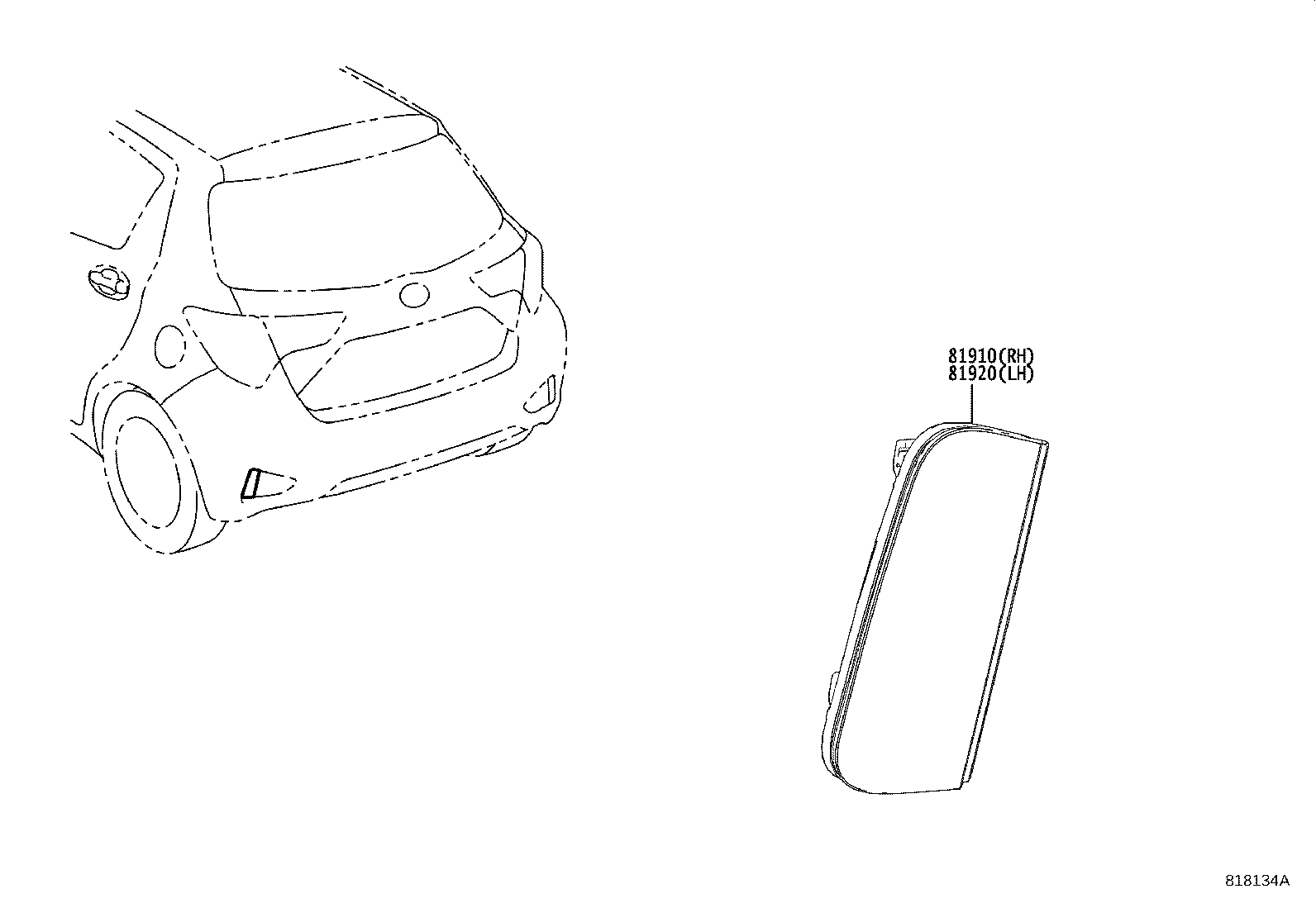

Figure 816544B 816544B 2013-05 → 2014-07 Figure 818134A 818134A 2017-03 → —

Part groups

PNCDescription
81910 Reflector Assy, Reflex, RH
81920 Reflector Assy, Reflex, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
