Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Washer

15 part groups · 3 illustrations

Illustrations

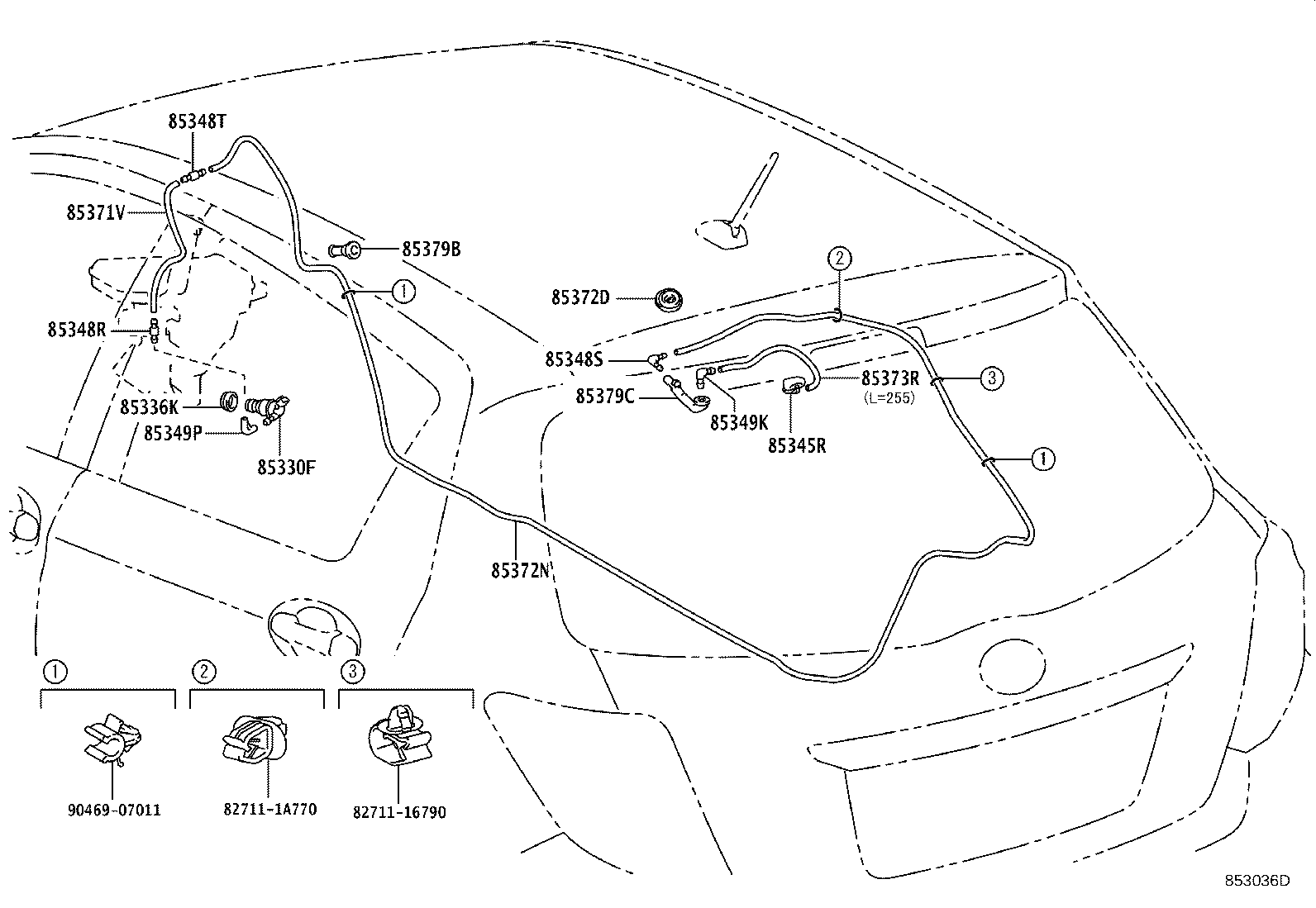

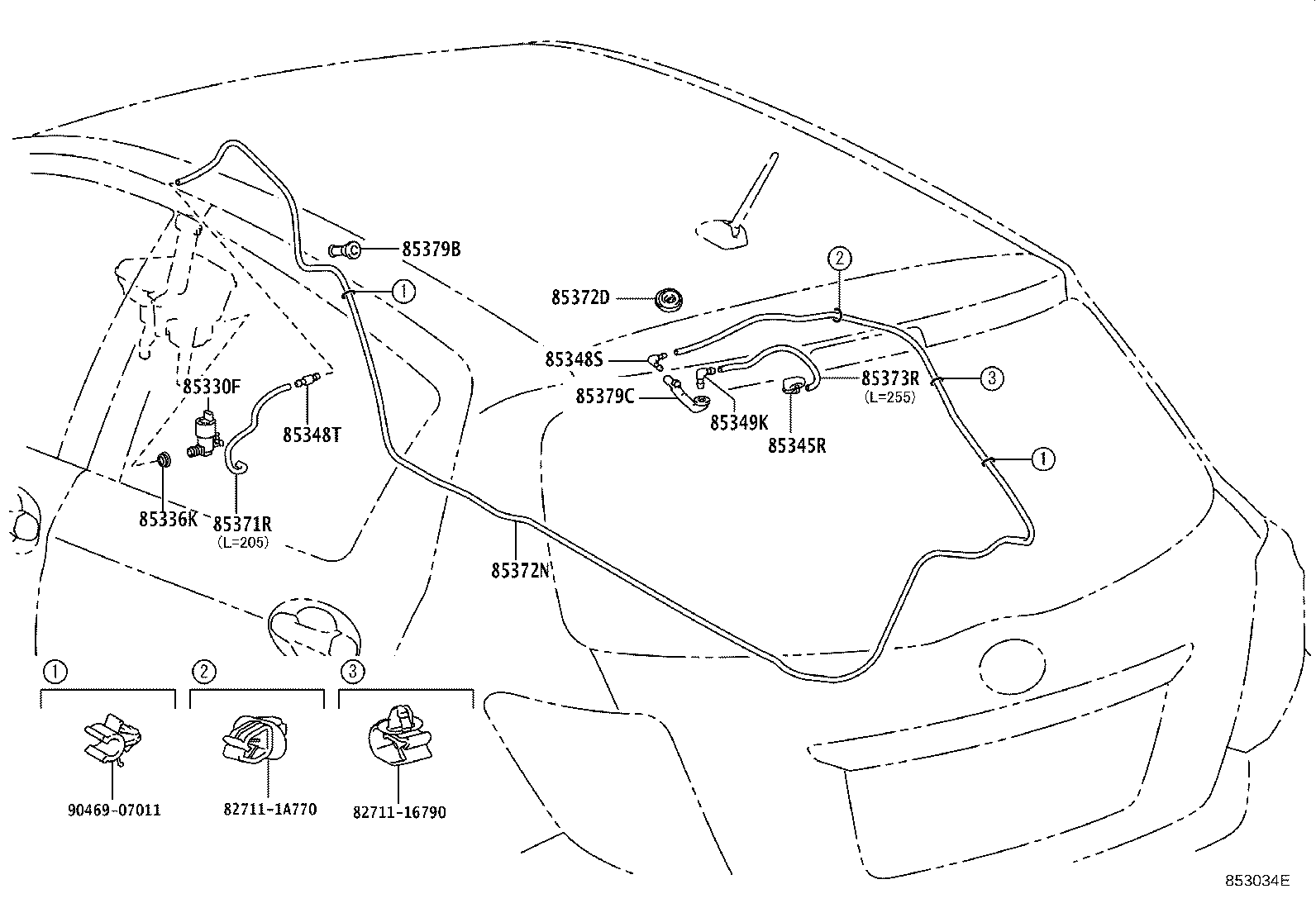

Figure 853035D 853035D 2013-05 → — Figure 853034E 853034E 2013-05 → — Figure 853036D 853036D 2013-05 → —

Part groups

PNCDescription
85330F Motor & Pump Assy, RR Washer
85336K Protector, Washer Jar
85345R Nozzle, Rear Washer
85348R Joint, Rear Washer Hose, NO.1
85348S Joint, Rear Washer Elbow, NO.1
85348T Joint, Rear Washer Hose, NO.2
85349K Joint, Rear Washer Elbow, NO.2
85349P Joint, Rear Washer Elbow, NO.3
85371R Hose, Rear Washer (FROM MOTOR TO JOINT)
85371V Hose, Rear Washer (FROM JOINT TO JOINT)
85372D Grommet, Rear Washer Hose
85372N Hose, Rear Washer (FROM JOINT TO JOINT), NO.1
85373R Hose, Rear Washer (FROM JOINT TO NOZZLE)
85379B Grommet, Washer, A
85379C Grommet, Rear Washer Hose NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
