Toyota Yaris (FRP)
2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States
Supported model
Data version 2018-11

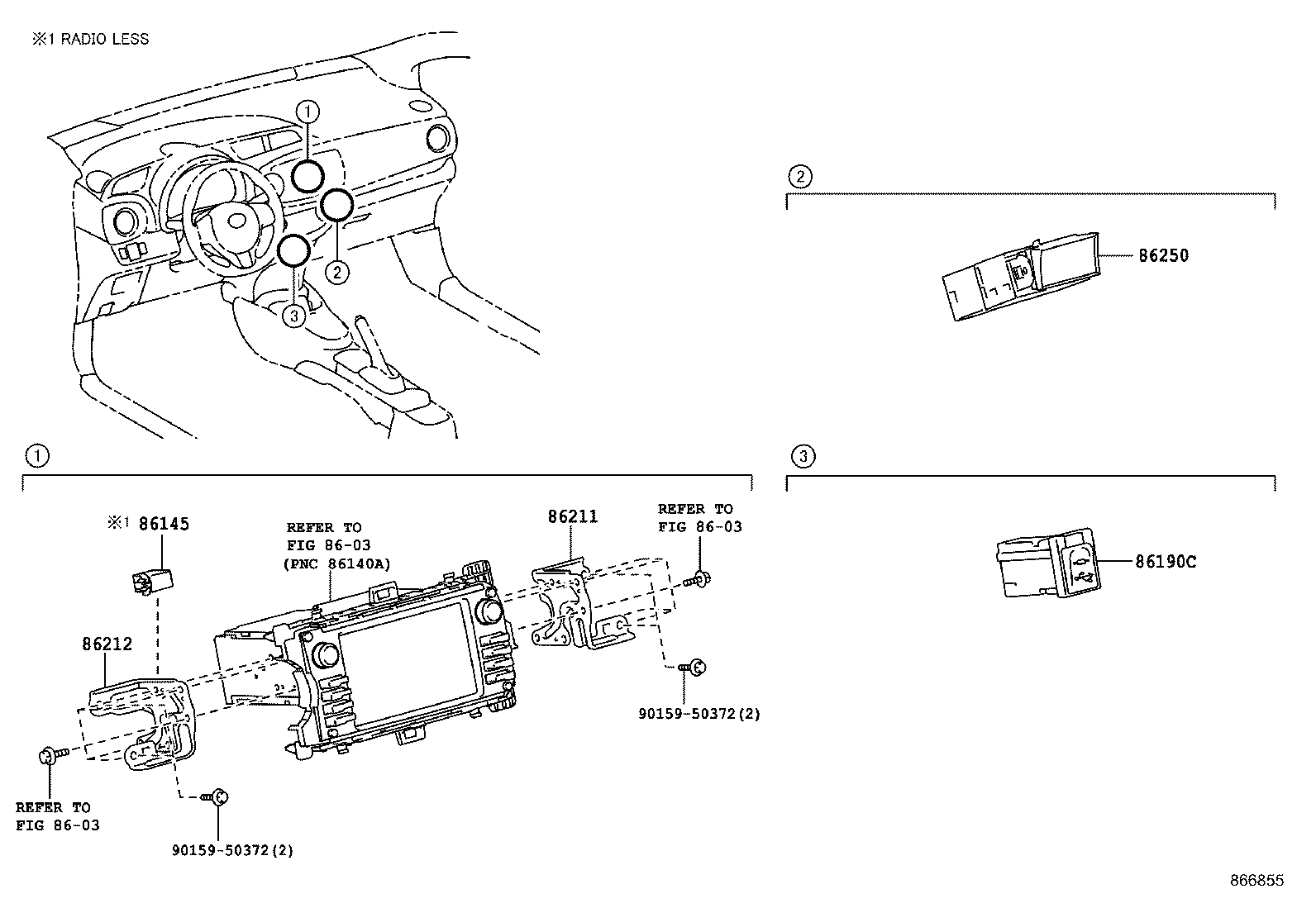

Radio Receiver & Amplifier & Condenser
6 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 86011A | Condenser, Radio Setting |
| 86145 | Connector, Antenna Male |
| 86190C | Adapter Assy, Stereo Jack, NO.1 |
| 86211 | Bracket, Radio, NO.1 |
| 86212 | Bracket, Radio, NO.2 |
| 86250 | Microphone Assy, Amplifier |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
