Toyota Yaris (FRP)
2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States
Supported model
Data version 2018-11
Pre-collision System

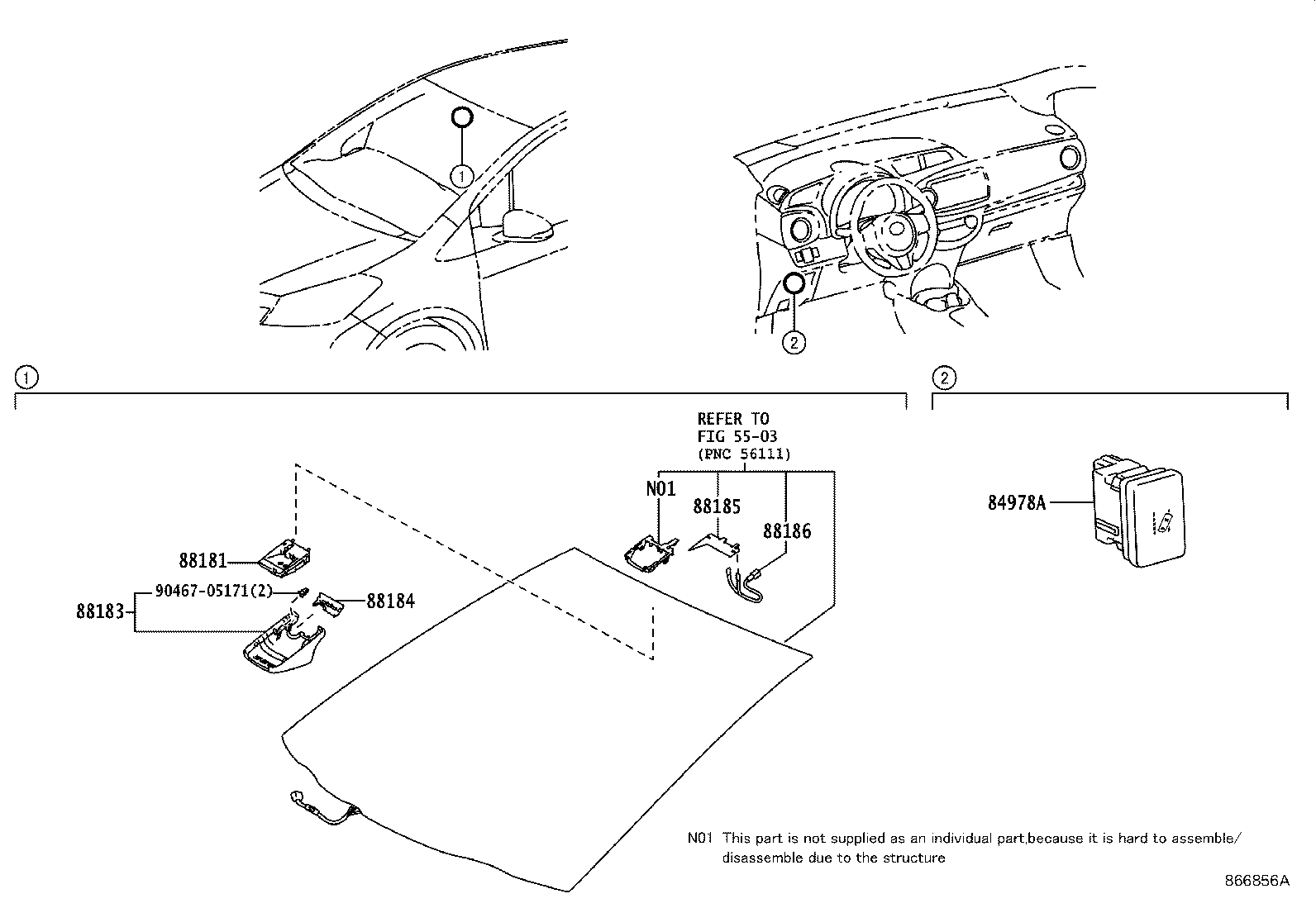

7 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 84978A | Switch, Lane-keeping Assist Main |
| 86652E | Buzzer, Pre-collision City |
| 88181 | Sensor, Pre-collision City |
| 88183 | Cover, Pre-collision City |
| 88184 | Cover, Pre-collision City, 2ND |
| 88185 | Heater, Pre-collision City |
| 88186 | Wire, Pre-collision City Heater |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
