Toyota Yaris (FRP)

2013-05 → 2019-07 · chassis NCP131 · catalogue 116430 · United States

Supported model Data version 2018-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Cooler Piping

16 part groups · 3 illustrations

Illustrations

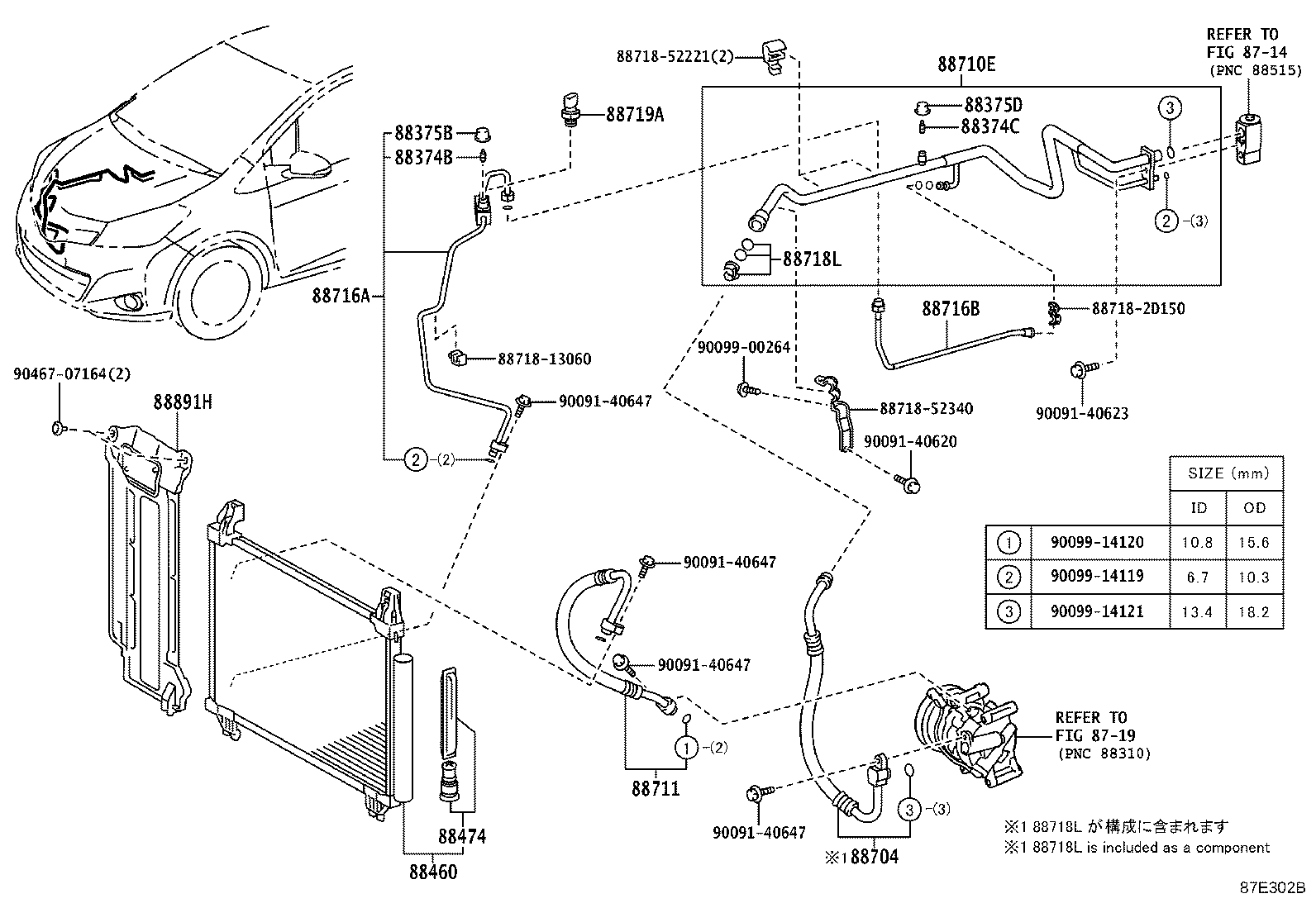

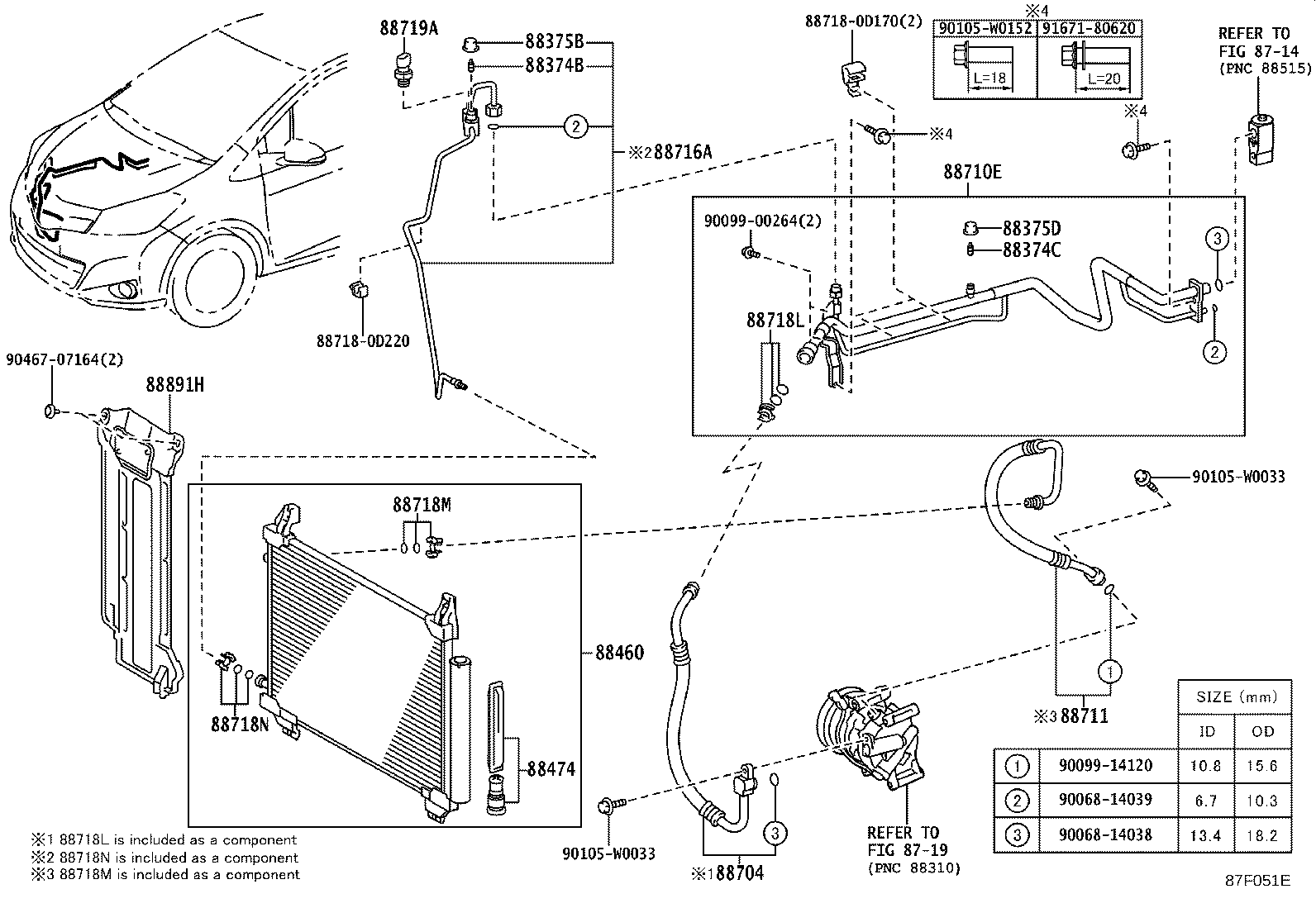

Figure 87D581F 87D581F 2013-05 → 2015-05 Figure 87F051E 87F051E 2015-05 → — Figure 87E302B 87E302B 2014-07 → 2016-07

Part groups

PNCDescription
88374B Valve, Service, NO.1
88374C Valve, Service, NO.2
88375B Cap, Service Valve, NO.1
88375D Cap, Service Valve, NO.2
88460 Condenser Assy, Cooler
88474 Dryer, Cooler
88704 Hose Sub-assy, Suction
88710E Tube & Accessory Assy, Air Conditioner
88711 Hose, Cooler Refrigerant Discharge, NO.1
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88718L Clamp, Piping
88718M Clamp, Piping
88718N Clamp, Piping
88719A Sensor, Air Conditioner Pressure
88891H Cover, Cooler, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
