Toyota Yaris (FRP)
2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · United States
Discontinued model
Data version 2006-05

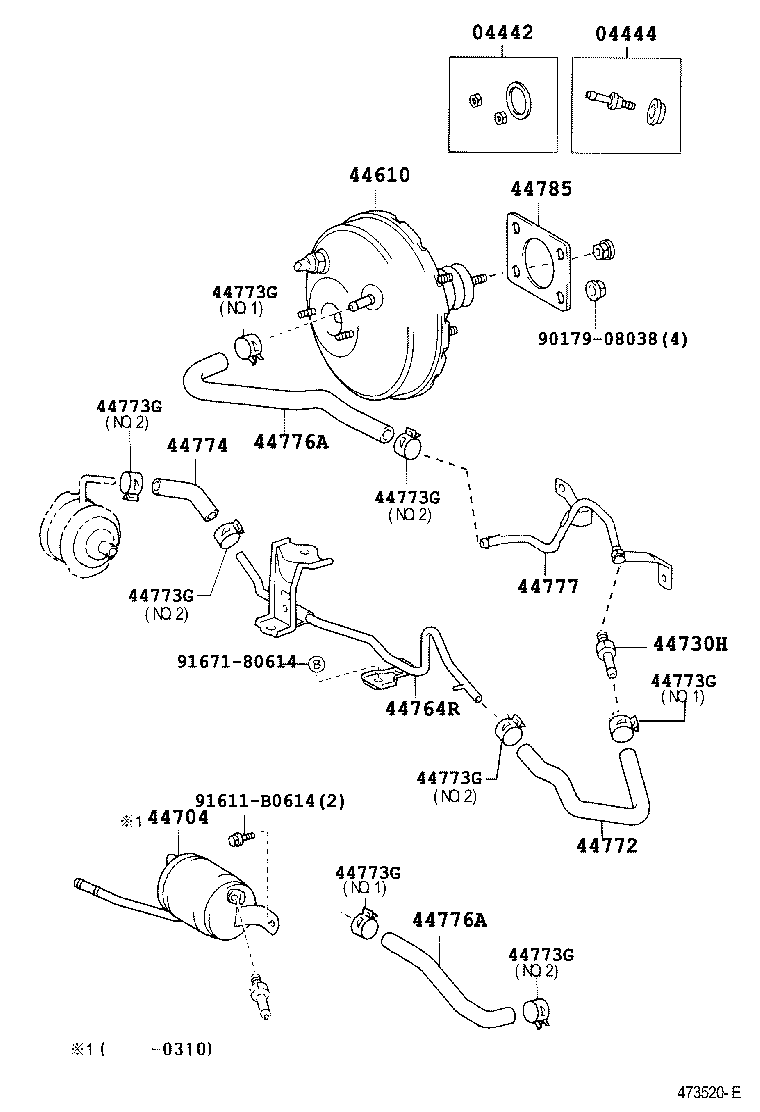

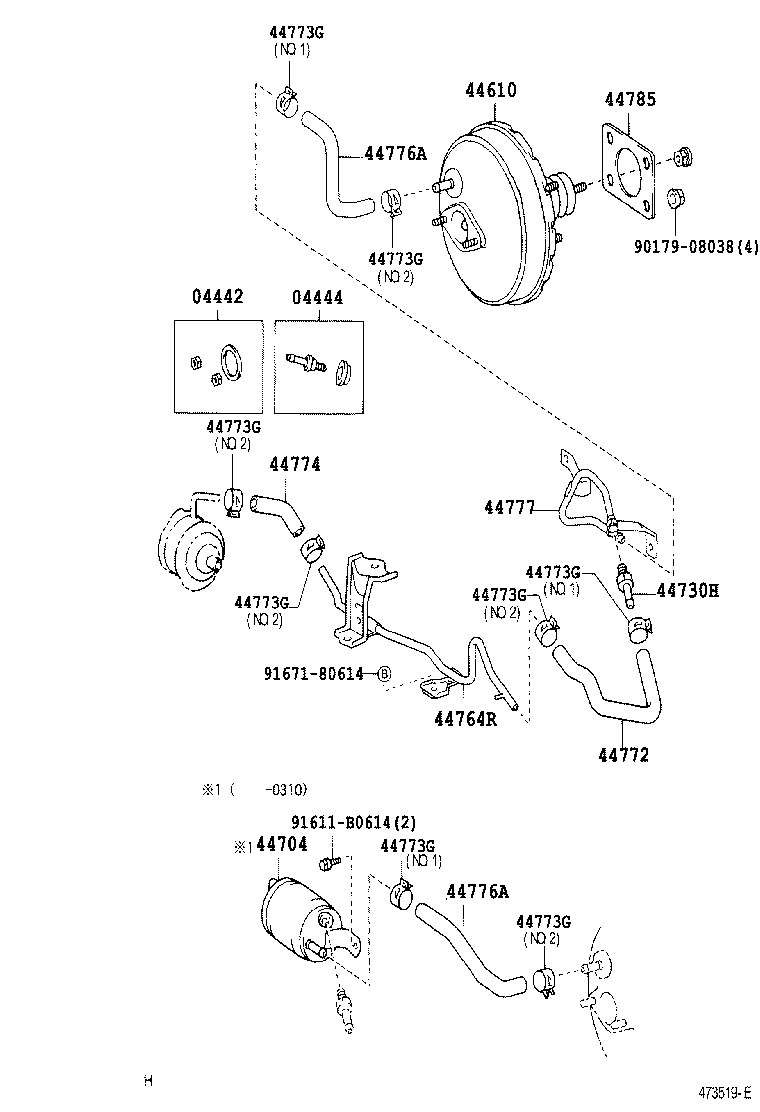

Brake Booster & Vacuum Tube
15 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04442 | Fitting Kit, Brake Booster |
| 04444 | Valve Kit, Booster Control |
| 44610 | Booster Assy, Brake |
| 44704 | Reservoir Sub-assy, Vacuum |
| 44730H | Valve Assy, Vacuum Check(FOR VACUUM RESERVOIR) |
| 44741D | Body, Vacuum Check Valve |
| 44764R | Tube, Connector TO Vacuum Reservoir |
| 44772 | Hose, Check Valve TO Connector Tube |
| 44773F | Hose, Union TO Check Valve |
| 44773G | Clip(FOR UNION TO CHECK VALVE HOSE) |
| 44774 | Hose, Union TO Connector Tube |
| 44776 | Hose, Brake Booster |
| 44776A | Hose, Vacuum Reservoir TO Brake Booster |
| 44777 | Connector, Vacuum Hose, NO.1 |
| 44785 | Gasket, Brake Booster |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
