Toyota Yaris (FRP)
2001-01 → 2005-11 · chassis SCP1#,NLP10 · catalogue 116510 · United States
Discontinued model
Data version 2006-05

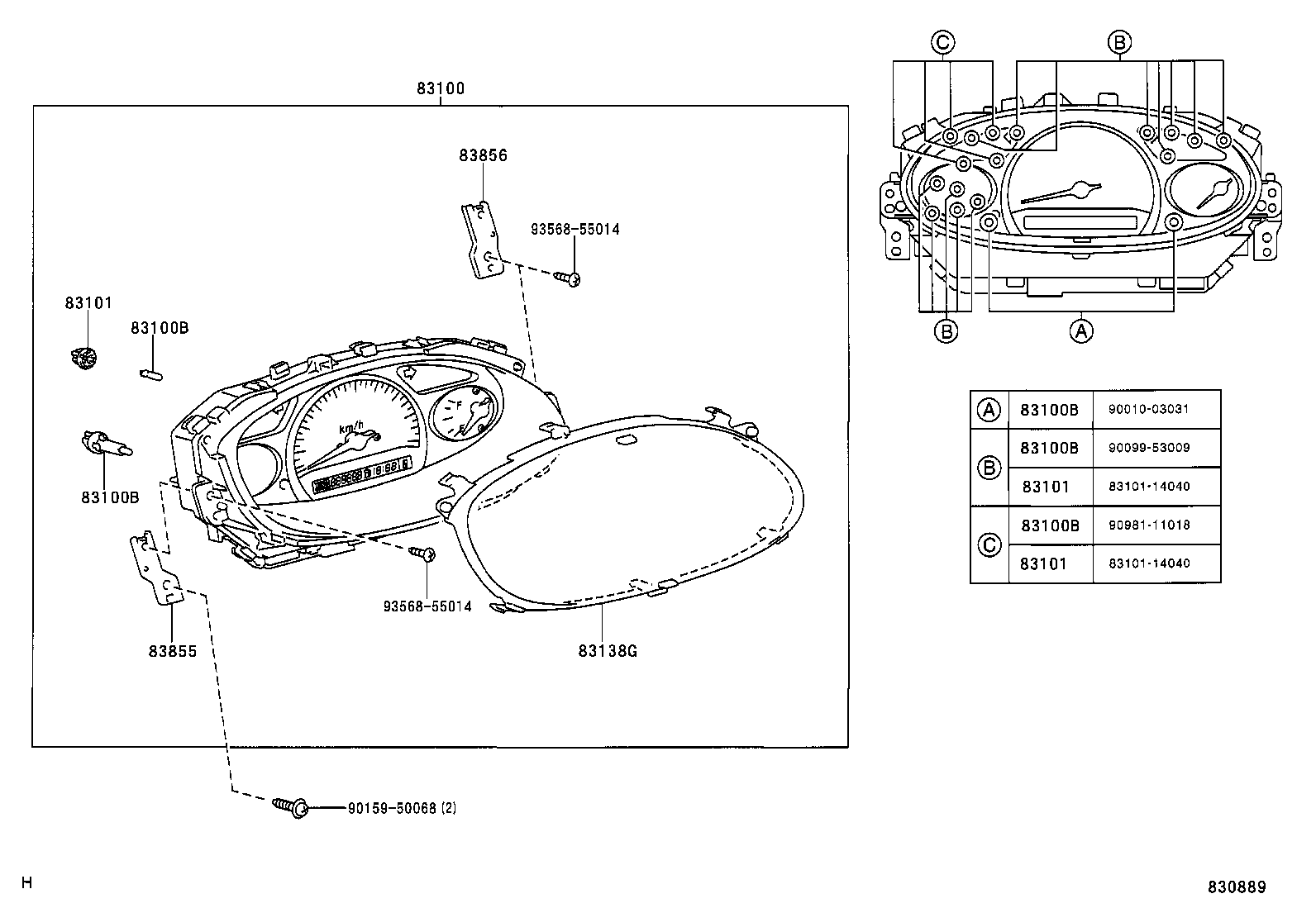

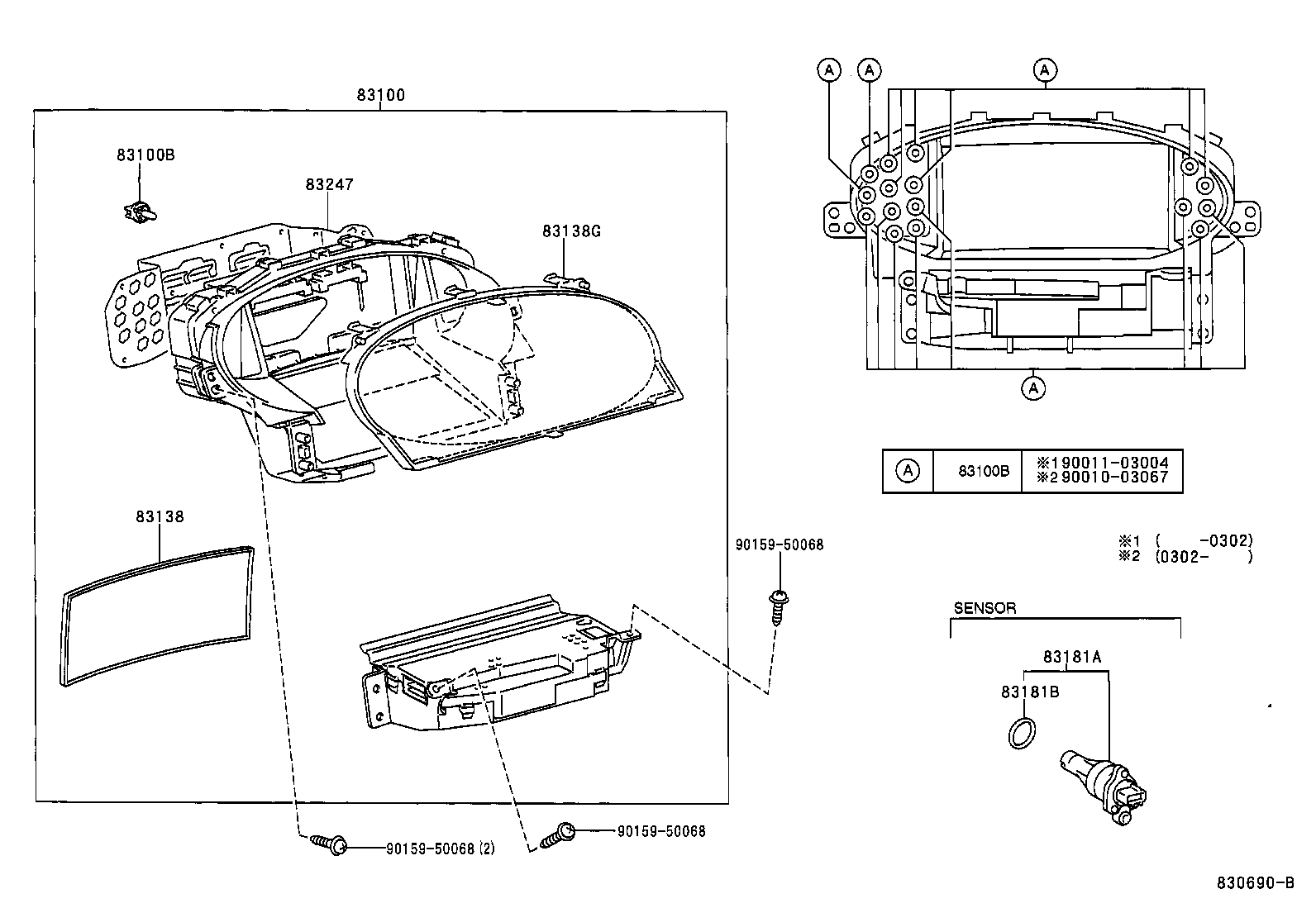

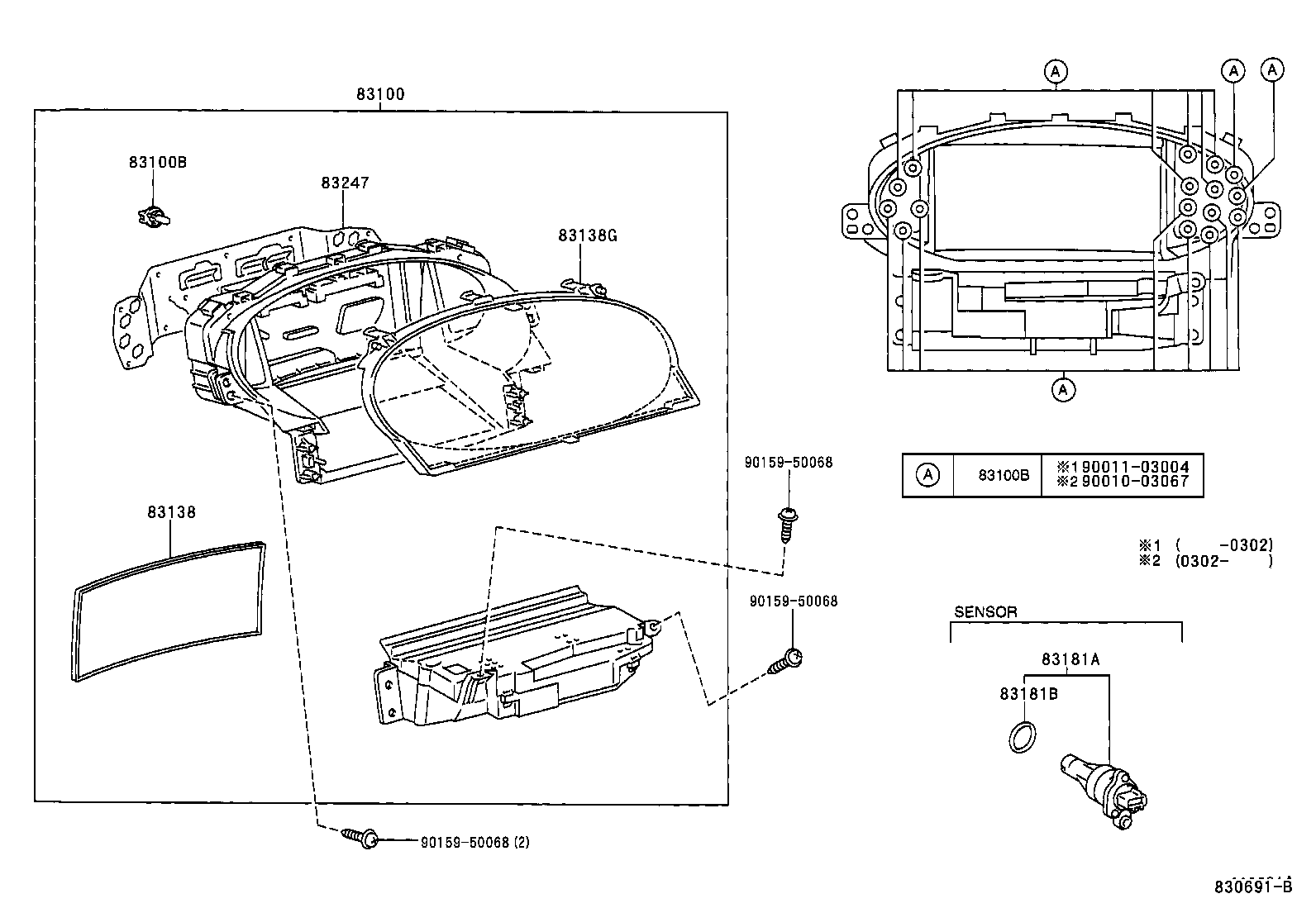

Meter
12 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 83100 | Meter Assy, Combination |
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83138 | Glass, Speedometer |
| 83138G | Glass, Combination Meter |
| 83181A | Sensor, Speedometer |
| 83181B | Ring, O (FOR SPEEDOMETER SENSOR) |
| 83247 | Plate, Meter Circuit |
| 83855 | Bracket, Combination Meter, NO.1 |
| 83856 | Bracket, Combination Meter, NO.2 |
| 83910 | Clock Assy |
| 83911C | Ornament, Clock |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
