Engine Oil Cooler

6 part groups · 4 illustrations

Illustrations

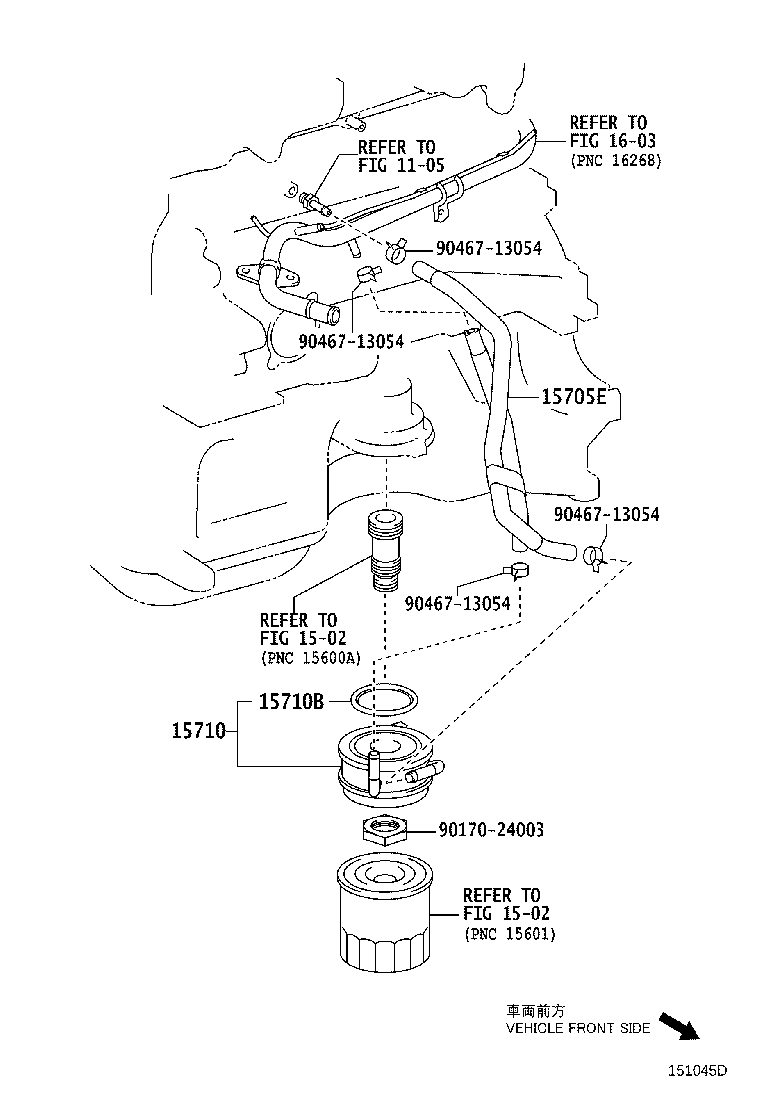

Figure 151045D

151045D 2005-11 → 2008-11

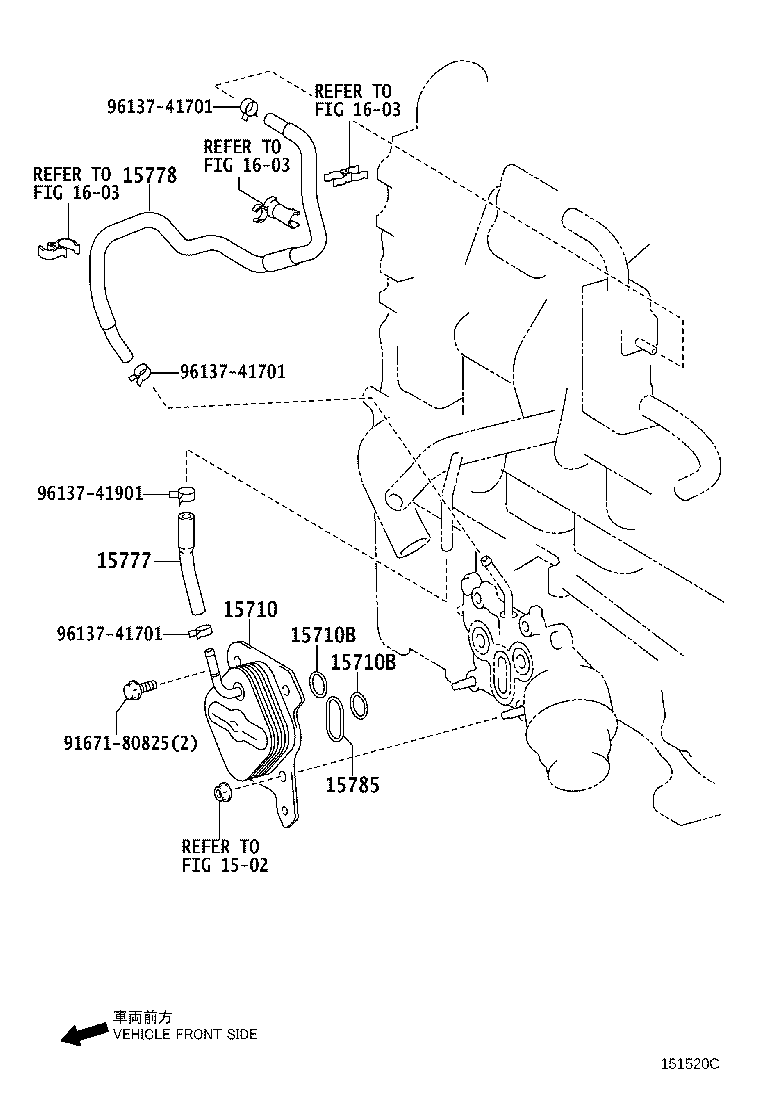

Figure 151520C

151520C 2008-11 → 2010-07

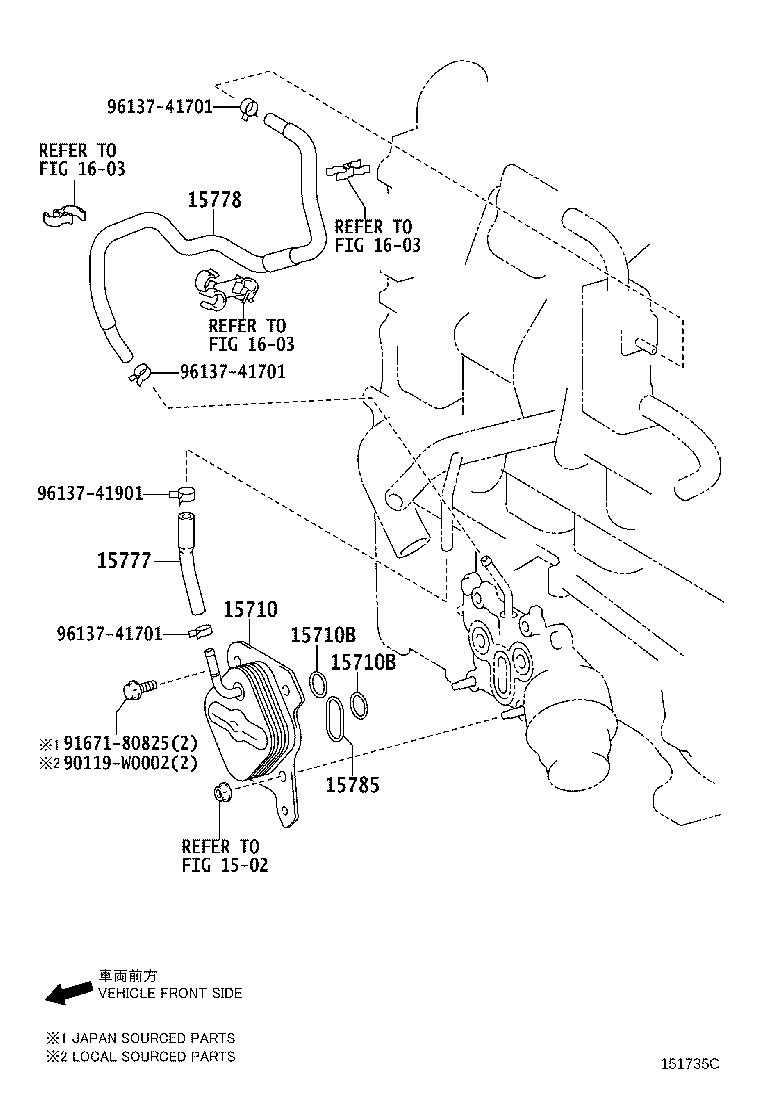

Figure 151735C

151735C 2010-07 → —

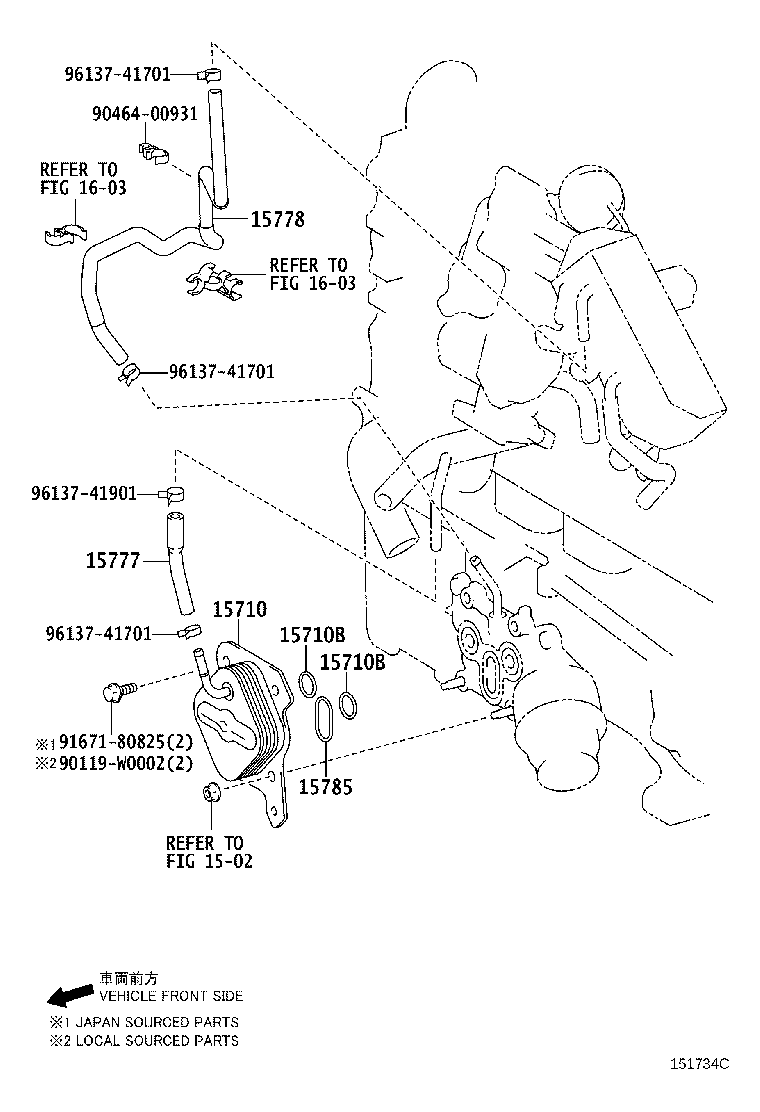

Figure 151734C

151734C 2010-07 → —

Part groups

PNC	Description
15705E	Hose Sub-assy, Oil Cooler
15710	Cooler Assy, Oil
15710B	Ring, O(FOR OIL COOLER)
15777	Hose, Oil Cooler
15778	Hose, Oil Cooler, NO.2
15785	Gasket, Oil Cooler

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
