Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

8 part groups · 4 illustrations

Illustrations

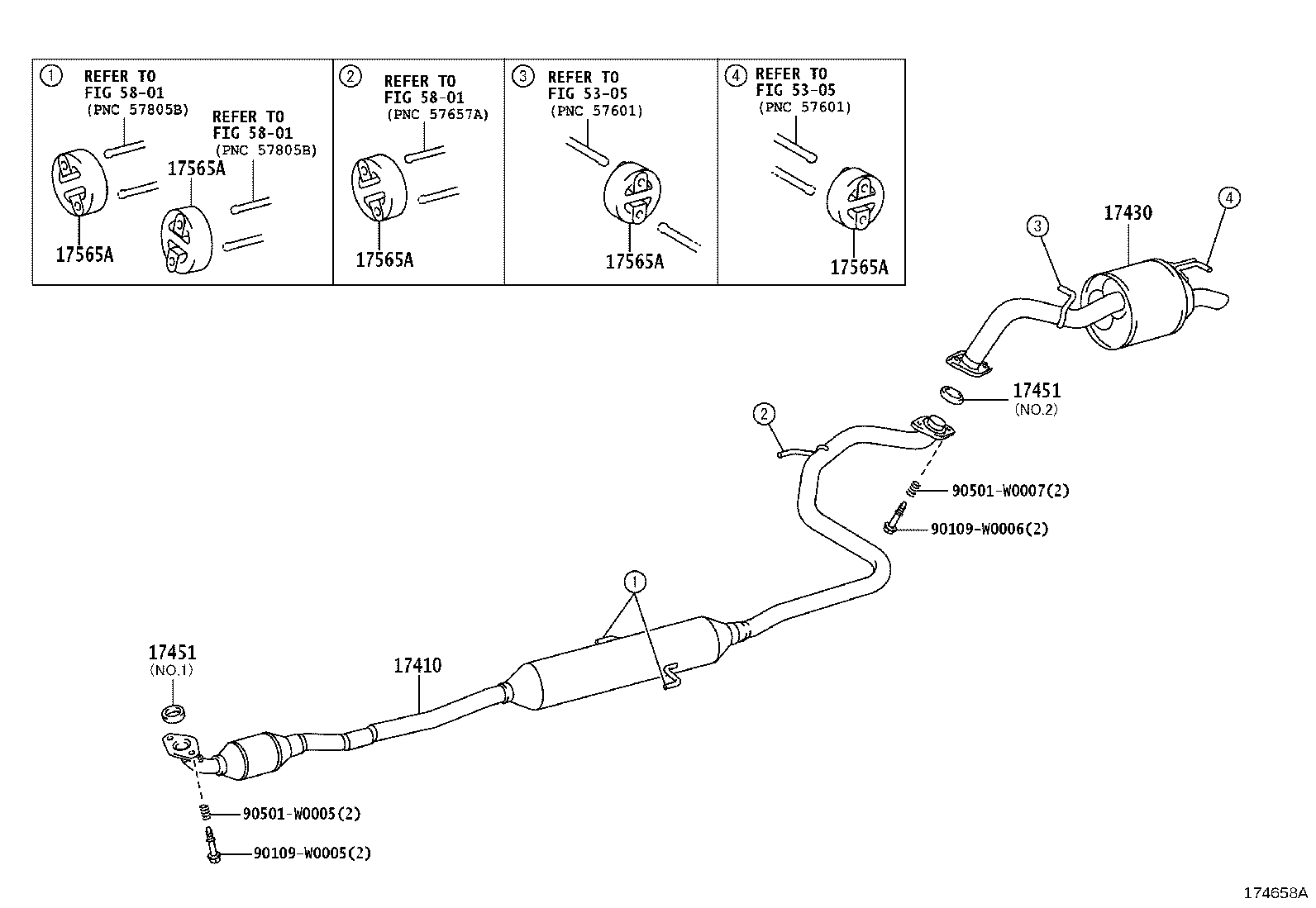

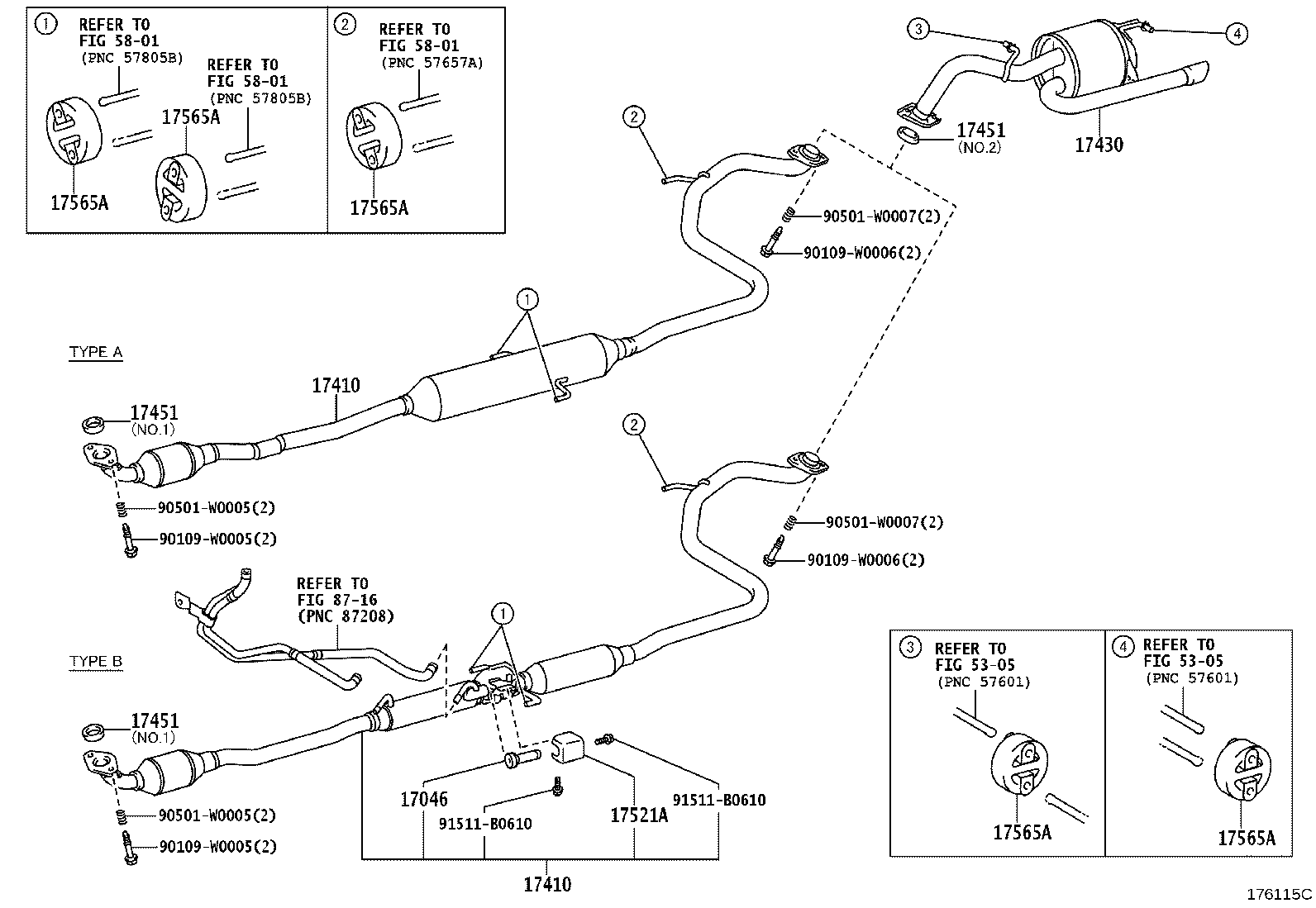

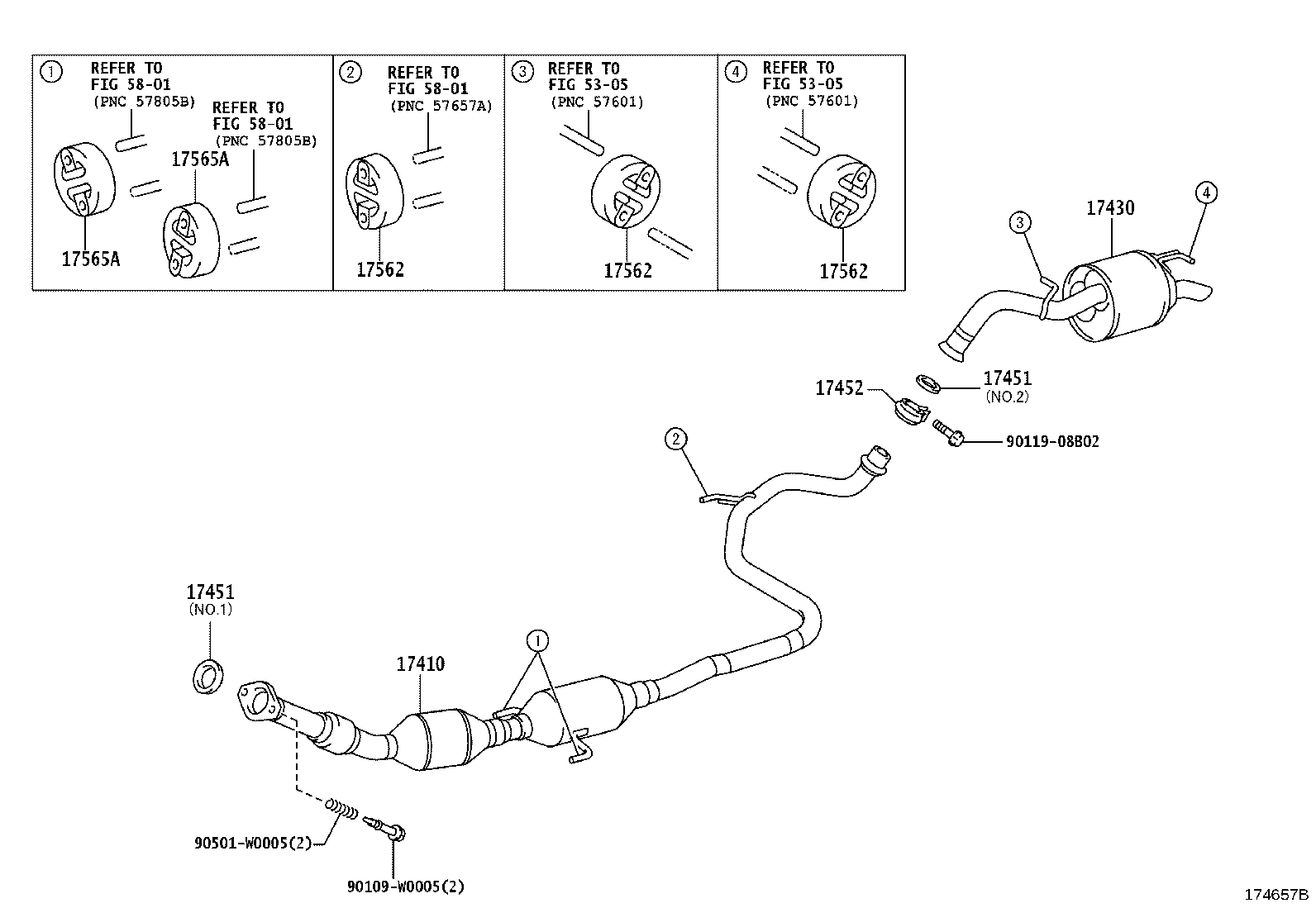

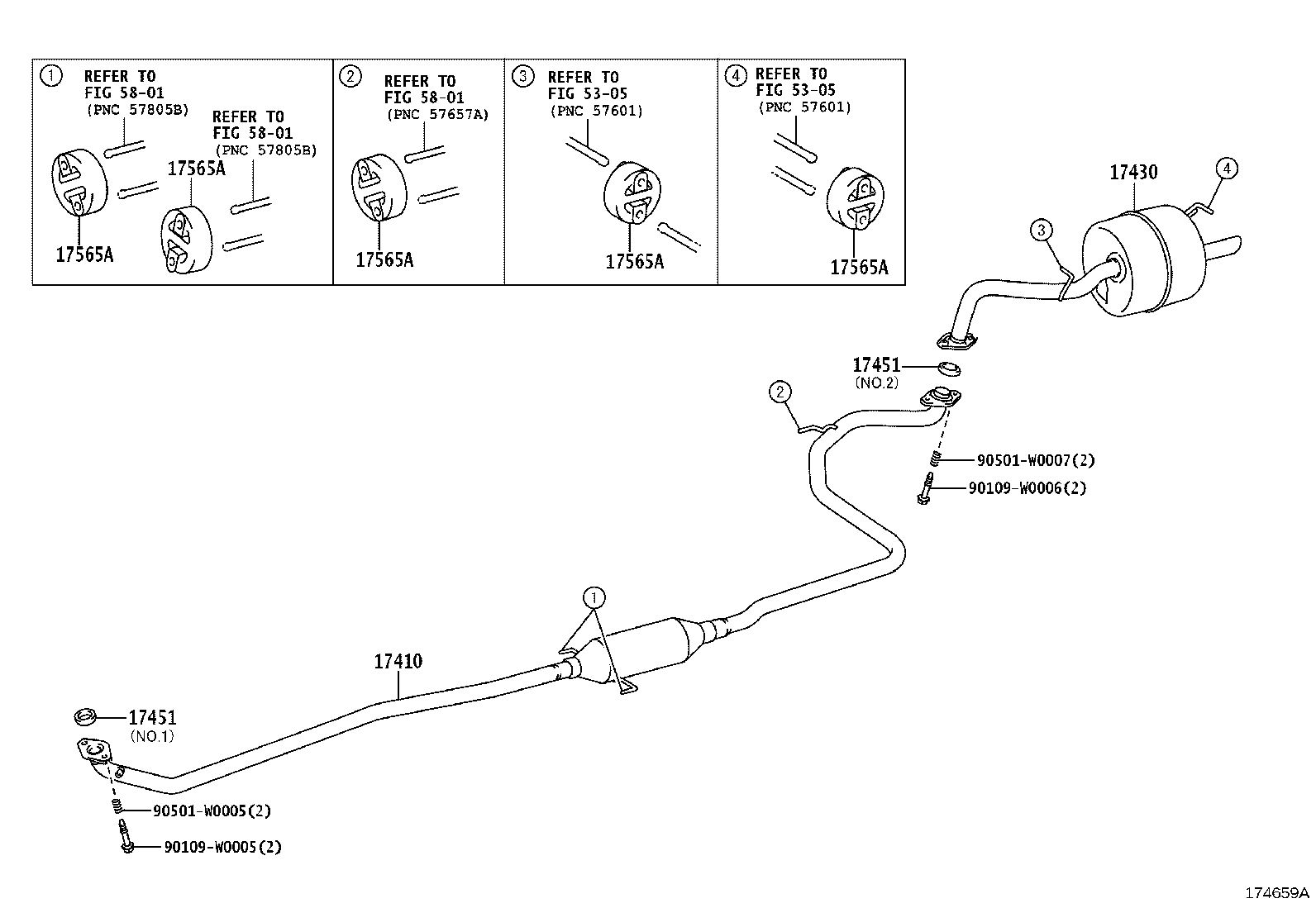

Figure 174659A 174659A 2005-11 → — Figure 174657B 174657B 2005-11 → — Figure 174658A 174658A 2005-11 → 2008-11 Figure 176115C 176115C 2008-11 → —

Part groups

PNCDescription
17046 Actuator Sub-assy, Exhaust Pipe Gas Control
17410 Pipe Assy, Exhaust, Front
17430 Pipe Assy, Exhaust, Tail
17451 Gasket, Exhaust Pipe
17452 Clamp, Exhaust Pipe
17521A Protector, Exhaust Pipe, Upper NO.1
17562 Support, Exhaust Pipe, NO.2
17565A Support, Exhaust Pipe, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
