Toyota Yaris (FRP)

2005-11 → 2011-07 · chassis KSP90,NLP90,NSP90,SCP90 · catalogue 116520 · United States

Supported model Data version 2012-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Suspension Crossmember & Under Cover

10 part groups · 3 illustrations

Illustrations

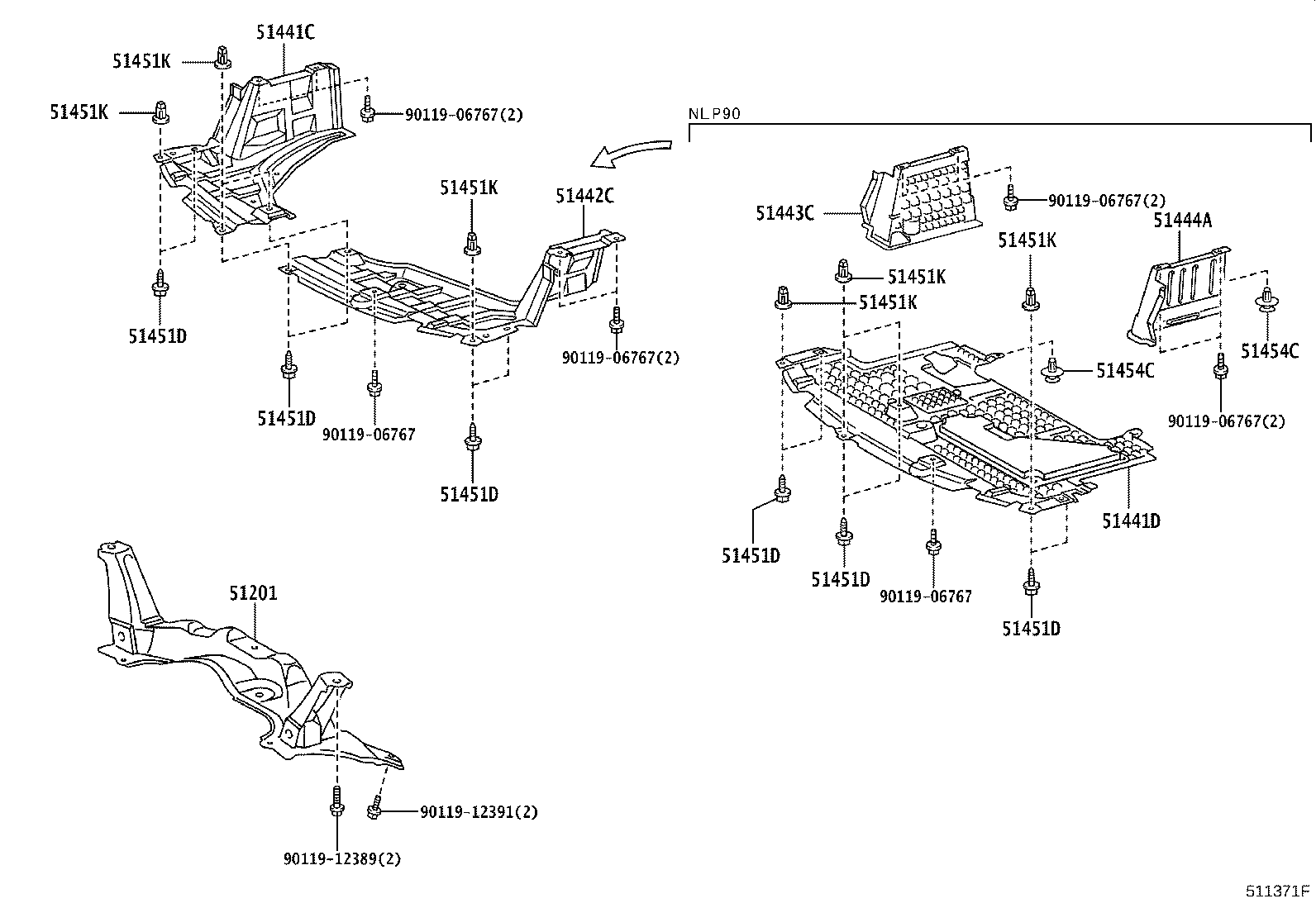

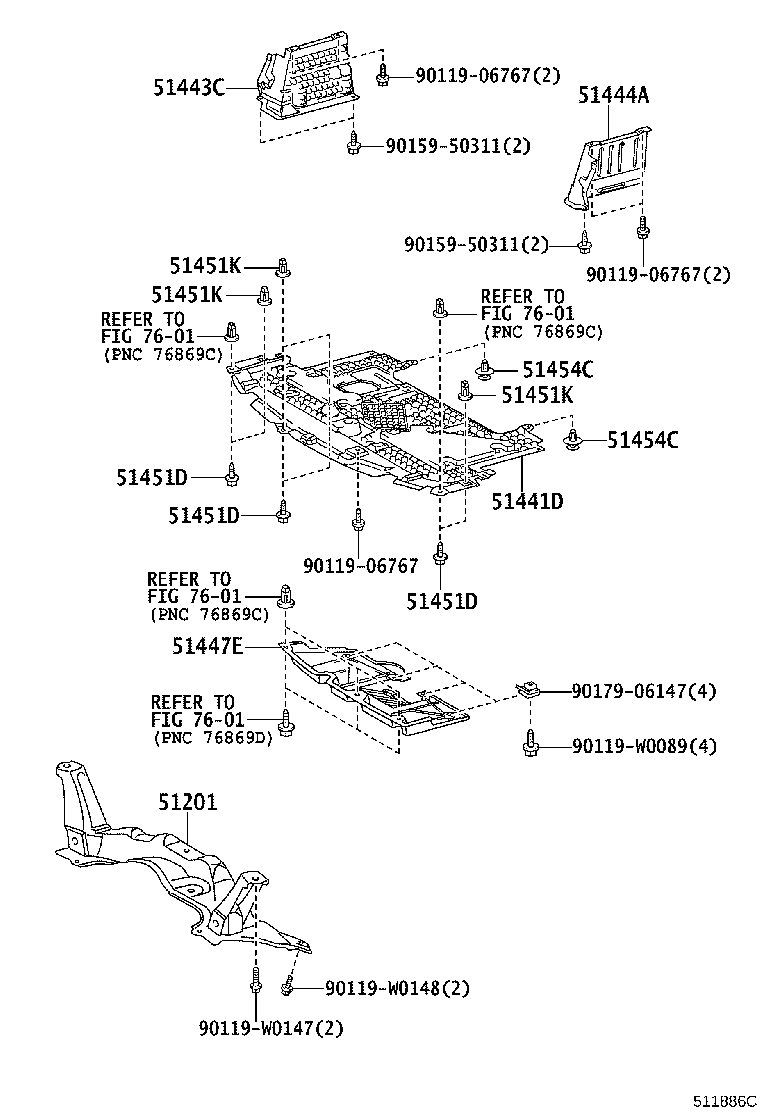

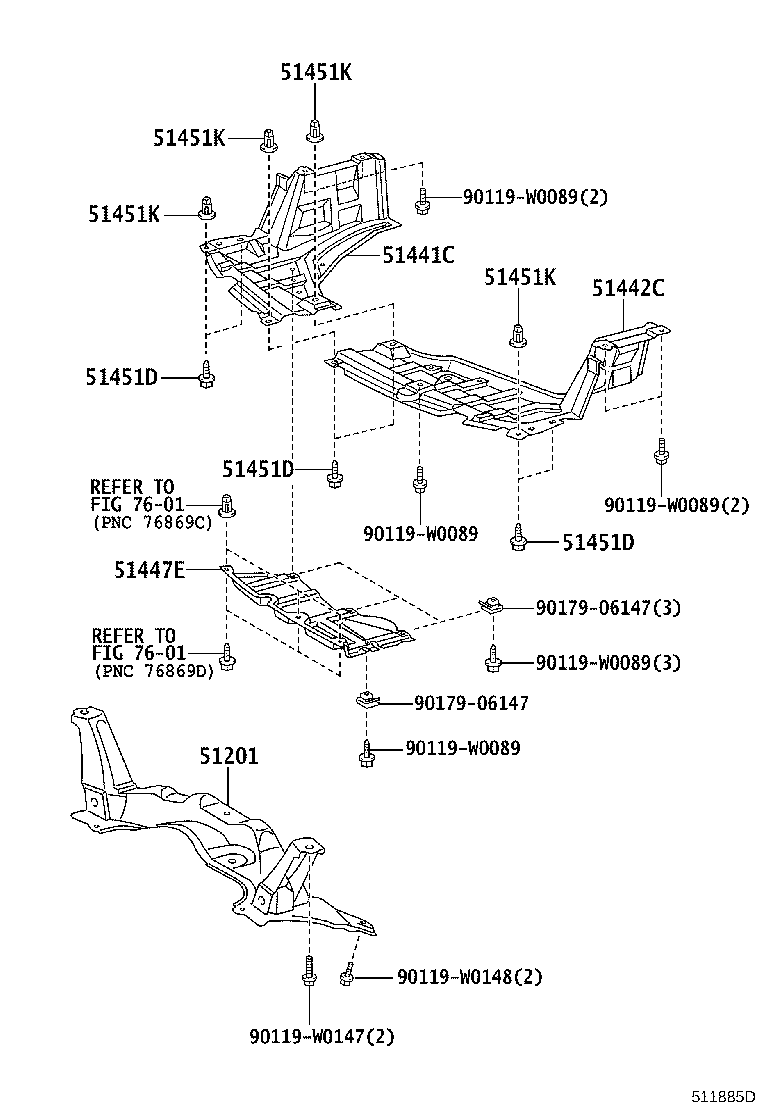

Figure 511371F 511371F 2005-11 → 2008-11 Figure 511885D 511885D 2008-11 → — Figure 511886C 511886C 2008-11 → —

Part groups

PNCDescription
51201 Crossmember Sub-assy, Front Suspension
51441C Cover, Engine Under, RH
51441D Cover, Engine Under
51442C Cover, Engine Under, LH
51443C Cover, Engine Under, Rear RH
51444A Cover, Engine Under, Rear LH
51447E Reinforcement, Engine Under Cover
51451D Screw, NO.1
51451K Grommet, Screw, NO.1
51454C Silencer, Engine Under Cover, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
